Power Seat Systems Component Views

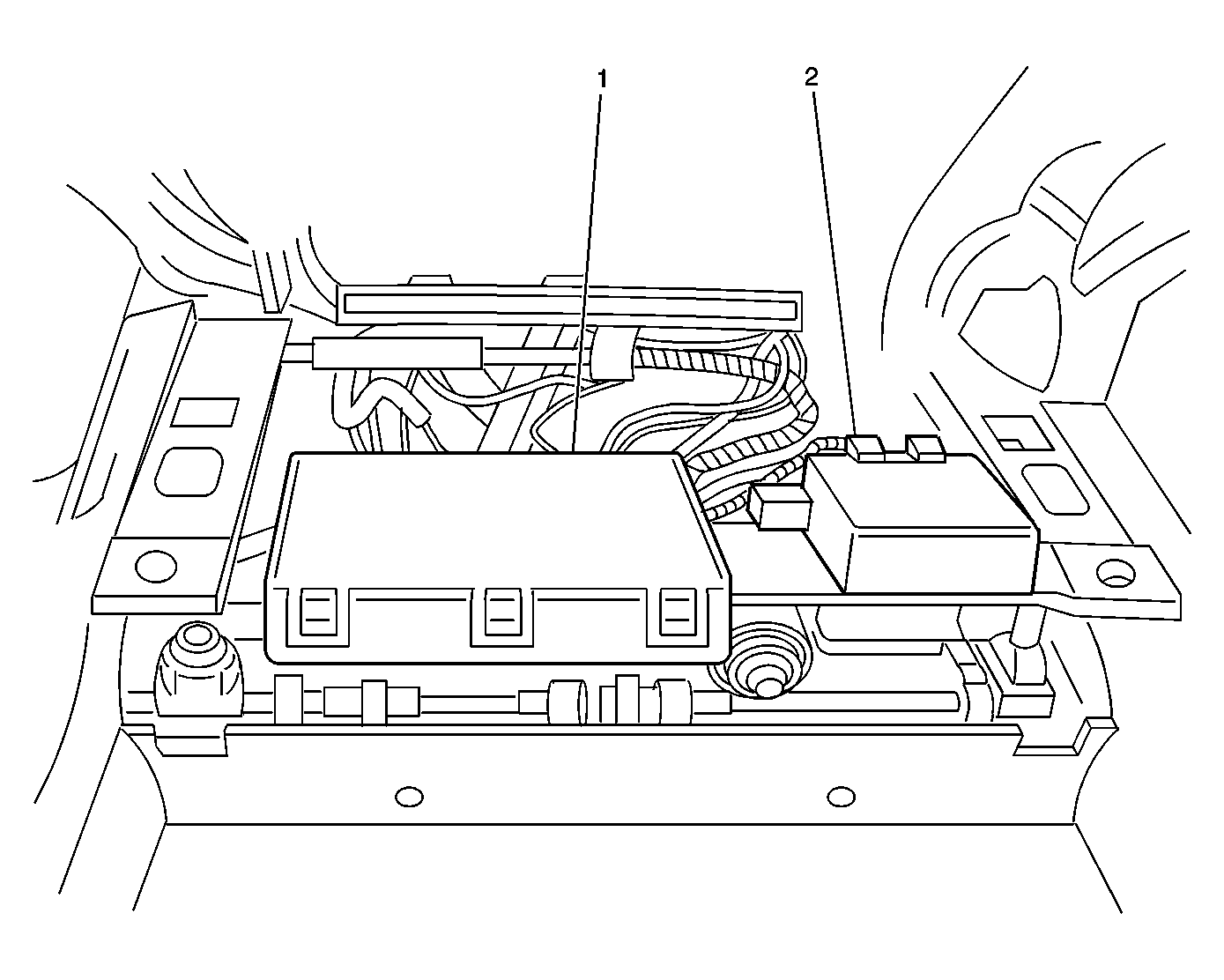

Fig 1: Left Front Of Passenger Compartment, Under Left Front Seat Component View
GM594423Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Memory Seat Module (MSM) (A45)
2 Climate Control Seat Module - Driver, Passenger Similar

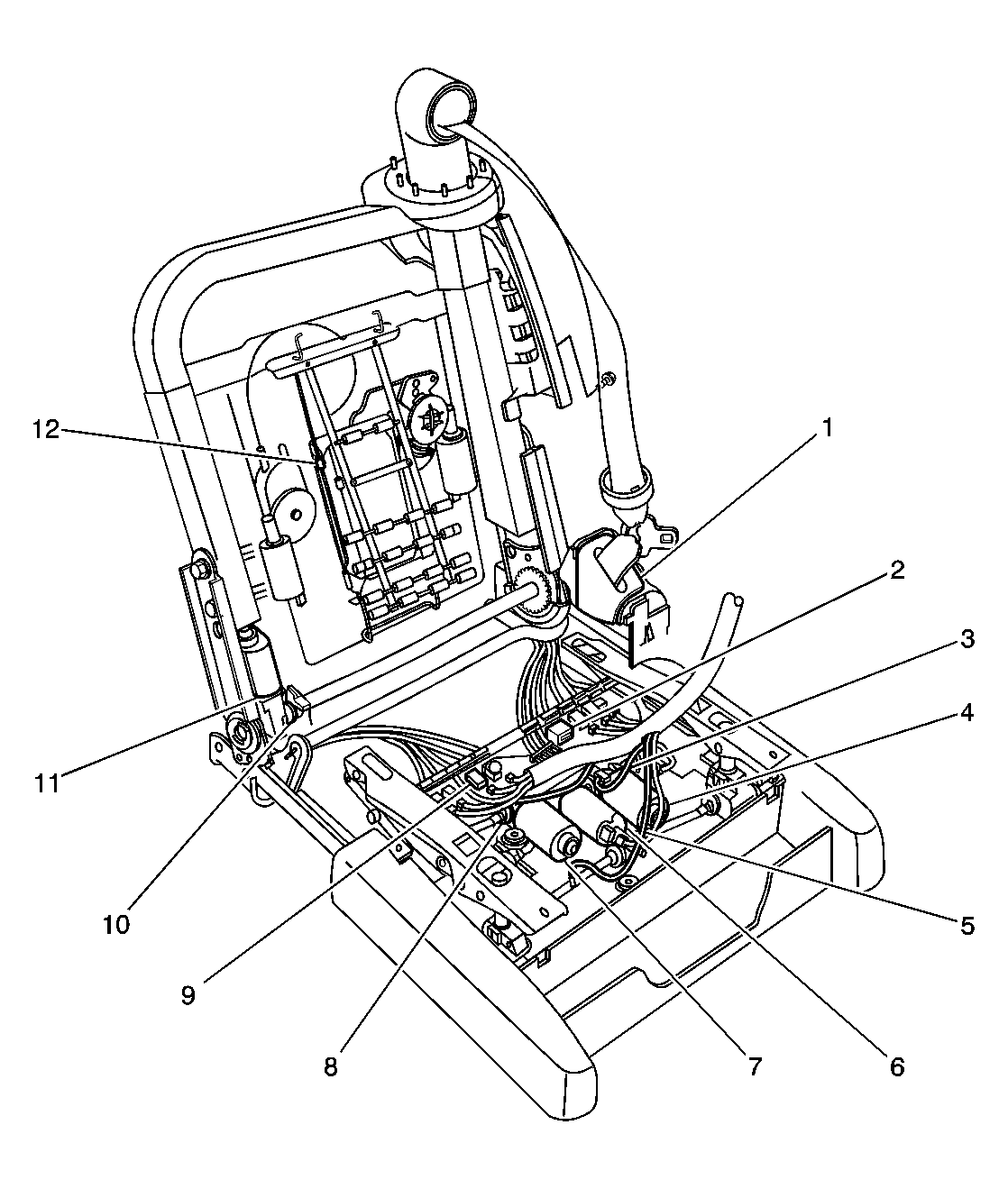

Fig 2: Passenger Compartment, In Driver Seat Component View
GM900123Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Retractor- Driver (Passenger Similar)
2 C324 (C326 Similar)
3 Seat Rear Vertical Position Sensor- Driver
4 Seat Rear Vertical Motor- Driver (Front Passenger Similar)
5 Seat Front Vertical Position Sensor- Driver
6 Seat Front Vertical Motor- Driver (Front Passenger Similar)
7 Seat Horizontal Motor- Driver (Front Passenger Similar)
8 Seat Horizontal Position Sensor- Driver
9 C323 and C314 (C325 Similar)
10 Seat Recline Position Sensor- Driver
11 Seat Recline Motor- Driver (Front Passenger Similar)
12 Seat Massaging Power Lumbar Assembly- Driver (Front Passenger Similar)

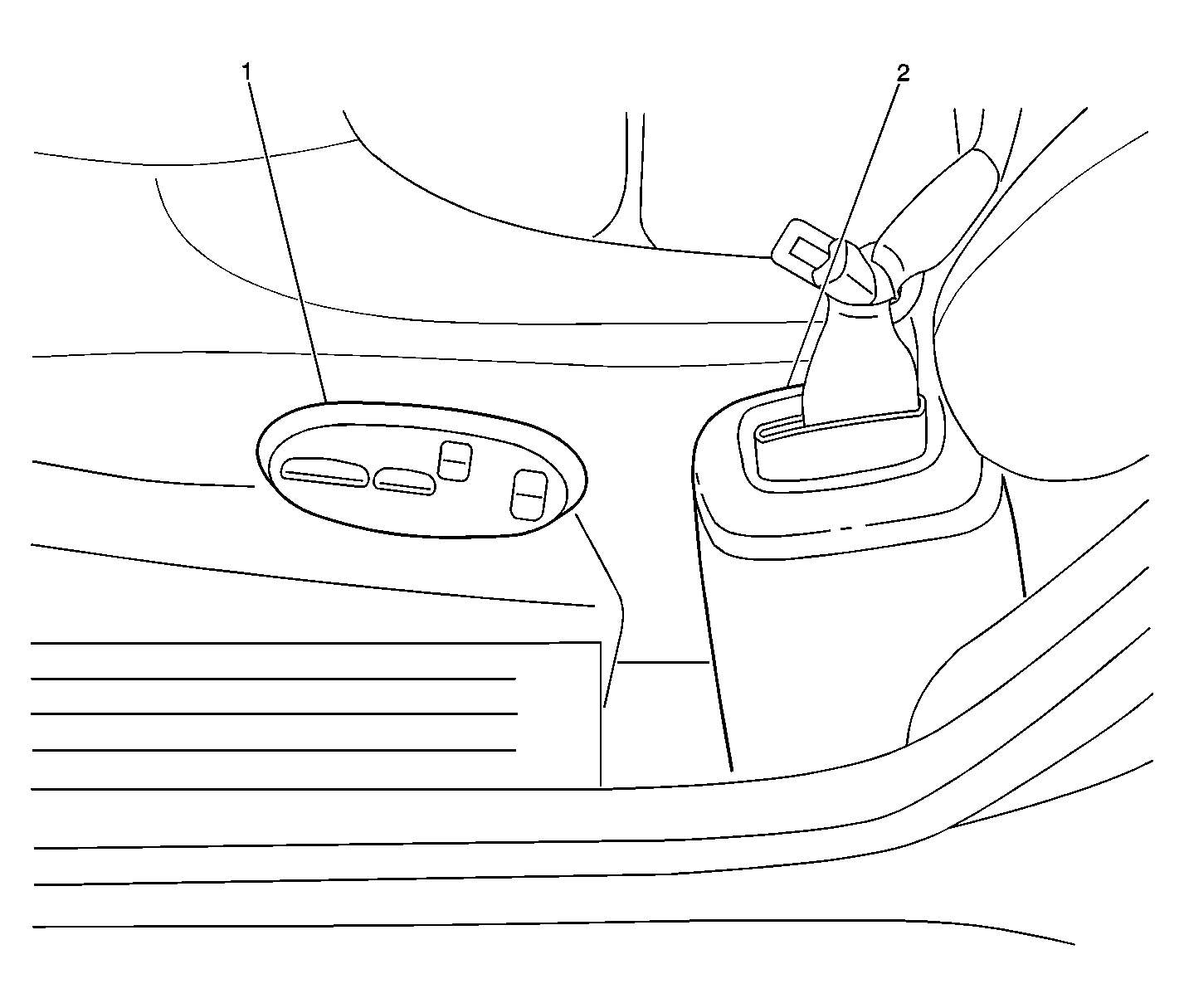

Fig 3: Left Front Seat, On Left Side Of Seat Cushion Component View
GM524977Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Adjuster Switch and Seat Lumbar Switch - Driver, Passenger Similar
2 Seat Belt Retractor -LF, RF Similar

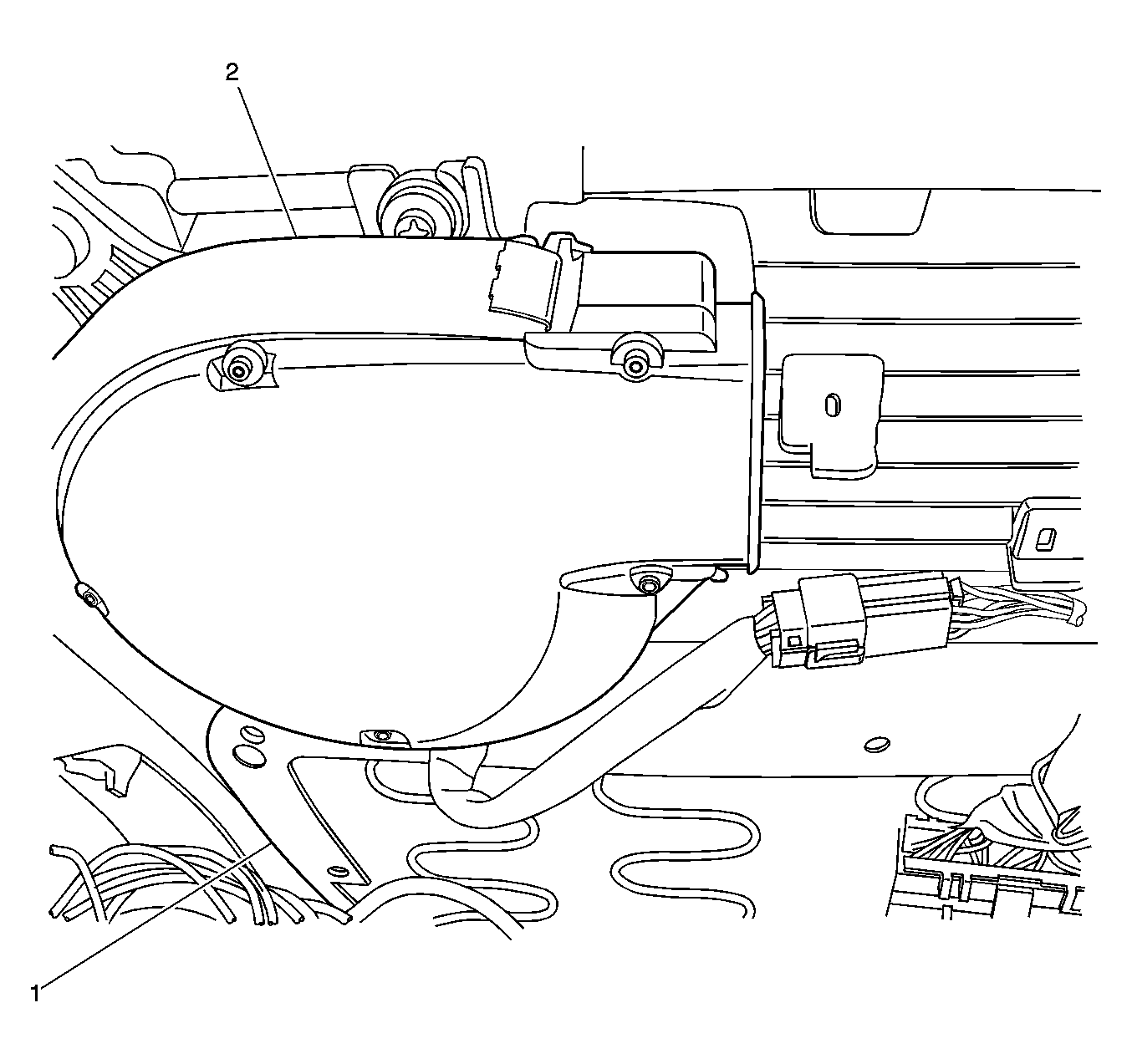

Fig 4: Passenger Compartment, Under Driver Seat Component View
GM1410231Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Driver Seat Cushion (Passenger Similar)
2 Seat Cushion Ventilation Heat and Cool Module- Driver (Passenger Similar)

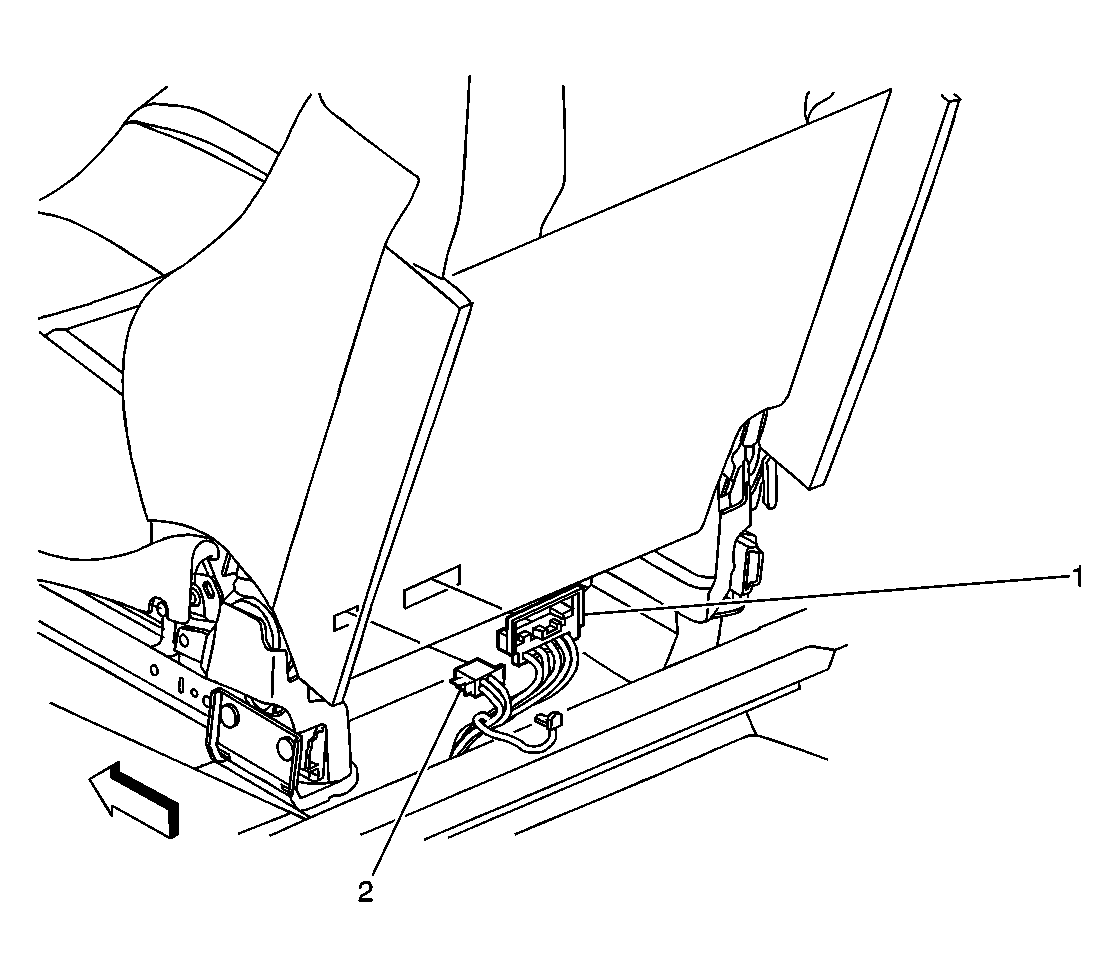

Fig 5: LH Seat Connectors Component Views
GM492643Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C302
2 Inflatable Restraint Connector
Fig 6: Left Front Door, On Door Trim Panel Component View
GM534708Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Driver Door Switch Assembly (DDSA), Passenger Similar
2 Door Lock Switch - Driver, Passenger Similar
3 Speaker - LF Door, RF Door Similar
4 Courtesy Lamp - Left Front Door, Right Front Door Similar
5 Heated Seat Switch - Driver, Passenger Similar
6 Memory/Personalization Function Switch

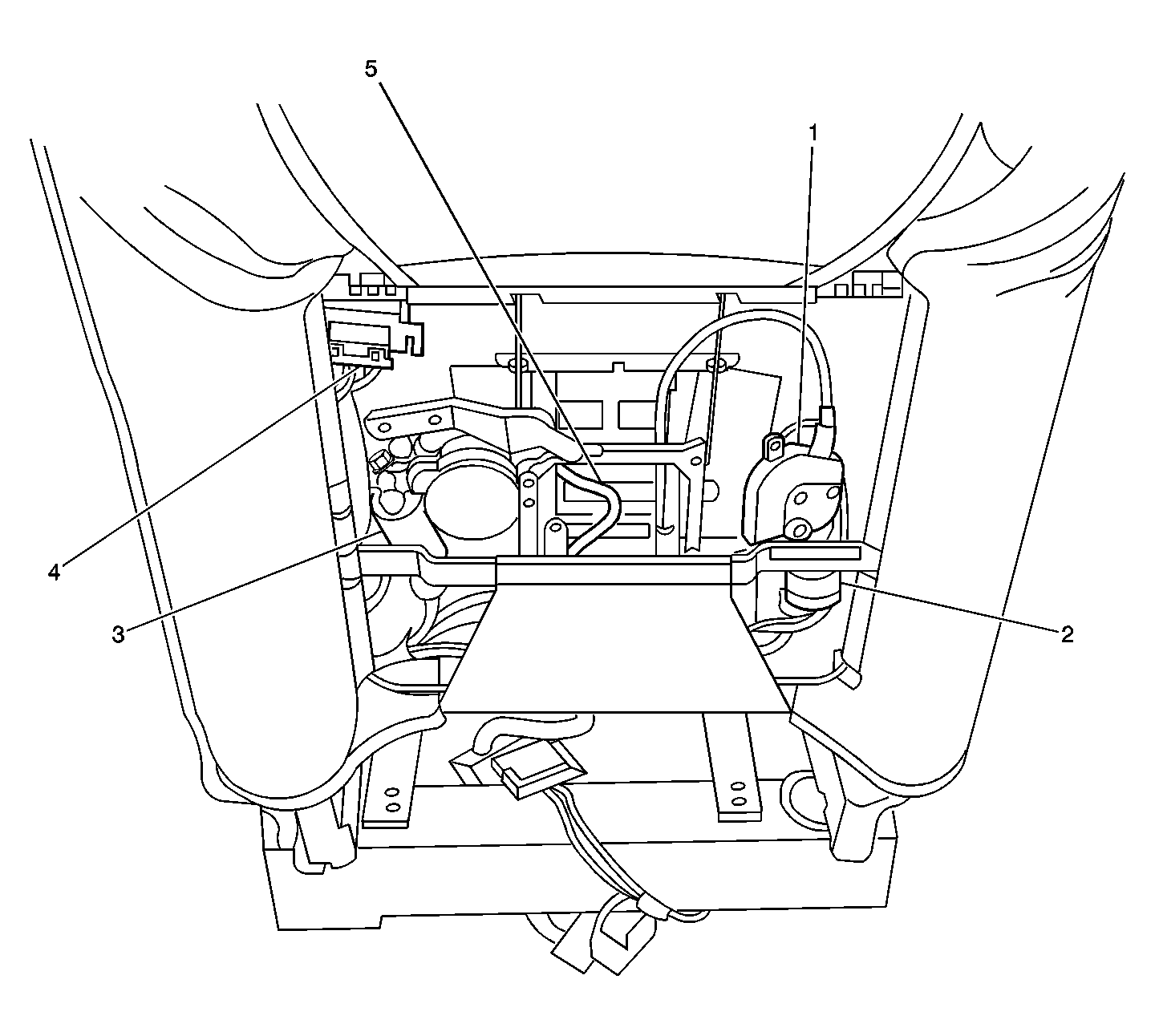

Fig 7: Left Front Of Passenger Compartment, Under Left Front Seat Component View
GM592166Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Lumbar Horizontal Position Sensor - Driver
2 Seat Lumbar Horizontal Motor - Driver, Front Passenger Similar
3 Seat Lumbar Vertical Motor - Driver, Front Passenger Similar
4 Seat Massage Module - Driver, Front Passenger Similar
5 Seat Lumbar Vertical Position Sensor - Driver, Front Passenger Similar

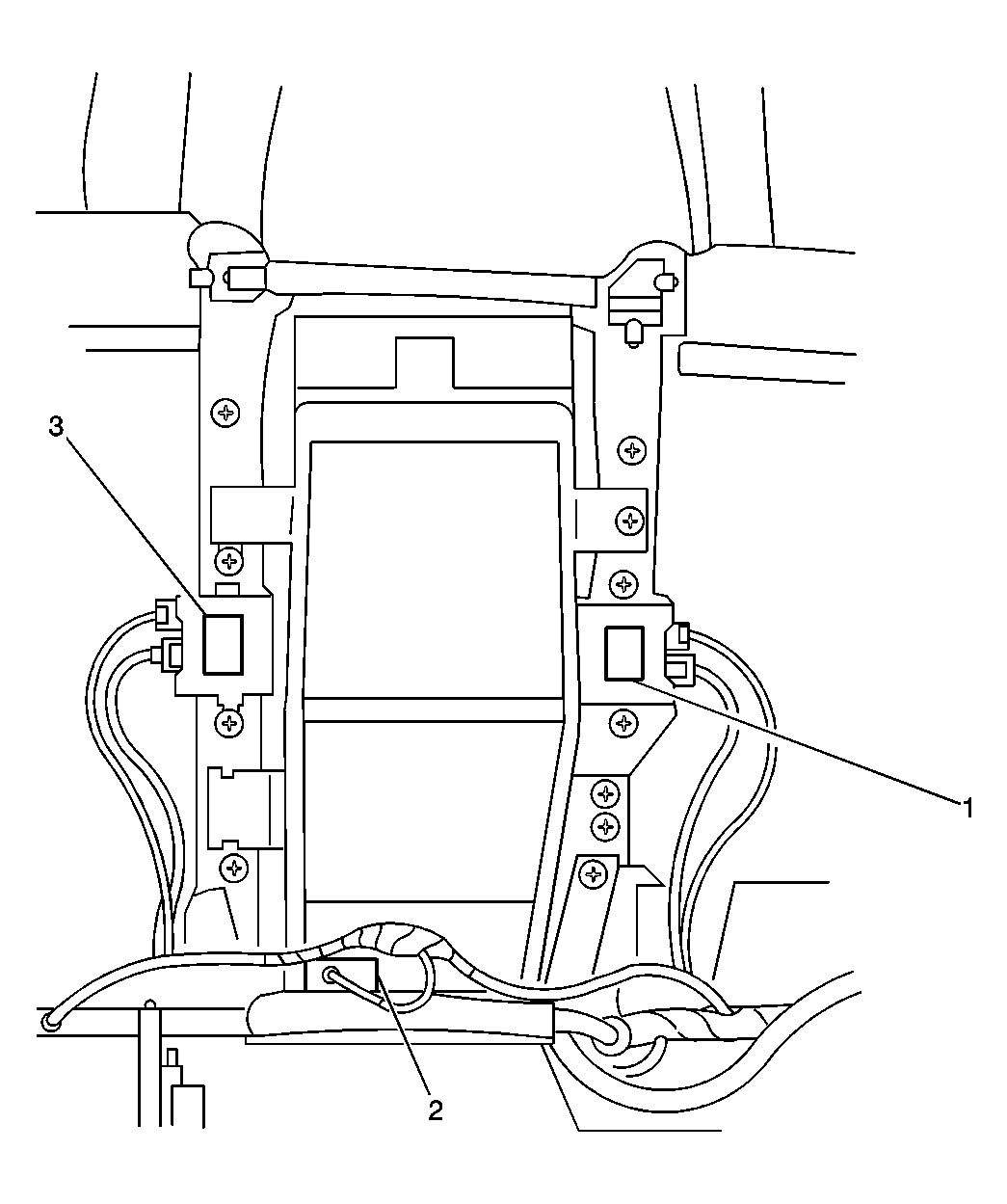

Fig 8: Center Rear Of Passenger Compartment, In Rear Seat Back Component View
GM525046Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Seat Module -RR
2 Seat Harness
3 Heated Seat Module - LR

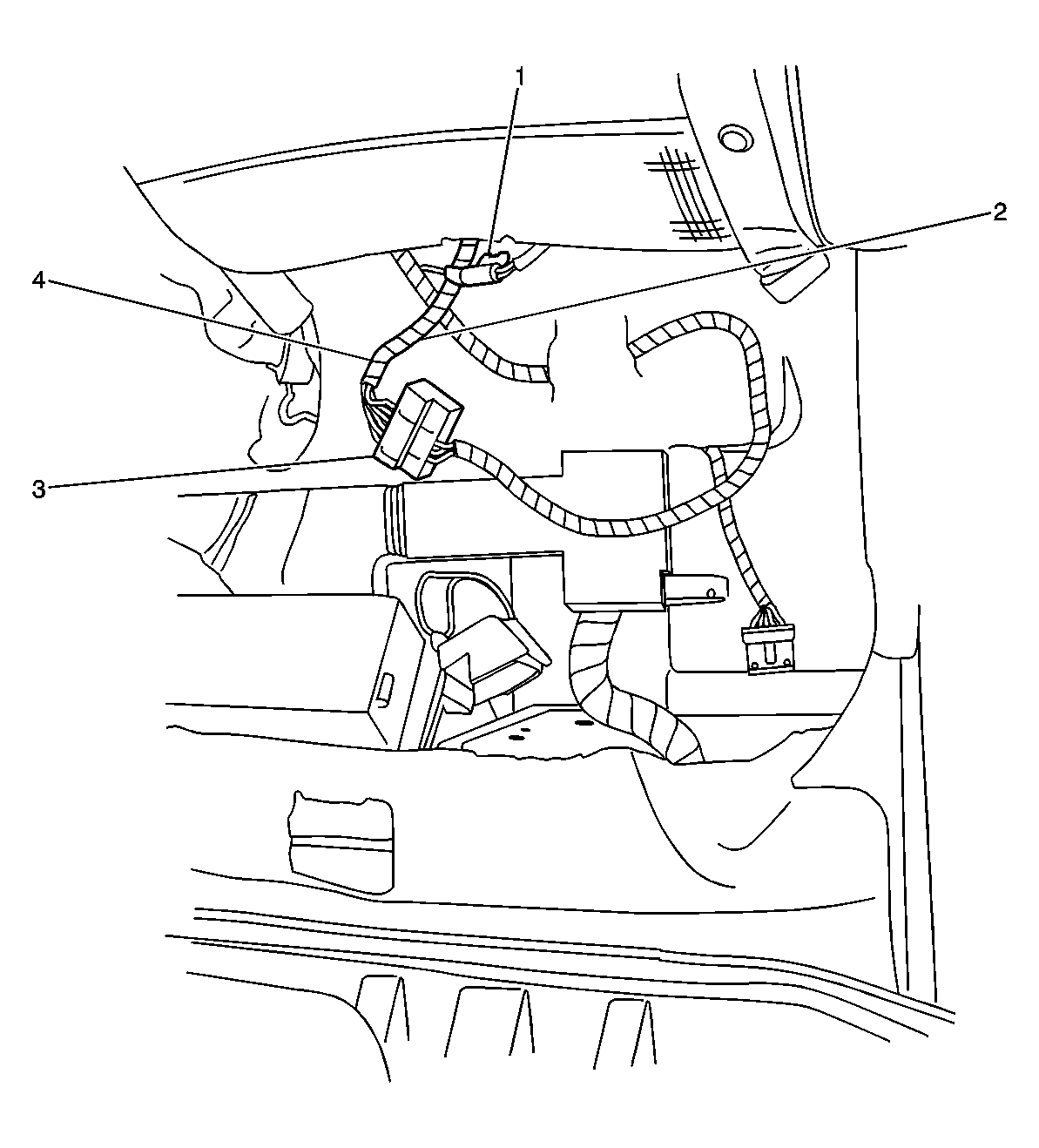

Fig 9: Left Side Of Rear Seat Back Component View
GM524887Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Seat Back Element, (RR Similar)
2 S333
3 C306
4 S334

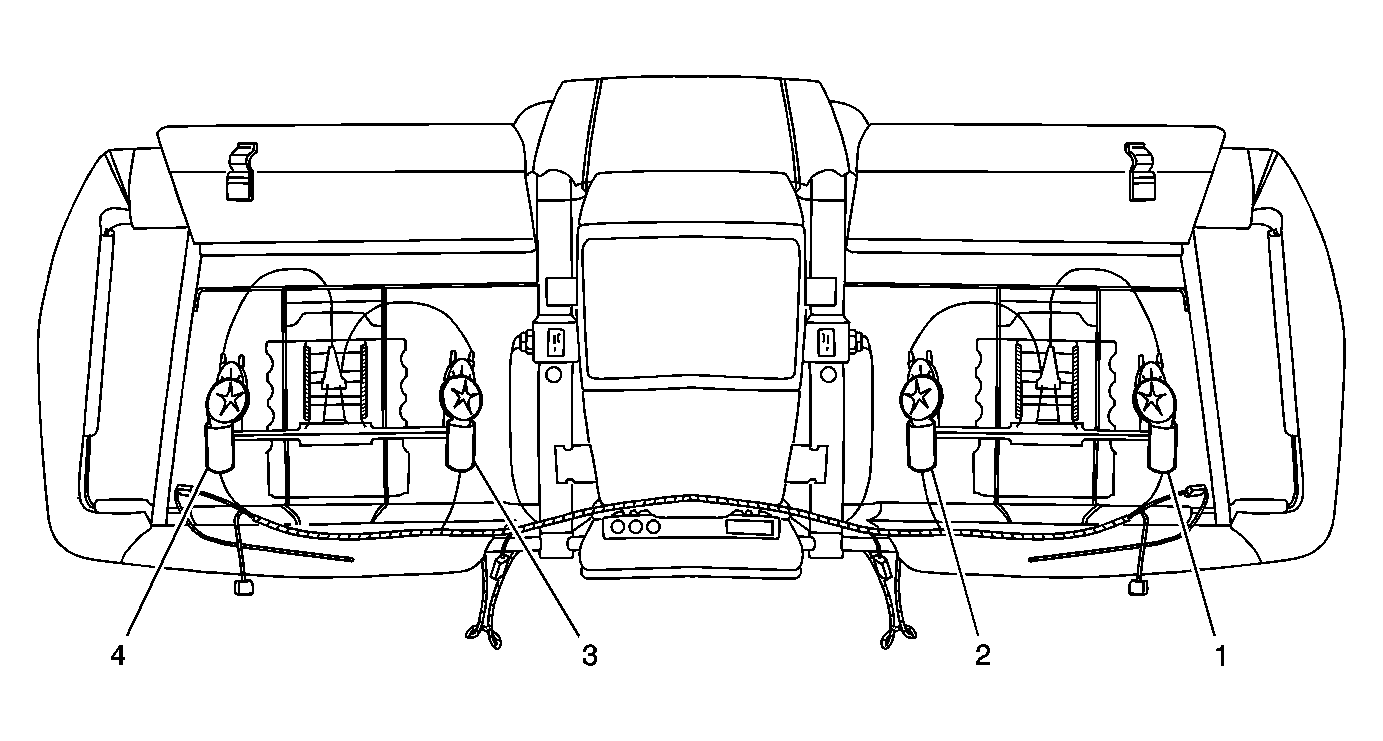

Fig 10: Rear Of Passenger Compartment, Behind Rear Seat Back Component View
GM893769Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Lumbar Horizontal Motor- RR
2 Seat Lumbar Vertical Motor- RR
3 Seat Lumbar Horizontal Motor- LR
4 Seat Lumbar Vertical Motor- LR
Fig 11: Front Of Left Rear Door Component View
GM524980Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Switch - LR, RR Similar
2 Cigar Lighter - LR, RR Similar
3 Speaker - LR Door, RR Similar
4 Door Courtesy Lamp - LR Door, RR Similar
5 Seat Lumbar Switch - LR, RR Similar
6 Heated Seat Switch - LR, RR Similar
7 Window Switch - LR, RR Similar
