Installation Procedure

  1. Position the engine ground cable to the engine.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolt securing the engine ground cable to the generator.

    Tighten:  Tighten the generator mounting bolt to 50 N.m (37 lb. ft.).

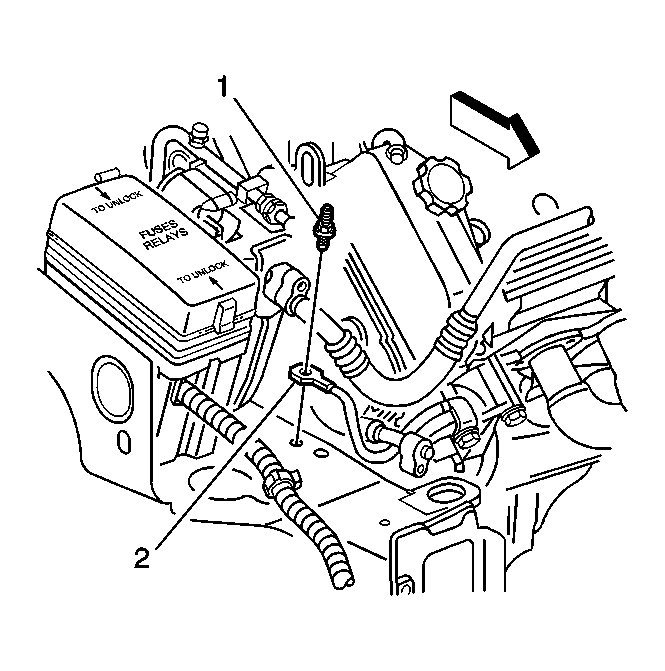

    3. Fig 1: View Of Engine Ground Cable & Bolt
    GM736518Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt (1) securing the engine ground cable (2) to the right side body frame rail.

    Tighten:  Tighten the engine ground cable bolt to 50 N.m (37 lb. ft.).

  4. Install the upper filler panel. Refer to Filler Panel Replacement - Upper in Body Front End.
