Entertainment Component Views

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Rear of the Roof Component View
GM821498Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Digital Radio Antenna

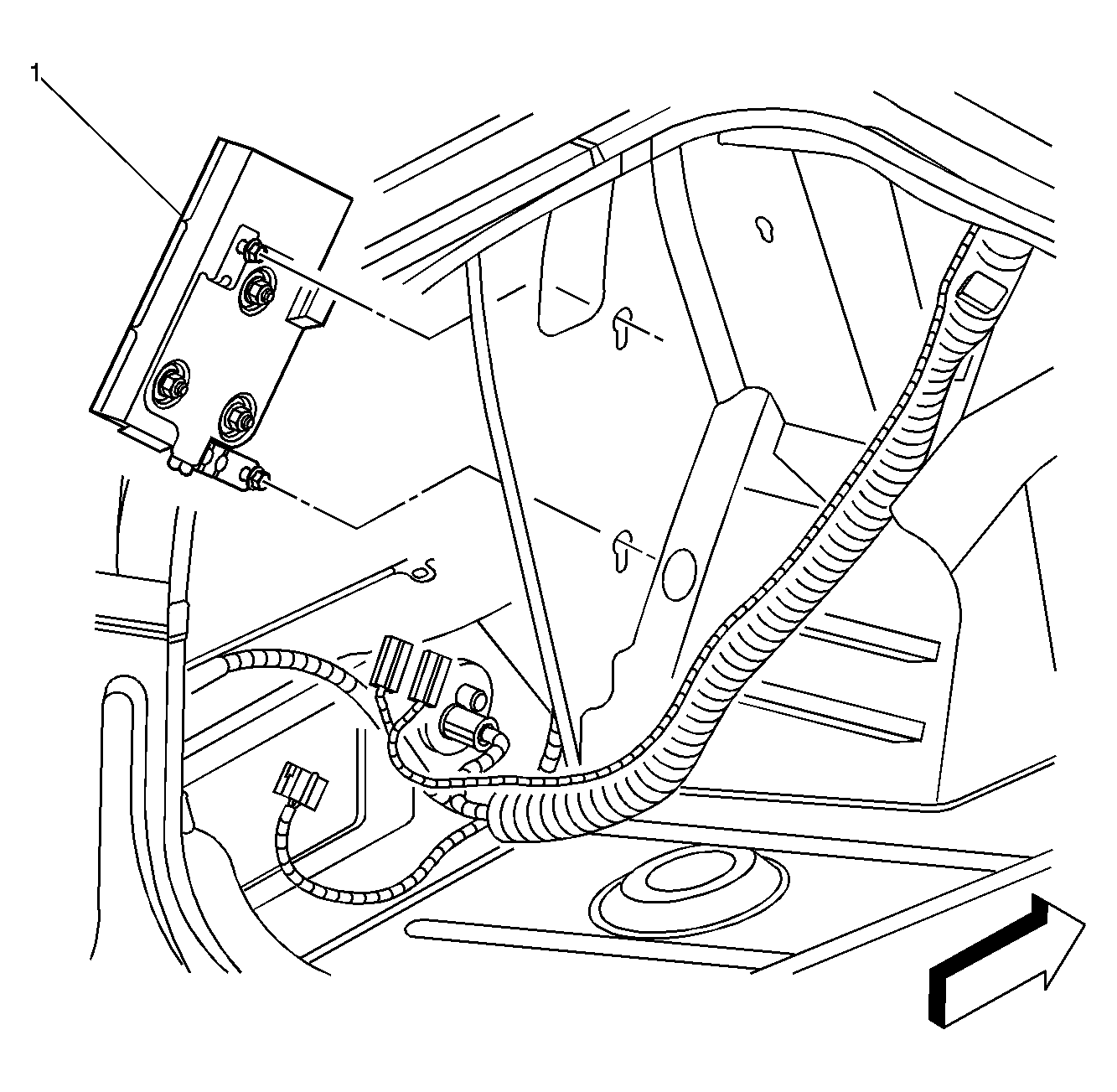

Fig 2: Left Side of the Rear Compartment Component View
GM821501Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Digital Radio Receiver

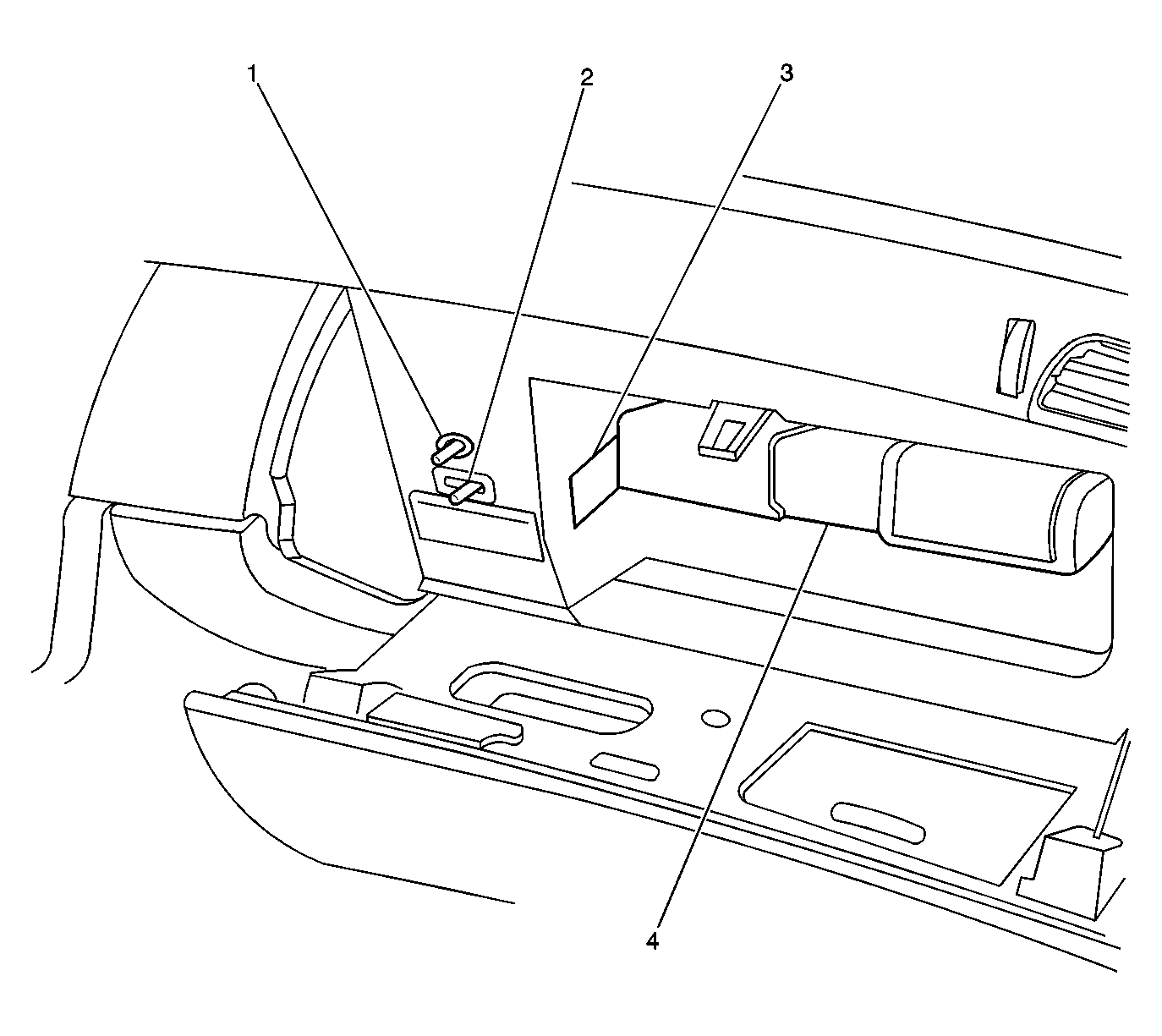

Fig 3: Right Side of the Instrument Panel, in the Instrument Panel Compartment Component View
GM524966Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Compartment Lamp Switch
2 Valet Switch
3 I/P Compartment Lamp
4 Remote Playback Device - CD Changer
Fig 4: Passenger Compartment, Center of the Instrument Panel Component View
GM524953Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunload Sensor Assembly
2 Speaker - Front I/P Midrange
3 Hazard Switch
4 Instrument Panel Integration Module (IPM)
5 Radio (w/o U3R, U3S, U3Q)
6 Driver Information Center (DIC) Switch - Right
Fig 5: Passenger Compartment, Center Front of the Headliner Component View
GM524995Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunroof Slide Switch (Part of the Power Sunroof Switch Assembly)
2 Rear Window Sunshade Switch
3 Overhead Console Courtesy Lamp
4 Noise Compensation Microphone
5 Outside Moisture Sensor
6 Inside Rearview Mirror
7 Overhead Console Courtesy Lamp
8 Cellular Telephone Microphone
9 Garage Door Opener
10 Sunroof Vent Switch (Part of the Power Sunroof Switch Assembly)
11 Overhead Console

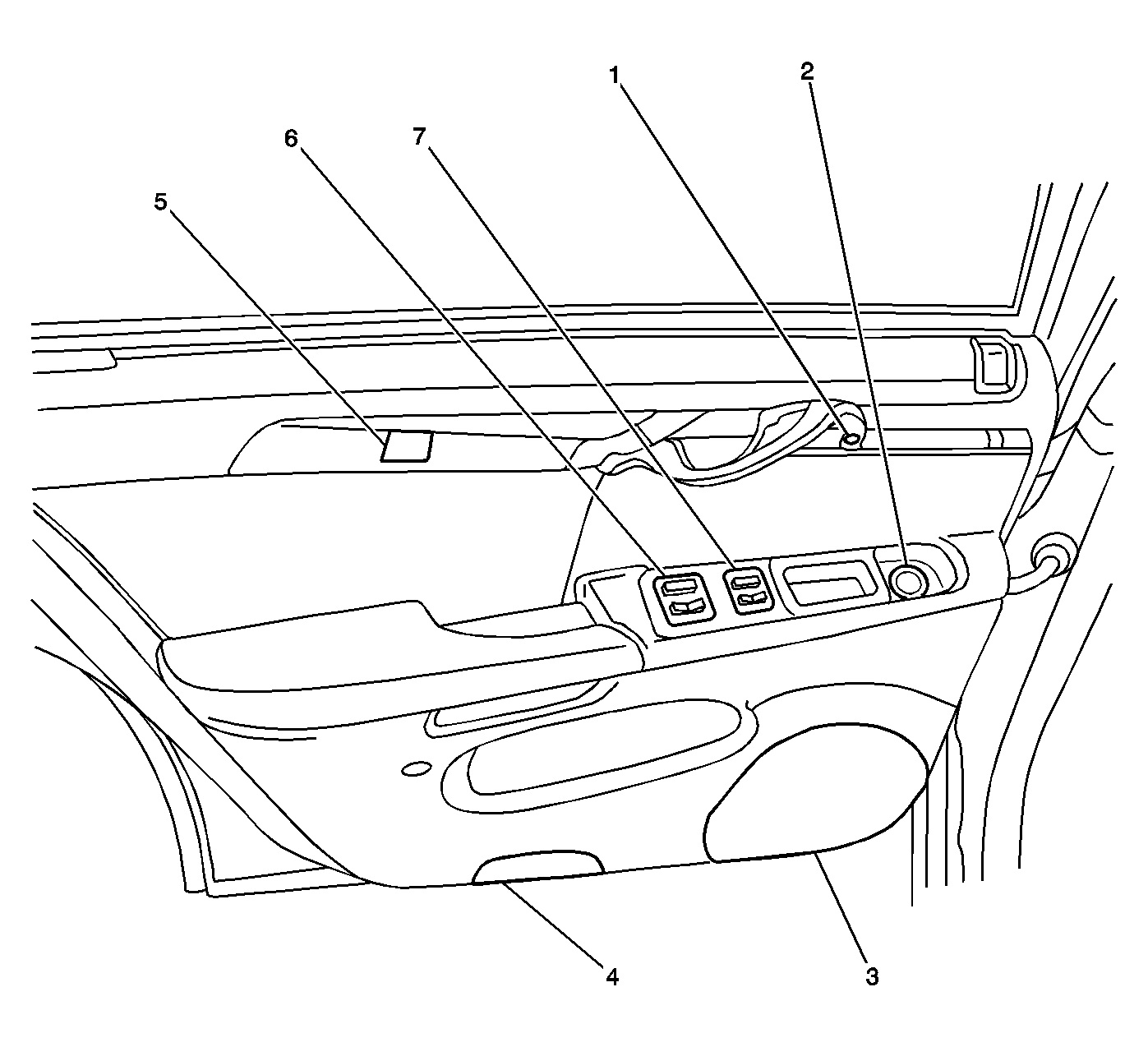

Fig 6: Front of the Left Rear Door Component View
GM524980Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Switch - LR, RR Similar
2 Cigar Lighter - LR, RR Similar
3 Speaker - LR Door, RR Similar
4 Door Courtesy Lamp - LR Door, RR Similar
5 Seat Lumbar Switch - LR, RR Similar
6 Heated Seat Switch - LR, RR Similar
7 Window Switch - LR, RR Similar

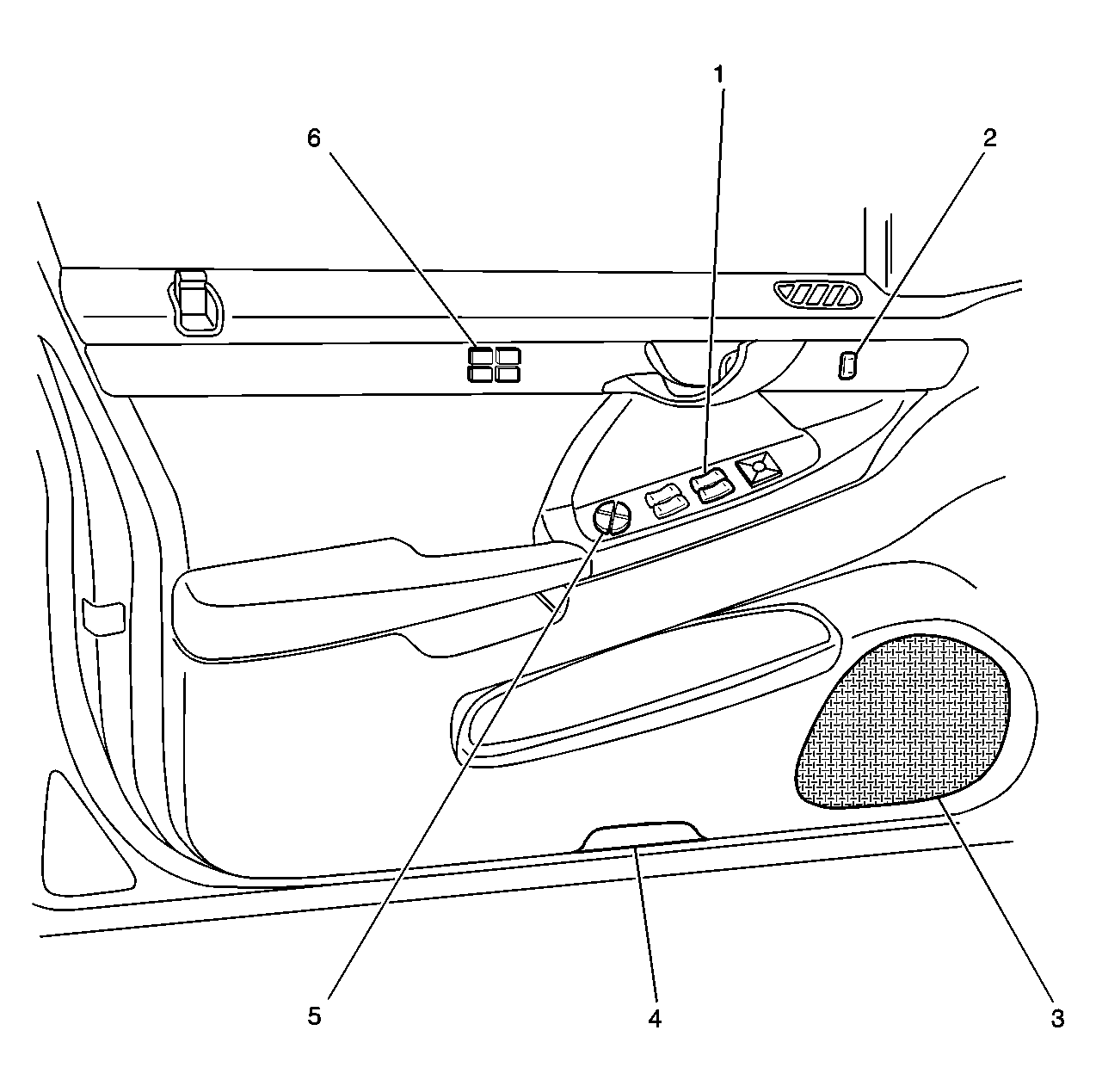

Fig 7: Left Front Door, on the Door Trim Panel Component View
GM534708Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Driver Door Switch Assembly (DDSA), Passenger Similar
2 Door Lock Switch - Driver, Passenger Similar
3 Speaker - LF Door, RF Door Similar
4 Courtesy Lamp - Left Front Door, Right Front Door Similar
5 Heated Seat Switch - Driver, Passenger Similar
6 Memory/Personalization Function Switch

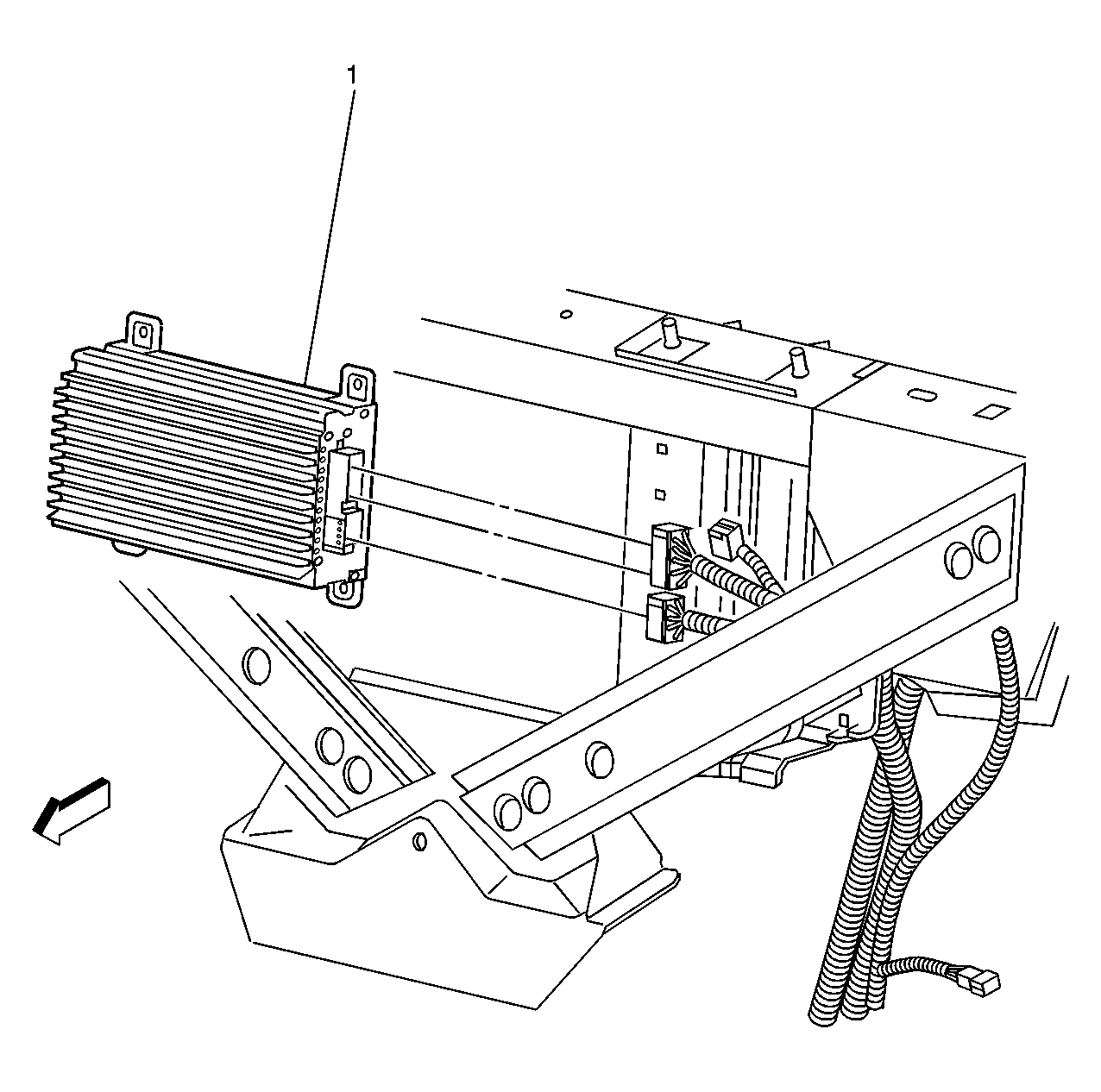

Fig 8: Left Rear of the Passenger Compartment, Behind the Rear Seat Back Component View
GM525027Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Audio Amplifier

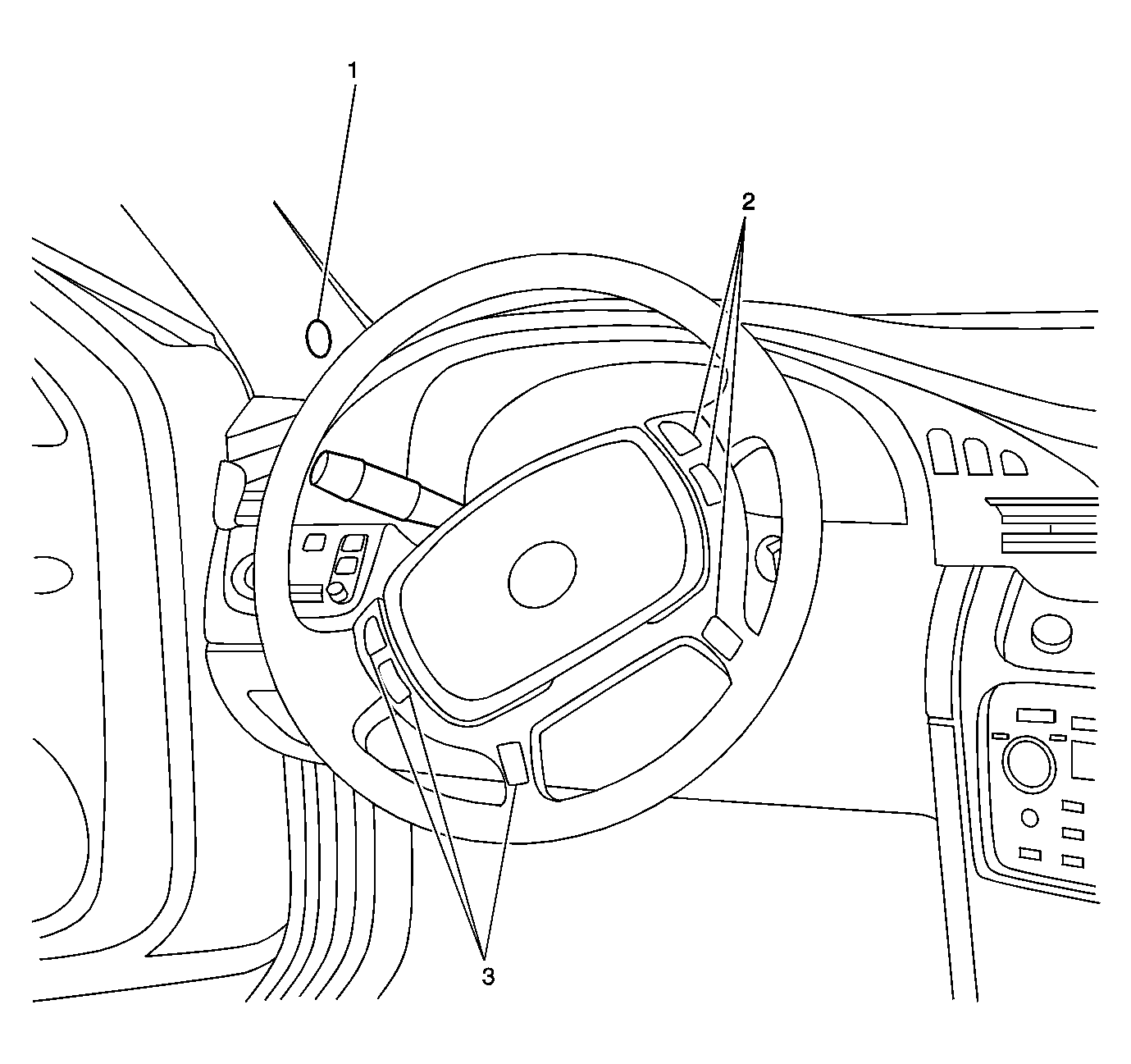

Fig 9: Left Front of the Passenger Compartment Component View
GM893860Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker- LF (RF Similar)
2 Steering Wheel Controls- Right
3 Steering Wheel Controls- Left
Fig 10: Left Rear Corner of the Passenger Compartment, Above the Rear Seat Component View
GM525023Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radio Antenna Module
2 TV Antenna Amplifier - Left
3 Seat Belt Retractor - LR
Fig 11: Right Corner of the Passenger Compartment, Above the Rear Seat Component View
GM525020Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Retractor - RR
2 TV Antenna Amplifier - Right
3 TV Antenna Module
4 Speaker - Rear Subwoofer
