Adjustable Pedals Component Views

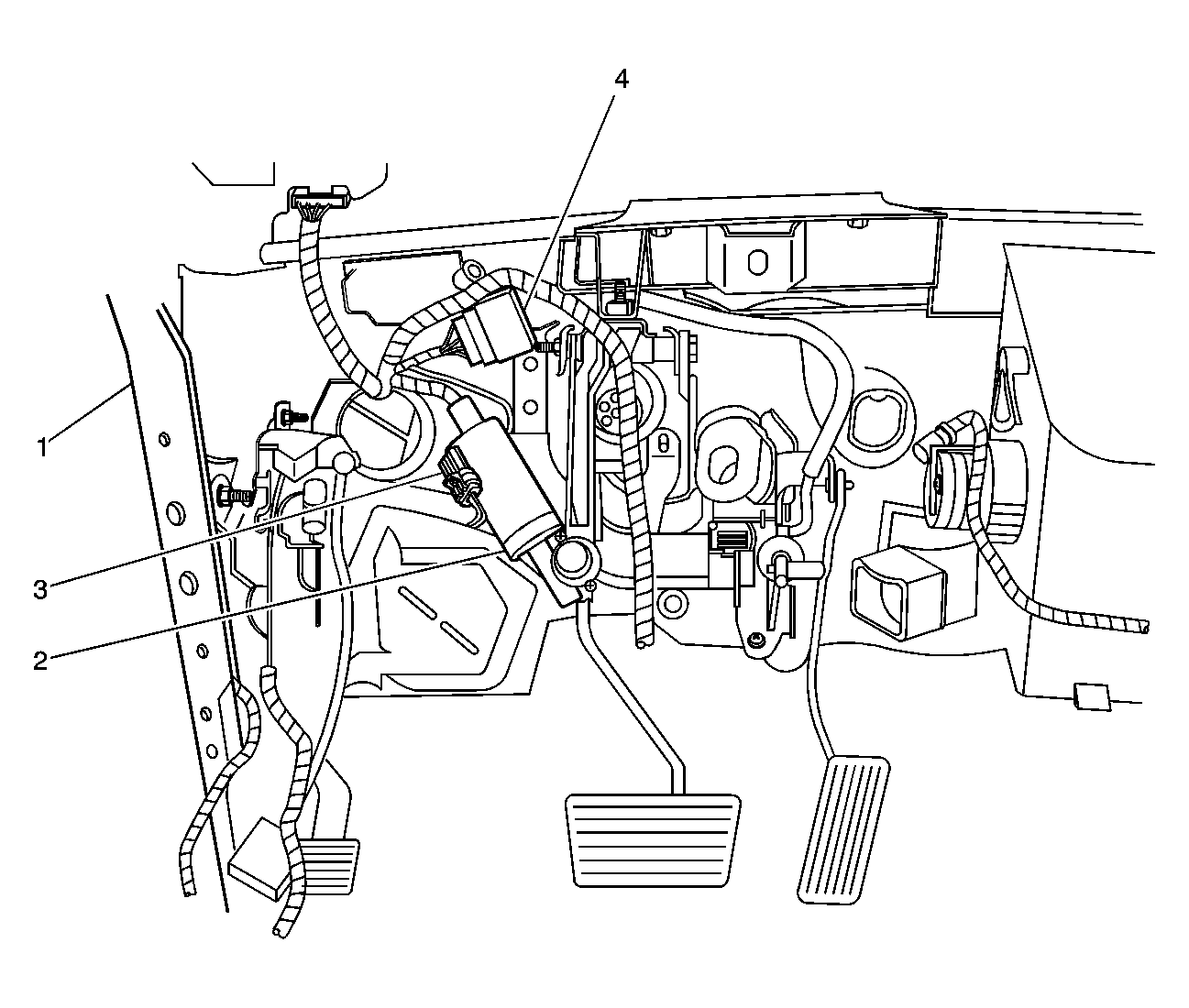

Fig 1: Adjustable Pedals Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
A-Pillar
2
Electronic Adjustable Pedals (EAP) Assembly
3
Electronic Adjustable Pedals (EAP) Assembly Connector
4
Electronic Adjustable Pedals (EAP) Relay
