Door Lock/Indicator Schematics

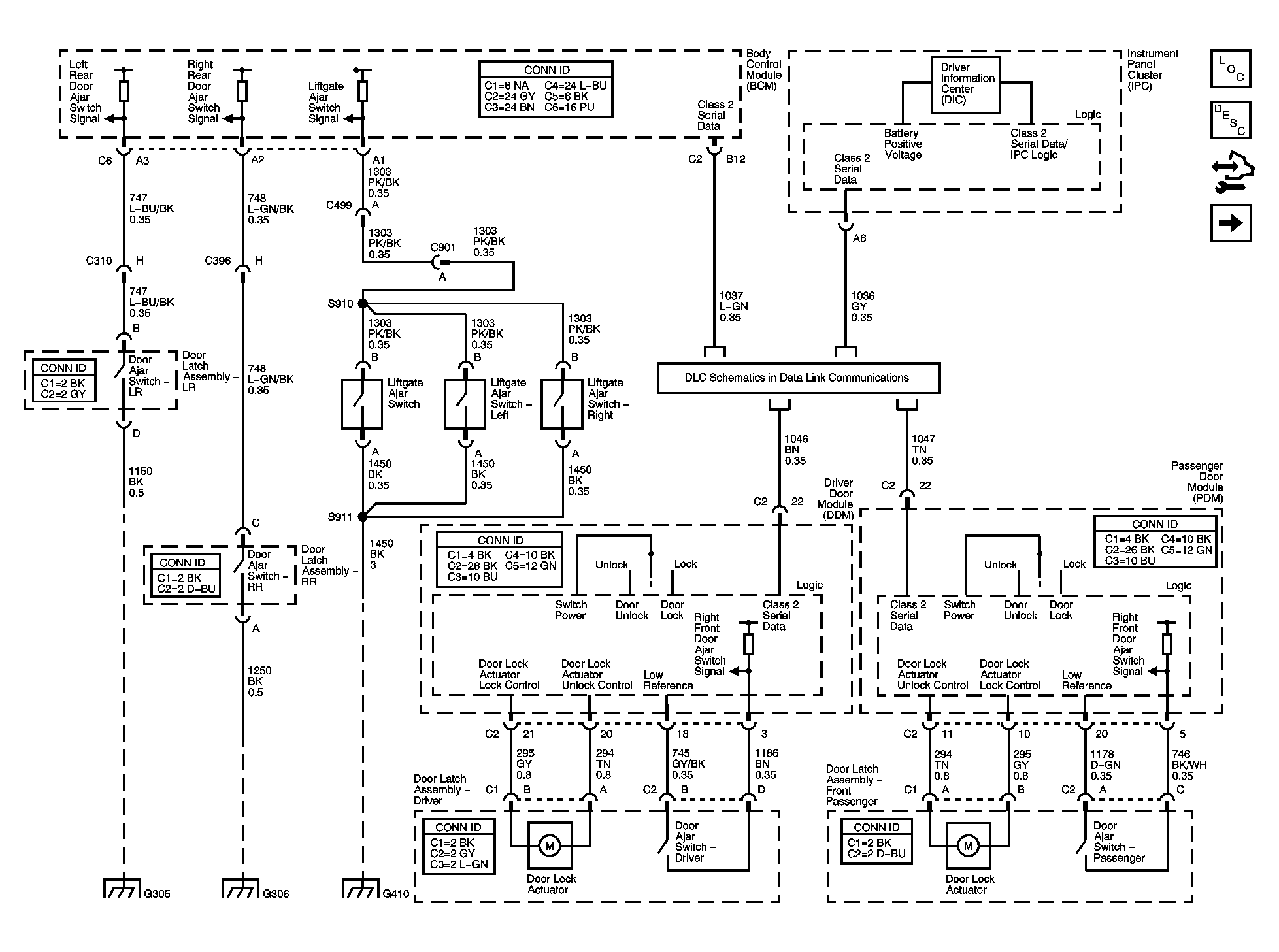

Fig 1: Driver and Front Passenger Locks and Indicator Schematics
GM1464147Courtesy of GENERAL MOTORS CORP.

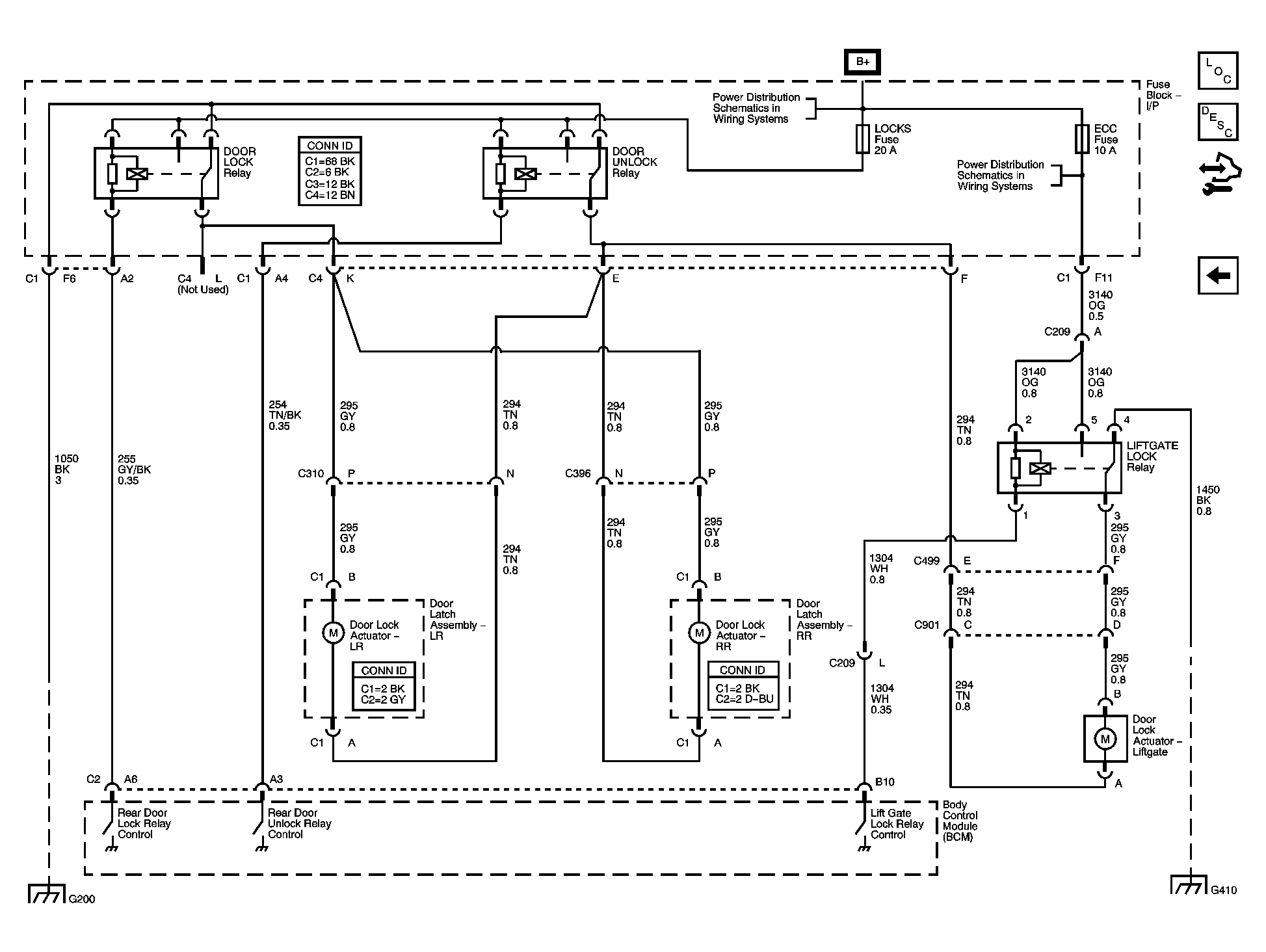

Fig 2: Rear Door and Liftgate Locks Schematics
GM1464148Courtesy of GENERAL MOTORS CORP.
