Instrument Panel Fuse Block
NOTE:

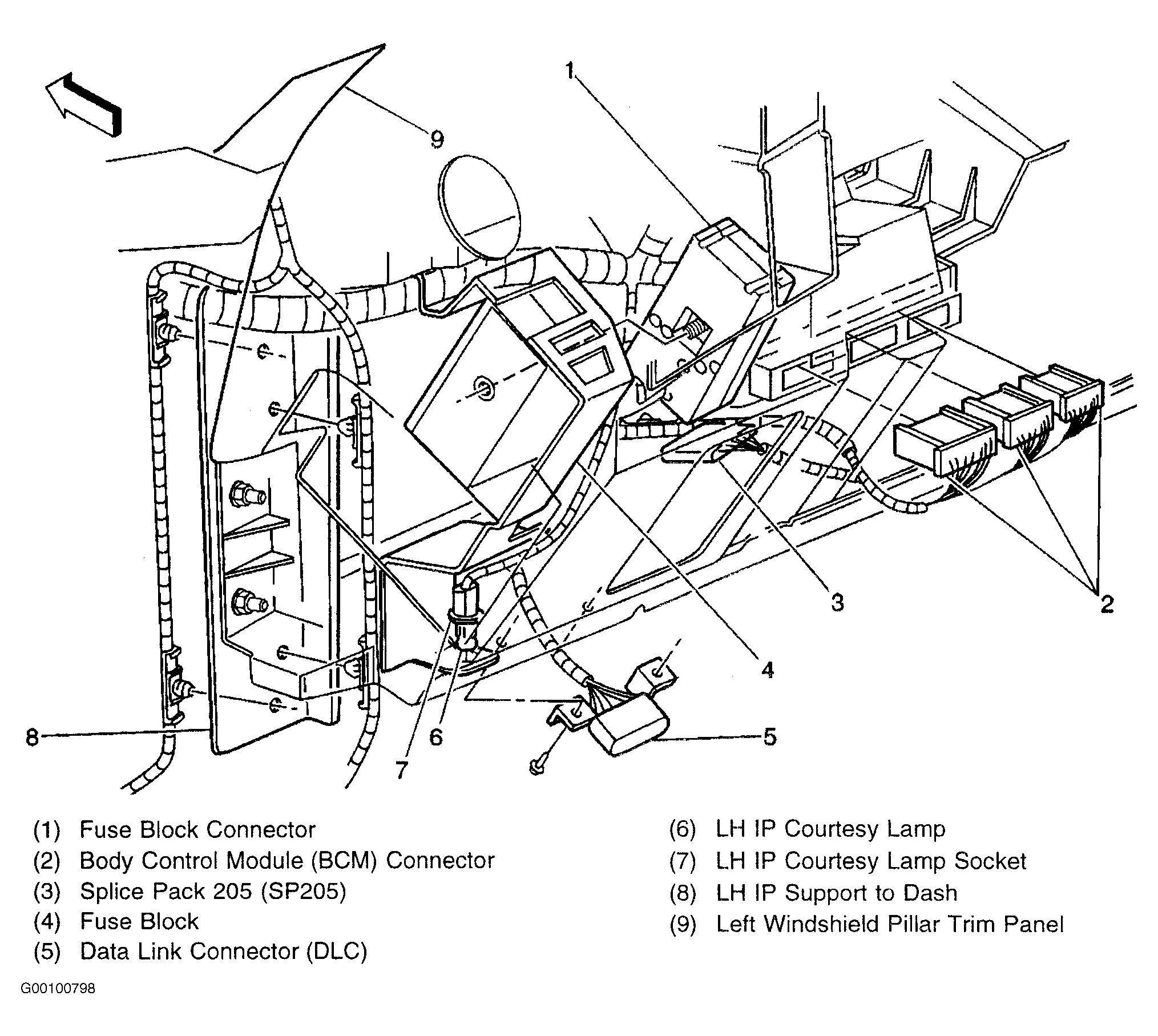

Instrument Panel (I/P) fuse block is located at the left side of the I/P behind the access panel. See Fig 1.
Fuse Block - I/P Fuse And Relay Identification Legend
| Fuse And Relay Description | Rating | Circuits |
|---|---|---|
| RR WPR Fuse | 15A | Rear Wiper/Washer Switch |
| SEO ACCY Fuse | 10A | Upfitter Provisions |
| WS WPR Fuse | 25A | Windshield Wiper Motor Module |
| TBC ACCY Fuse | 10A | Body Control Module (BCM) |
| IGN 3 Fuse | 10A | HVAC Components, Electronic Suspension Control (ESC) Components, Heated Seat Modules - Rear, Rear Wheel Steering Control Module |
| 4WD Fuse | 15A | Front Axle Actuator, Transfer Case Shift Control Switch |
| HTR/AC Fuse | 30A | HVAC Control Module |
| LOCK Relay | - | Door Lock Actuator - Liftgate, Door Latch Assembly - LR/RR |
| HVAC 1 Fuse | 10A | HVAC Control Module, HVAC Actuators |
| L DOOR Relay 12-WAY - BLACK | - | Fuse Block - Left I/P C4 (Driver Door Harness) |
| CRUISE Fuse | 10A | Cruise Control Switch, Steering Wheel Speed/Position Sensor |
| UNLOCK Relay | - | Door Lock Actuator - Liftgate, Door Latch Assembly - LR/RR |
| RR FOG LP Relay | - | Rear Fog Lamps (Export) |
| BRAKE Fuse | 10A | Stop Lamp Switch, Electronic Brake Control Module (EBCM), Traction Control Switch |
| DRIVER UNLOCK Relay | - | Not Used |
| PDM Fuse | 10A | Front Passenger Door Module (FPDM) |
| IGN 0 Fuse | 10A | Passlock Sensor, Automatic Transmission, Powertrain Control Module (PCM) |
| TBC IGN 0 Fuse | 10A | Body Control Module (BCM) |
| VEH CHMSL Fuse | 10A | Center High Mounted Stop Lamp (CHMSL) |
| LT TRLR ST/TRN Fuse | 10A | Trailer Wiring |
| LT TRN Fuse | 10A | Turn Signal Lamps - Left, Marker Lamps - Left, Driver Door Module (DDM), Instrument Panel Cluster (IPC) |
| VEH STOP Fuse | 15A | Tail/Stop and Turn Signal Lamps - Rear, Throttle Actuator Control (TAC) |
| BODY Relay 12-WAY BROWN | - | Fuse Block - Left I/P C3 (Body Harness) |
| RT TRLR ST/TRN Fuse | 10A | Trailer Wiring |
| RT TRN Fuse | 10A | Turn Signal Lamps - Right, Marker Lamps - Right, Front Passenger Door Module (FPDM), Instrument Panel Cluster (IPC) |
| DDM Fuse | 15A | Driver Door Module (DDM) |
| AUX PWR 2 Fuse | 20A | Accessory Power Outlet - D-Pillar |
| LOCKS Fuse | 20A | Door Lock/Unlock Relays |
| ECC Fuse | 10A | HVAC Control Assembly - Rear Auxiliary |
| TBC 2C Fuse | 15A | Body Control Module (BCM) |
| FLASH Fuse | 25A | Turn Signal/Hazard Flasher Module |
| CB LT DOORS | 25A | Window Switch - LR, Driver Door Module (DDM) |
| TBC 2B Fuse | 15A | Body Control Module (BCM) |
| TBC 2A Fuse | 15A | Body Control Module (BCM) |
