Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the cruise control module.
Connect the cruise control cable to the cruise control module. Refer to Cruise Control Cable Replacement (4.3L Engine) .

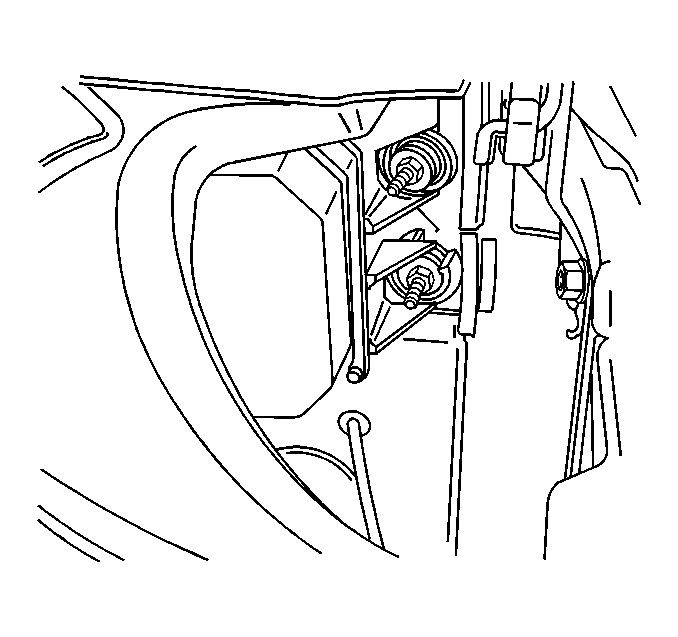

Fig 1: Installing Cruise Control Module Nuts (4.3L)

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the cruise control module nuts.
Tighten: Tighten the nuts to 9 N.m (80 lb in).

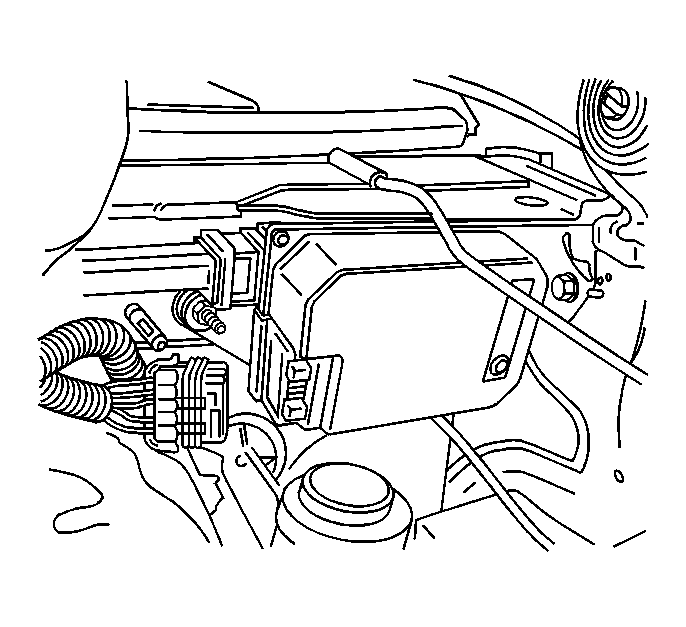

Fig 2: Connecting Cruise Control Module Electrical Connector (4.3L)

Courtesy of GENERAL MOTORS CORP.

Connect the cruise control module electrical connector.
Install the upper fender brace.

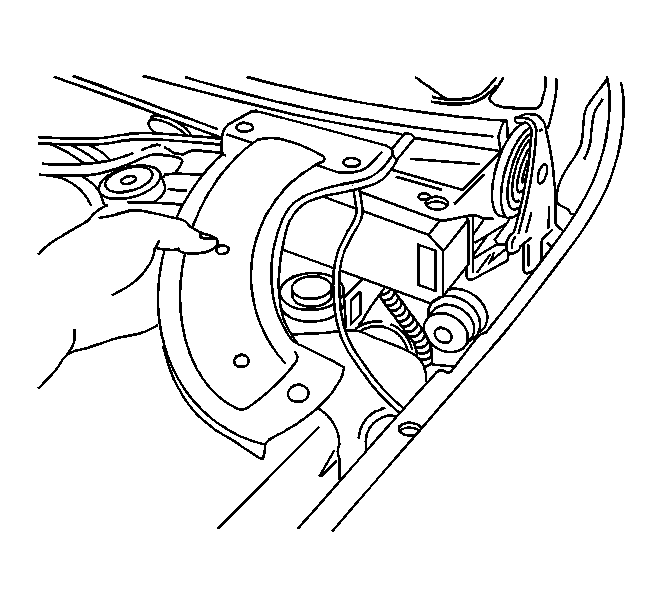

Fig 3: Installing Upper Fender Brace (4.3L)
Courtesy of GENERAL MOTORS CORP.
Install the upper fender brace bolts.
Tighten: Tighten the bolts to 9 N.m (80 lb in).
