Memory Seat Module

Memory Seat Module - Driver C1 (With RPO Code A45):

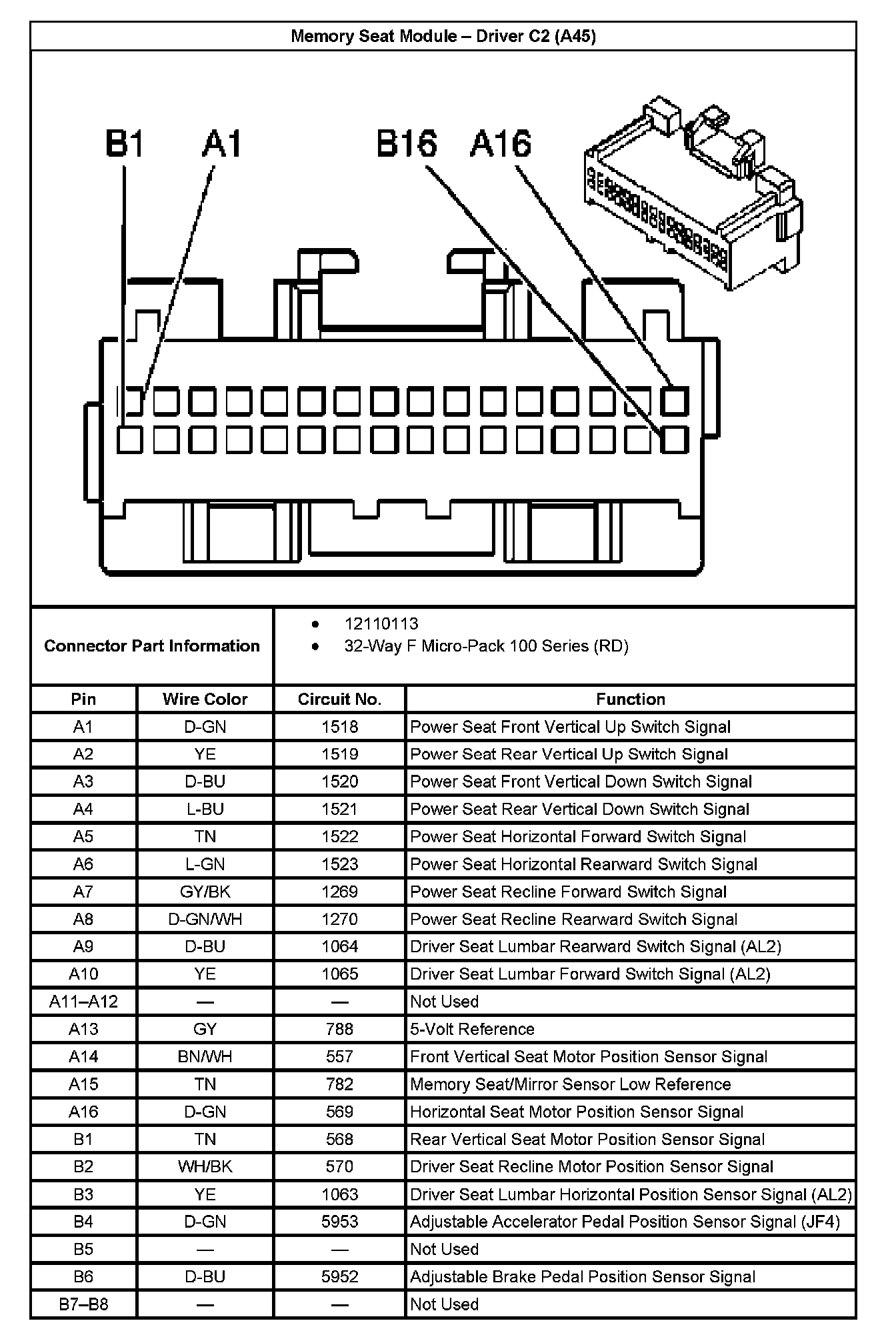

Memory Seat Module - Driver C2 (With RPO Code A45) Part 1:

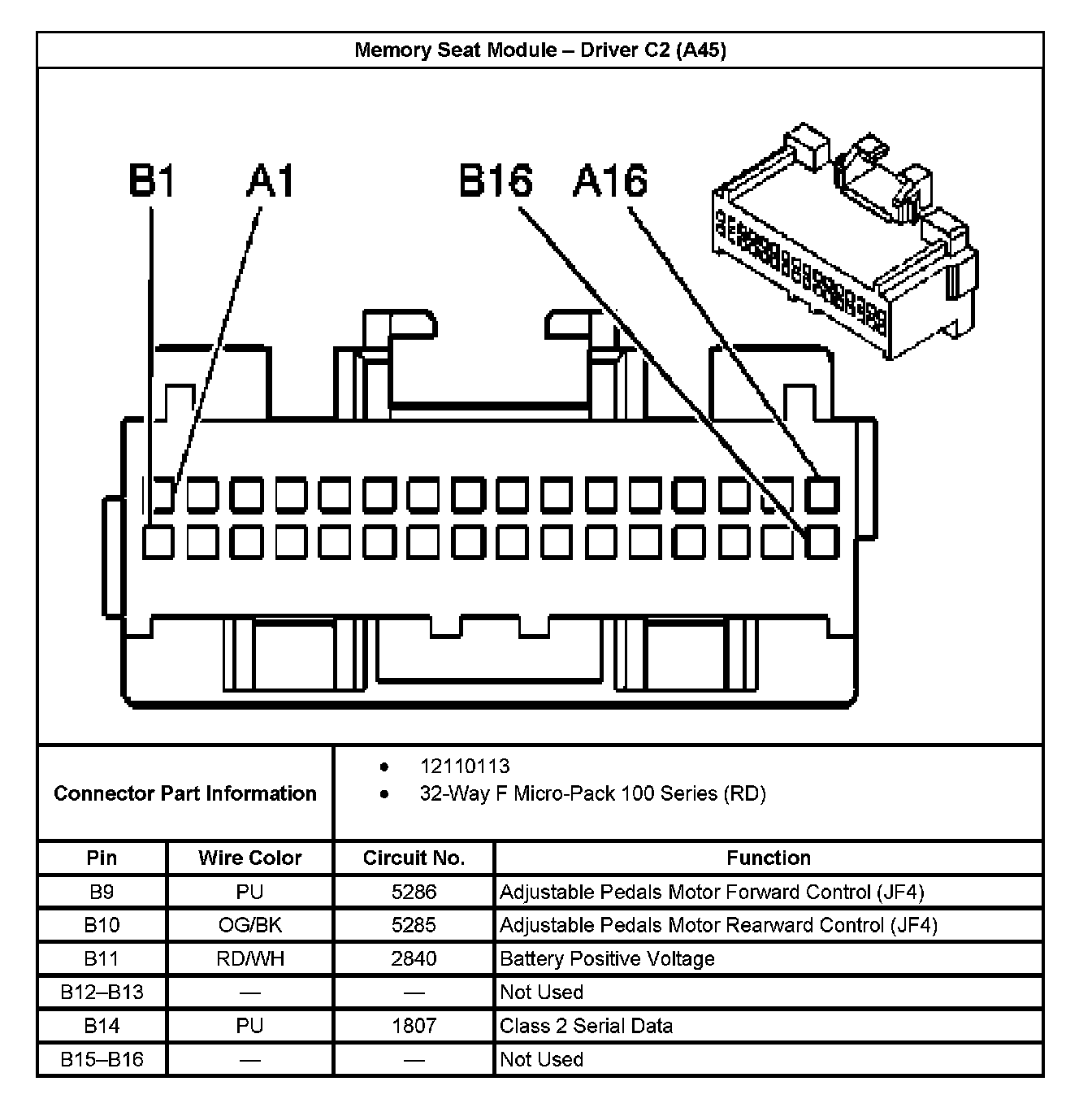

Memory Seat Module - Driver C2 (With RPO Code A45) Part 2:

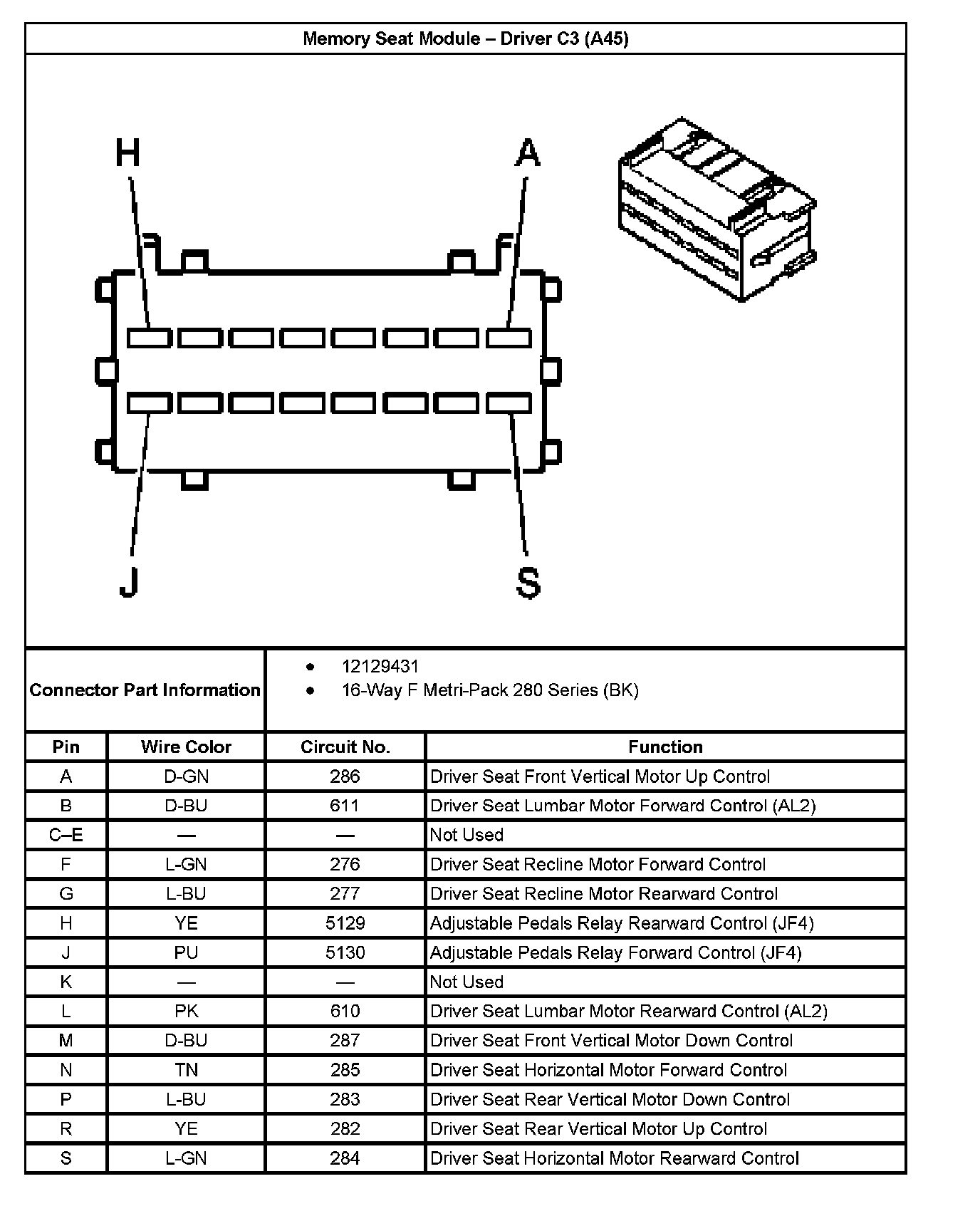

Memory Seat Module - Driver C3 (With RPO Code A45):
