Power Door Systems Connector End Views

Door Handle Switch Assembly - LF Connector End View

-
Connector Part Information
  • OEM: ?
  • Service:
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BK/WH 351 Ground
3 PK 5881 Left Front Door Handle Switch Signal
4 D-BU 5882 Left Front Door Handle Switch Signal
5 BK/WH 351 Ground
Door Handle Switch Assembly - RF Connector End View

-
Connector Part Information
  • OEM: ?
  • Service:
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BK/WH 451 Ground
3 PK 5878 Right Front Door Handle Switch Signal
4 PK 5879 Right Front Door Handle Switch Signal
5 BK/WH 451 Ground
Door Latch Assembly - Driver Connector End View

GM845631Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 6-1355688-1
  • Service:
  • 10-Way F AMP (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 BN 5131 Driver Door Deadbolt Lock Signal (UA2)
2 TN 694 Driver Door Lock Actuator Unlock Control (UA2)
3 L-GN/BK 5703 Door Unlatch Motor Control (1)
4 L-GN/WH 5702 Door Latch Motor Control
5 - - Not Used
6 GY/BK 745 Left Front Door Ajar Switch Signal
7 TN 126 Left Front Door Open Switch Signal
8 BK/WH 351 Ground
9 L-GN 262 Driver Door Key Switch Signal
Door Latch Assembly - Left Rear Connector End View

GM812596Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 613556831
  • Service:
  • 6-Way F AMP (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 GY 5133 Left Rear Door Deadbolt Lock Signal
2 TN 294 Door Lock Actuator Unlock Control
3 GY 295 Door Lock Actuator Lock Control
4 L-BU/BK 747 Left Rear Door Ajar Switch Signal
5 D-BU/WH 1179 Left Rear Door Open Switch Signal
6 BK/WH 351 Ground
Door Latch Assembly - Passenger Connector End View

GM845631Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 613556881
  • Service:
  • 10-Way F AMP (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 TN/WH 746 Right Front Door Ajar Switch Signal
2 L-GN 1177 Right Front Door Open Switch Signal
3 BK/WH 451 Ground
4-5 - - Not Used
6 D-BU 5132 Passenger Door Deadbolt Lock Signal (UA2)
7 TN 294 Door Lock Actuator Unlock Control (UA2)
8 GY 5703 Door Unlatch Motor Control (1)
9 L-GN/WH 5702 Door Latch Motor Control
Door Latch Assembly - Right Rear Connector End View

GM812596Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 613556831
  • Service:
  • 6-Way F AMP (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 L-GN/BK 748 Right Rear Door Ajar Switch Signal
2 YE/BK 1181 Right Rear Door Open Switch Signal
3 BK/WH 451 Ground
4 D-GN 5134 Right Rear Door Deadbolt Lock Signal
5 TN 294 Door Lock Actuator Unlock Control
6 GY 295 Door Lock Actuator Lock Control
Door Lock Switch - Driver Connector End View

GM130714Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12124997
  • Service: 12167130
  • 5-Way F Delphi (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A YE 1491 Backlight Lamp Control
B - - Not Used
C BK/WH 351 Ground
D OG/BK 780 Driver Door Lock Switch Lock Signal
E OG/BK 781 Driver Door Lock Switch Unlock Signal
Door Lock Switch - Passenger Connector End View

GM130714Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12124997
  • Service: 12167130
  • 5-Way F Delphi (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A YE 1491 Backlight Lamp Control
B - - Not Used
C BK/WH 451 Ground
D L-BU 244 Passenger Door Lock Switch Lock Control
E D-BU 245 Passenger Door Lock Switch Unlock Control
Door Status Indicator - Driver Connector End View

GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047663
  • Service: 12085481
  • 2-Way M Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A PU/WH 5965 Driver Door Lock Status Indicator Supply Voltage
B PK/BK 5968 Driver Door Lock Status Indicator Signal Ground
Door Status Indicator - Passenger Connector End View

GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047663
  • Service: 12085481
  • 2-Way M Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
A PU/WH 5967 Passenger Door Lock Status Indicator Supply Voltage
B PU 5971 Passenger Door Lock Status Indicator Signal Ground
Driver Door Module (DDM) - C1 Connector End View

GM1420730Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 174046-2
  • Service:
  • 16-Way F 40 Series Multi-Lock (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 BN 5131 Driver Door Deadbolt Lock Signal
2 RD/WH 640 Battery Positive Voltage (YQ2/YQ4/YQ6/YQ7)
3 RD/WH 640 Battery Positive Voltage
4 TN 694 Driver Door Lock Actuator Unlock Control
5 L-GN/BK 5703 Door Unlatch Motor Control (1)
6 L-GN/WH 5702 Door Latch Motor Control
7 D-GN 5060 Low Speed GMLAN Serial Data
8 PU/WH 5965 Driver Door Lock Status Indicator Supply Voltage
9 BK/WH 351 Ground
10-11 - - Not Used
12 PK/BK 5968 Driver Door Lock Status Indicator Signal Ground
13 BN 5881 Left Front Door Handle Switch Signal (3)
14 D-GN 5060 Low Speed GMLAN Serial Data
15 BN 165 Power Window Motor Left Front Down Control
16 D-BU 164 Power Window Motor Left Front Up Control
Driver Door Module (DDM) - C2 Connector End View

GM750205Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 174047-2
  • Service:
  • 20-Way F AMP Multi-Lock (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 - - Not Used
2 GY/BK 745 Left Front Door Ajar Switch Signal
3 - - Not Used
4 L-GN 262 Driver Door Key Switch Signal
5-6 - - Not Used
7 YE 1491 Backlight Lamp Control
8 L-BU/WH 6576 Driver Door Courtesy Lamp Control Low
9 PU/WH 5754 Amplifier Powered Woofer Control (1)
10 PK 1691 Automatic Day/Night Mirror Low Reference
11 - - Not Used
12 TN 126 Left Front Door Open Switch Signal
13 - - Not Used
14 YE/BK 6859 Power Window Status
15-16 - - Not Used
17 D-BU 5882 Left Front Door Handle Switch Signal (2)
18-19 - - Not Used
20 GY 1690 Automatic Day/Night Mirror Signal

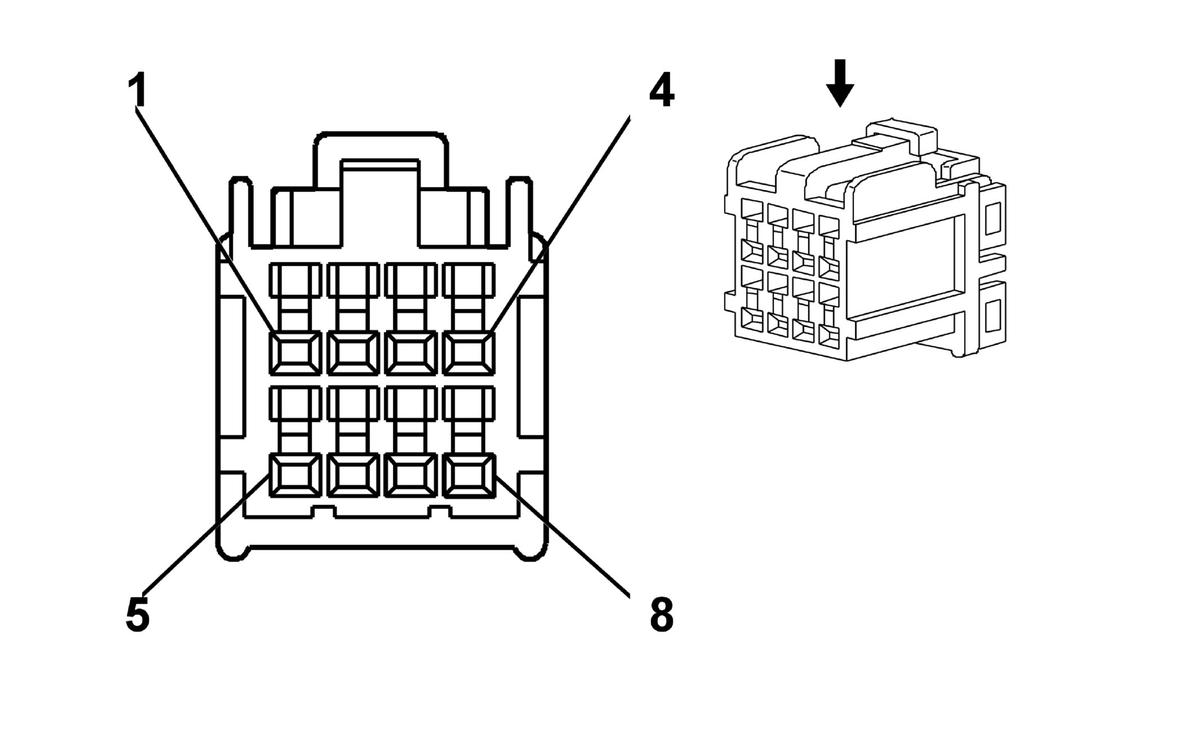

Driver Door Module (DDM) - C3 Connector End View (Outside Rearview Mirror - Driver)

GM1519691Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 1740442
  • Service:
  • 8-Way F Amp 040 Series Multi-Lock (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 BN/BK 1691 Automatic Day/Night Mirror Low Reference
2 D-GN/BK 784 Left Mirror Vertical Position Sensor Signal
3 L-BU/BK 786 Left Mirror Horizontal Position Sensor Signal
4 - - Not Used
5 BN 1690 Automatic Day/Night Mirror Signal
6 PU/BK 673 Left Outside Rearview Mirror Position Sensor Low Reference
7 RD/BK 672 Left Outside Rearview Mirror Position Sensor 5-Volt Reference
8 - - Not Used
Driver Door Module (DDM) - C4 Connector End View (Outside Rearview Mirror - Driver)

GM1549444Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 175964-2
  • Service:
  • 8-Way F AMP Multilock 040 MarkII (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 YE 89 Left Mirror Motor Down Control
2 BU 88 Left Mirror Motor Up Control
3 YE 190 Left Folding Mirror Motor Extend Control (YQ8)
4 L-BU 191 Left Folding Mirror Motor Retract Control (YQ8)
5 WH 82 Left Mirror Motor Left Control
6 BK 606 Left Mirror Heating Element Supply Voltage
7 - - Not Used
8 BK 627 Left Mirror Heating Element Low Reference
Driver Door Switch Assembly (DDSA) Connector End View

GM605501Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: IL-AG5-10S-S3C1
  • Service:
  • 10-Way (GN)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 D-GN 5060 Low Speed GMLAN Serial Data
2 RD/WH 640 Battery Positive Voltage
3 BK/WH 351 Signal Ground
4 OG/BK 780 Driver Door Lock Switch Lock Signal
5 OG/BK 781 Driver Door Lock Switch Unlock Signal
6 YE 1491 Backlight Lamp Control
7-9 - - Not Used
10 WH 1526 Shift Solenoid Supply Voltage (2)
Front Passenger Door Module (FPDM) - C1 Connector End View

GM1420730Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 1740462
  • Service:
  • 16-Way F 40 Series Multi-Lock (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 TN 294 Door Lock Actuator Unlock Control
2 RD/WH 740 Battery Positive Voltage
3 - - Not Used
4 D-BU 5132 Passenger Door Deadbolt Lock Signal (UA2)
5 L-GN/BK 5703 Door Unlatch Motor Control (1)
6 L-GN/WH 5702 Door Latch Motor Control
7 D-GN 5060 Low Speed GMLAN Serial Data
8 PU/WH 5967 Passenger Door Lock Status Indicator Supply Voltage
9 BK/WH 451 Ground
10-11 - - Not Used
12 PU 5971 Passenger Door Lock Status Indicator Signal Ground
13 GY 5878 Right Front Door Handle Switch Signal (3)
14 - - Not Used
15 BN 667 Power Window Motor Right Front Down Control
16 D-BU 666 Power Window Motor Right Front Up Control
Front Passenger Door Module (FPDM) - C2 Connector End View

GM750205Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 1740472
  • Service:
  • 20-Way F AMP Multi-Lock (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 - - Not Used
2 TN/WH 746 Right Front Door Ajar Switch Signal
3-4 - - Not Used
5 PU 2765 Power Window Switch Right Front Express Signal
6 WH 1185 Power Window Switch Left Rear Up Signal
7 YE 1491 Backlight Lamp Control
8 L-BU/WH 6576 Driver Door Courtesy Lamp Control Low
9 PU/WH 5754 Amplifier Powered Woofer Control (1)
10 - - Not Used
11 L-BU 244 Passenger Door Lock Switch Lock Control
12 L-GN 1177 Right Front Door Open Switch Signal
13 D-BU 245 Passenger Door Lock Switch Unlock Control
14 YE/BK 6859 Power Window Status
15 OG 1189 Power Window Switch Right Front Low Reference
16 - - Not Used
17 PK 5879 Right Front Door Handle Switch Signal (2)
18-20 - - Not Used
Front Passenger Door Module (FPDM) - C3 Connector End View (Outside Rearview Mirror - Passenger)

GM1519691Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 174044-2
  • Service:
  • 8-Way F Amp 040 Series Multi-Lock (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 - - Not Used
2 D-GN/BK 787 Right Mirror Vertical Position Sensor Signal
3 L-BU/BK 785 Right Mirror Horizontal Position Sensor Signal
4-5 - - Not Used
6 RD/BK 675 Right Outside Rearview Mirror Position Sensor Low Reference
7 PU/BK 674 Right Outside Rearview Mirror Position Sensor 5-Volt Reference
8 - - Not Used
Front Passenger Door Module (FPDM) - C4 Connector End View (Outside Rearview Mirror - Passenger)

GM1549444Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 1759642
  • Service:
  • 8-Way F AMP Multilock 040 MarkII (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 YE 889 Right Mirror Motor Down Control
2 D-BU 1498 Right Mirror Motor Up Control
3 YE 5004 Right Folding Mirror Motor Extend Control (YQ8)
4 L-BU 5023 Right Folding Mirror Motor Retract Control (YQ8)
5 WH 90 Right Mirror Motor Left Control
6 BK 607 Right Mirror Heating Element Supply Voltage
7 - - Not Used
8 BK 628 Right Mirror Heating Element Low Reference
Left Rear Door Module (LRDM) - C1 Connector End View

GM1420730Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 1740462
  • Service:
  • 16-Way F 40 Series Multi-Lock (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 GY 5133 Left Rear Door Deadbolt Lock Signal
2 TN 294 Door Lock Actuator Unlock Control
3 GY 295 Door Lock Actuator Lock Control
4 RD/WH 840 Battery Positive Voltage
5 - - Not Used
6 BK/WH 351 Ground
7 - - Not Used
8 D-BU 668 Power Window Motor Left Rear Up Control
9 YE 1491 Backlight Lamp Control
10-14 - - Not Used
15 D-GN 5060 Low Speed GMLAN Serial Data
16 BN 669 Power Window Motor Left Rear Down Control
Left Rear Door Module (LRDM) - C2 Connector End View

GM750205Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 1740472
  • Service:
  • 20-Way F AMP Multi-Lock (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1-2 - - Not Used
3 D-BU/WH 1179 Left Rear Door Open Switch Signal
4 L-BU/BK 747 Left Rear Door Ajar Switch Signal
5 D-GN 1184 Power Window Switch Right Front Up Signal
6 YE 1187 Power Window Switch Left Rear Down Signal
7 - - Not Used
8 YE/BK 6859 Power Window Status
9 D-GN 5048 Power Window Switch Left Rear Express Signal
10-20 - - Not Used
Right Rear Door Module (RRDM) - C1 Connector End View

GM1420730Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 1740462
  • Service:
  • 16-Way F 40 Series Multi-Lock (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 D-GN 5134 Right Rear Door Deadbolt Lock Signal
2 TN 294 Door Lock Actuator Unlock Control
3 GY 295 Door Lock Actuator Lock Control
4 RD/WH 840 Battery Positive Voltage
5 - - Not Used
6 BK/WH 451 Ground
7 - - Not Used
8 D-BU 670 Power Window Motor Right Rear Up Control
9 YE 1491 Backlight Lamp Control
10-14 - - Not Used
15 D-GN 5060 Low Speed GMLAN Serial Data
16 BN 671 Power Window Motor Right Rear Down Control
Right Rear Door Module (RRDM) - C2 Connector End View

GM750205Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 1740472
  • Service:
  • 20-Way F AMP Multi-Lock (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1-2 - - Not Used
3 YE/BK 1181 Right Rear Door Open Switch Signal
4 L-GN/BK 748 Right Rear Door Ajar Switch Signal
5 WH 1185 Power Window Switch Left Rear Up Signal
6 OG 1189 Power Window Switch Right Front Low Reference
7 - - Not Used
8 YE/BK 6859 Power Window Status
9 L-GN 5049 Power Window Switch Right Rear Express Signal
10-20 - - Not Used
Window Motor - Driver Connector End View

GM1519711Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 2-963212-1
  • Service:
  • 6-Way (F) AMP Junior Power Timer (GY)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 BN 165 Power Window Motor Left Front Down Signal
2 D-BU 164 Power Window Motor Left Front Up Signal
3 YE/BK 6859 Power Window Status
4 BK 350 Ground
5 - - Not Used
6 RD/WH 1040 Battery Positive Voltage
Window Motor - Front Passenger Connector End View

GM1519711Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 2-963212-1
  • Service:
  • 6-Way (F) AMP Junior Power Timer (GY)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 BN 667 Power Window Motor Right Front Down Signal
2 D-BU 666 Power Window Motor Right Front Up Signal
3 YE/BK 6859 Power Window Status
4 BK 450 Ground
5 - - Not Used
6 RD/WH 1040 Battery Positive Voltage
Window Motor - Left Rear Connector End View

GM1519711Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 2-963212-1
  • Service:
  • 6-Way (F) AMP Junior Power Timer (GY)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 D-BU 668 Power Window Motor Left Rear Up Signal
2 BN 669 Power Window Motor Left Rear Down Signal
3 YE/BK 6859 Power Window Status
4 BK 350 Ground
5 - - Not Used
6 RD/WH 1040 Battery Positive Voltage
Window Motor - Right Rear Connector End View

GM1519711Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 2-963212-1
  • Service:
  • 6-Way (F) AMP Junior Power Timer (GY)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 D-BU 670 Power Window Motor Right Rear Up Signal
2 BN 671 Power Window Motor Right Rear Down Signal
3 YE/BK 6859 Power Window Status
4 BK 450 Ground
5 - - Not Used
6 RD/WH 1040 Battery Positive Voltage
Window Switch - Front Passenger Connector End View

GM258172Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12064982
  • Service: 12102633
  • 5-Way F Micro-Pack 100 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 OG 1189 Power Window Switch Right Front Low Reference
2 WH 1185 Power Window Switch Left Rear Up Signal
3 PU 2765 Power Window Switch Right Front Express Signal
4 BK/WH 451 Ground
5 YE 1491 Backlight Lamp Control
Window Switch - Left Rear Connector End View

GM258172Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12064982
  • Service: 12102633
  • 5-Way F Micro-Pack 100 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 YE 1187 Power Window Switch Left Rear Down Signal
2 D-GN 1184 Power Window Switch Right Front Up Signal
3 D-GN 5048 Power Window Switch Left Rear Express Signal
4 BK/WH 351 Ground
5 YE 1491 Backlight Lamp Control
Window Switch - Right Rear Connector End View

GM258172Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12064982
  • Service: 12102633
  • 5-Way F Micro-Pack 100 Series (BK)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function
1 YE 1187 Power Window Switch Left Rear Down Signal
2 D-GN 1184 Power Window Switch Right Front Up Signal
3 D-GN 5048 Power Window Switch Left Rear Express Signal
4 BK/WH 351 Ground
5 YE 1491 Backlight Lamp Control
scientia non olet · About LEMON Manuals
