Door Control Module Schematics

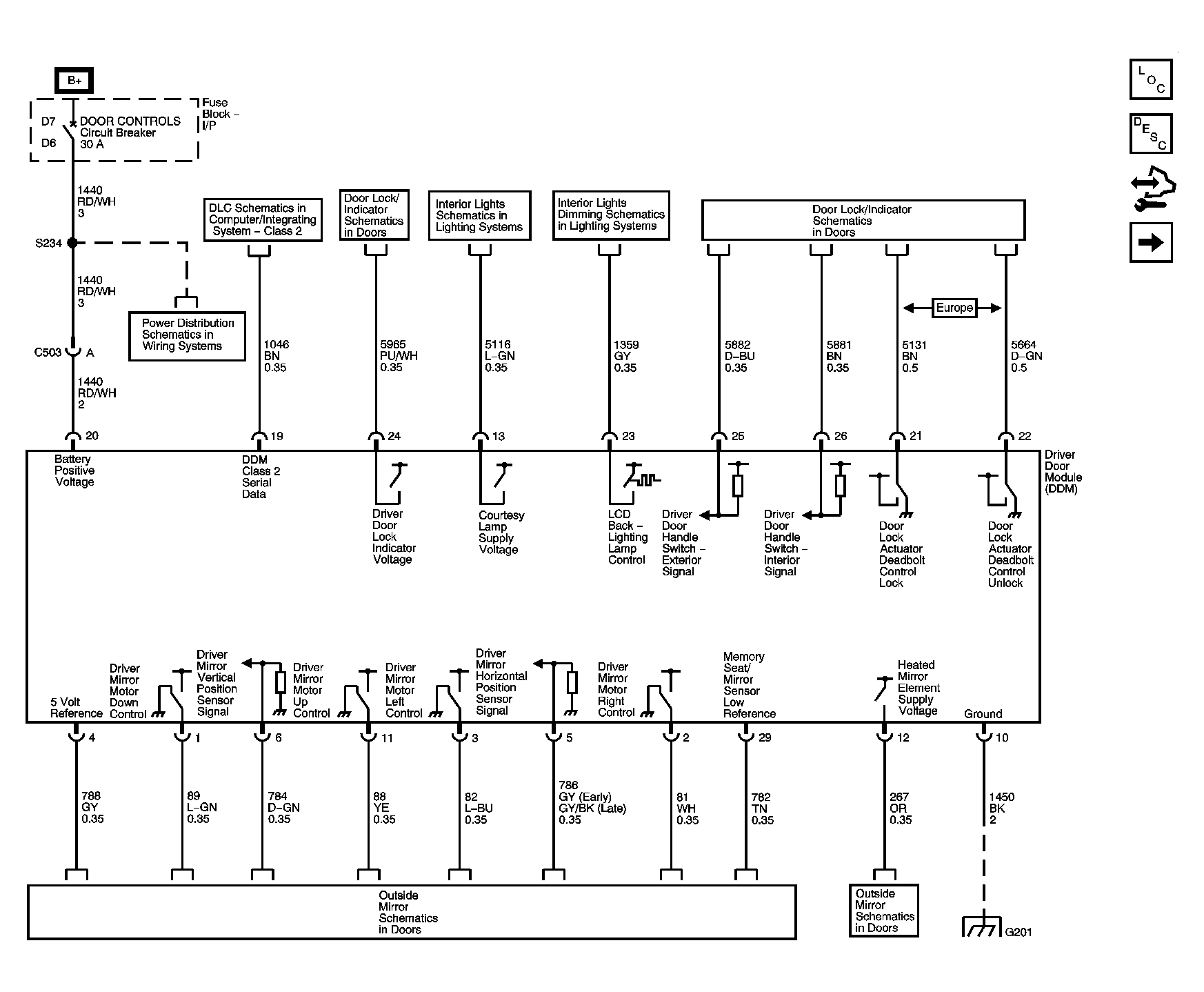

Fig 1: Driver Door Control Module Schematics
GM1480675Courtesy of GENERAL MOTORS CORP.

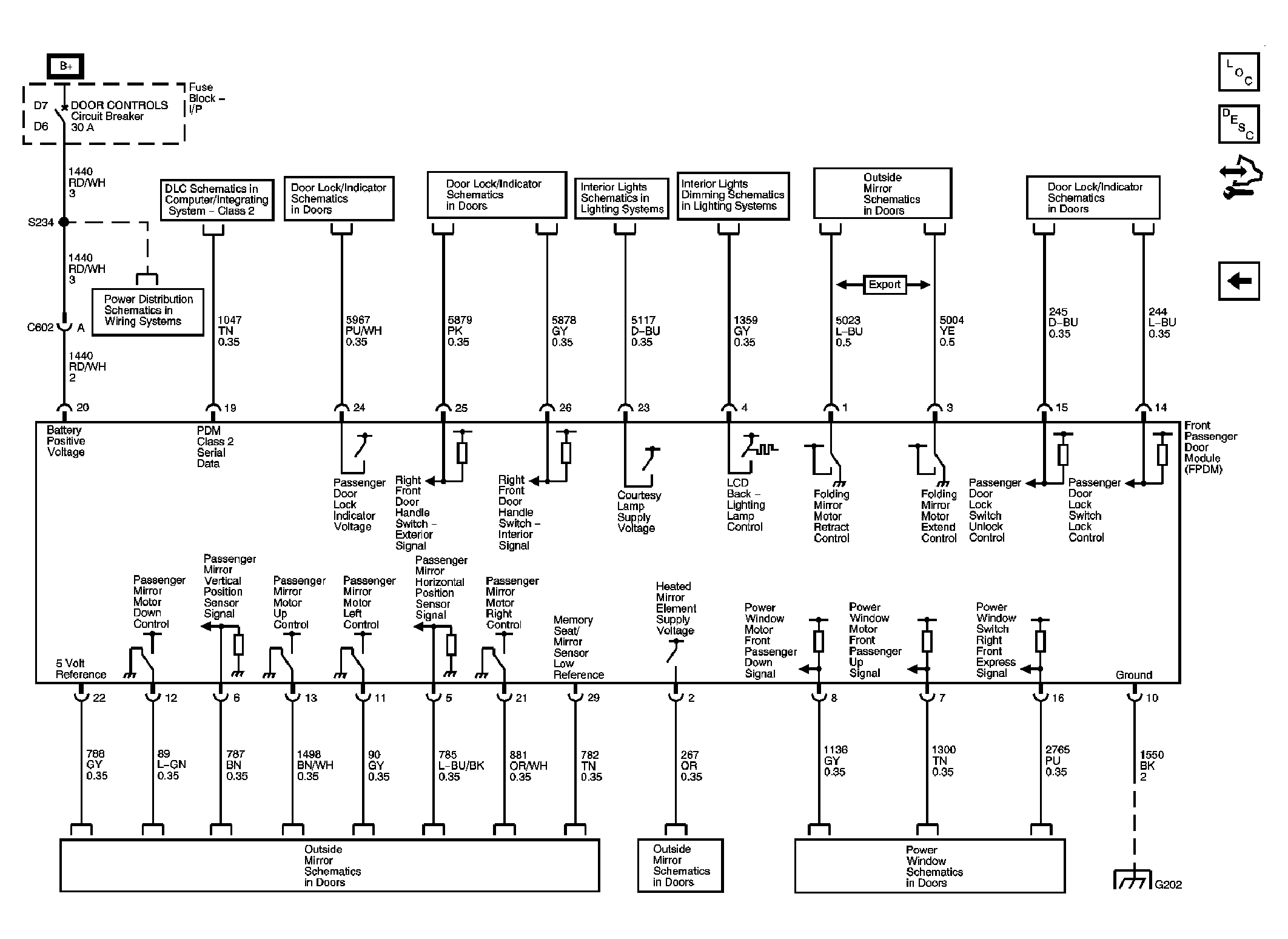

Fig 2: Passenger Door Control Module Schematics
GM1480677Courtesy of GENERAL MOTORS CORP.
