Disassembled Views

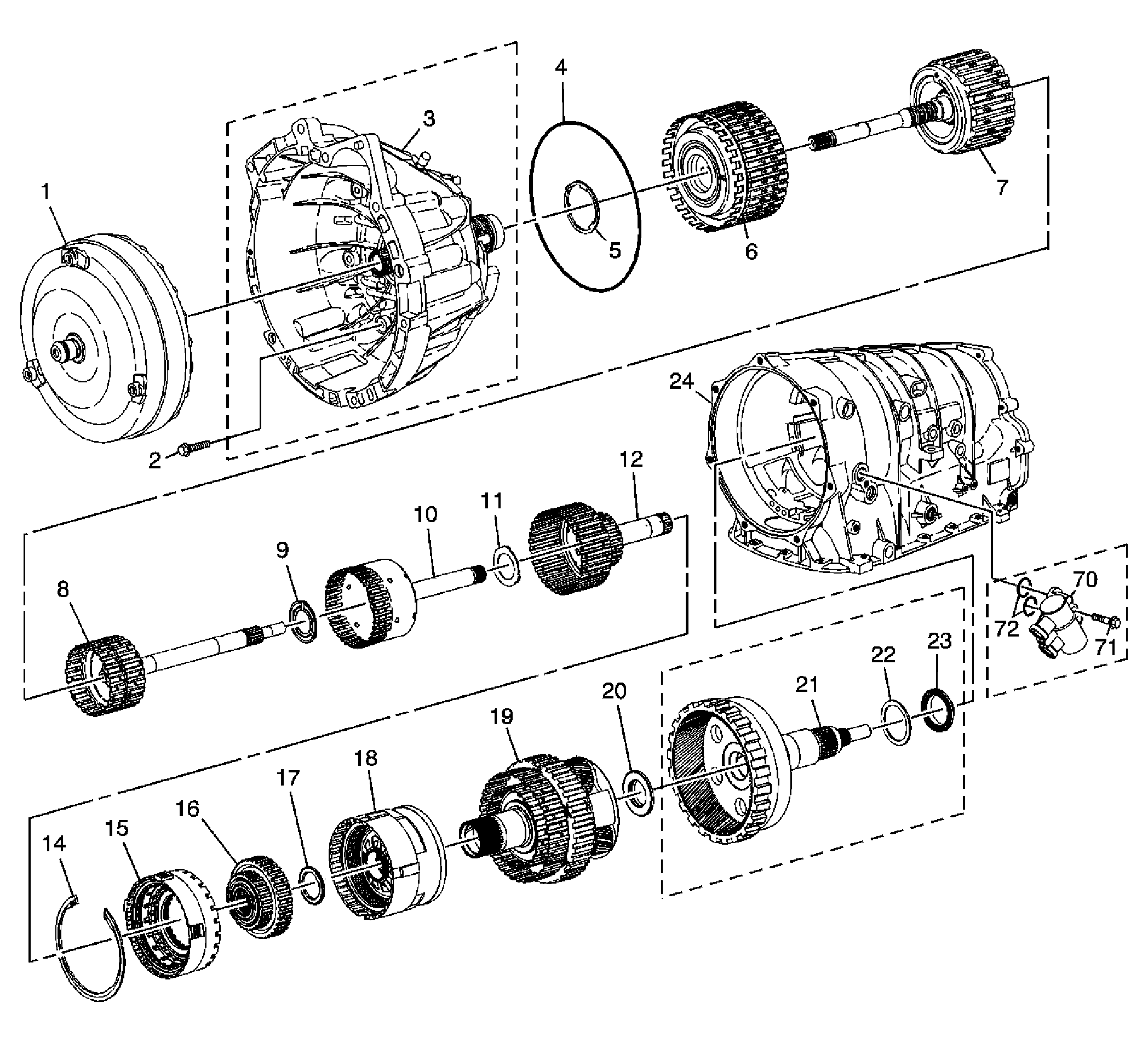

Fig 1: Transmission Case & Associated Parts Component View (1 Of 2)
GM1390694Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Torque Converter Assembly
2 Torque Converter Housing to Main Case Bolt
3 Torque Converter Housing Assembly - Model Dependent
4 Torque Converter Housing Fluid Seal Assembly
5 Reverse Clutch Housing Thrust Washer - Selective
6 Direct and Reverse Clutch Assembly
7 Forward and Coast Clutch Assembly
8 Input Sun Gear - W/Forward Clutch Roller Inner Race Shaft
9 Direct Clutch Hub Thrust Washer
10 Direct Clutch Assembly- W/Input and Reaction Carrier in Hub
11 Input and Reaction Carrier Inner Shaft Thrust Washer
12 Intermediate Clutch Sprag Assembly
14 Intermediate and Overdrive Clutch Housing Retainer Ring - Selective
15 Overdrive Clutch Housing Assembly
16 Low Clutch Sprag Assembly
17 Low Clutch Roller Thrust Bearing
18 Center Support
19 Input and Reaction Carrier Assembly
20 Input and Reaction Carrier Thrust Bearing
21 Output Shaft Assembly W/Rear Internal Gear - Model Dependent
22 Input and Reaction Carrier Washer Selective, - Model Dependent
23 Input and Reaction Carrier Thrust Bearing
24 Automatic Transmisssion Case Assembly
70 Transmission Cooler Bypass Valve - Model Dependent
71 Transmission Cooler Bypass Bolt - Model Dependent
72 Transmission Cooler Bypass Seals - Model Dependent

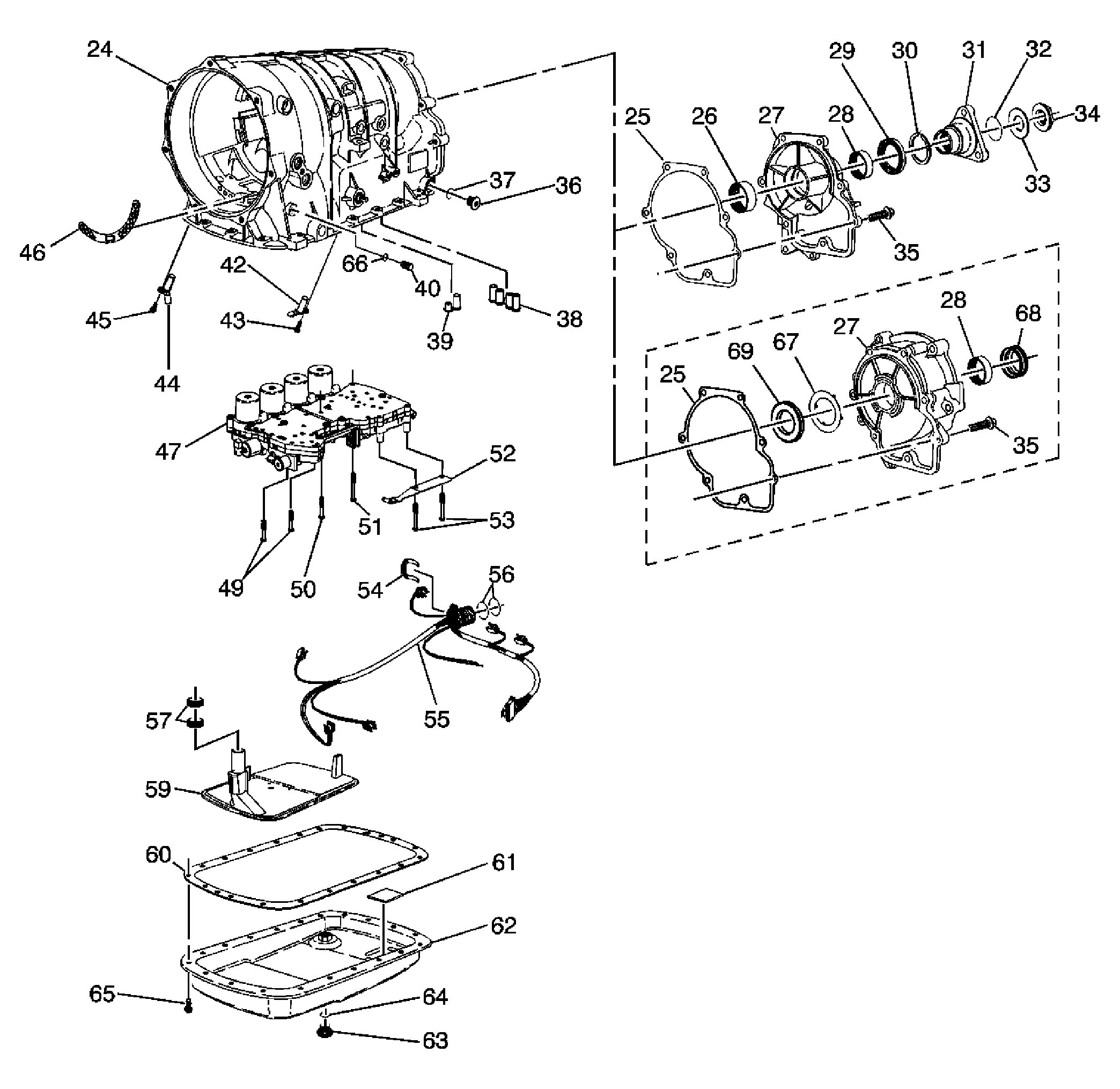

Fig 2: Transmission Case & Associated Parts Component View (2 Of 2)
GM951680Courtesy of GENERAL MOTORS CORP.
Callout Component Name
24 Automatic Transmission Case Assembly
25 Automatic Transmission Case Extension Gasket - Model Dependent
25 Automatic Transmission Case Extension Gasket - Model Dependent
26 Output Shaft Bearing - Model Dependent
27 Automatic Transmission Case Extension - Model Dependent
27 Automatic Transmission Case Extension - Model Dependent
28 Output Shaft Bearing - Model Dependent
28 Output Shaft Bearing - Model Dependent
29 Automatic Transmission Prop Shaft - Model Dependent
30 Output Shaft Assembly Retainer - Model Dependent
31 Automatic Transmission Prop Shaft Flange - Model Dependent
32 Automatic Transmission Prop Shaft Flange - O-Ring Seal - Model Dependent
33 Automatic Transmission Prop Shaft Thrust Washer - Model Dependent
34 Prop Shaft Flange Nut - Model Dependent
35 Automatic Transmission Case Extension Bolt - Model Dependent
35 Automatic Transmission Case Extension Bolt - Model Dependent
36 Automatic Transmission Fluid Level Hole Plug
37 Automatic Transmission Fluid Level Hole Plug O-Ring Seal
38 Center Support Fluid Passage Sleeve
39 Overdrive Clutch Fluid Passage Sleeve
40 Automatic Transmission Pressure Test Plug
42 Output Speed Sensor
43 Output Speed Sensor Bolt
44 Input Speed Sensor
45 Input Speed Sensor Bolt
46 Automatic Transmission Fluid Pump Cover Gasket
47 Control Valve Body and Accumulator Assembly
49 Control Valve Body Bolt M6 x 1.0 x 50
50 Control Valve Body Bolt M6 x 1.0 x 38
51 Control Valve Body Bolt M6 x 1.0 x 50
52 Manual Shaft Detent Assembly
53 Control Valve Body Bolt M6 x 1.0 x 68
54 Wiring Harness Clip
55 Automatic Transmission Wiring Harness
56 Automatic Transmission Wiring Harness - O-Ring seal - 2
57 Automatic Transmission Filter Seal - 2
59 Automatic Transmission Fluid Filter
60 Automatic Transmission Fluid Pan Gasket
61 Automatic Transmission Fluid Pan Magnet
62 Automatic Transmission Fluid Pan Assembly
63 Automatic Transmission Fluid Pan Drain Plug
64 Automatic Transmission Fluid Pan Drain Plug Seal
65 Automatic Transmission Fluid Pan Bolt
66 Automatic Transmission Pressure Test Plug O-Ring Seal
67 Input and Reaction Carrier Thrust Washer - Model Dependent
68 Automatic Transmission Prop Shaft Flange Seal - Model Dependent

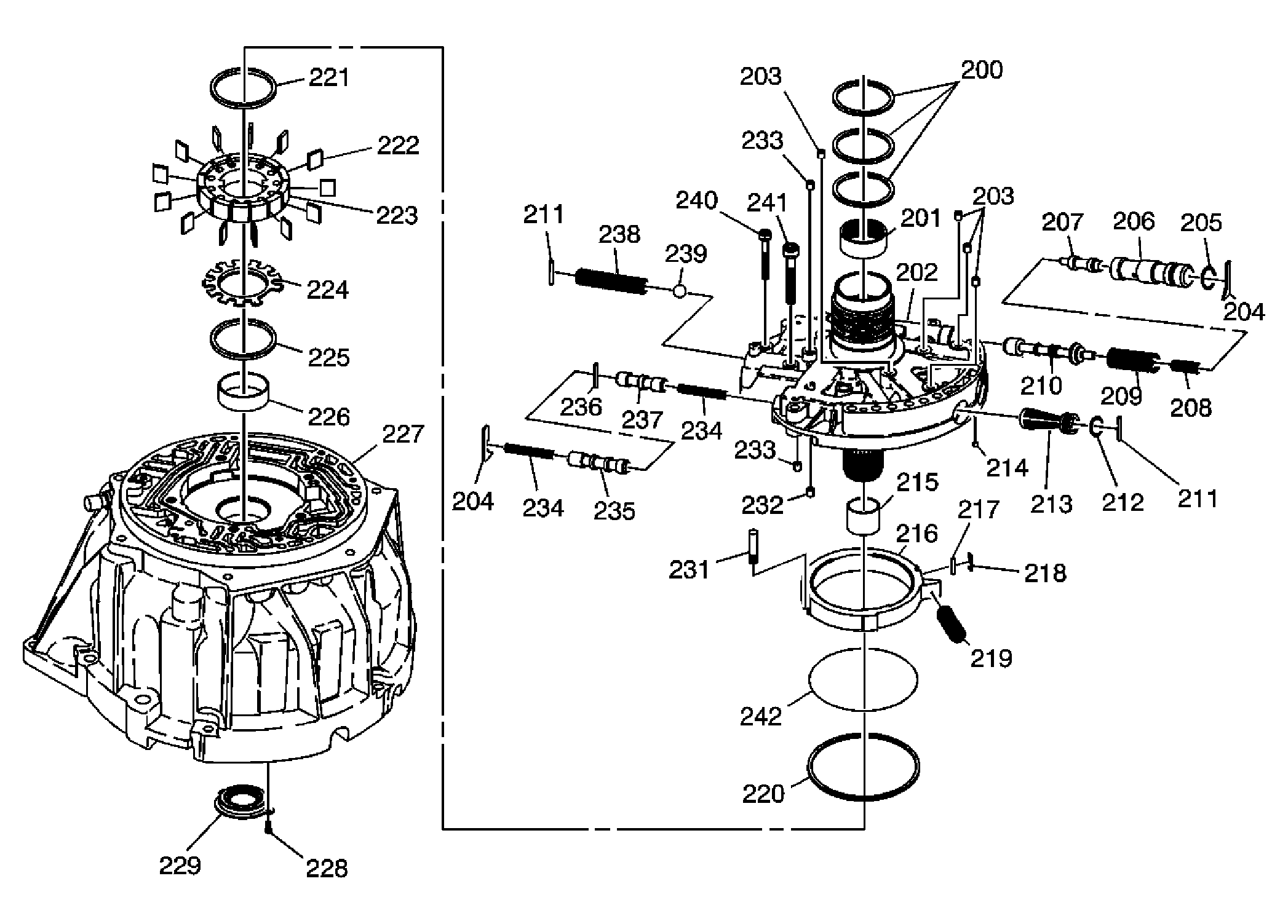

Fig 3: Fluid Pump Assembly Component View
GM802011Courtesy of GENERAL MOTORS CORP.
Callout Component Name
200 Reverse Clutch Housing Fluid Seal Ring - 3
201 Input Shaft Bearing Assembly
202 Automatic Transmission Fluid Pump Cover Assembly
203 Check Valve Retainer and Ball Assembly
203 Check Valve Retainer and Ball Assembly
204 Valve Bushing/Spring Retainer
204 Valve Bushing/Spring Retainer
205 Line Boost Valve Bushing Seal
206 Line Boost Valve Bushing
207 Line Boost Valve
208 Line Boost Valve Spring
209 Pressure Regulator Valve Spring
210 Pressure Regulator Valve
211 Automatic Transmission Fluid Pump Retainer Pin
211 Automatic Transmission Fluid Pump Retainer Pin
212 Automatic Transmission Pump Cover Seal
213 Automatic Transmission Fluid Pump Screen Assembly
214 Brass Orifice Insert
215 Turbine Shaft Bushing
216 Automatic Transmission Fluid Pump Slide - Selective
217 Automatic Transmission Fluid Pump Slide Seal Support
218 Automatic Transmission Fluid Pump Slide Seal
219 Automatic Transmission Fluid Pump Slide Ring
220 Automatic Transmission Fluid Pump Slide Ring
221 Automatic Transmission Fluid Pump Vane Ring
222 Automatic Transmission Fluid Pump Vane
223 Automatic Transmission Fluid Pump Rotor - Selective
224 Automatic Transmission Fluid Pump Rotor Guide
225 Automatic Transmission Fluid Pump Vane Ring
226 Torque Converter Bushing
227 Torque Converter Housing
228 Torque Converter Housing Seal Bolt M4 x 0.7 x 10.0 - 4
229 Torque Converter Housing Seal
231 Automatic Transmission Fluid Pump Slide Pin Assembly
232 Orifice Sleeve
233 Orifice Cup Plug - 2
233 Orifice Cup Plug - 2
234 TCC Control Valve Spring
234 TCC Control Valve Spring
235 TCC Control Valve
236 Automatic Transmission Fluid Pump Retainer Pin
237 TCC Enable Valve
238 Pressure Relief Ball Valve Spring
239 Pressure Relief Ball Valve
240 Automatic Transmission Fluid Pump Bolt M6 x 1.0 x 40
241 Automatic Transmission Fluid Pump Bolt M8 x 1.25 x 40
242 Automatic Transmission Fluid Pump Slide O-ring Seal

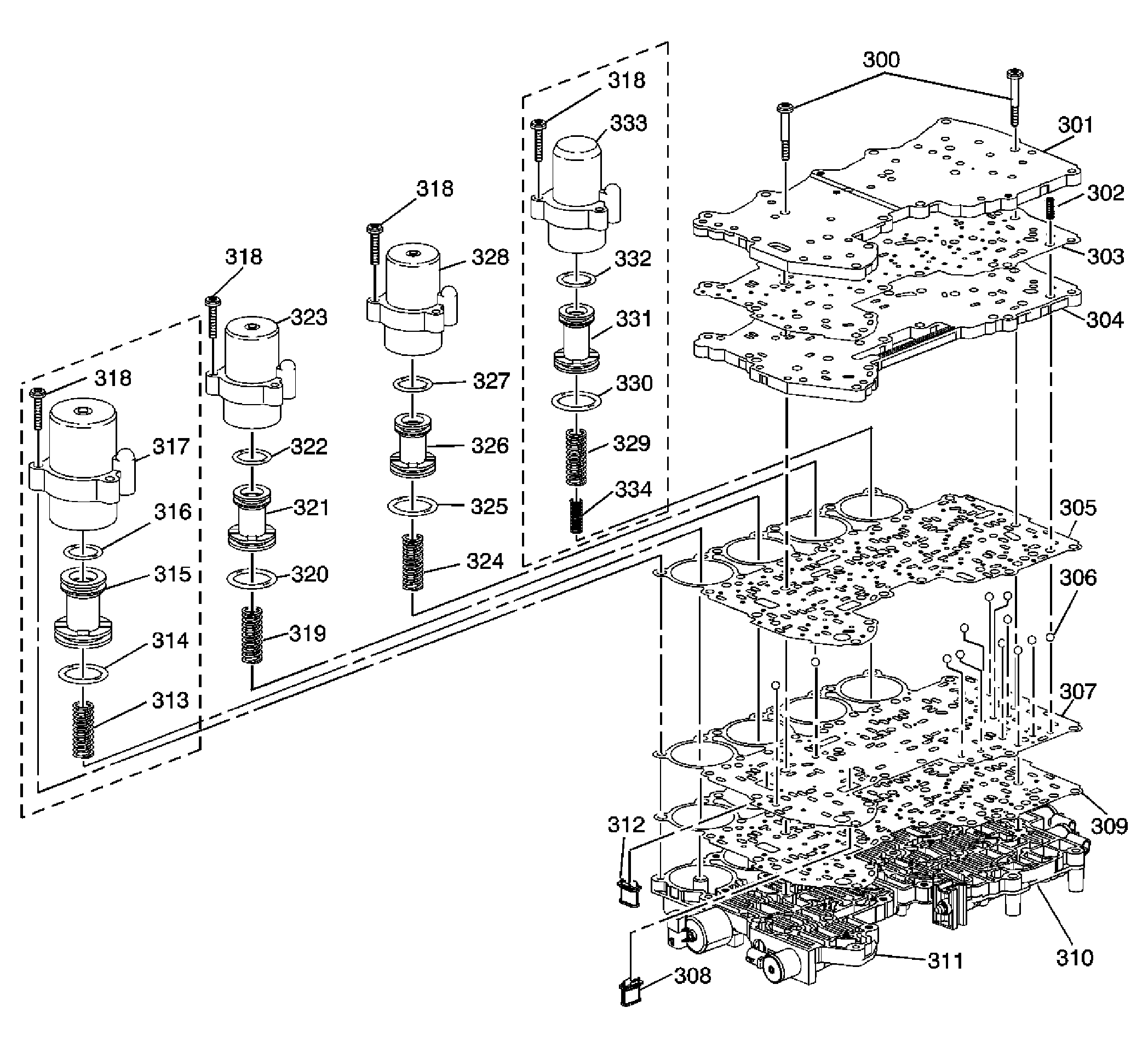

Fig 4: Control Valve Body & Accumulator Assembly Component View
GM951808Courtesy of GENERAL MOTORS CORP.
Callout Component Name
300 Control Valve Body Bolt M6 x 1.0 x 38 - 7
301 Control Valve Top Channel Plate
302 Control Valve Channel Plate Ball Check Spring
303 Control Valve Channel Plate Gasket
304 Control Valve Bottom Channel Plate
305 Control Valve Body Gasket
306 Control Valve Body Ball Check Valve
307 Control Valve Body Spacer Plate
308 TCC PWM Solenoid Valve Filter Assembly
309 Control Valve Body Spacer Plate Gasket
310 Control Valve Rear Body Assembly
311 Control Valve Front Body Assembly
312 Pressure Control Solenoid Valve Filter Assembly
313 Direct Clutch Accumulator Piston Spring - Model Dependent
314 Direct Clutch Accumulator Piston Fluid Seal Ring - Model Dependent
315 Direct Clutch Accumulator Piston - Model Dependent
316 Direct Clutch Accumulator Piston Fluid Seal Ring - Model Dependent
317 Direct Clutch Accumulator Housing - Model Dependent
318 Accumulator Housing Bolt M6 x 1.0 x 30 - 12 - Model Dependent
318 Accumulator Housing Bolt M6 x 1.0 x 30 - 12
318 Accumulator Housing Bolt M6 x 1.0 x 30 - 12
318 Accumulator Housing Bolt M6 x 1.0 x 30 - 12
319 Overdrive Clutch Accumulator Piston Spring
320 Overdrive Clutch Accumulator Piston Fluid Seal Ring
321 Overdrive Clutch Accumulator Piston
322 Overdrive Clutch Accumulator Piston Fluid Seal Ring
323 Overdrive Clutch Accumulator Housing
324 Intermediate Clutch Accumulator Piston Spring
325 Intermediate Clutch Accumulator Piston Fluid Seal Ring
326 Intermediate Clutch Accumulator Piston
327 Intermediate Clutch Accumulator Piston Fluid Seal Ring
328 Intermediate Clutch Accumulator Housing
329 2nd Clutch Accumulator Piston Spring - Model Dependent
330 2nd Clutch Accumulator Piston Seal Ring - Model Dependent
331 2nd Clutch Accumulator Piston - Model Dependent
332 2nd Clutch Accumulator Piston Seal Ring - Model Dependent
333 2nd Clutch Accumulator Housing - Model Dependent
334 2nd Clutch Accumulator Piston Inner Spring - Model Dependent

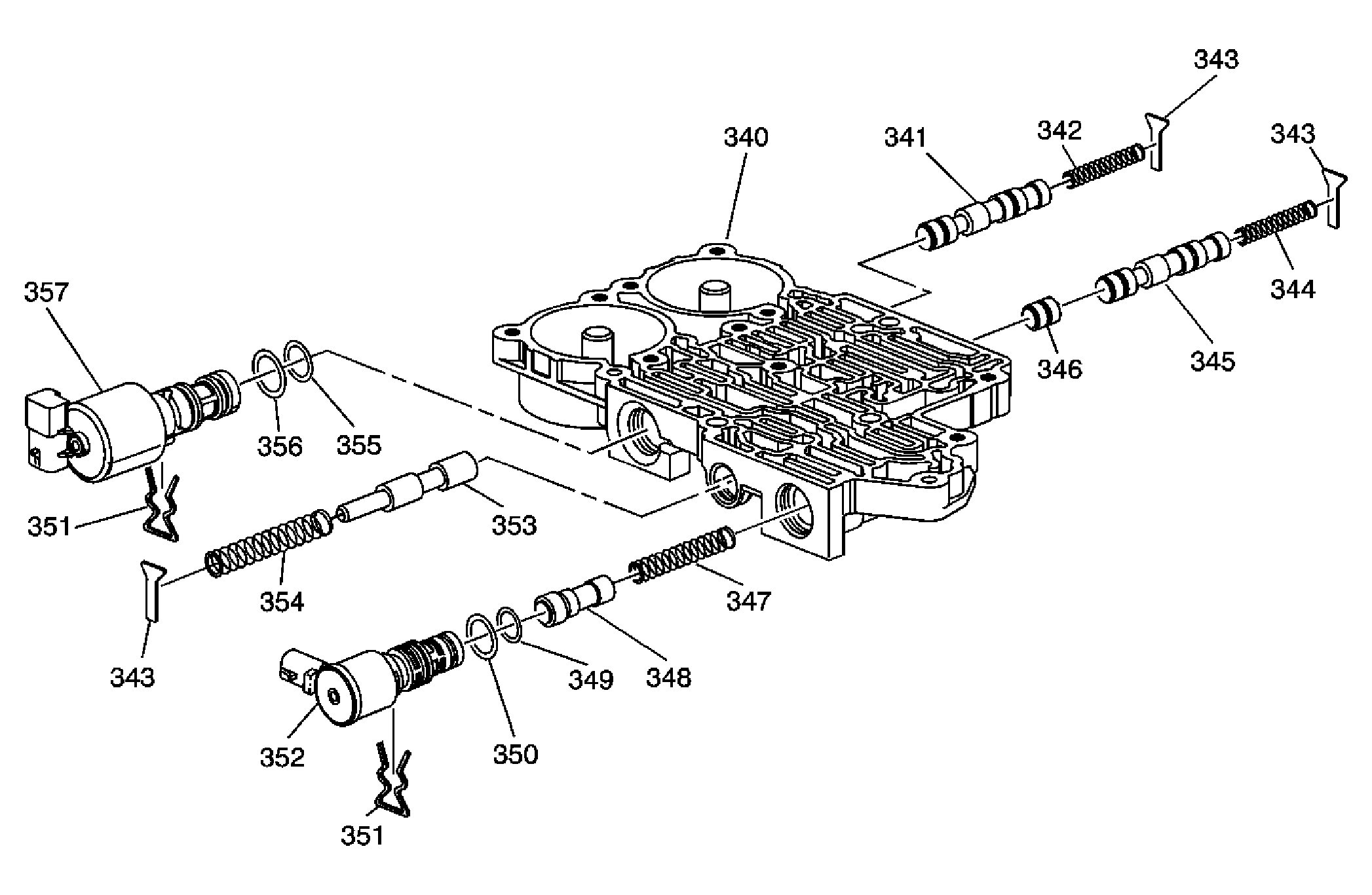

Fig 5: Front Control Valve Body Component View
GM802016Courtesy of GENERAL MOTORS CORP.
Callout Component Name
340 Front Control Valve Body
341 Safety Mode Valve
342 Safety Mode Valve Spring
343 Valve Spring Retainer - 3
343 Valve Spring Retainer - 3
343 Valve Spring Retainer - 3
344 3-4 Shift Valve Spring
345 3-4 Shift Valve
346 3-4 Shift Control Valve
347 TCC Regulator Apply Valve Spring
348 TCC Regulator Apply Valve
349 Solenoid Valve - O-Ring Seal
350 Solenoid Valve - O-Ring Seal
351 Solenoid Valve Retainer - 2
351 Solenoid Valve Retainer - 2
352 TCC PWM Solenoid Valve
353 Feed Limit Valve
354 Feed Limit Valve Spring
355 Pressure Control Solenoid - O-Ring Seal
356 Pressure Control Solenoid - O-Ring Seal
357 Pressure Control (PC) Solenoid Assembly

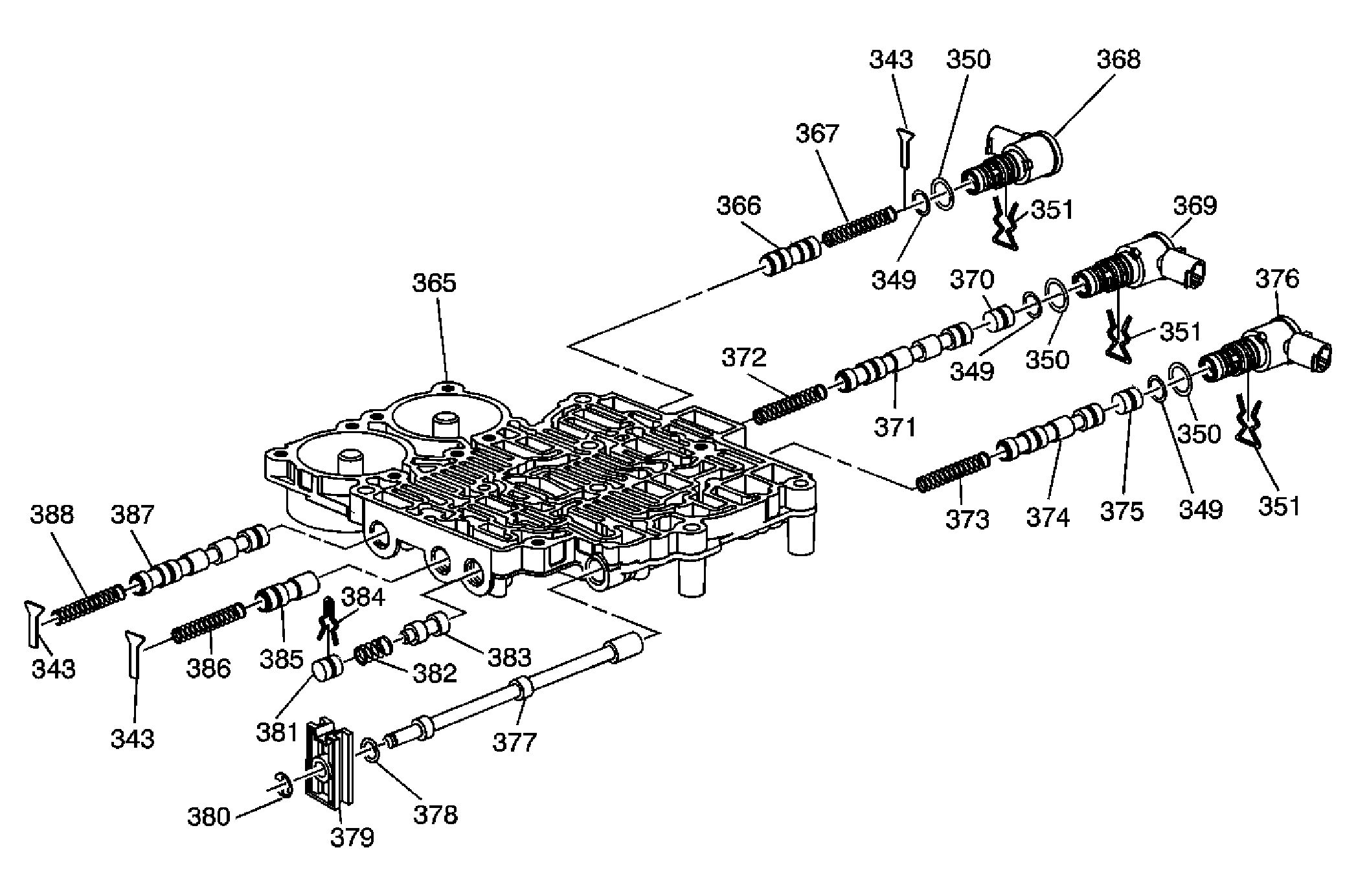

Fig 6: Rear Control Valve Body Component View
GM802018Courtesy of GENERAL MOTORS CORP.
Callout Component Name
343 Valve Spring Retainer
343 Valve Spring Retainer
343 Valve Spring Retainer
349 Solenoid Valve - O-Ring Seal
349 Solenoid Valve - O-Ring Seal
349 Solenoid Valve - O-Ring Seal
350 Solenoid Valve - O-Ring Seal
350 Solenoid Valve - O-Ring Seal
350 Solenoid Valve - O-Ring Seal
351 Solenoid Valve Retainer
351 Solenoid Valve Retainer
351 Solenoid Valve Retainer
365 Rear Control Valve Body
366 1-2 Shift Control Valve
367 1-2 Shift Control Valve Spring
368 1-2 Shift Solenoid (SS) Valve Assembly
369 2-3 Shift Solenoid (SS) Valve Assembly
370 2-3 Shift Control Valve
371 2-3 Shift Valve
372 2-3 Shift Valve Spring
373 4-5 Shift Valve Spring
374 4-5 Shift Valve
375 4-5 Shift Control Valve
376 4-5 Shift Solenoid (SS) Valve Assembly
377 Manual Valve
378 Manual Valve Link Washer - Waved
379 Manual Valve Link
380 Manual Valve Link Retainer
381 Low Pressure Control Valve Bore Plug
382 Low Pressure Control Valve Spring
383 Low Pressure Control Valve
384 Low Pressure Control Valve Bore Retainer
385 Reverse Lockout Valve
386 Reverse Lockout Valve Spring
387 1-2 Shift Valve
388 1-2 Shift Valve Spring

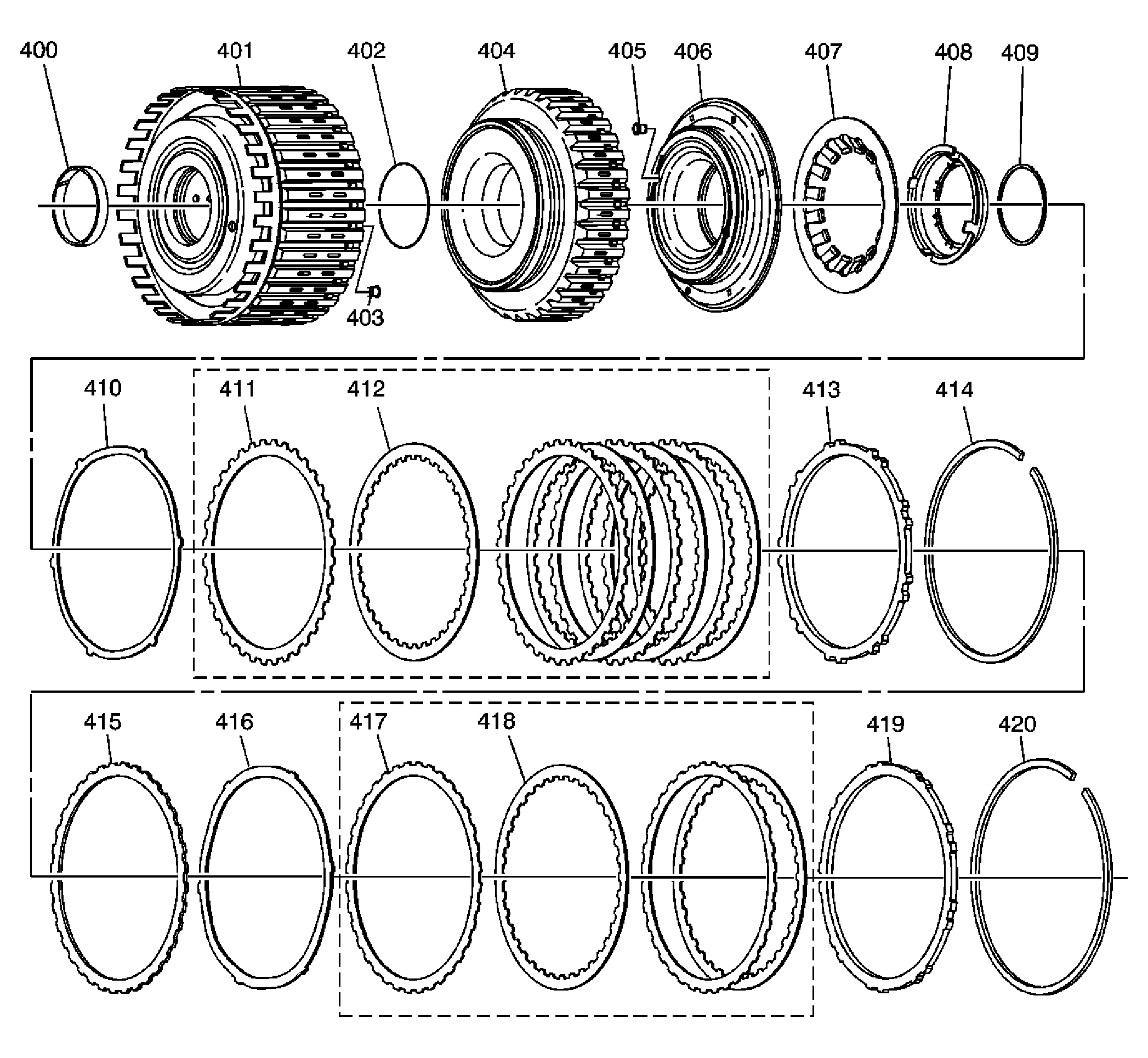

Fig 7: Direct & Reverse Clutch Assembly Component View
GM951816Courtesy of GENERAL MOTORS CORP.
Callout Component Name
400 Reverse Clutch Housing Bushing
401 Reverse Clutch - W/Input Housing Assembly
402 Reverse Clutch Piston Inner Seal
403 Reverse Clutch Housing Ball Check Valve
404 Reverse Clutch Piston
405 Direct Clutch Housing Ball Check Valve
406 Direct Clutch Piston Assembly
407 Direct and Reverse Clutch Spring
408 Direct and Reverse Clutch Spring Retainer
409 Direct and Reverse Clutch Spring Retainer Ring
410 Direct Clutch Apply Plate
411 Direct Clutch Plate Assembly - Outer Spline - 4
412 Direct Clutch Plate Assembly - Inner Spline - 4
413 Direct Clutch Backing Plate
414 Direct Clutch Backing Plate Retainer Ring - Selective
415 Reverse Clutch Spacer
416 Reverse Clutch Apply Plate
417 Reverse Clutch Plate Assembly - Outer Spline - 2
418 Reverse Clutch Plate Assembly - Inner Spline - 2
419 Reverse Clutch Backing Plate
420 Reverse Clutch Backing Plate Retainer Ring - Selective

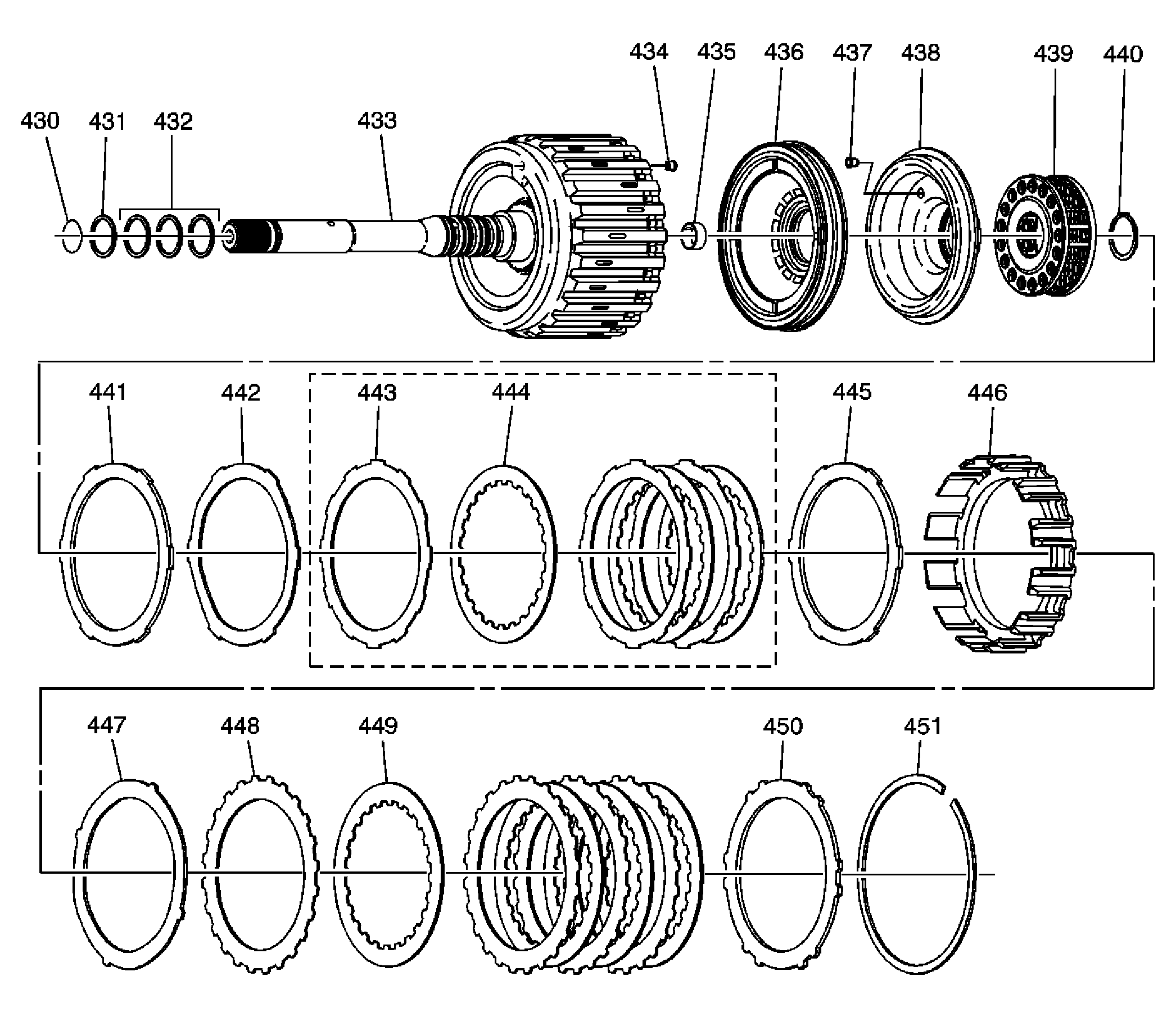

Fig 8: Forward & Coast Clutch Assembly Component View
GM951822Courtesy of GENERAL MOTORS CORP.
Callout Component Name
430 Input Shaft - O-Ring Seal
431 Input Shaft Fluid Seal Ring
432 Input Shaft Fluid Seal Ring - 3
433 Forward Clutch - W/Input Housing Assembly
434 Forward Clutch Housing Ball Check Valve Assembly
435 Forward Clutch Bushing
436 Forward Clutch Piston Assembly
437 Coast Clutch Piston Ball Check Valve Assembly
438 Coast Clutch Piston Assembly
439 Forward and Coast Clutch Spring
440 Forward and Coast Clutch Spring Retainer Ring
441 Coast Clutch Spacer Plate - Selective
442 Coast Clutch Apply Plate
443 Coast Clutch Plate Assembly - Outer Spline - 3
444 Coast Clutch Plate Assembly - Inner Spline - 3
445 Coast Clutch Backing Plate
446 Coast Clutch Housing
447 Forward Clutch Apply Plate
448 Forward Clutch Plate Assembly - Outer Spline - 4
449 Forward Clutch Plate Assembly - Inner Spline - 4
450 Forward Clutch Backing Plate
451 Forward Clutch Backing Plate Retainer Ring - Selective

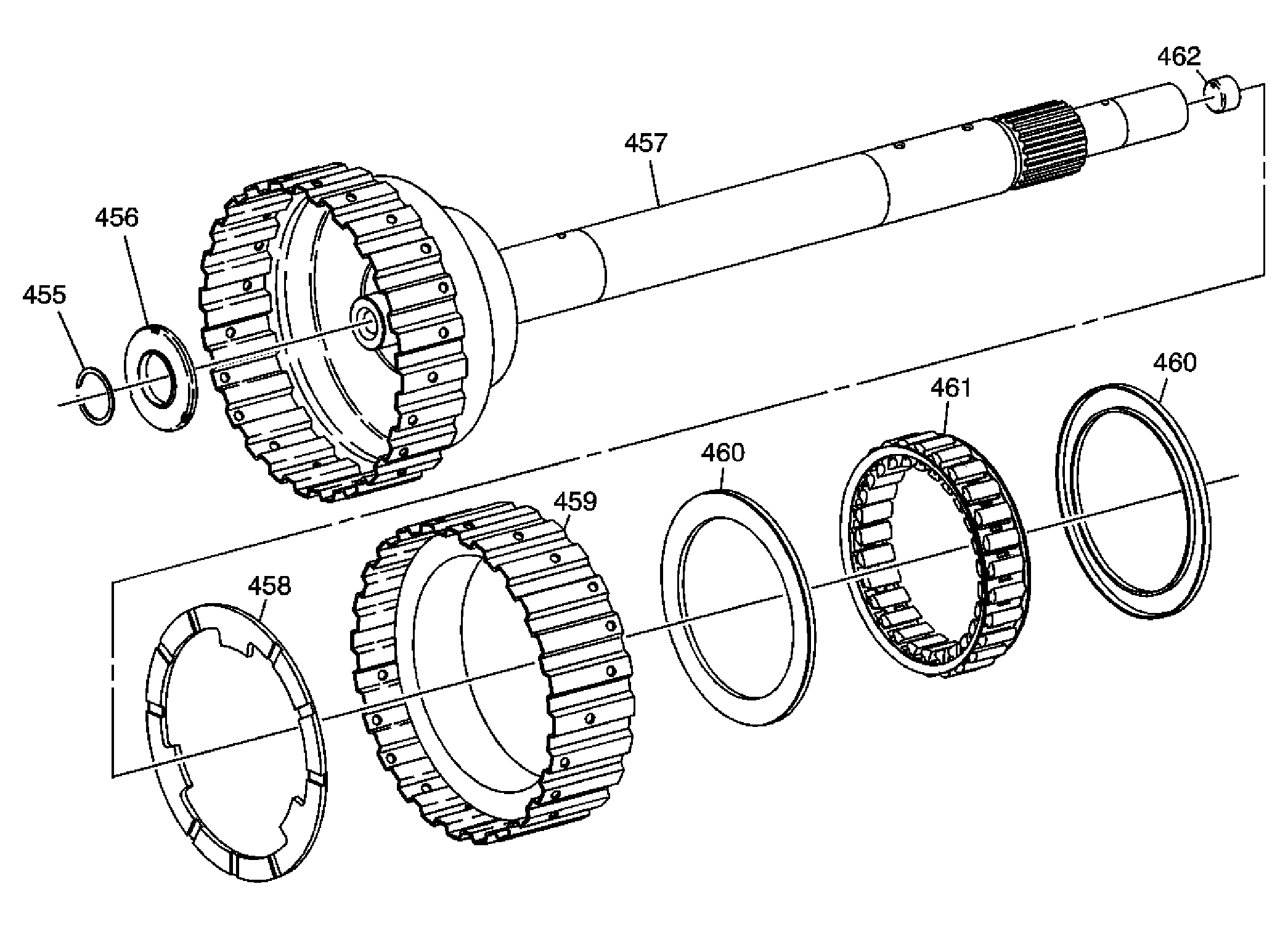

Fig 9: Input Sun Gear Shaft & Forward Sprag Clutch Assembly Component View
GM802026Courtesy of GENERAL MOTORS CORP.
Callout Component Name
455 Forward Clutch Roller Inner Race Thrust Ring
456 Forward Clutch Roller Inner Bearing
457 Input Sun Gear Shaft Assembly
458 Forward Clutch Roller Outer Race Washer
459 Forward Clutch Sprag Outer Race
460 Forward Clutch Sprag Assembly Retainer Rings - 2
460 Forward Clutch Sprag Assembly Retainer Rings - 2
461 Forward Clutch Sprag Assembly
462 Orificed Cup Plug - Lube

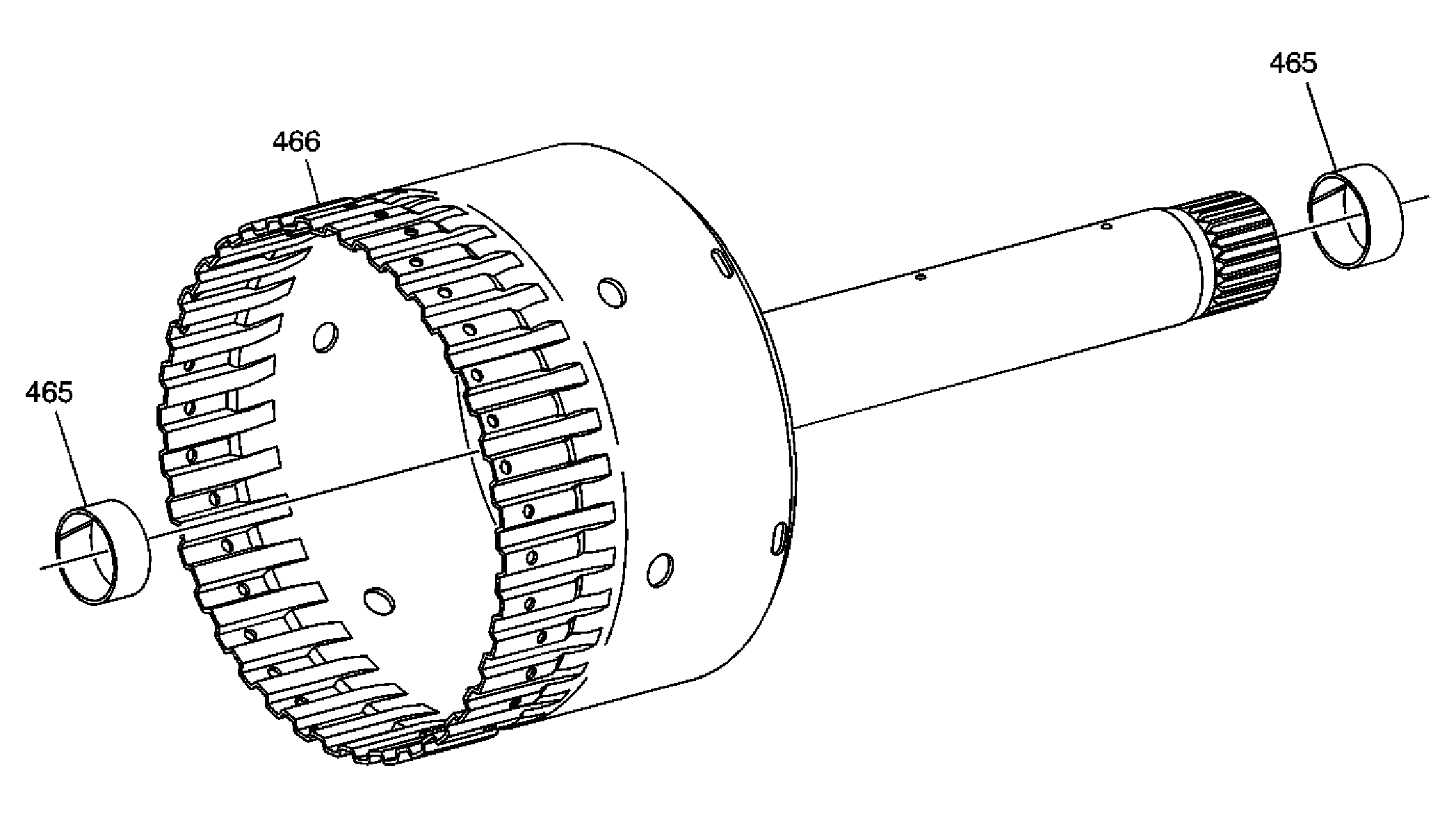

Fig 10: Direct Clutch Drum & Shaft Assembly Component View
GM802029Courtesy of GENERAL MOTORS CORP.
Callout Component Name
465 Input and Reaction Carrier Bushing - 2
465 Input and Reaction Carrier Bushing - 2
466 Direct Clutch Drum

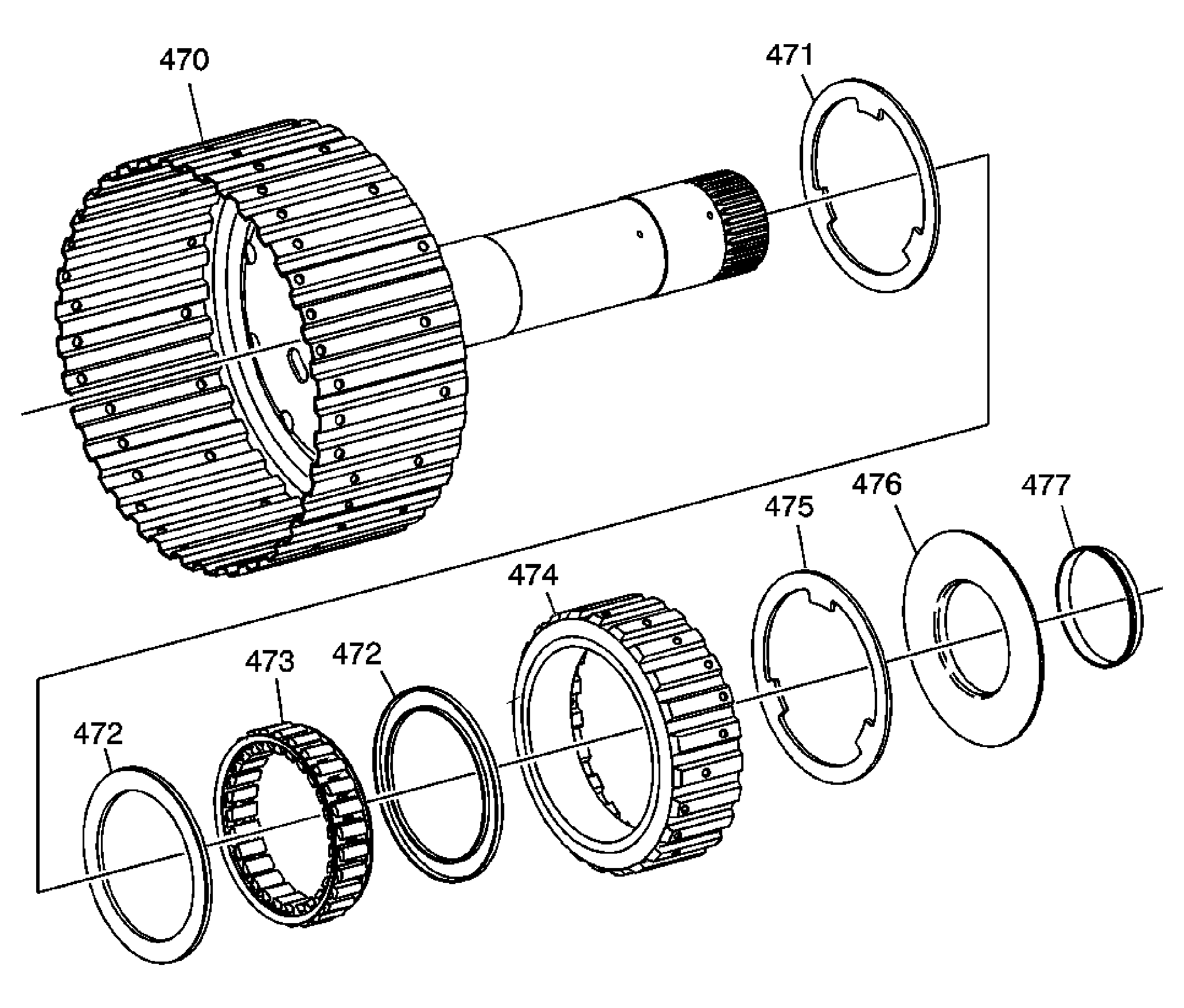

Fig 11: Intermediate Sprag Clutch Assembly Component View
GM802034Courtesy of GENERAL MOTORS CORP.
Callout Component Name
470 Overdrive and Reverse Clutch - W/Hub Assembly
471 Intermediate Clutch Roller Thrust Washer
472 Intermediate Clutch Sprag Assembly Retainer Rings - 2
472 Intermediate Clutch Sprag Assembly Retainer Rings - 2
473 Intermediate Clutch Sprag Assembly
474 Intermediate Clutch Sprag Outer Race
475 Intermediate Clutch Roller Thrust Washer
476 Intermediate Clutch Roller Thrust Bearing Assembly
477 Intermediate Clutch Roller Thrust Bearing Assembly Retainer

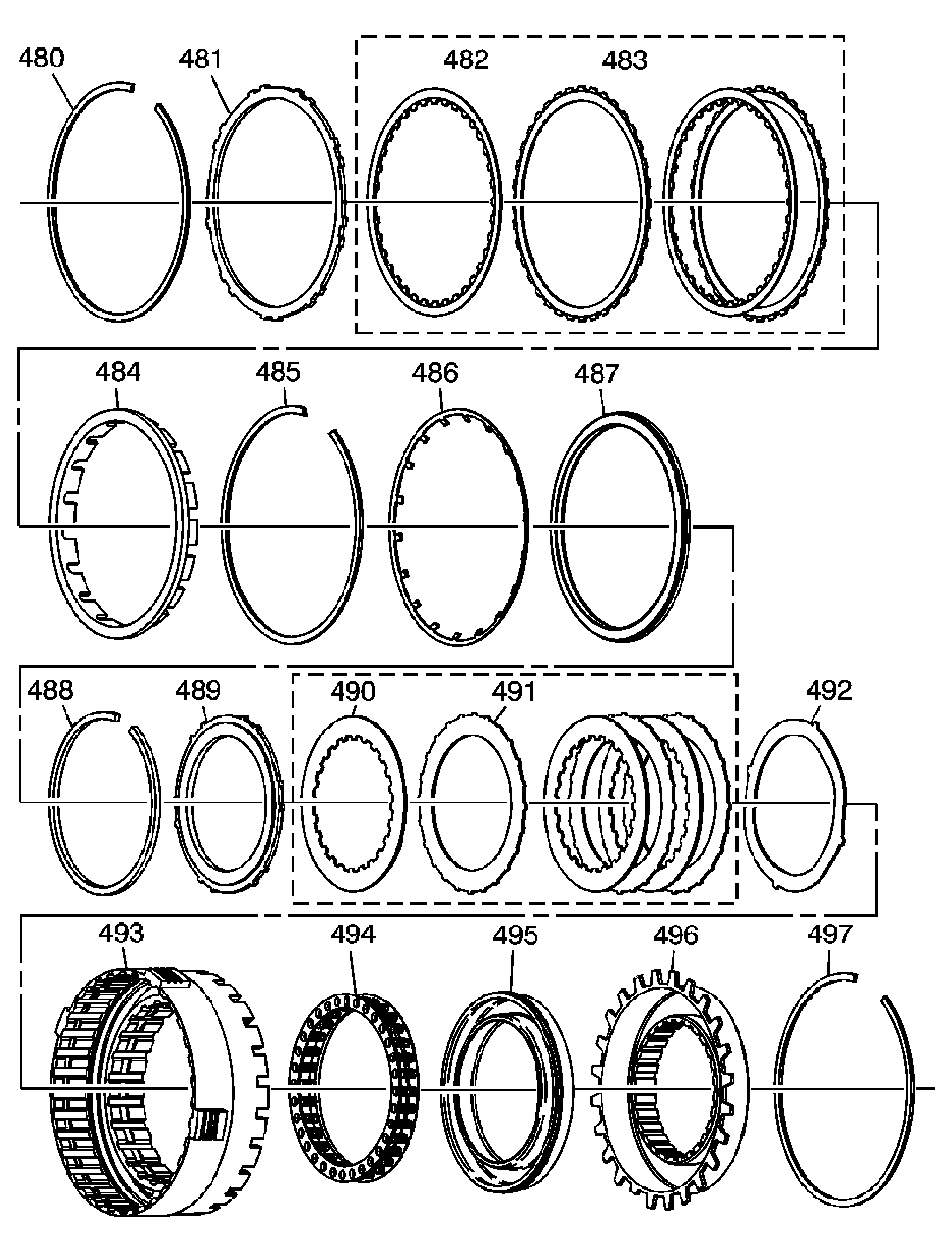

Fig 12: Overdrive & Intermediate Clutch Assembly Component View
GM951832Courtesy of GENERAL MOTORS CORP.
Callout Component Name
480 Overdrive Clutch Backing Plate Retainer Ring - Selective
481 Overdrive Clutch Backing Plate
482 Overdrive Clutch Plate Assembly - Inner Spline
483 Overdrive Clutch Plate Assembly - Outer Spline
484 Overdrive Clutch Spacer
485 Overdrive Clutch Spring Retainer Ring
486 Overdrive Clutch Piston Spring
487 Overdrive Clutch Piston Assembly
488 Intermediate Clutch Backing Plate Retainer Ring - Selective
489 Intermediate Clutch Backing Plate
490 Intermediate Clutch Plate Assembly - Inner Spline - 3
491 Intermediate Clutch Plate Assembly - Outer Spline - 3
492 Intermediate Clutch Apply Plate
493 Overdrive Clutch Housing
494 Intermediate Clutch Spring
495 Intermediate Clutch Piston Assembly
496 Intermediate Clutch Housing
497 Intermediate Clutch Housing Retainer Ring

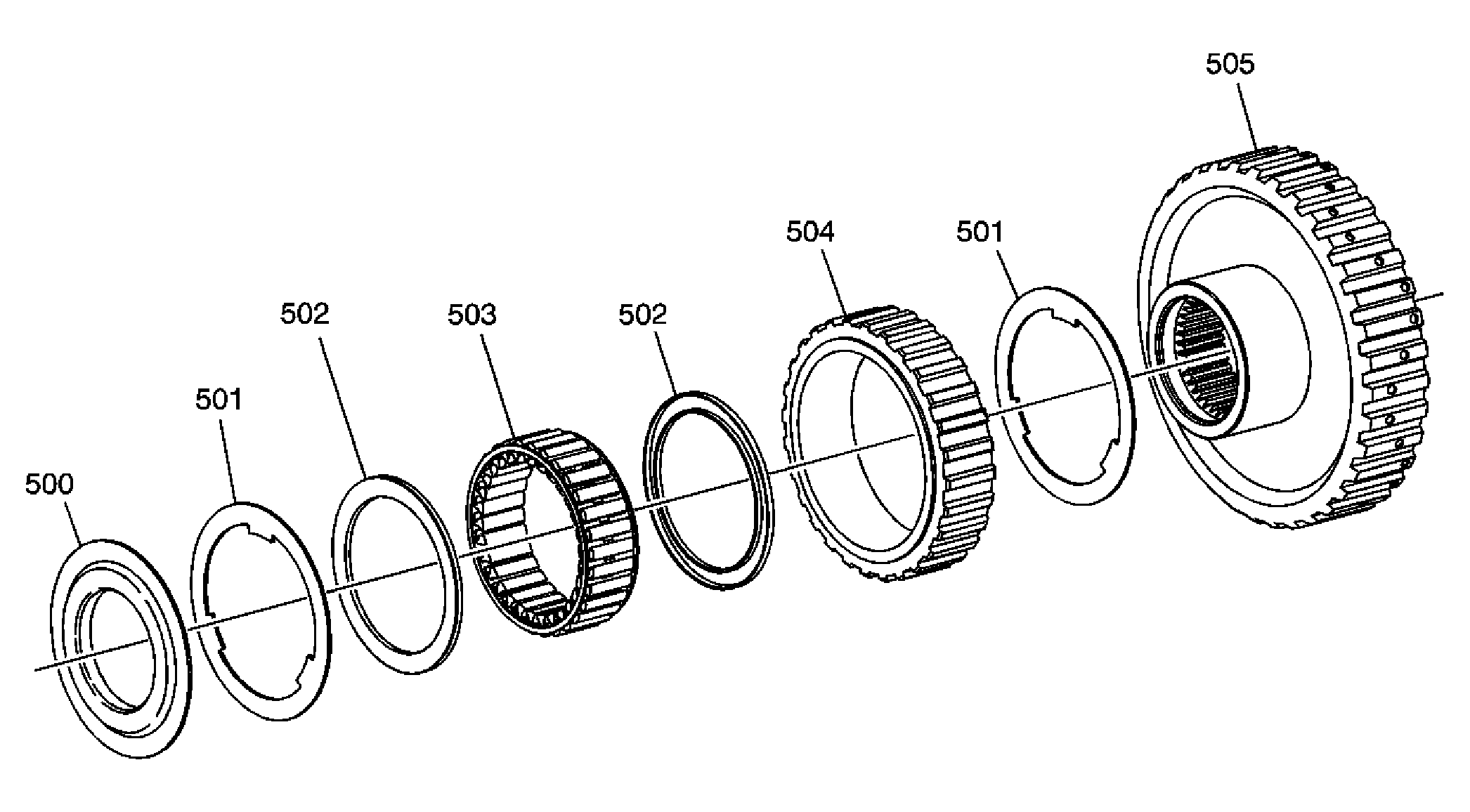

Fig 13: Low Clutch Sprag Assembly Component View
GM802038Courtesy of GENERAL MOTORS CORP.
Callout Component Name
500 Low Clutch Roller Retainer
501 Low Clutch Roller Thrust Washer
501 Low Clutch Roller Thrust Washer
502 Low Clutch Sprag Assembly Retainer Rings - 2
502 Low Clutch Sprag Assembly Retainer Rings - 2
503 Low Clutch Sprag Assembly
504 Low Clutch Sprag Outer Race
505 Low Clutch Sprag Inner Race

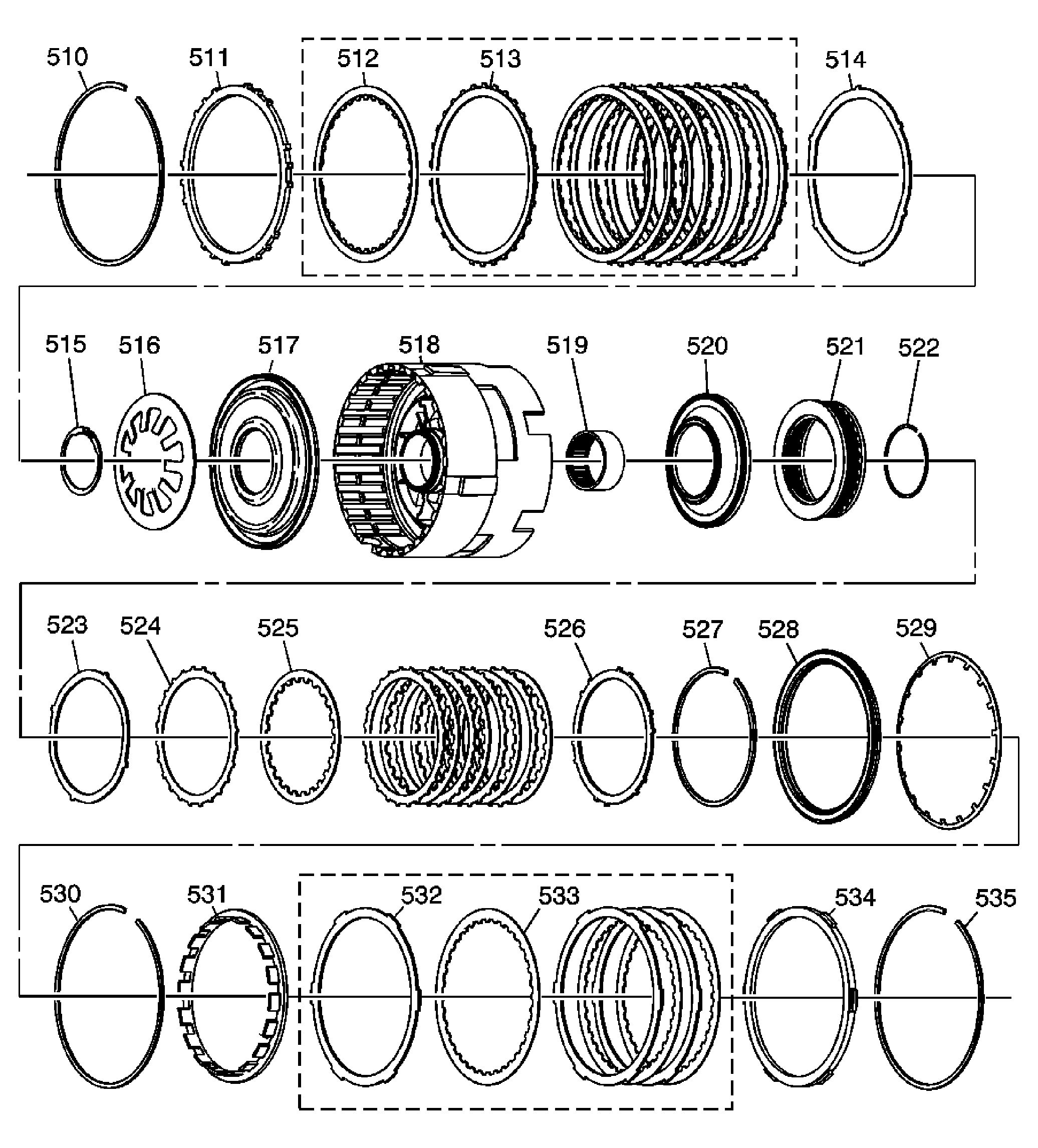

Fig 14: Center Support Assembly Component View
GM951845Courtesy of GENERAL MOTORS CORP.
Callout Component Name
510 Low and Reverse Clutch Plate Retainer Ring - Selective
511 Low and Reverse Clutch Backing Plate
512 Low and Reverse Clutch Plate Assembly - Inner Spline - 5
513 Low and Reverse Clutch Plate Assembly - Outer Spline - 5
514 Low and Reverse Clutch Apply Plate
515 Low and Reverse Clutch Spring Retainer Ring
516 Low and Reverse Clutch Spring
517 Low and Reverse Clutch Piston
518 Center Support
519 Input and Reaction Bearing Assembly
520 2nd Clutch Piston
521 2nd Clutch Spring
522 2nd Clutch Spring Retainer Ring
523 2nd Clutch Apply Plate
524 2nd Clutch Plate Assembly - Outer Spline - 5
525 2nd Clutch Plate Assembly - Inner Spline - 5
526 2nd Clutch Backing Plate
527 2nd Clutch Backing Plate Retainer Ring - Selective
528 2nd Coast Clutch Piston Assembly
529 2nd Coast Clutch Spring
530 2nd Coast Clutch Spring Retainer Ring
531 2nd Coast Clutch Spacer
532 2nd Coast Clutch Plate Assembly - Outer Spline - 3
533 2nd Coast Clutch Plate Assembly - Inner Spline - 3
534 2nd Coast Clutch Backing Plate
535 2nd Coast Clutch Plate -Backing Plate -Retainer Ring -Selective

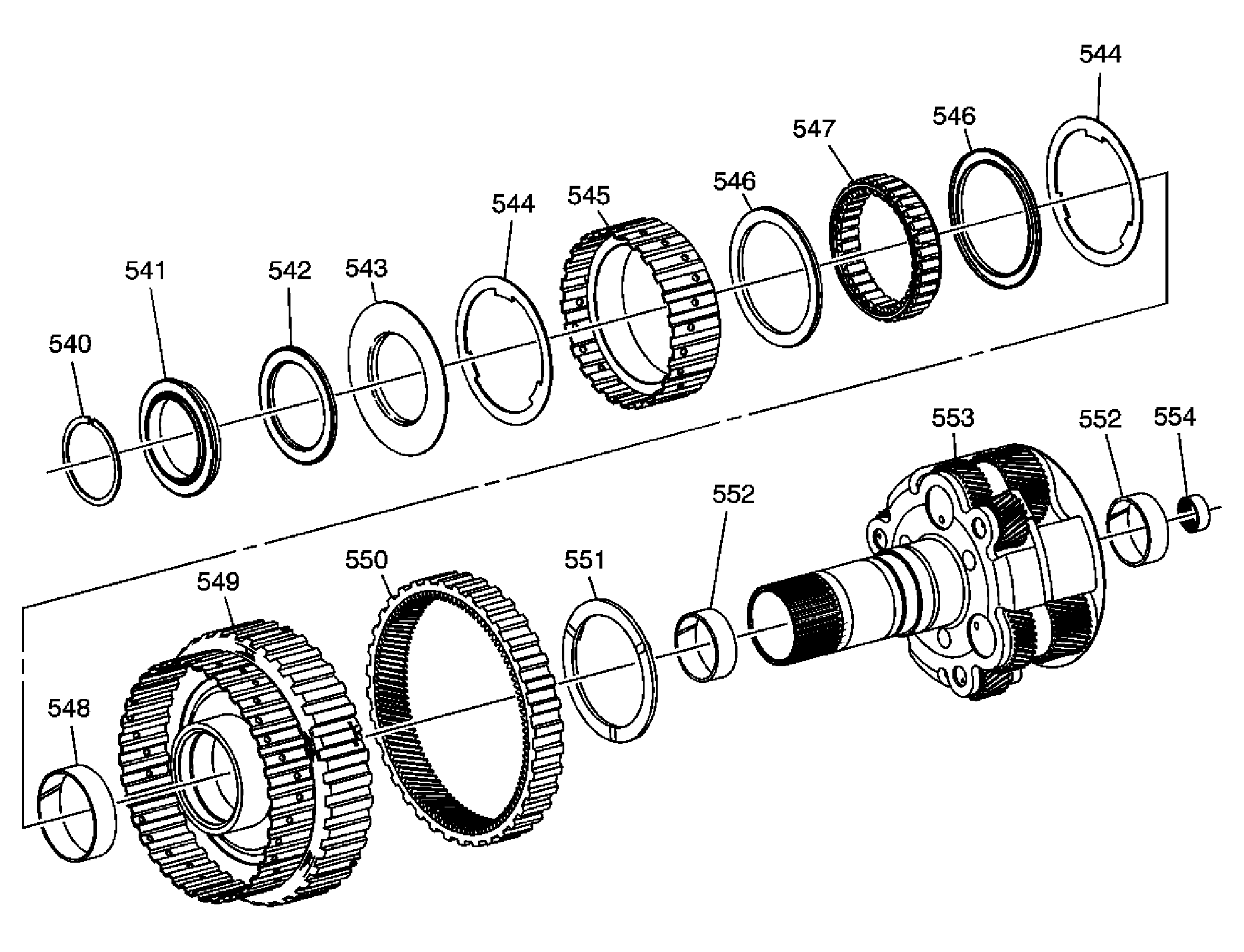

Fig 15: Planetary Carrier Assembly Component View
GM802041Courtesy of GENERAL MOTORS CORP.
Callout Component Name
540 Input and Reaction Carrier Outer Retainer Ring
541 Input and Reaction Bearing Assembly
542 2nd Clutch Roller Inner Race Bearing Assembly
543 2nd Clutch Sprag Retainer
544 2nd Clutch Roller Outer Race Washer
544 2nd Clutch Roller Outer Race Washer
545 2nd Clutch Sprag Outer Race
546 2nd Clutch Sprag Assembly Retainer - 2
546 2nd Clutch Sprag Assembly Retainer - 2
547 2nd Clutch Sprag Assembly
548 Input and Reaction Carrier Bushing
549 2nd Clutch Sprag Inner Race
550 Reaction Internal Gear
551 Reaction Internal Gear Flange Washer
552 Reaction Carrier Bushing - 2
552 Reaction Carrier Bushing - 2
553 Input and Reaction Carrier
554 Input and Reaction Bearing Assembly

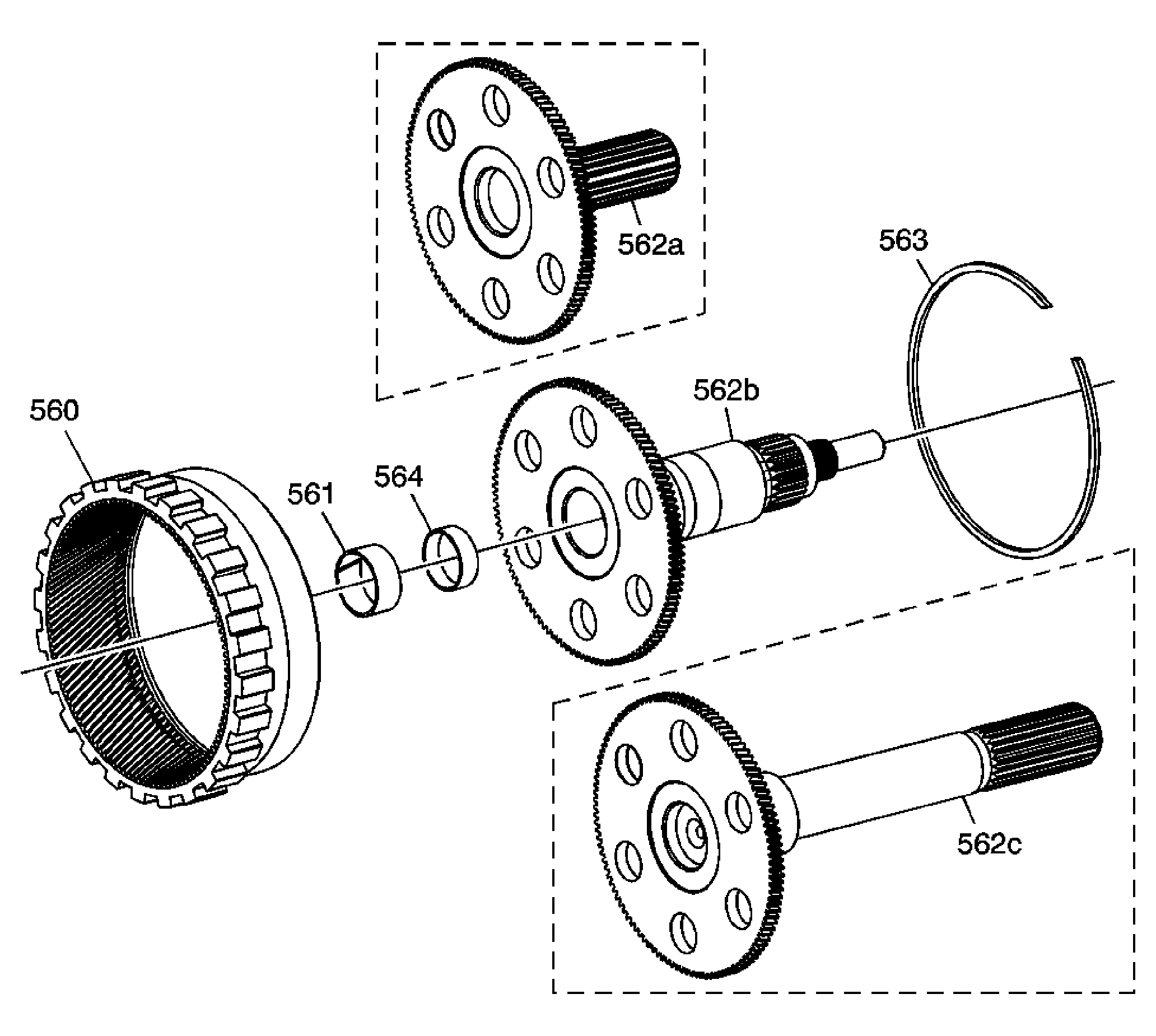

Fig 16: Rear Internal Gear Output Shaft Assembly Component View
GM951857Courtesy of GENERAL MOTORS CORP.
Callout Component Name
560 Rear Internal Gear
561 Input and Reaction Carrier Bushing
562a Output Shaft Assembly - AWD
562b Output Shaft Assembly - 2WD
562c Output Shaft Assembly - XLR
563 Rear Internal Retainer Ring
564 Cup Plug

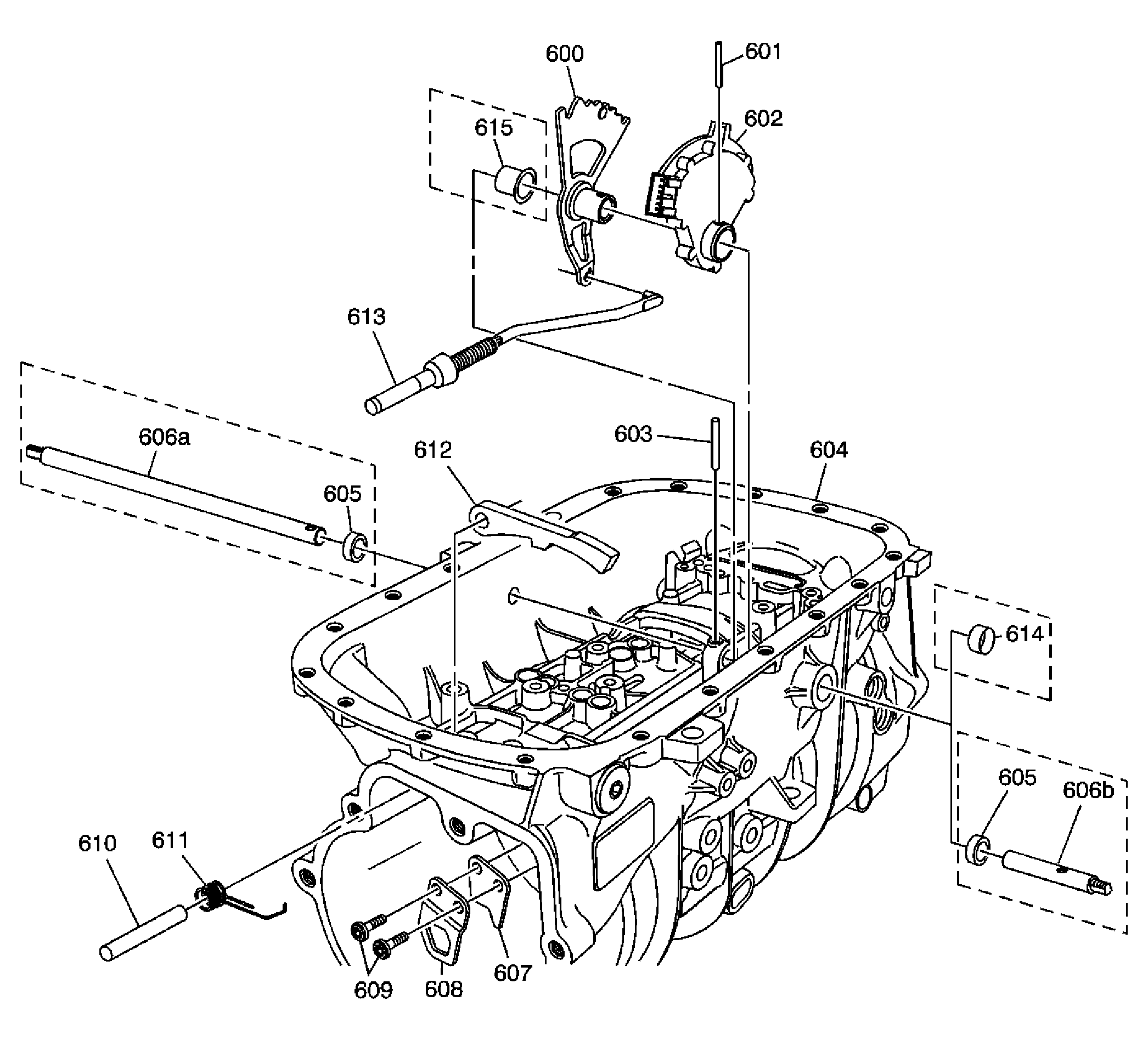

Fig 17: Park Pawl Assembly Component View
GM1257399Courtesy of GENERAL MOTORS CORP.
Callout Component Name
600 Manual Shaft Detent Lever
601 Manual Shaft Detent Lever Pin
602 Transmission Manual Shift Shaft Switch Assembly
603 Manual Shaft Detent Lever Pin
604 Transmission Case
605 Manual Shift Shaft Seal - Model Dependent
605 Manual Shift Shaft Seal - Model Dependent
606a Manual Shift Shaft - 2WD Excluding XLR - Model Dependent
606b Manual Shift Shaft - AWD and XLR - Model Dependent
607 Park Pawl Actuator Bracket
608 Park Pawl Actuator Bracket
609 Park Pawl Actuator Bracket Bolt M8 x 1.25 x 25 - 2
610 Park Pawl Shaft
611 Park Pawl Spring
612 Park Pawl
613 Park Pawl Actuator Assembly
614 Cup Plug - Model Dependent
615 Transmission Manual Shift Shaft Spacer - Model Dependent
scientia non olet · About LEMON Manuals
