Installation Procedure

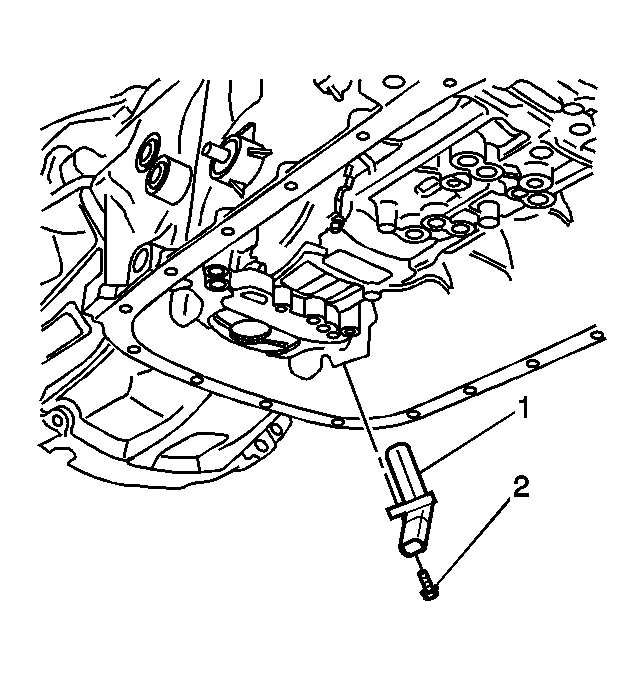

Fig 1: View Of Input Speed Sensor & Bolt

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the input speed sensor bolt (2).
Tighten: Tighten the input speed sensor bolt to 11 N.m (97 lb in).

Fig 2: View Of Input Speed Sensor & Electrical Wiring Harness Connector

Courtesy of GENERAL MOTORS CORP.

Connect the electrical wiring harness connector (1) to the input speed sensor (2).
Install the transmission fluid pan and filter. Refer to Automatic Transmission Fluid/Filter Replacement .
