Procedures



Transmission Fluid Checking Procedure

Transmission Fluid Checking:

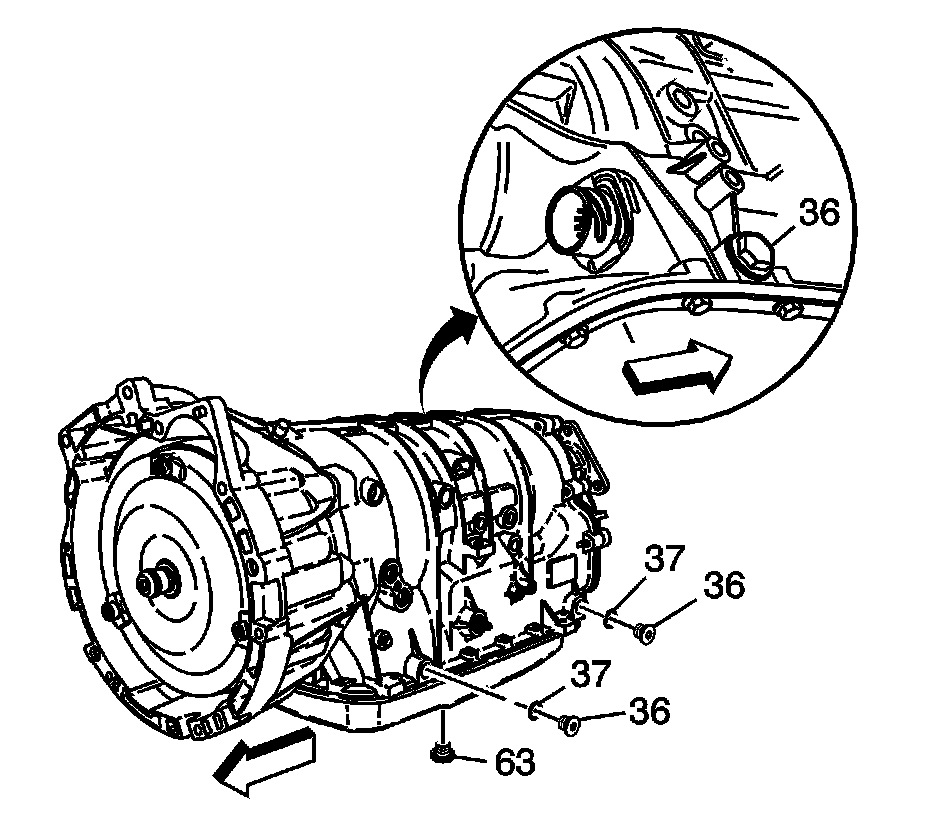

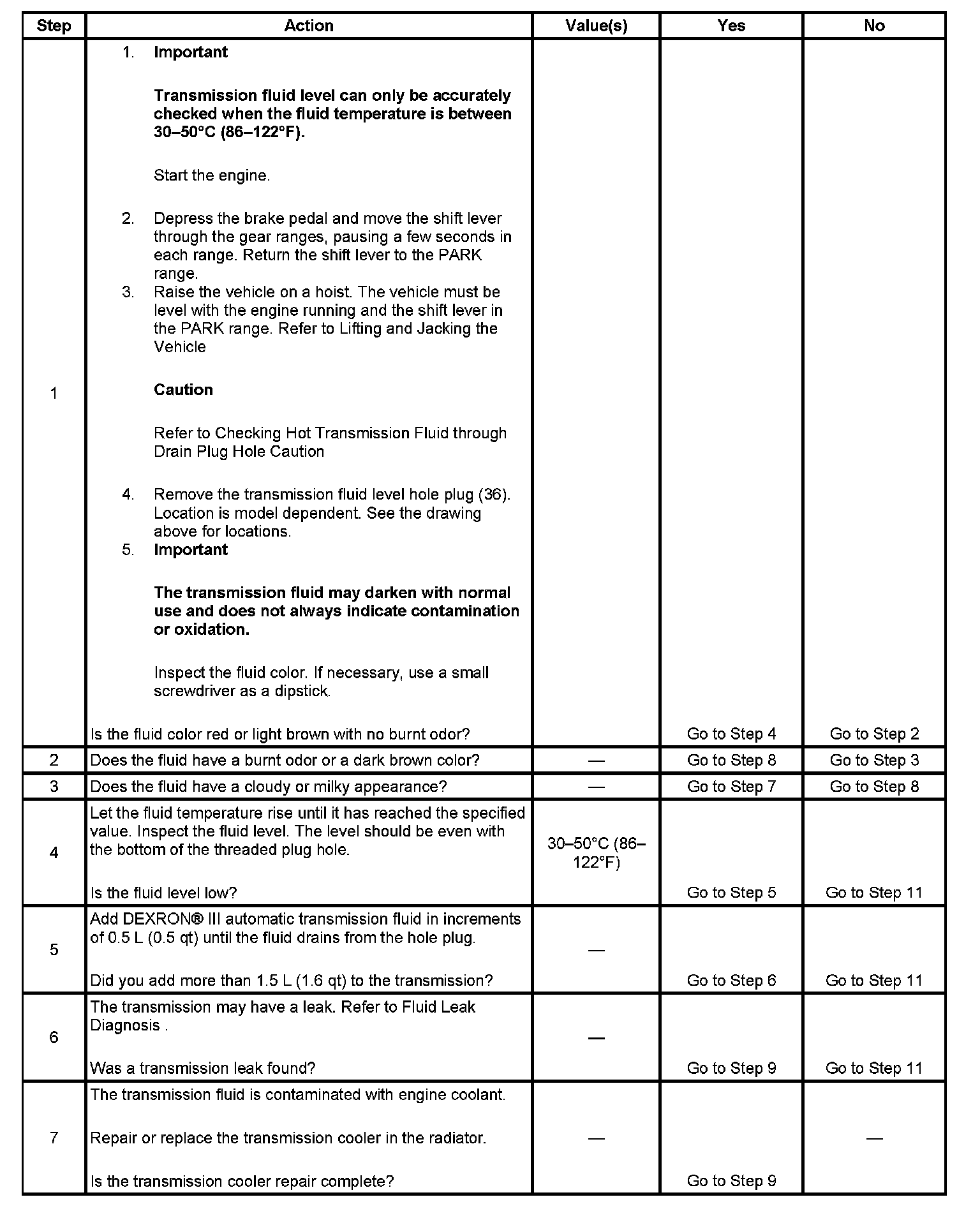

Step 1 - Step 7:




Step 8:

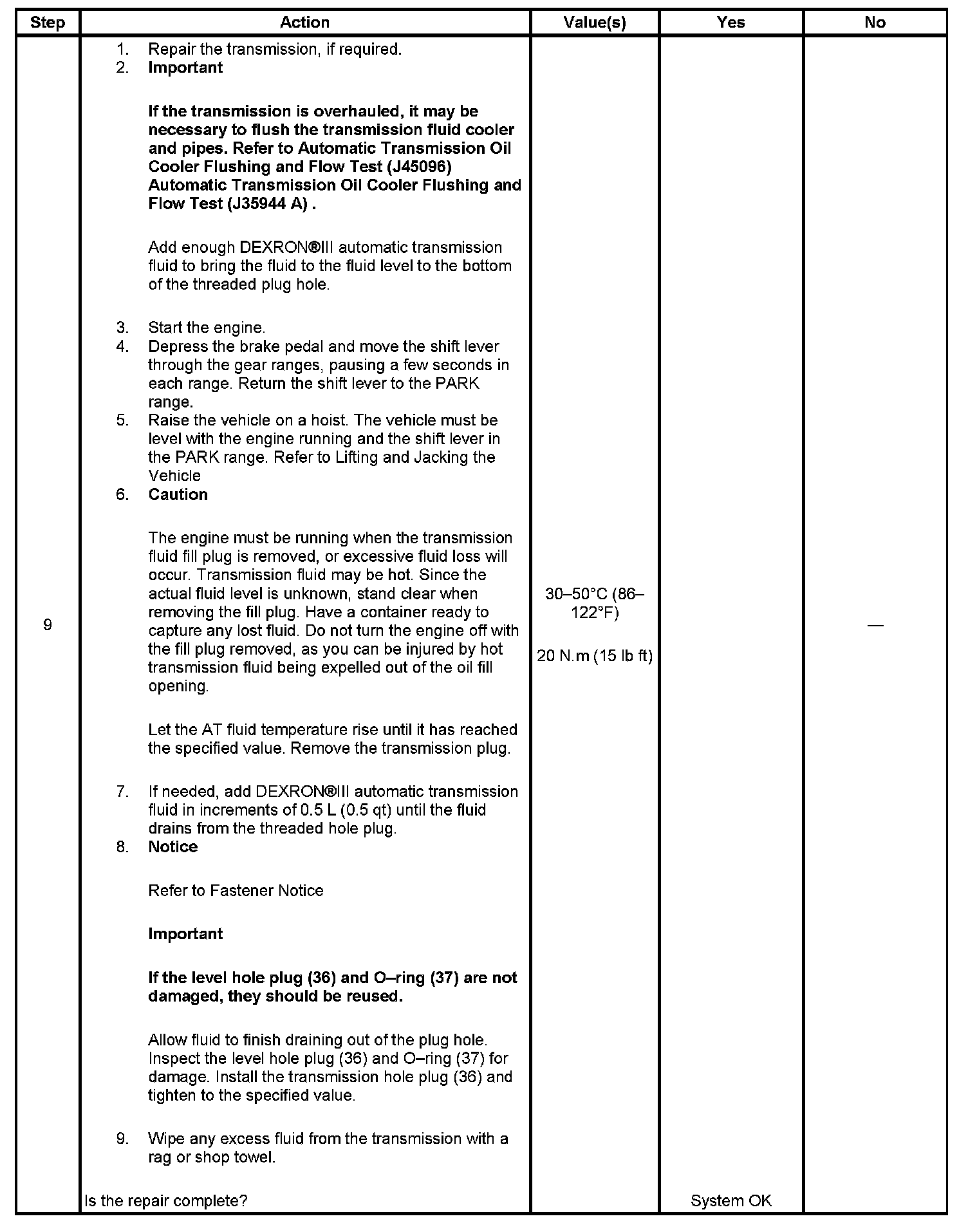

Step 9:

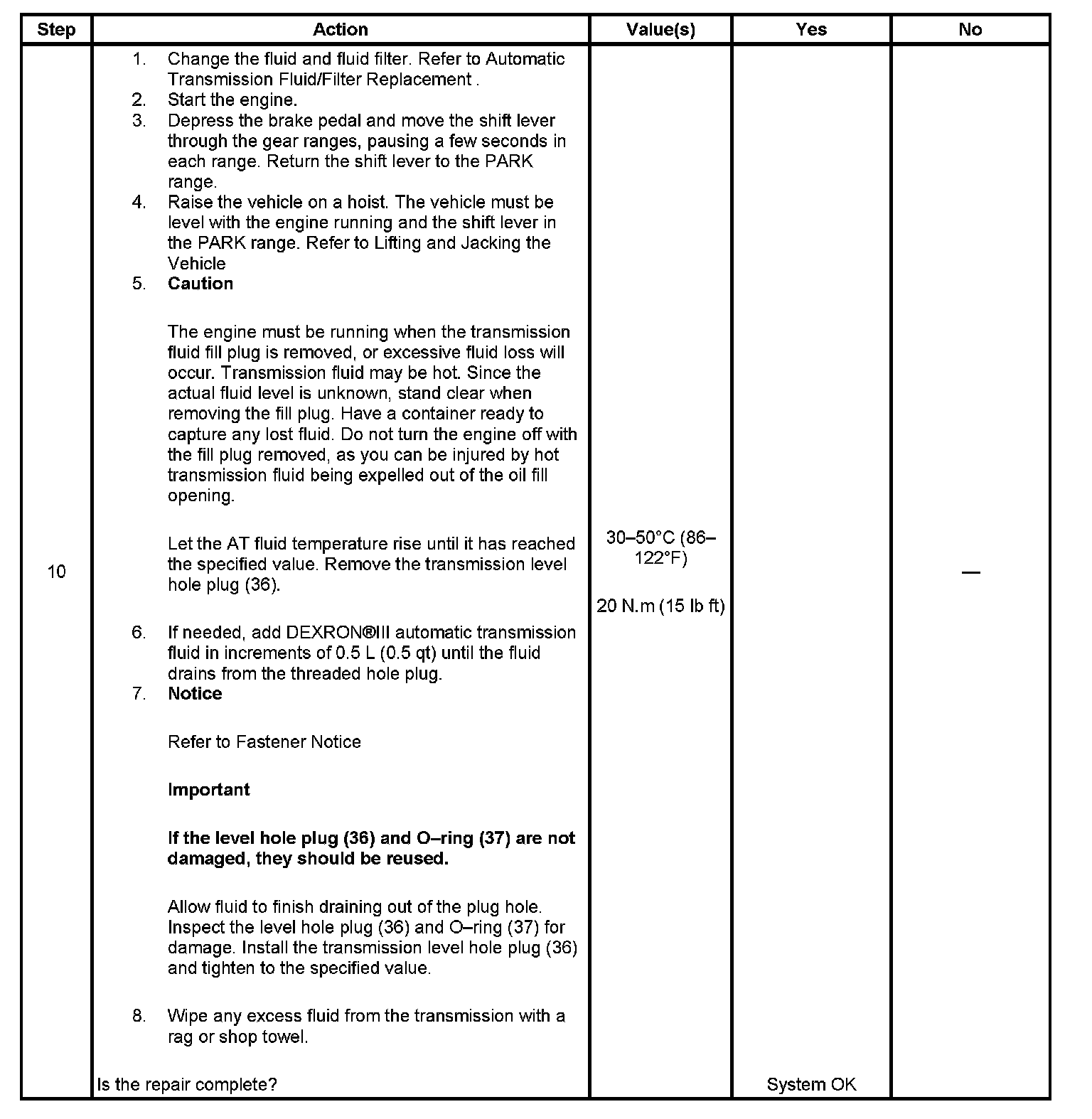

Step 10:




Step 11:
