Generator Bracket Replacement

GENERATOR BRACKET REPLACEMENT

REMOVAL PROCEDURE
1. Turn the ignition OFF.
2. Remove the generator.
3. Remove the coolant inlet pipe lower bolt from the generator bracket.
4. Remove the drive belt tensioner.




5. Remove the generator bracket bolts.
6. Remove the generator bracket.

INSTALLATION PROCEDURE




1. Install the generator bracket.
2. Install the generator bracket bolts.

NOTE: Refer to Fastener Notice.

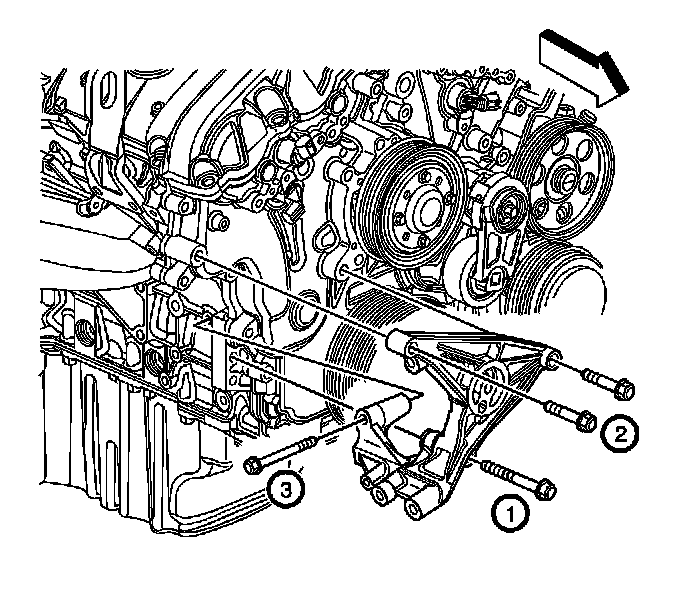

Tighten the generator bracket bolts in the sequence shown.
1. Tighten the generator bracket bolts (1) to 50 N.m (37 lb in).
2. Tighten the generator bracket bolts (2) to 50 N.m (37 lb in).
3. Tighten the generator bracket bolt (3) to 23 N.m (17 lb in).

3. Install the belt tensioner.
4. Install the coolant inlet pipe lower bolt from the generator bracket.
5. Install the generator.
