Front Seat Lumbar Control Switch Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

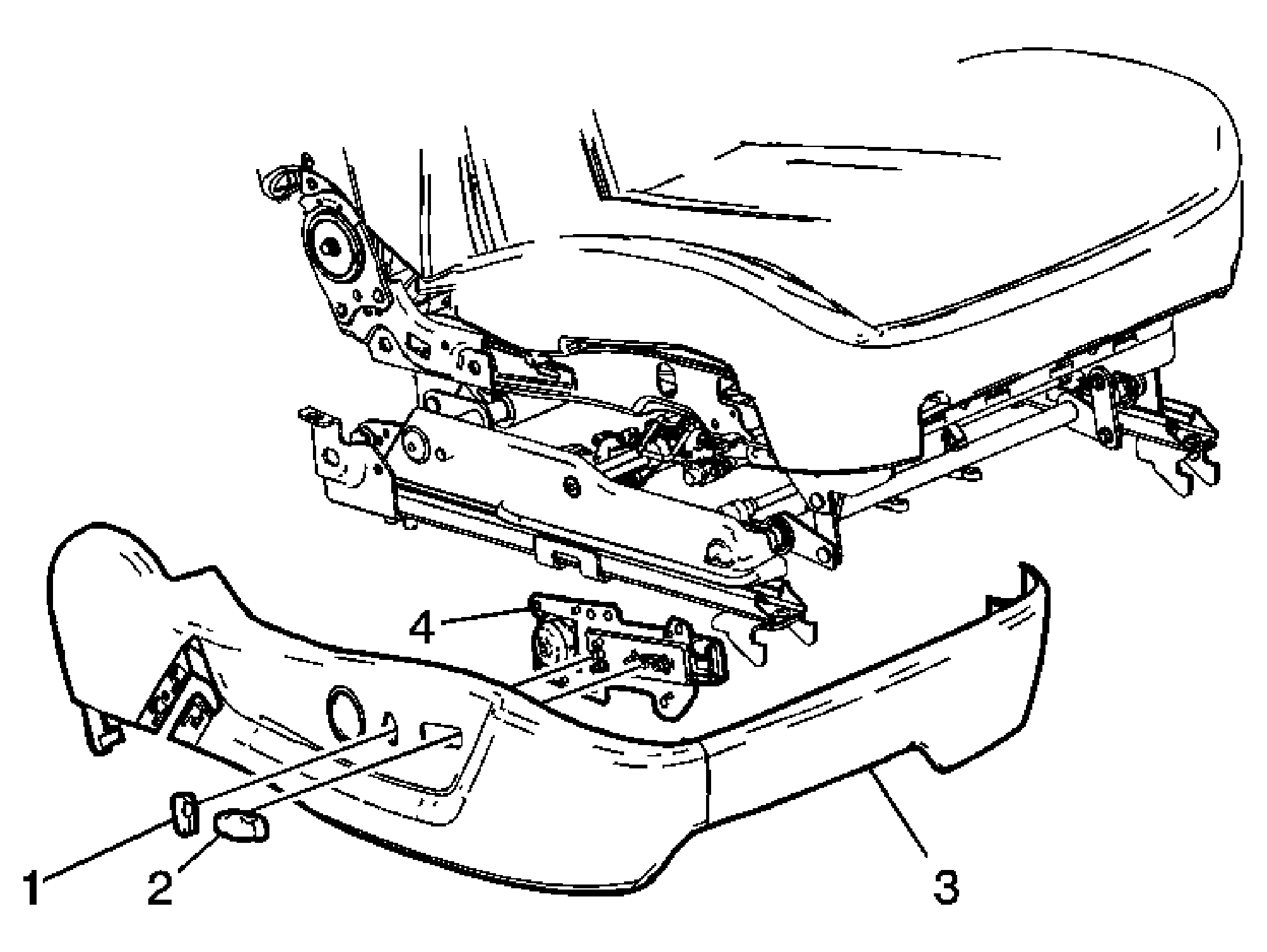

Fig 1: Removing/Installing Front Seat Lumbar Control Switch

Courtesy of GENERAL MOTORS CORP.

Lumbar Switch Replacement - Front

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Knob, Front Seat Recliner Tip: Pull outward to remove.
2	Knob, Front Seat Adjuster Tip: Pull outward to remove.
3	Cover, Seat Cushion Side Outer Refer to Seat Cushion Outer Trim Panel Replacement - Front Seat .
4	Switch Assembly, Front Seat Lumbar Control Tip: Disconnect the electrical connector and separate from the outer trim cover.
