Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

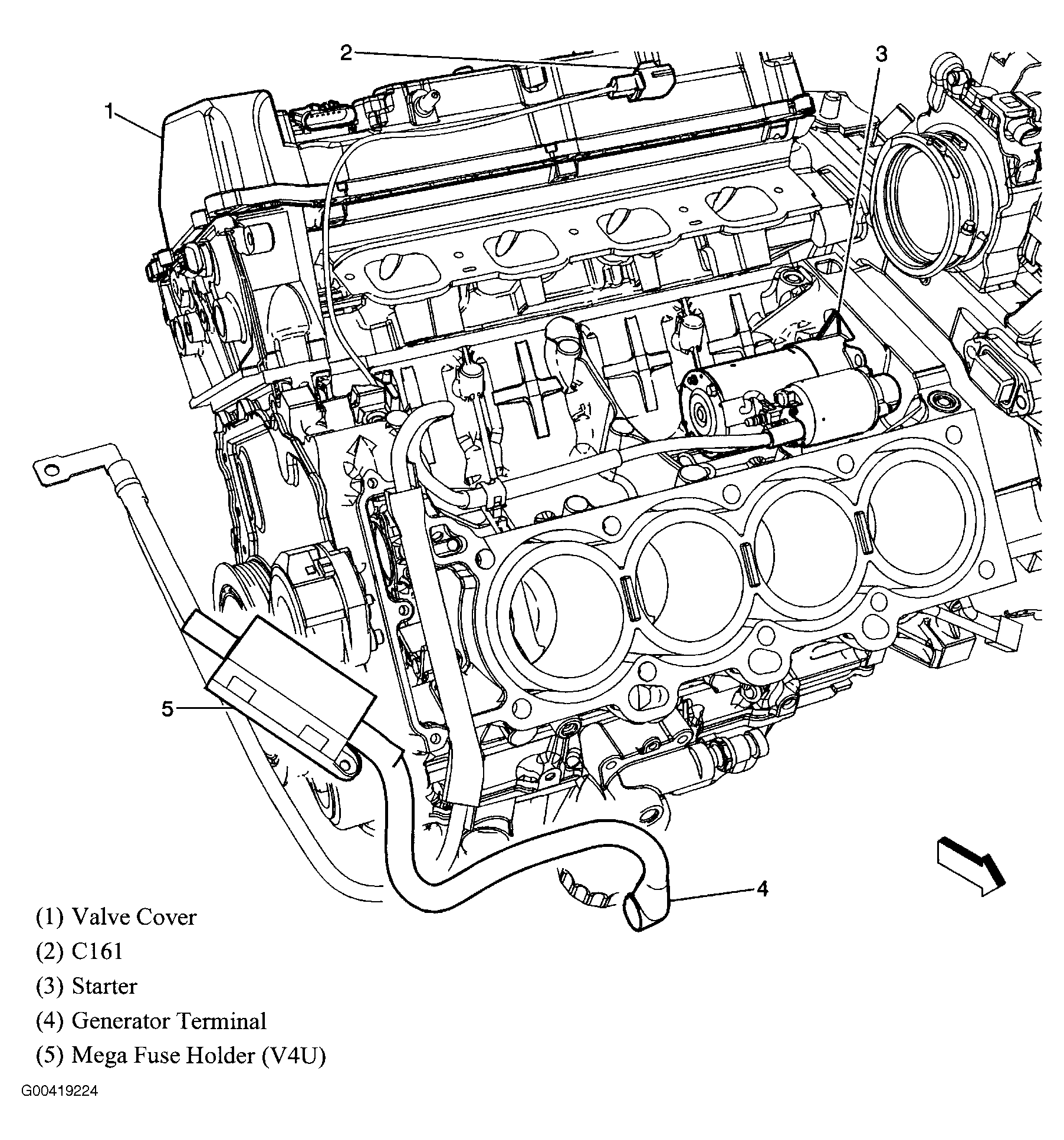

| Mega Fuse Holder | Right side of engine compartment. See Figure. |

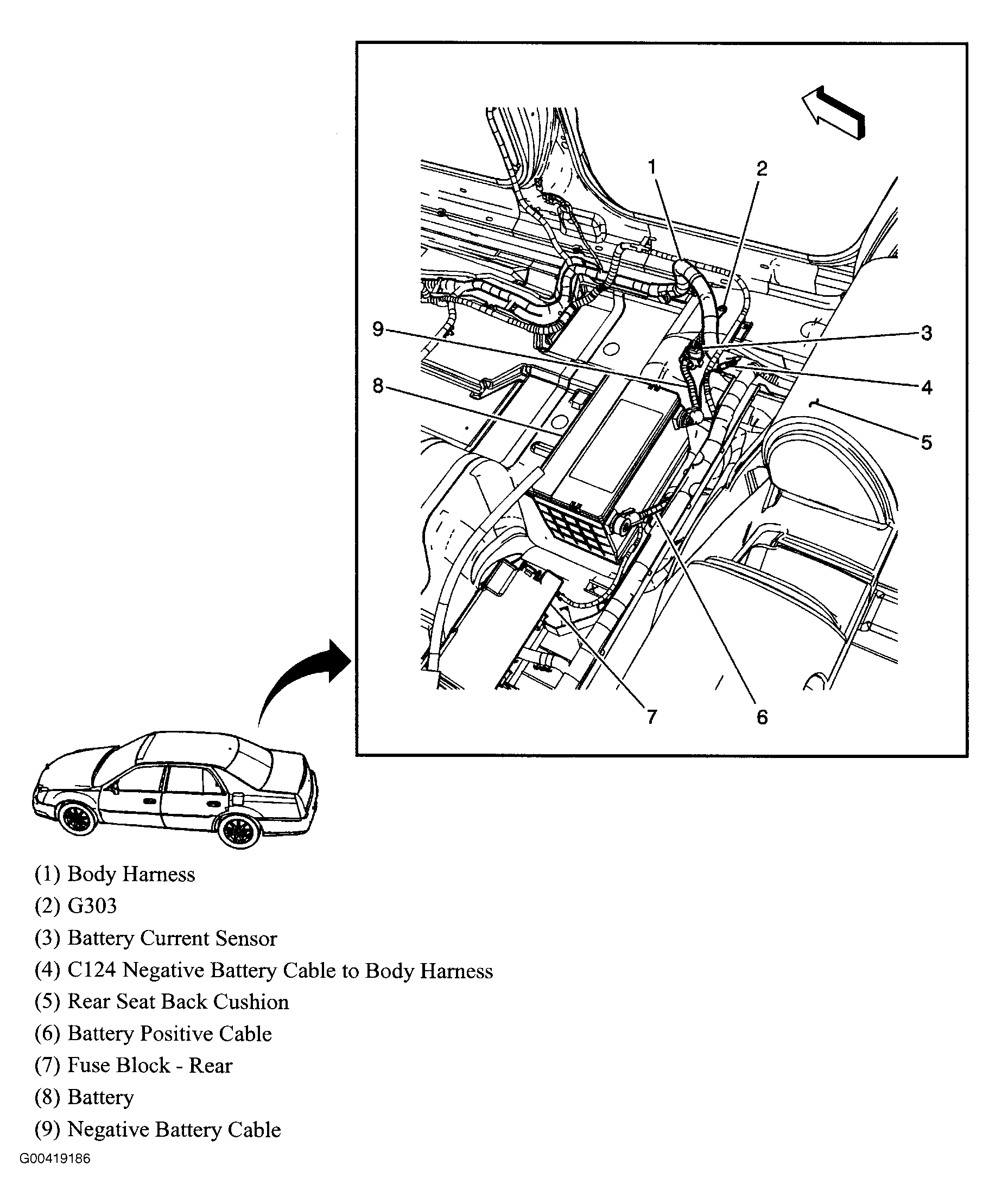

| Rear Fuse Block | Under left rear seat. See Figure. |
| Steering Column Fuse Holder | Near base of steering column. See Figure. |
| Underhood Fuse Block | At right side of engine compartment. See Figure. |
