Power Door Systems Component Views

Fig 1: Component Views - Driver Door

GM903357

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Door
2	Driver Door Module (DDM)
3	Outside Rearview Mirror - Driver
4	Window Motor - Driver
5	Memory/Heated Seat Switch Connector
6	Door Courtesy Lamp - Left Front
7	Driver Door Panel
8	Memory/Heated Seat Switch
9	Door Latch Assembly - Driver

Fig 2: Component Views - Front Passenger Door

GM903348

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Door Module (PDM)
2	Passenger Door
3	Door Latch Assembly - Passenger
4	Heated Seat Switch - Passenger
5	Heated Seat Switch Connector
6	Window Motor - Passenger
7	Outside Rearview Mirror - Passenger

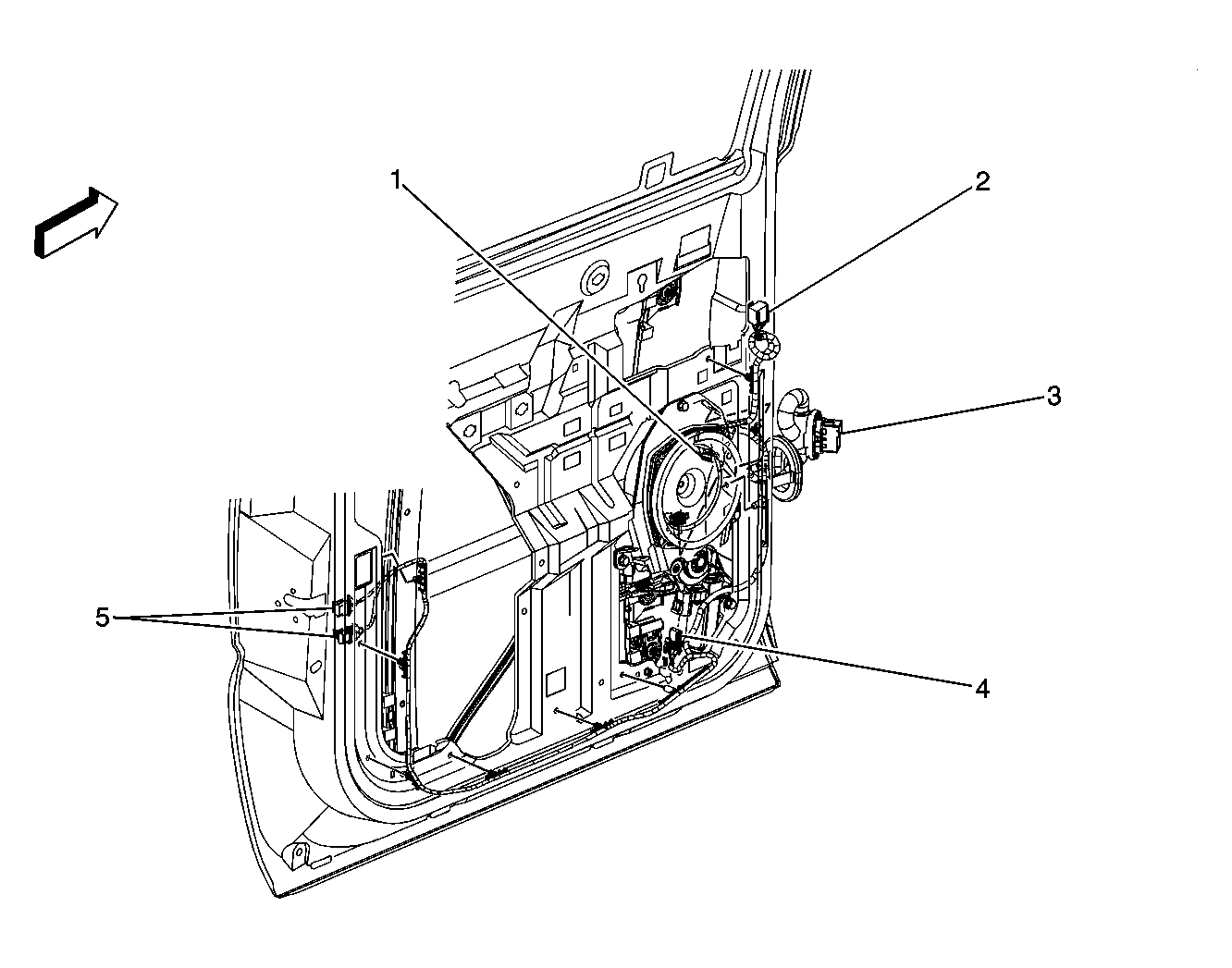

Fig 3: Door - LR

GM1672037

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LR Door
2	Window Switch Connector - LR
3	C310
4	Window Motor - LR
5	Door Latch Assembly Connectors - LR

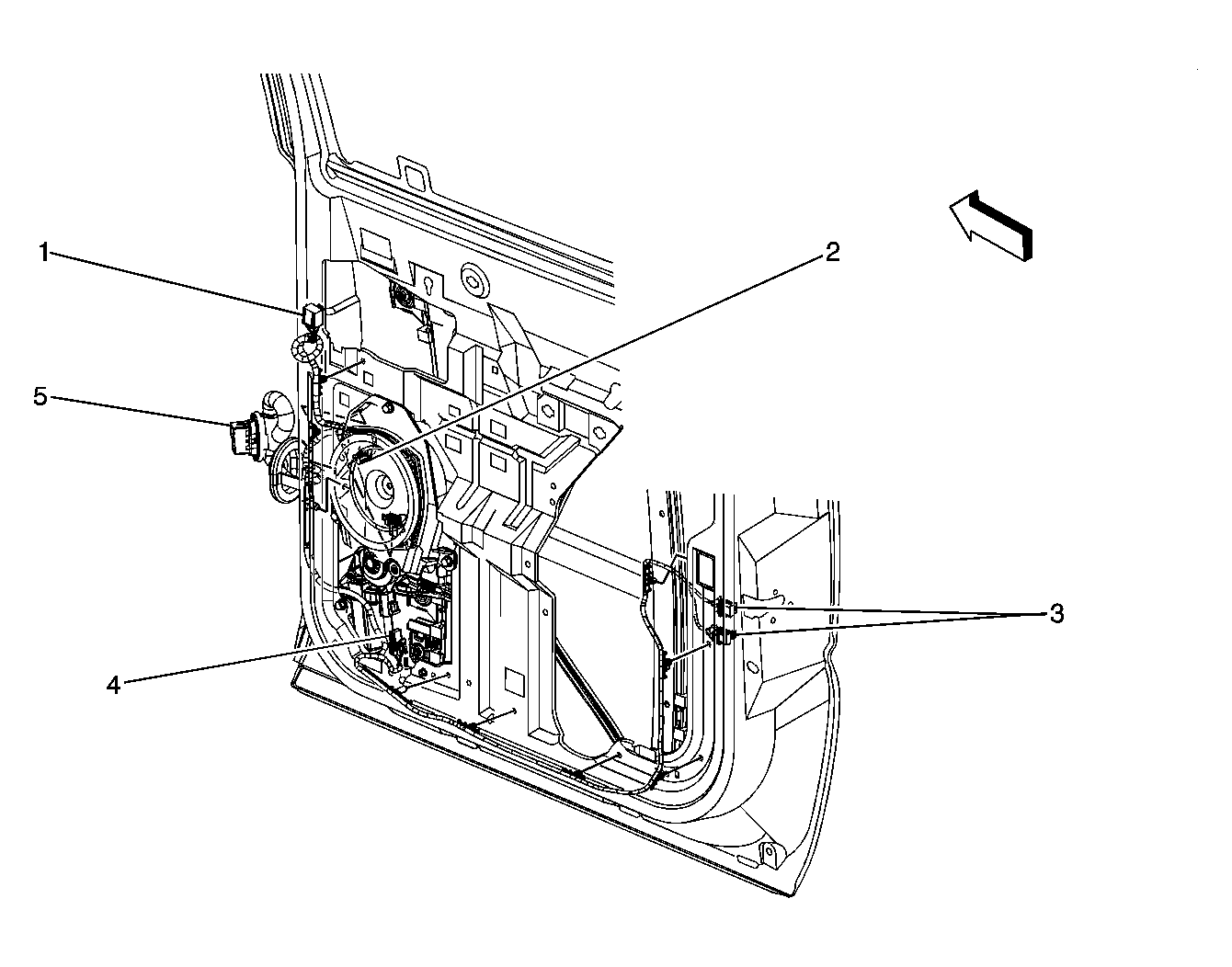

Fig 4: Door - RR

GM1672039

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch Connector - RR
2	Speaker - RR Door
3	Door Latch Assembly Connectors - RR
4	Window Motor - RR
5	C396

Fig 5: Liftgate Component View (E52)

GM1113966

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Wiper Module
2	Liftglass Ajar Switch
3	Door Lock Actuator - Liftgate
4	Liftgate Ajar Switch - Left Connector
5	Liftgate
6	Liftgate Ajar Switch - Right Connector

Fig 6: Liftgate Lock Relay Component View

GM1408066

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Lock Relay
2	Passenger B-Pillar
