Door Lock/Indicator Schematics

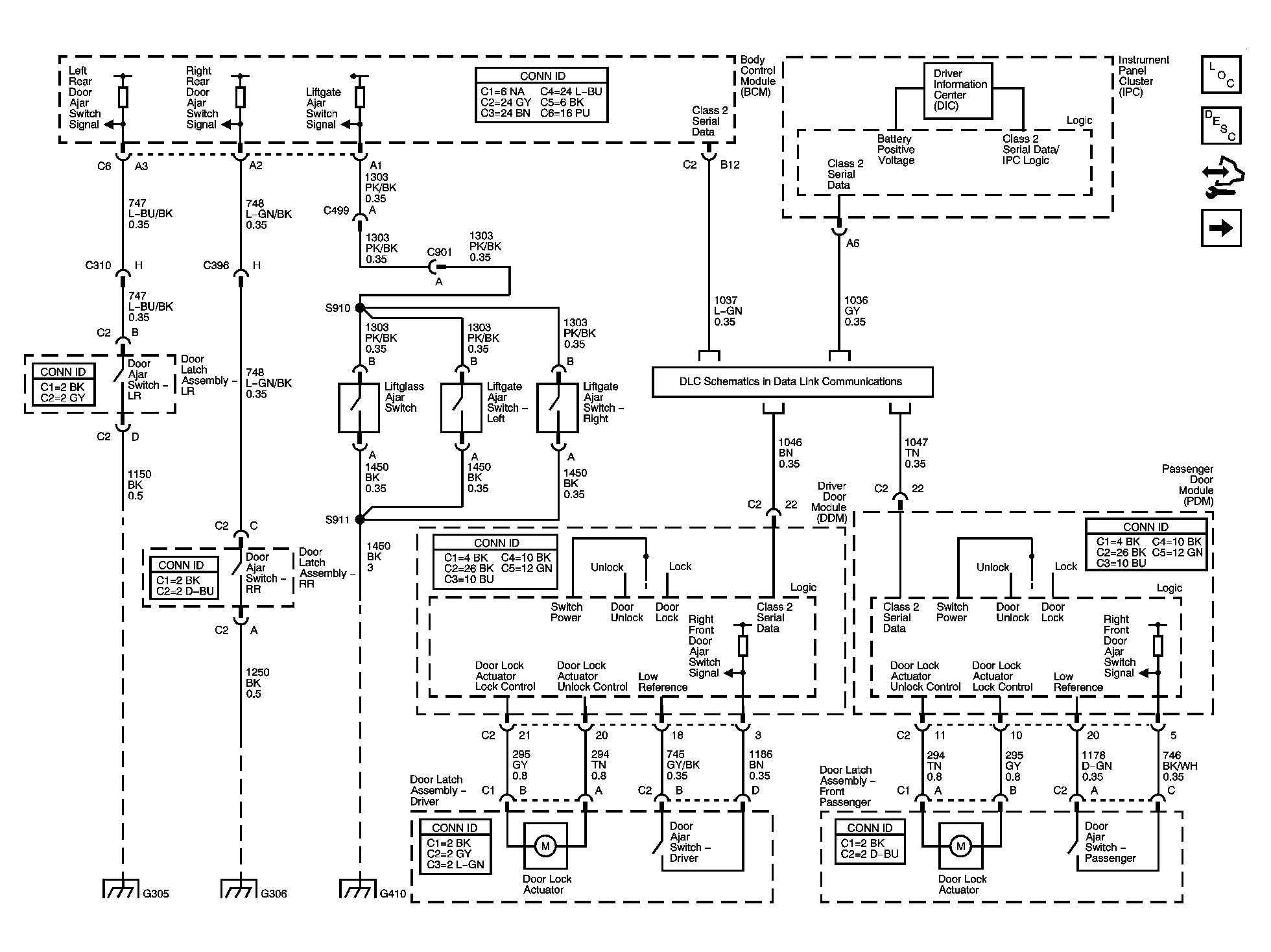

Fig 1: Driver and Front Passenger Locks and Indicator Schematics
GM1608111Courtesy of GENERAL MOTORS CORP.

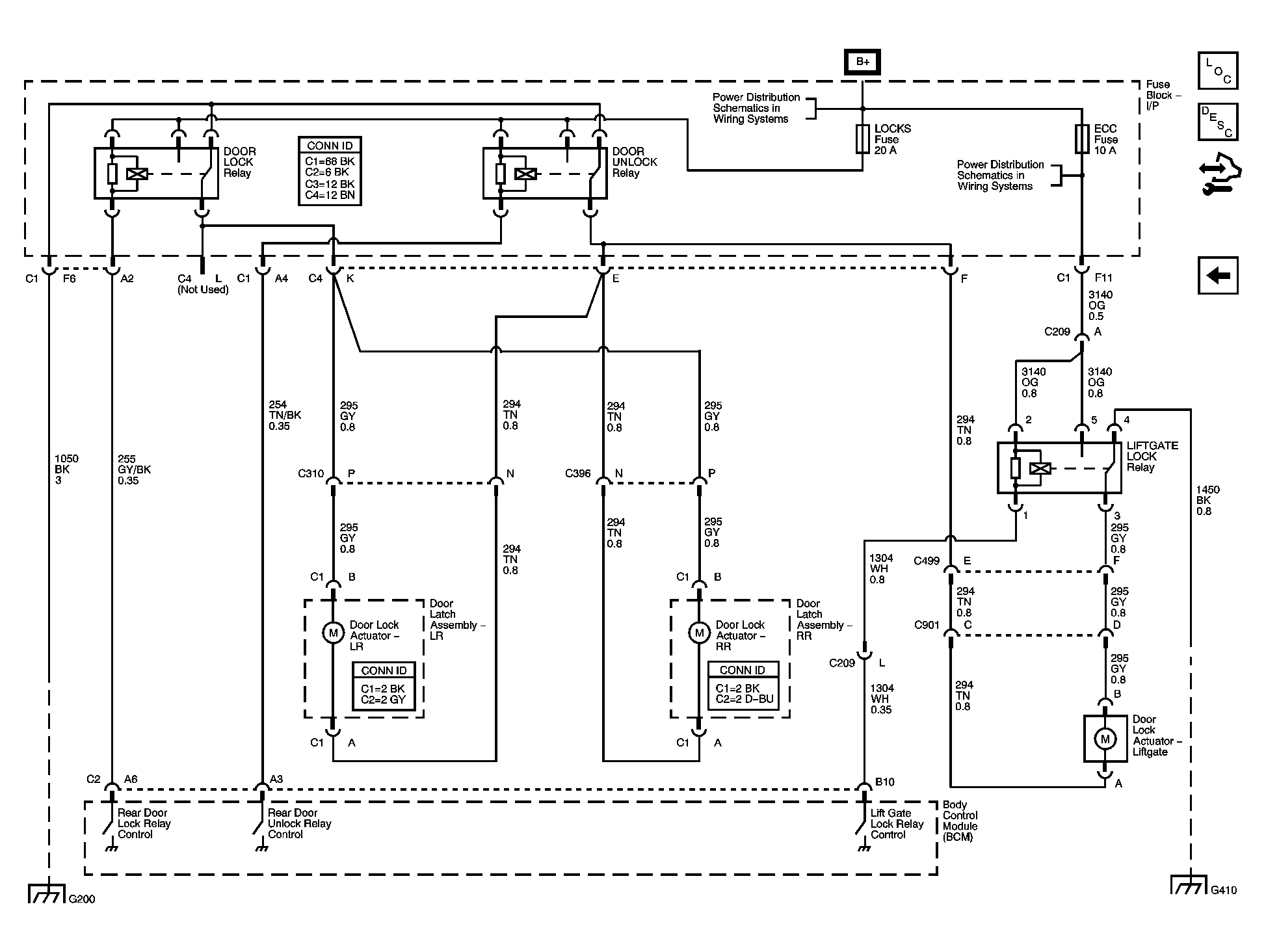

Fig 2: Rear Door and Liftgate Locks
GM1608114Courtesy of GENERAL MOTORS CORP.
