Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Snap the jounce bumper to the mounting cup.
  2. Lower the vehicle.

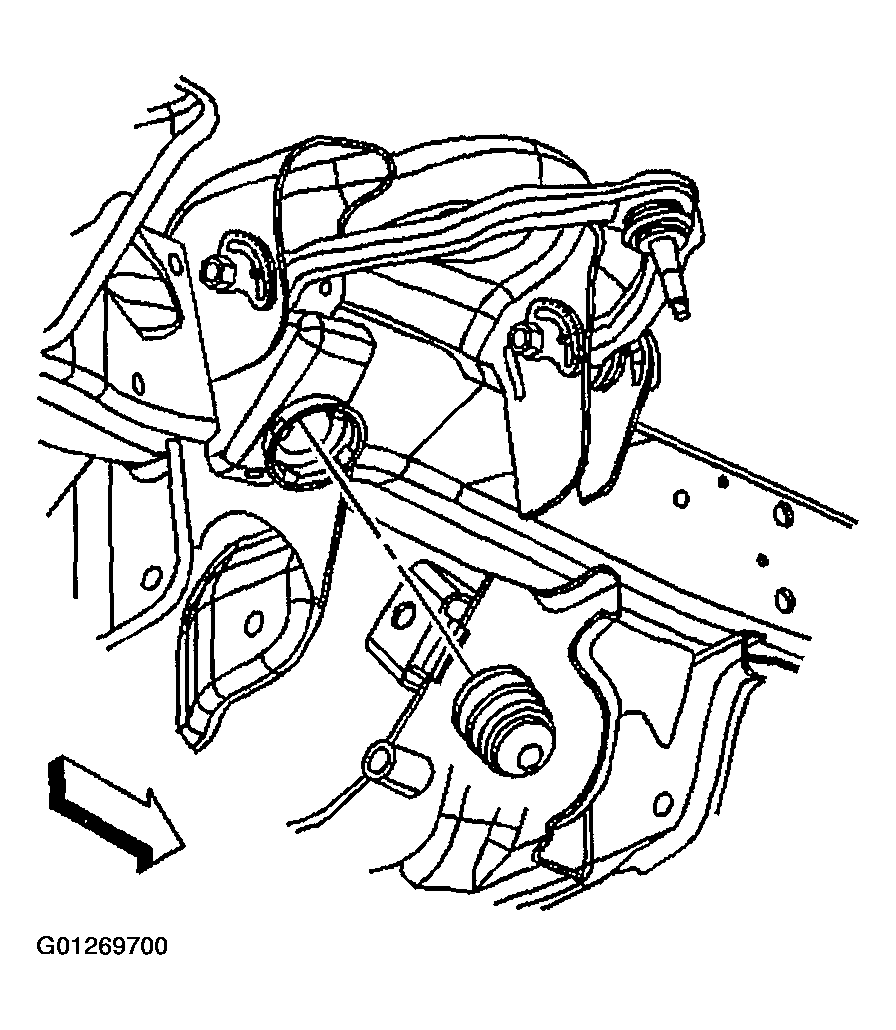

    Fig 1: Snapping the jounce bumper to the mounting cup
    G01269700Courtesy of GENERAL MOTORS CORP.
