Front Lower Arm: Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the illustration.

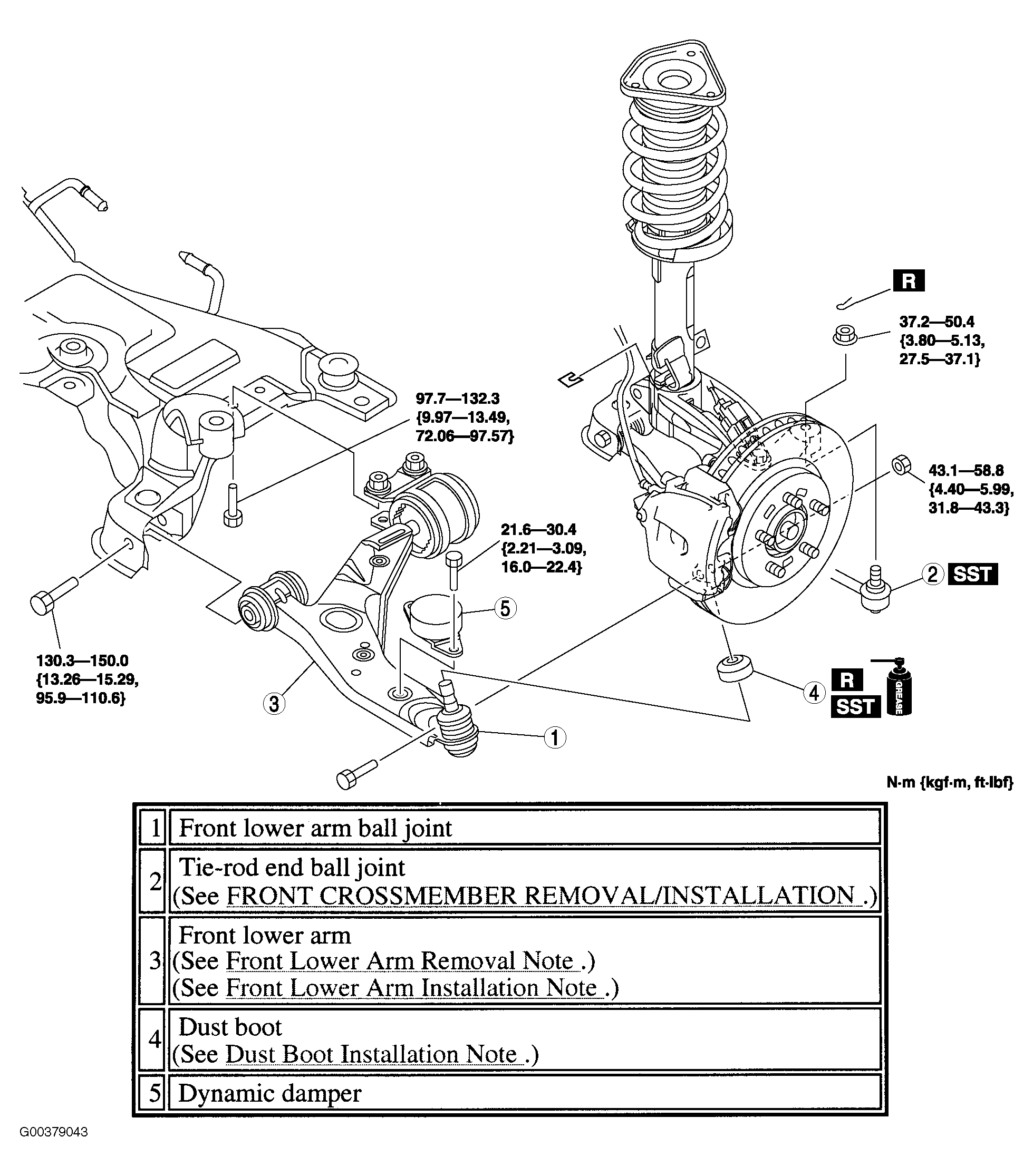

Fig 1: Front Lower Arm With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Inspect the wheel alignment and adjust it if necessary. See WHEEL ALIGNMENT .
