Removal Procedure
WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- Disable the inflatable restraint steering wheel module. Refer to SIR Disabling and Enabling Zone 3 .
- Using a blunt-ended tool, push the leaf spring fasteners (2) inward through the access holes. The access holes are located on both sides of the steering wheel shroud.

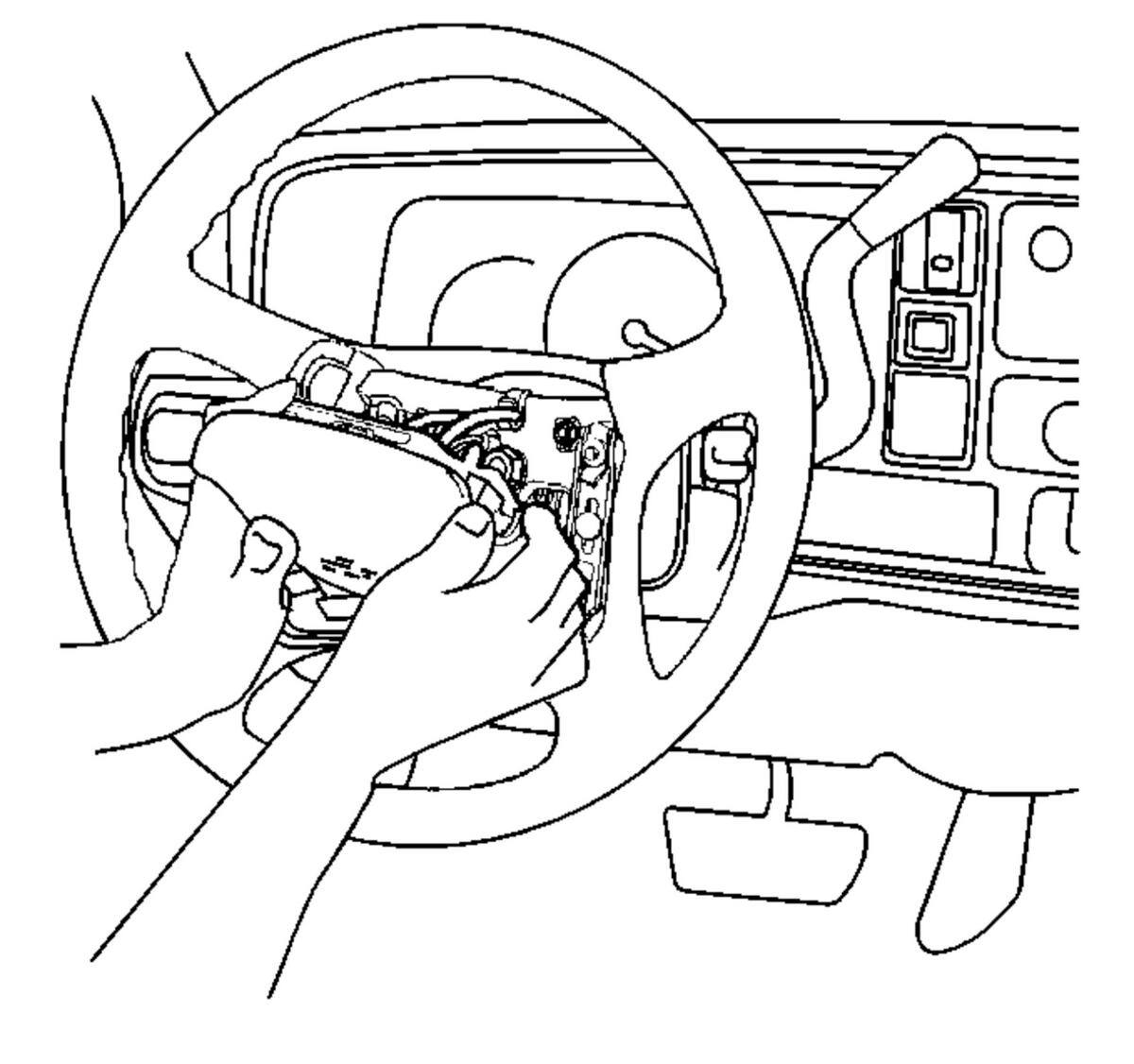

- Lift and partially remove the inflatable restraint steering wheel module from the steering wheel in order to expose the electrical connectors.
- Disconnect the connector-position assurance (CPA) retainers from the electrical connectors.
- Disconnect the electrical connectors from the inflatable restraint steering wheel module.
- Remove the inflatable restraint module from the steering wheel.
- Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping .
CAUTION:
Refer to SIR Inflator Module Handling and Storage Caution
in Cautions and Notices.
CAUTION:
Refer to SIR Caution
in Cautions and Notices.
IMPORTANT:
Do not attempt to repair the inflatable restraint steering wheel module. The inflatable restraint steering wheel module is replaced only as an assembly.
