Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the harness connector to the traction control switch.
  2. Install the traction control switch (2) into the instrument panel (IP) assembly (3), making sure that all of the switch retaining tabs (1) are engaged.
  3. Install instrument panel (IP) bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .

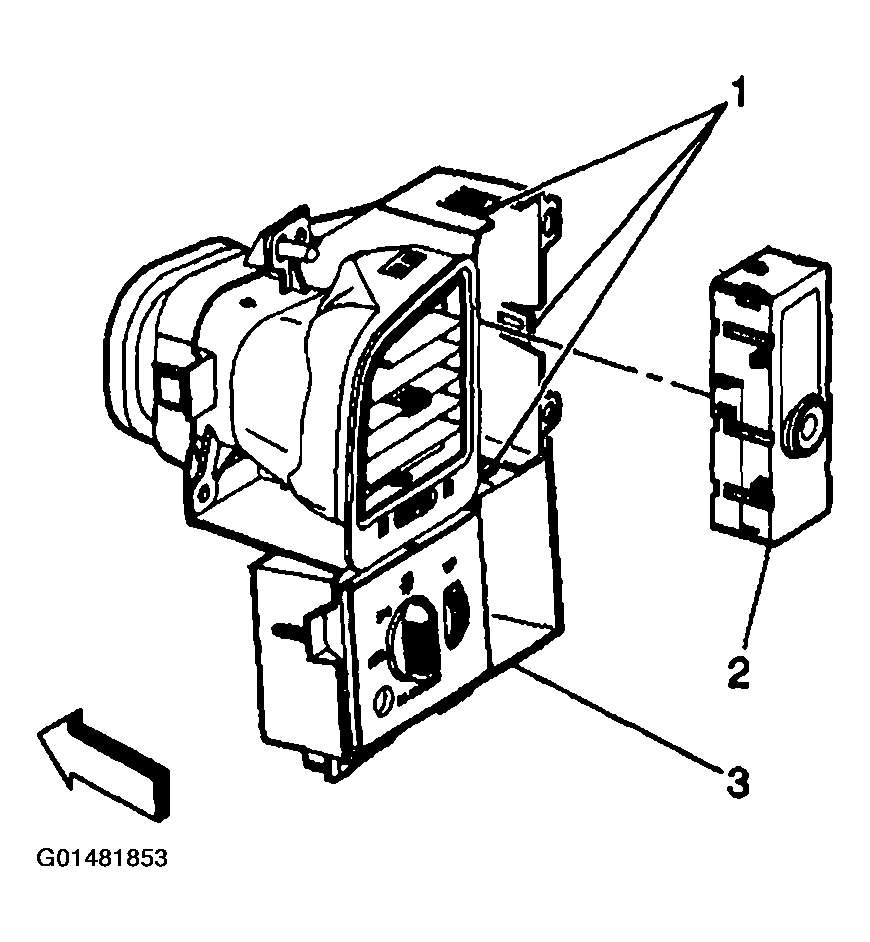

    Fig 1: Installing Traction Control Switch To Instrument Panel (IP) Assembly
    G01481853Courtesy of GENERAL MOTORS CORP.
