Installation Procedure

  1. Install the lower control arm.
    2. Fig 1: Removing The Lower Control Arm (4WD, 15-Series)
    GM348376Courtesy of GENERAL MOTORS CORP.
  2. Install the lower control arm 15-series bolts.
    3. Fig 2: Removing The Lower Control Arm (4WD, 25/35-Series)
    GM348377Courtesy of GENERAL MOTORS CORP.
  3. Install the lower control arm 25/35-series bolts.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the lower control arm retaining nuts.

    Tighten:  Tighten the nuts to 175 N.m (129 lb ft).

  5. Connect lower ball joint stud to the steering knuckle.
  6. Install the wheel drive shaft. Refer to Wheel Drive Shaft Replacement in Wheel Drive Shafts.

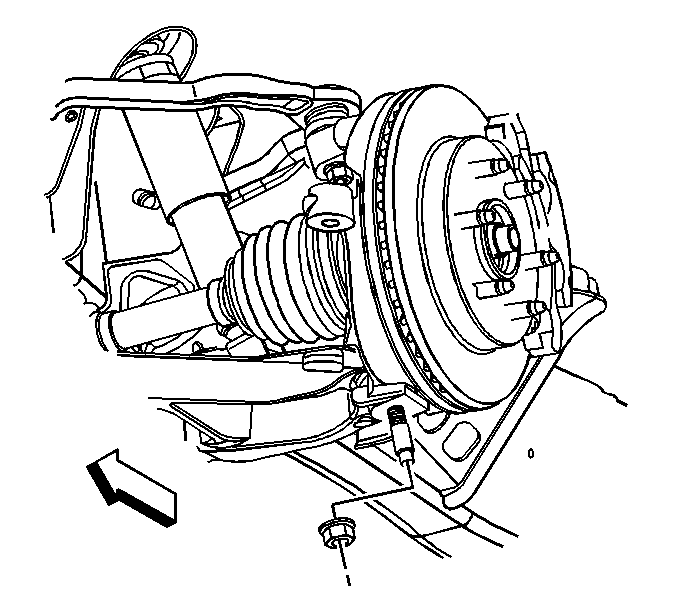

    7. Fig 3: Removing/Installing The Lower Ball Joint Retaining Nut
    GM830506Courtesy of GENERAL MOTORS CORP.
  7. Install the nut to the lower ball joint stud.

    Tighten:  Tighten the nut to 100 N.m (74 lb ft).

  8. Install the torsion bars. Refer to Torsion Bar Replacement .
  9. Install the shock absorber lower nut and bolt. Refer to Shock Absorber Replacement .
  10. Install the stabilizer shaft links to the lower control arm. Refer to Stabilizer Shaft Replacement .
  11. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  12. Remove the safety stands.
  13. Lower the vehicle.
  14. Align the vehicle. Refer to Measuring Wheel Alignment in Wheel Alignment.
