Lighting Systems Component Views

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Front Exterior Lights (TT6/TT7) Component View
GM1265131Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp - Low Beam - Left, Right Similar
2 Headlamp - High Beam - Left, Right Similar
3 Headlamp Ballast - Left, Right Similar (TR7)
4 Marker Lamp - Left
5 Headlamp Assembly - Left
6 Turn Signal Lamp - LF
7 Fog Lamp - LF
8 Park Lamp - Right/Left
9 Fog Lamp - RF
10 Turn Signal Lamp - RF
11 Headlamp Assembly - Right
12 Marker Lamp - Right
13 Headlamp Washer Fluid Nozzle - Left/Right
Fig 2: Front Exterior Lights (w/o TT6/TT7) Component View
GM1380540Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal Lamp - RF, LF Similar
2 Fog Lamp - RF, LF Similar
3 Headlamp - Low Beam - Left, Right Similar
4 Marker Lamp - Left, Right Similar
5 Headlamp - High Beam - Left, Right Similar
6 Park Lamp - Left, Right Similar
Fig 3: Headlamp Leveling Sensors (TR7) Component View
GM1545522Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp Leveling Sensor - Front
2 Headlamp Leveling Sensor - Rear
Fig 4: Pedal Switches & Sensors Component View
GM1488592Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park Brake Switch
2 Brake Pedal Position Sensor
3 Accelerator Pedal Position (APP) Sensor
4 Left Front Floor Panel

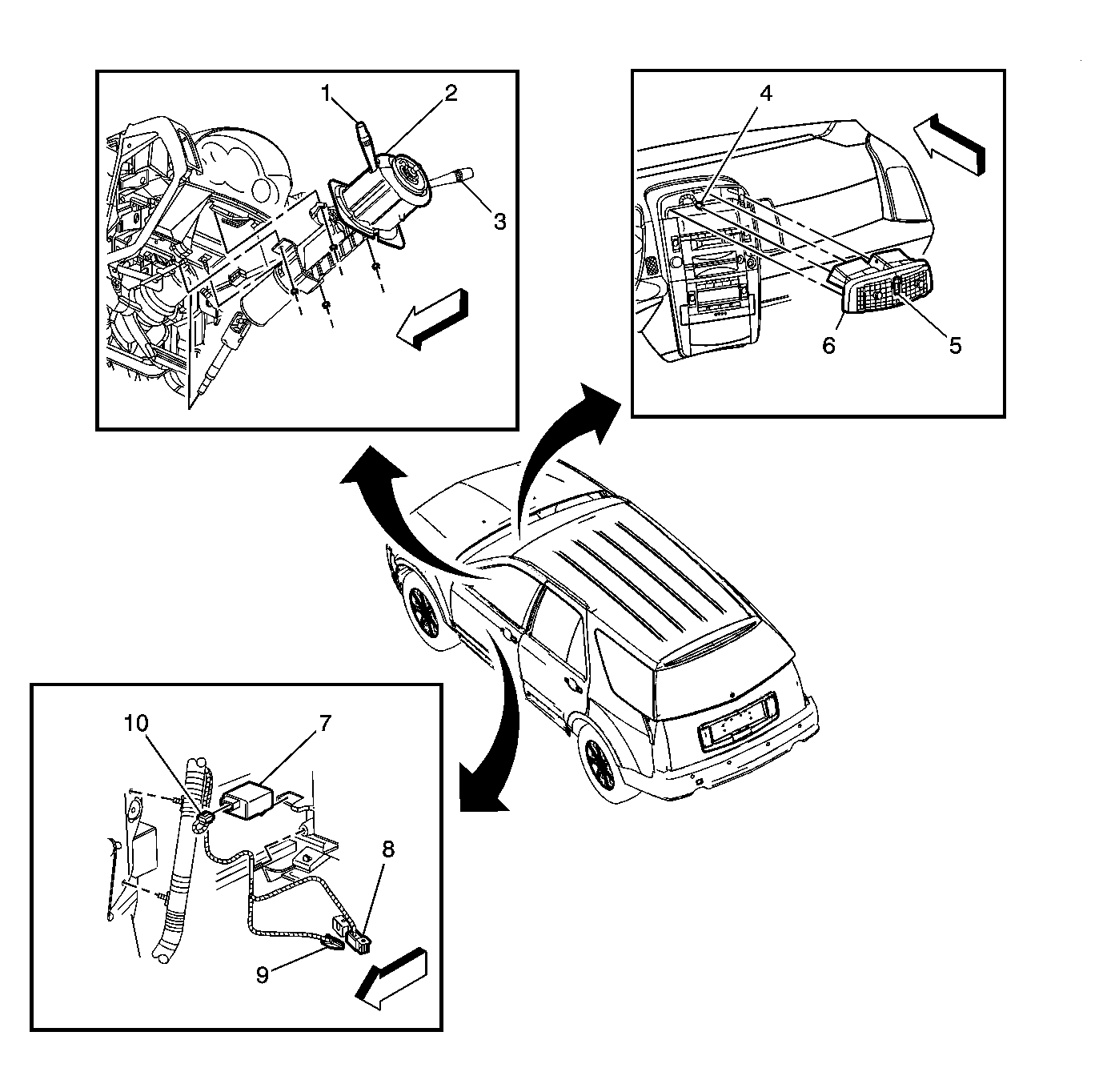

Fig 5: Lighting Switches & Flasher Module Component View
GM1273594Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal/Multifunction Switch
2 Steering Column
3 Windshield Wiper/Washer Switch
4 Hazard Switch Connector
5 Hazard Switch
6 I/P Air Deflector - Center
7 Turn Signal/Hazard Flasher Module
8 Data Link Connector (DLC)
9 Park Brake Switch Connector
10 Turn Signal/Hazard Flasher Module Connector
Fig 6: Rear Exterior Lights Component View
GM1265812Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Center High Mounted Stop Lamp (CHMSL)
2 Courtesy Lamp - Liftgate
3 Tail Lamp Assembly - Right
4 Tail Lamp Drive Module - Right
5 Object Sensor - RR Corner
6 Backup Lamp - Right
7 License Lamp - Right
8 Object Sensor - RR Middle
9 Object Sensor - LR Middle
10 License Lamp - Left
11 Backup Lamp - Left
12 Object Sensor - LR Corner
13 Tail Lamp Drive Module - Left
14 Tail Lamp Assembly - Left
15 C901
16 Fog Lamp - LR/RR (T79)
Fig 7: Tailgate Exterior Lights Component View
GM1377404Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 License Lamp Assembly
2 License Lamp - Right
3 Backup Lamp - Right
4 Fog Lamp - RR (T79)
5 Fog Lamp - LR (T79)
6 Backup Lamp - Left
7 License Lamp - Left
Fig 8: Interior Lights Components (1 Of 2)
GM1272685Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inside Rearview Mirror Connector
2 Courtesy/Reading Lamp - Front Left
3 Courtesy/Reading Lamp Switch - Front Left
4 Sunshade - Left
5 Garage Door Opener
6 Vanity Mirror Lamp Switch - Left
7 Vanity Mirror Lamp Connector - Left
8 Vanity Mirror Lamps - Left
9 Rear Wiper/Washer Switch
10 Blower Motor Switch - Auxiliary (C57)
11 Noise Compensation Microphone
12 Vanity Mirror Lamps - Right
13 Sunshade Connector - Right
14 Sunshade - Right
15 Vanity Mirror Lamp Switch - Right
16 Courtesy/Reading Lamp Switch - Front Right
17 Courtesy/Reading Lamp - Front Right
18 Instrument Panel Lamps Dimmer Switch
19 Overhead Console Assembly - Center
20 Blower Motor Switch - Rear Auxiliary
21 Courtesy Lamp - Left Center
22 Courtesy Lamp Switch - Left Center
23 Blower Motor Switch Connector - Rear Auxiliary
24 Courtesy Lamps Connector
25 Courtesy Lamp Switch - Right Center
26 Courtesy Lamp - Right Center
27 Repeater Lamp - Left, Right Similar (Export)
Fig 9: Interior Lights Components (2 Of 2)
GM1273075Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door - Driver
2 Courtesy Lamp - LF Door, RF Similar
3 Hush Panel
4 Courtesy Lamp - Left Footwell, Right Similar
Fig 10: Headliner Component View
GM1374461Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Blower Motor Switch - Auxiliary (C57)
2 Blower Motor Switch - Rear Auxiliary (C57)
3 Courtesy/Reading Lamp - Rear
4 Rear Parking Assist (RPA) Display
5 Courtesy/Reading Lamp - Center
6 Courtesy/Reading Lamp - Front
Fig 11: Instrument Panel Component View
GM1276442Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal/Multifunction Switch
2 Steering Wheel Controls - Left
3 Instrument Panel Cluster
4 Windshield Wiper/Washer Switch
5 Inside Air Temperature Sensor
6 Sunload/Ambient Light Sensor
7 Speaker - Front Midrange (U57)
8 Hazard Switch
9 Radio
10 CD Player
11 HVAC Control Module - Climate Control - Right
12 Heated Seat Switch - Passenger (KA1)
13 Cigar Lighter
14 Heated Seat Switch - Driver (KA1)
15 HVAC Control Module - Climate Control - Left
16 Steering Wheel Controls - Left
17 Hood Release Lever
