Cooling System Component Views
WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Radiator |
| 2 |
Radiator Surge Tank |
| 3 |
After Boil Coolant Pump (V92) |
| 4 |
A/C Compressor Clutch |
| 5 |
Engine Control Module (ECM) (LH2) |
| 6 |
A/C Refrigerant Pressure Sensor |
| 7 |
Condenser Assembly |
| 8 |
Ambient Air Temperature Sensor |
| 9 |
Cooling Fan - Left |
| 10 |
Cooling Fan - Right |
Courtesy of GENERAL MOTORS CORP.

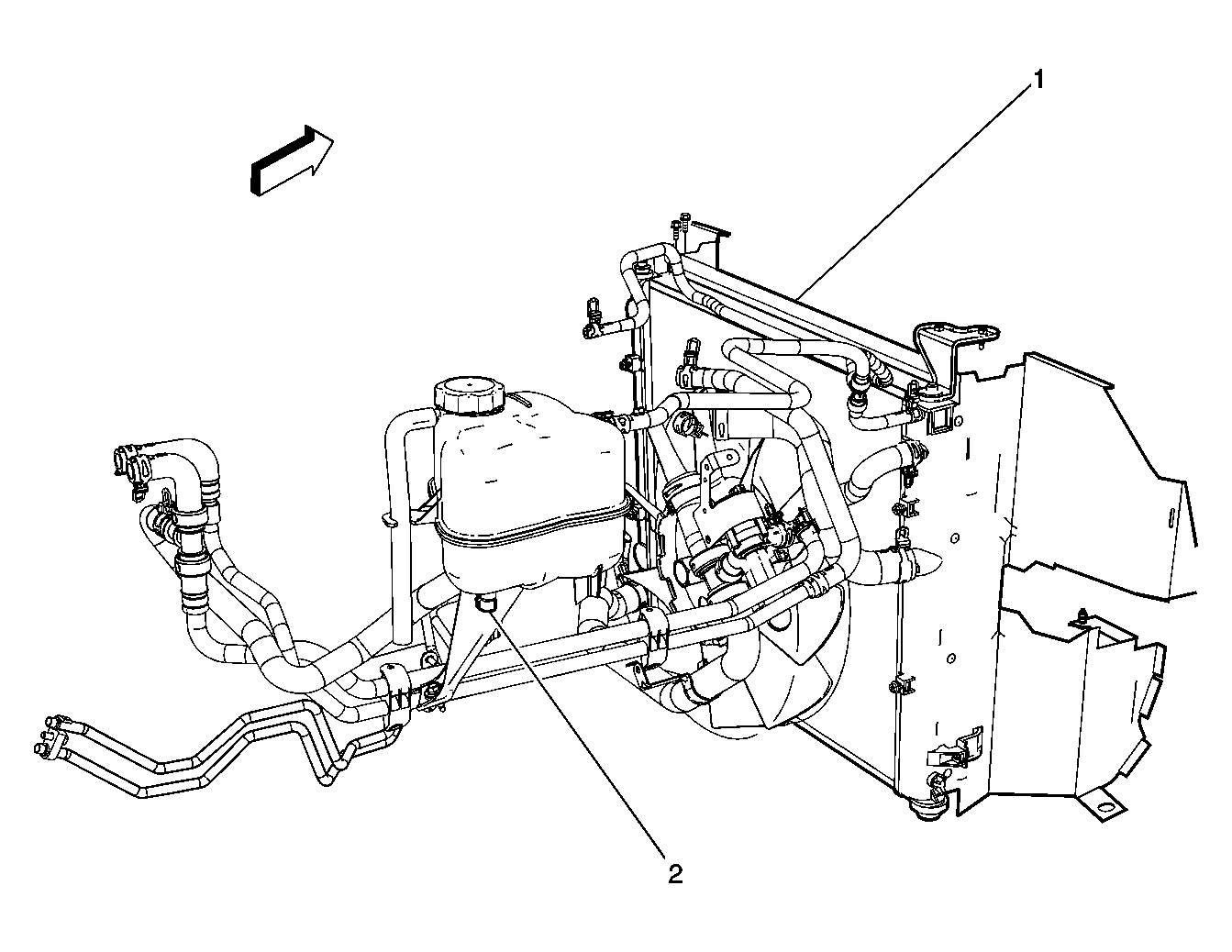

| Callout |
Component Name |
| 1 |
Radiator Support |
| 2 |
Coolant Level Switch |
