Ground Distribution Schematics

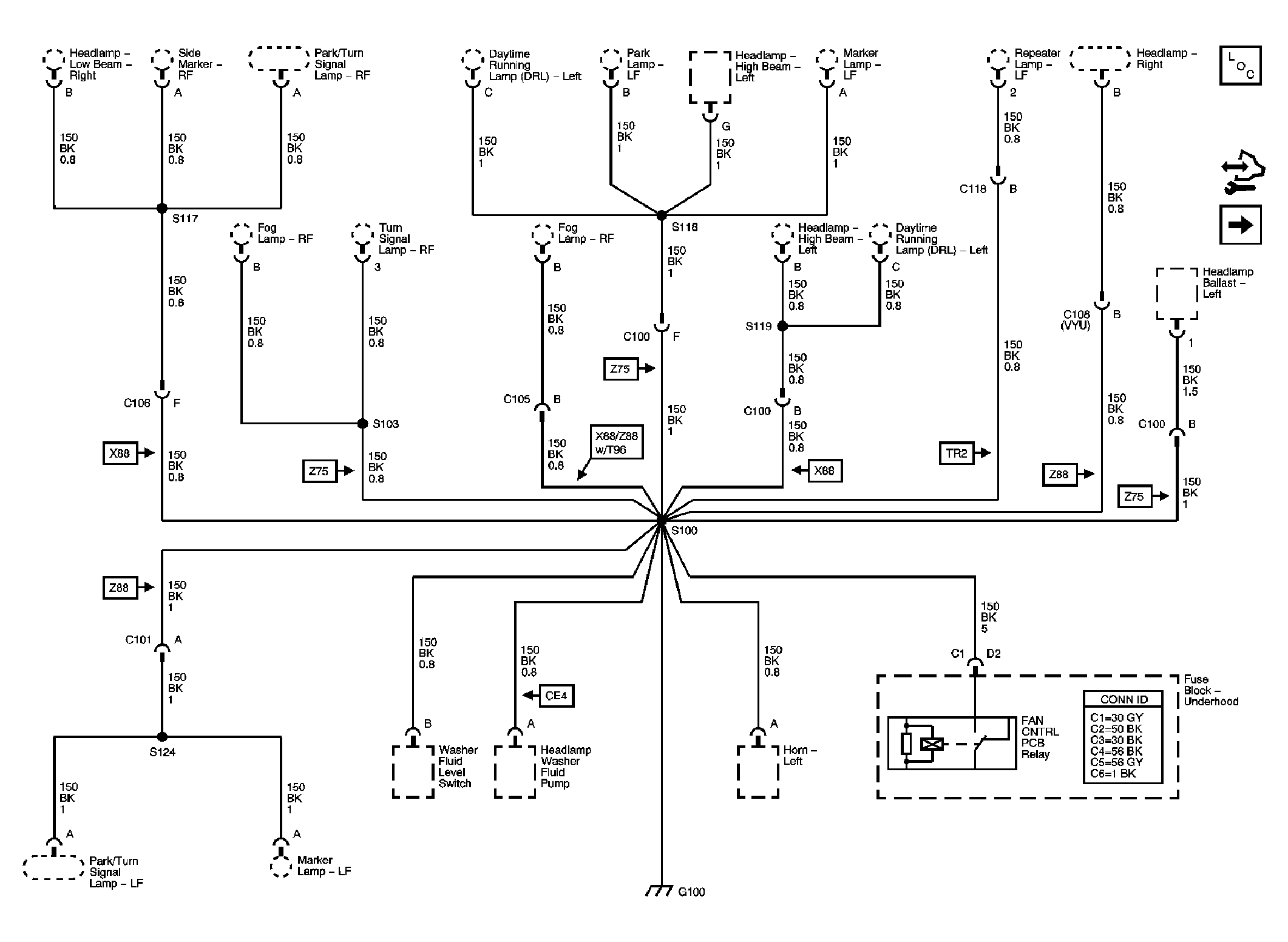

Fig 1: G100 Schematic

GM1699366

Courtesy of GENERAL MOTORS CORP.

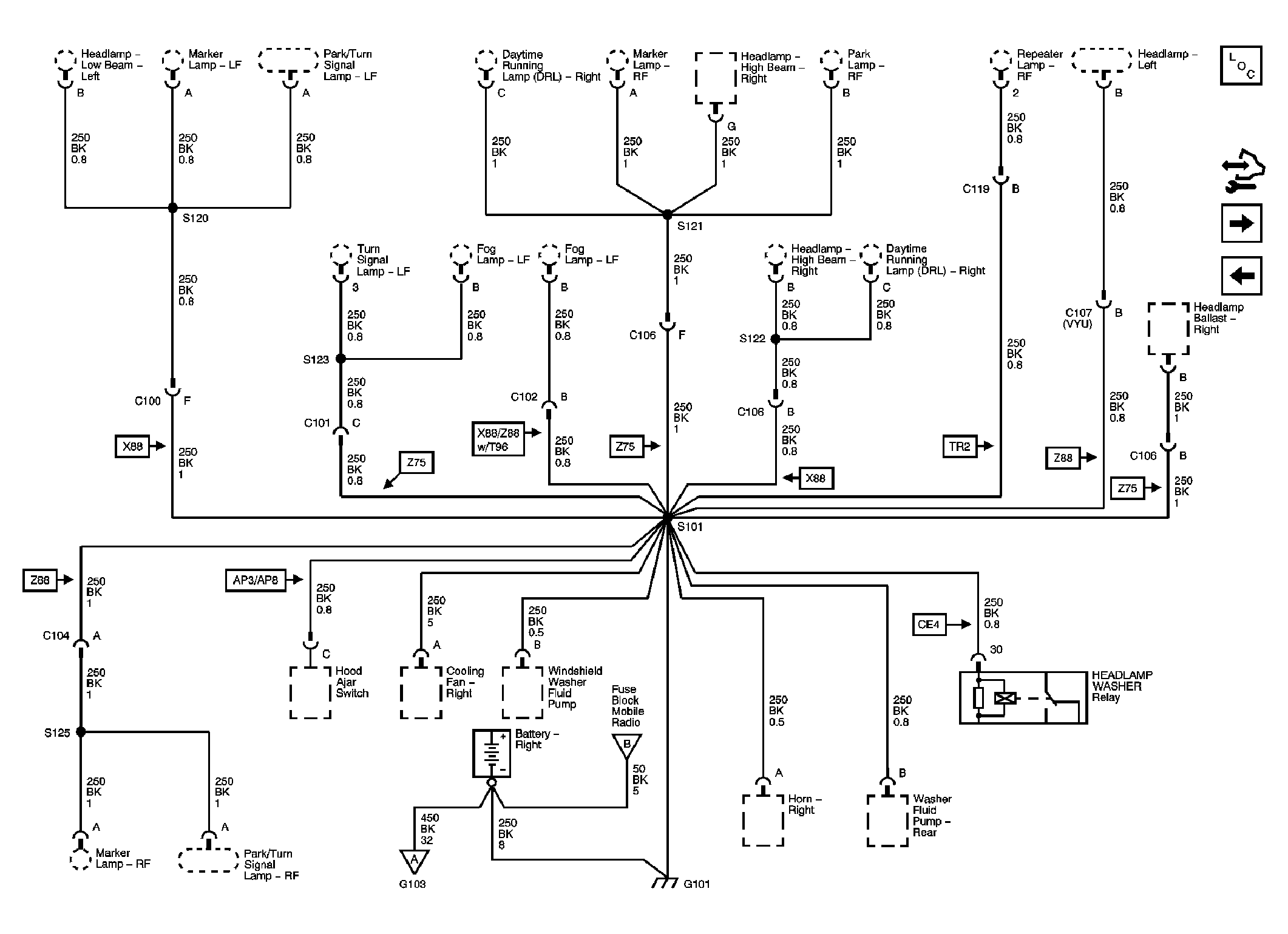

Fig 2: G101 Schematic

GM1699367

Courtesy of GENERAL MOTORS CORP.

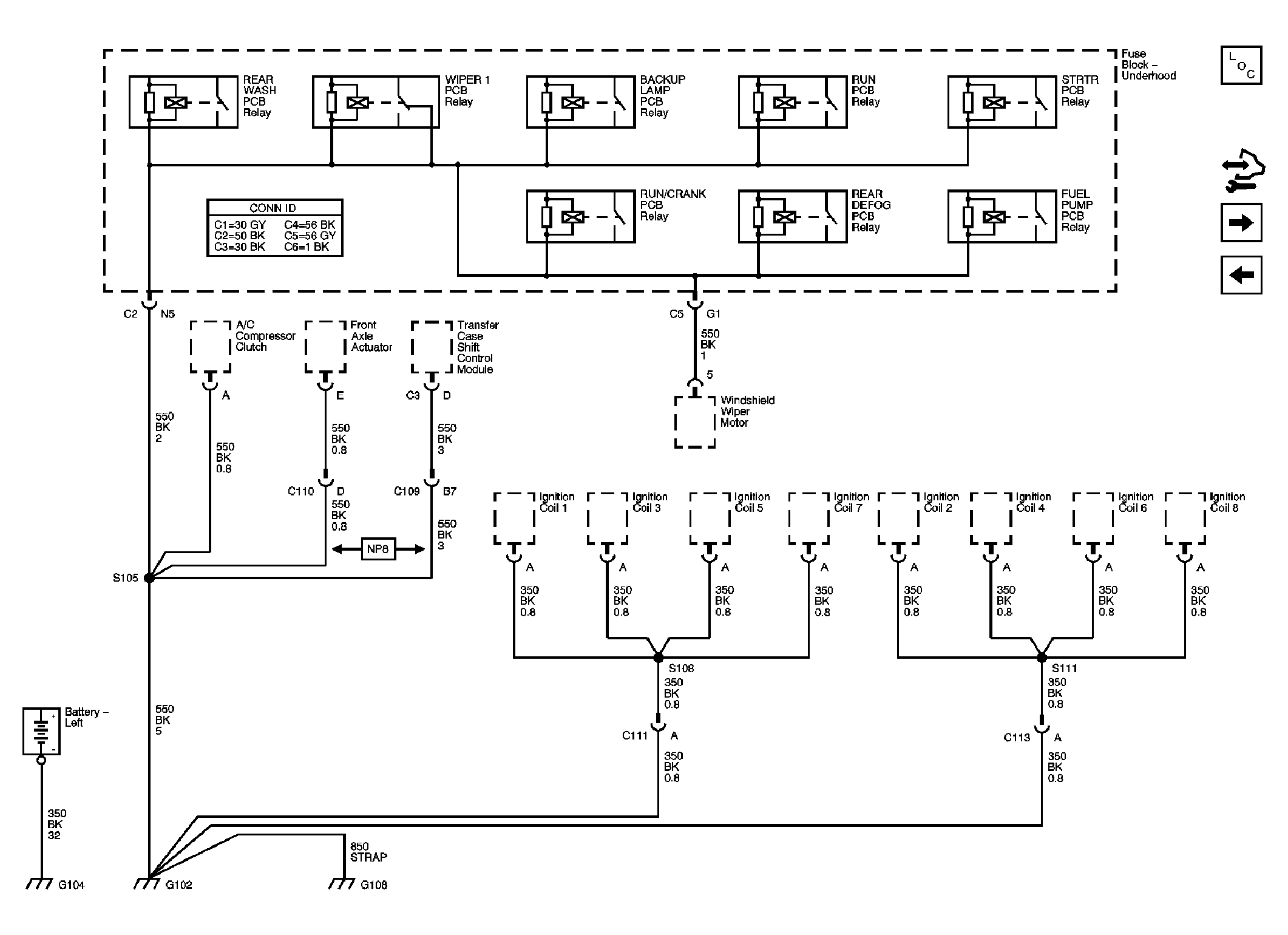

Fig 3: G102 & G108 Schematic

GM1699368

Courtesy of GENERAL MOTORS CORP.

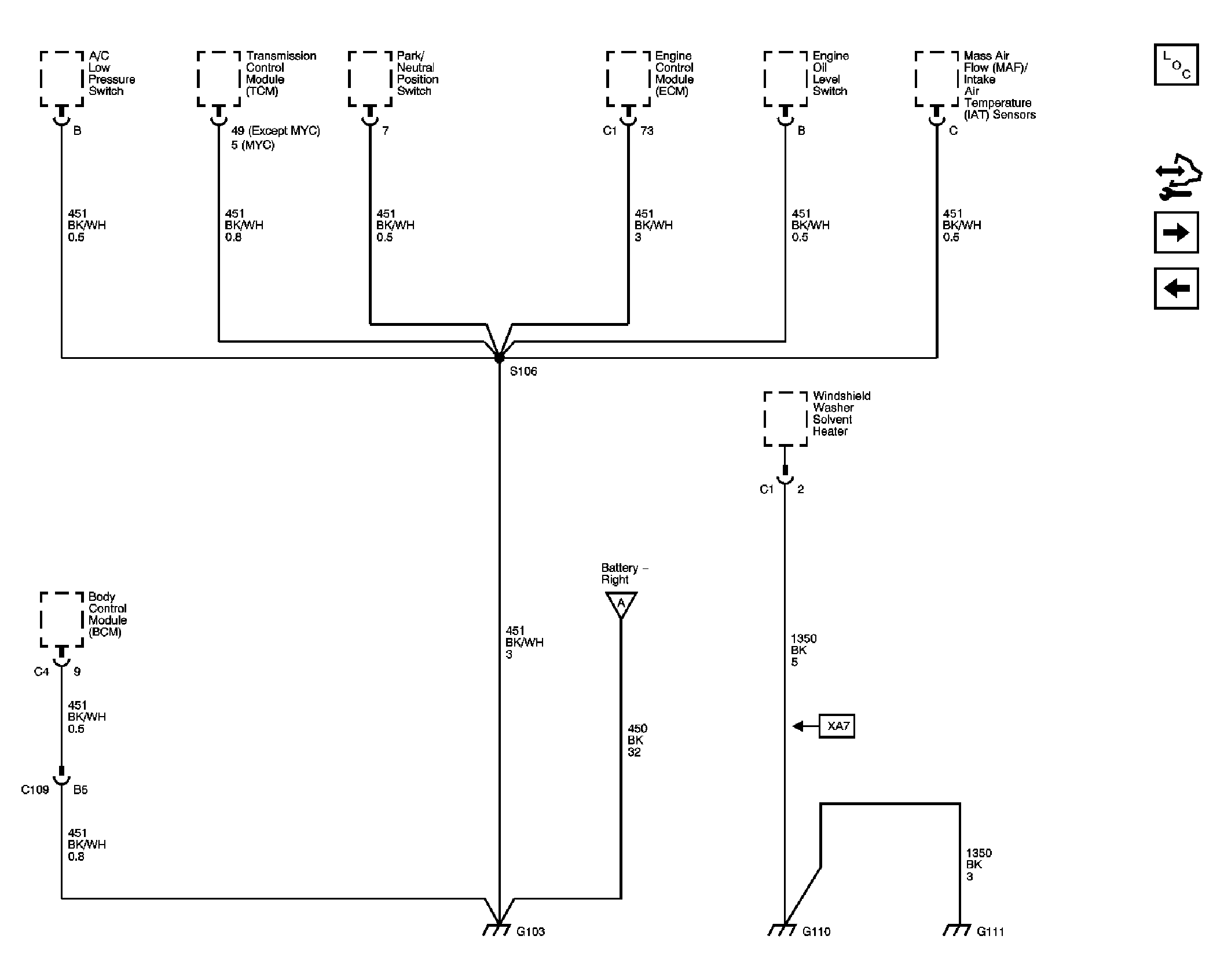

Fig 4: G103, G110, & G111 Schematic

GM1699369

Courtesy of GENERAL MOTORS CORP.

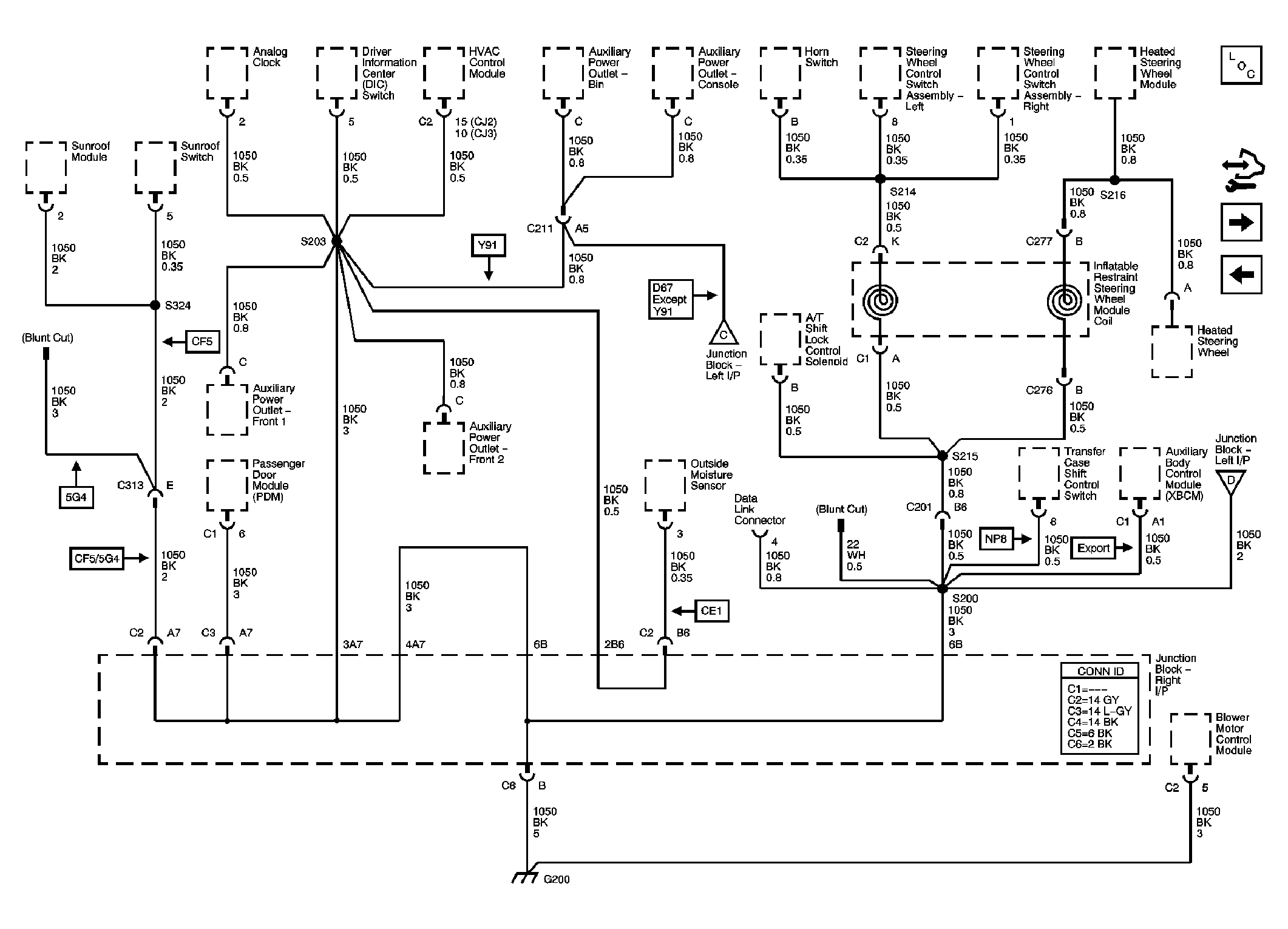

Fig 5: G200 - 1 of 2 Schematic

GM1699371

Courtesy of GENERAL MOTORS CORP.

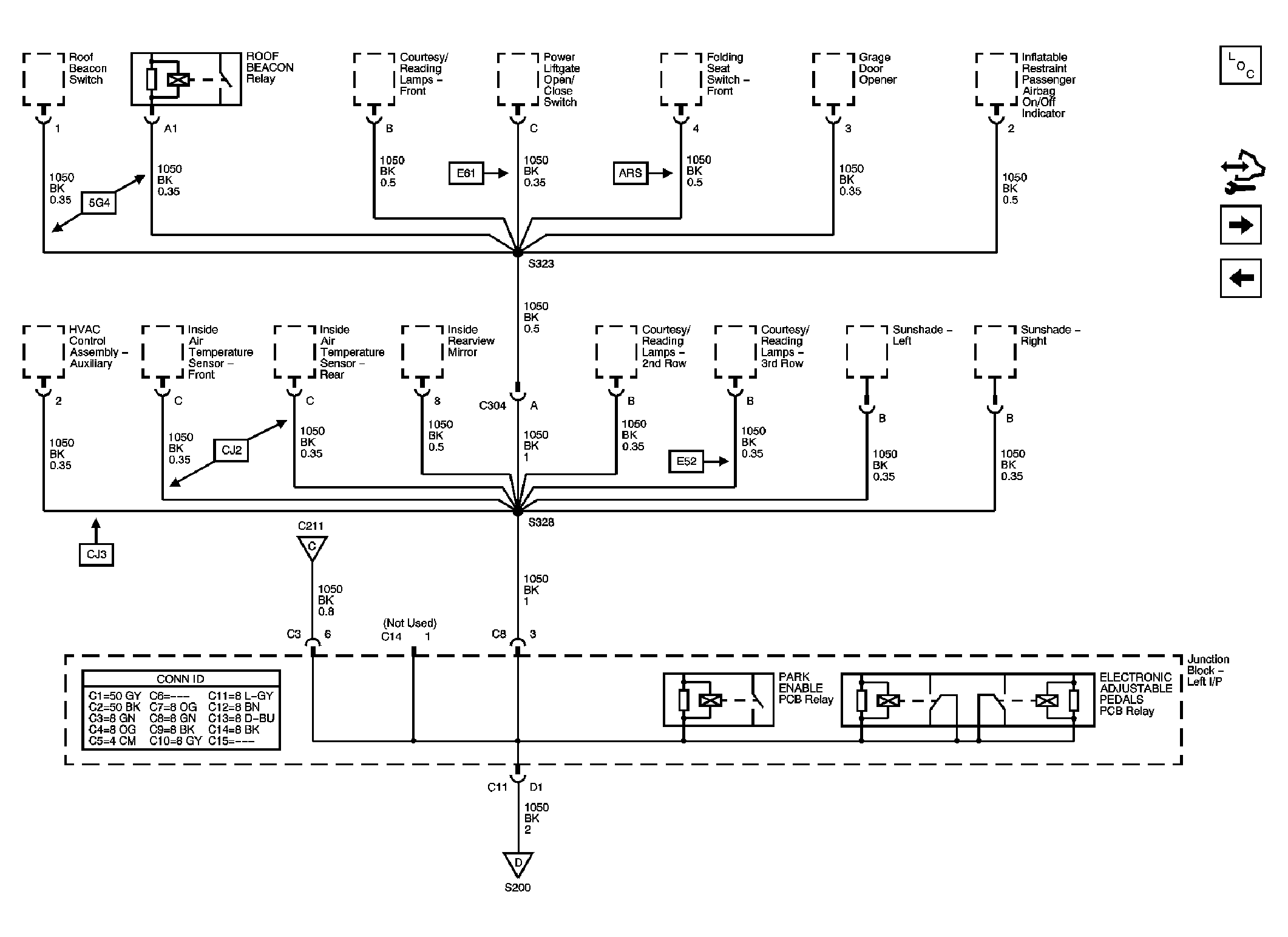

Fig 6: G200 - 2 of 2 Schematic

GM1699372

Courtesy of GENERAL MOTORS CORP.

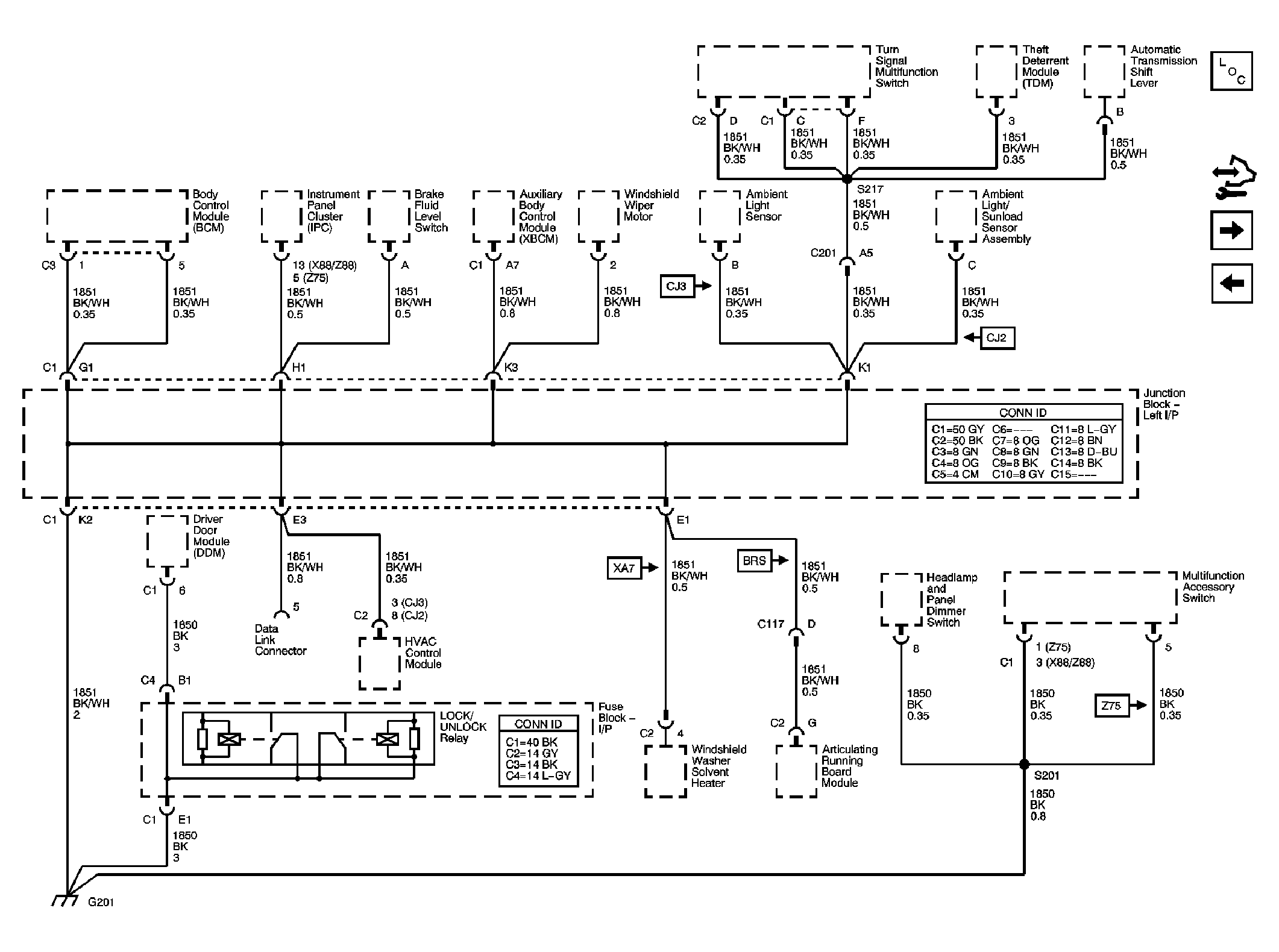

Fig 7: G201 Schematic

GM1699373

Courtesy of GENERAL MOTORS CORP.

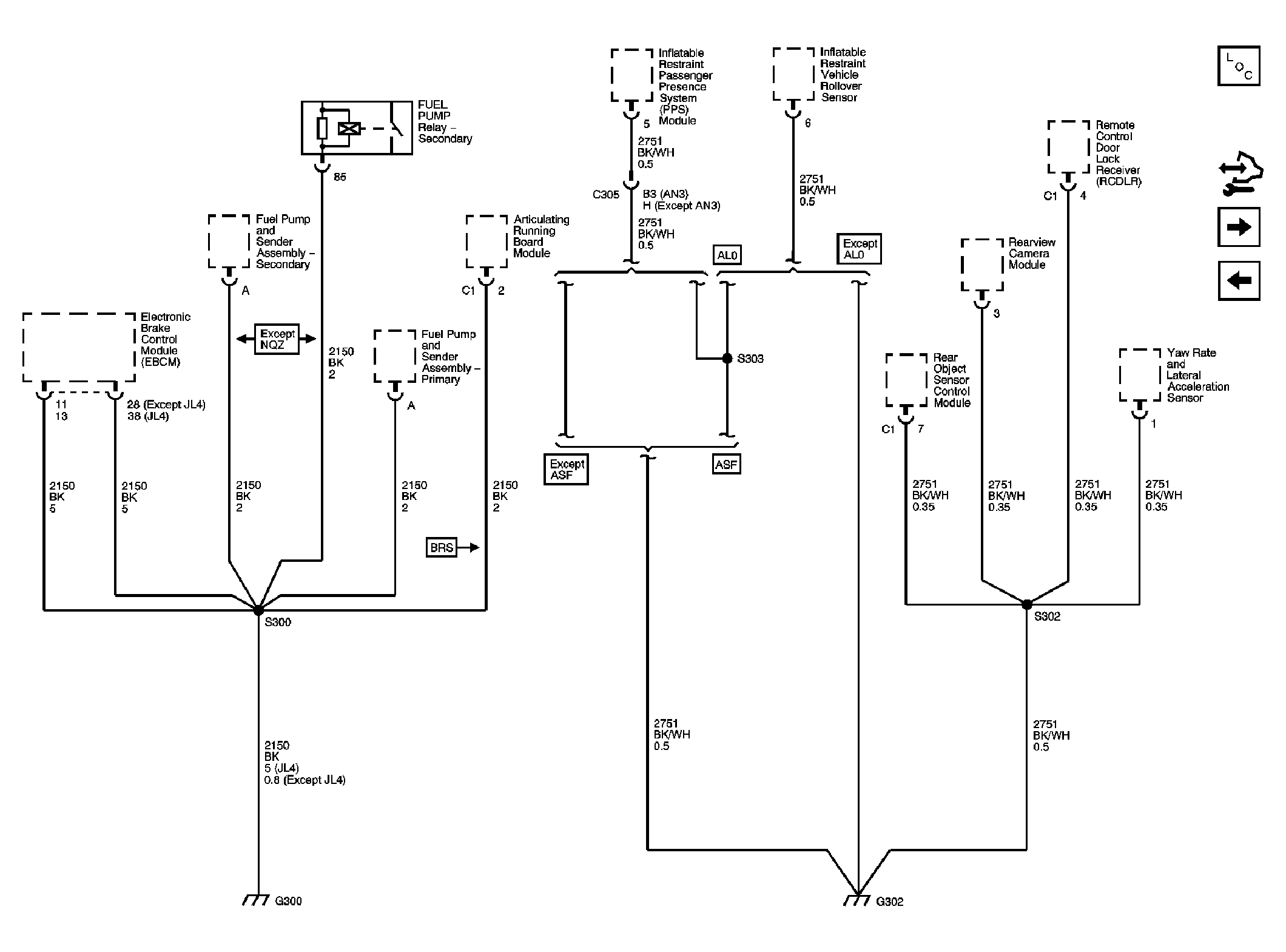

Fig 8: G300 & G302 Schematic

GM1699375

Courtesy of GENERAL MOTORS CORP.

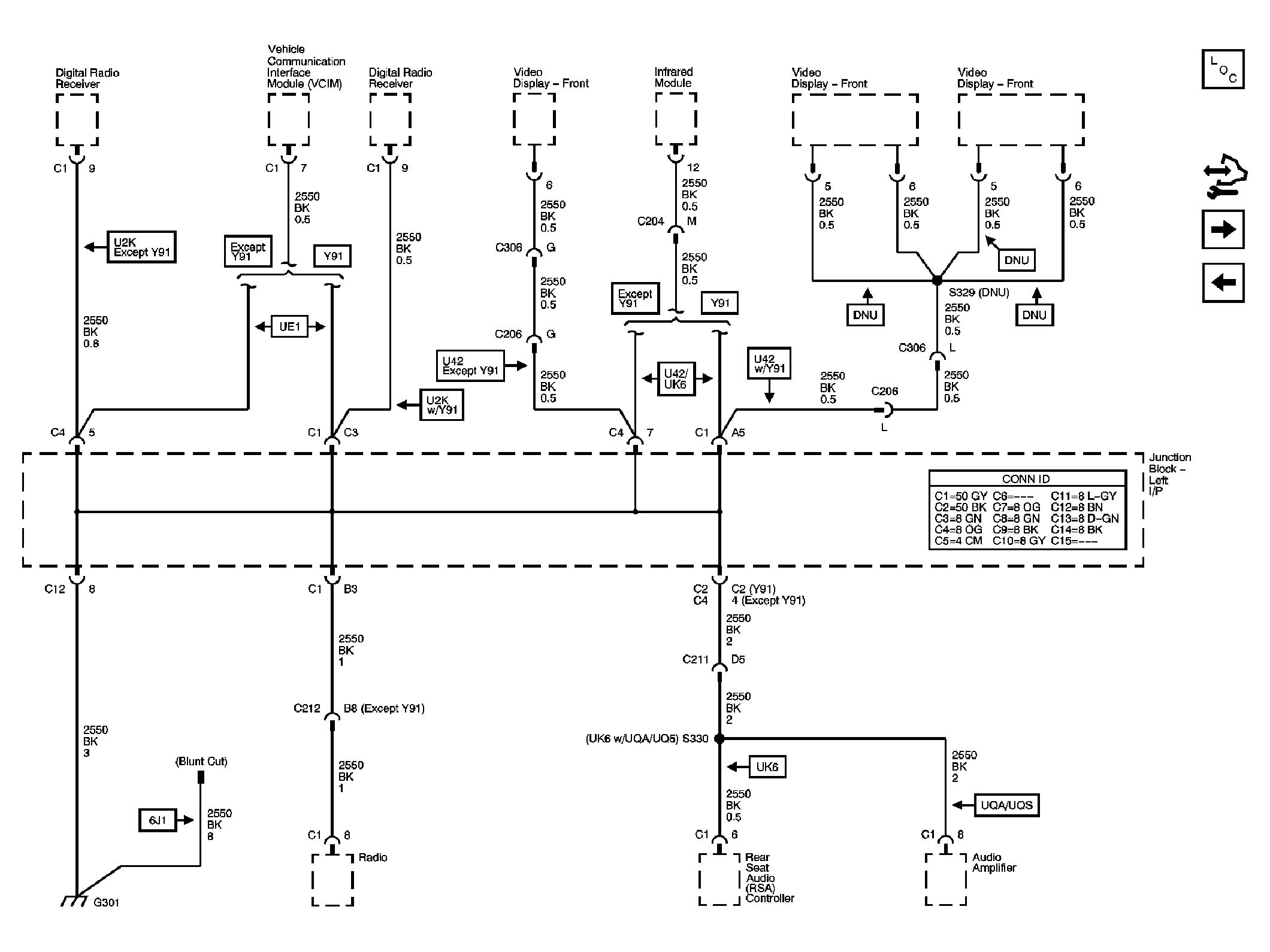

Fig 9: G301 Schematic

GM1699378

Courtesy of GENERAL MOTORS CORP.

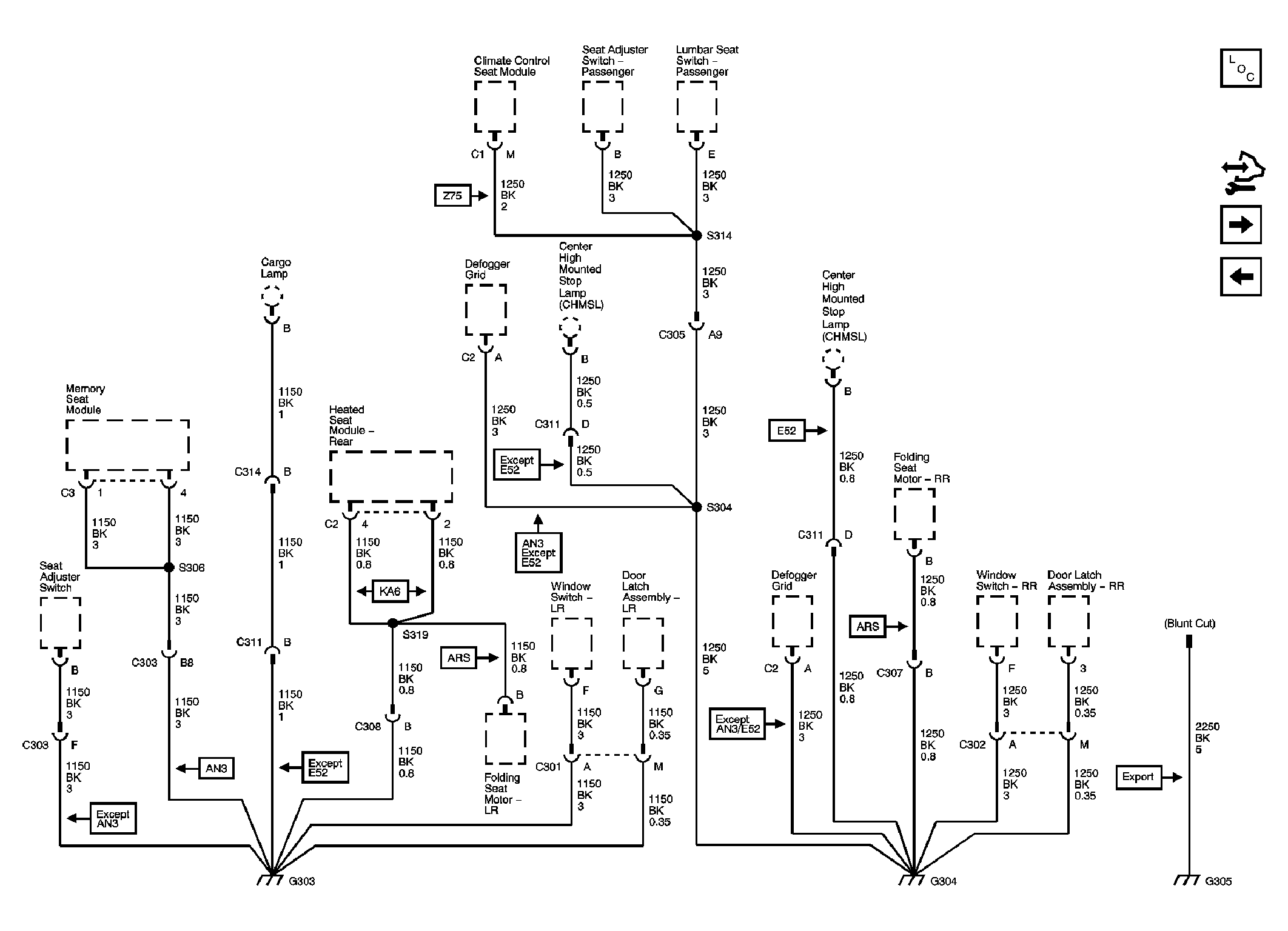

Fig 10: G303, G304, & G305 Schematic

GM1699379

Courtesy of GENERAL MOTORS CORP.

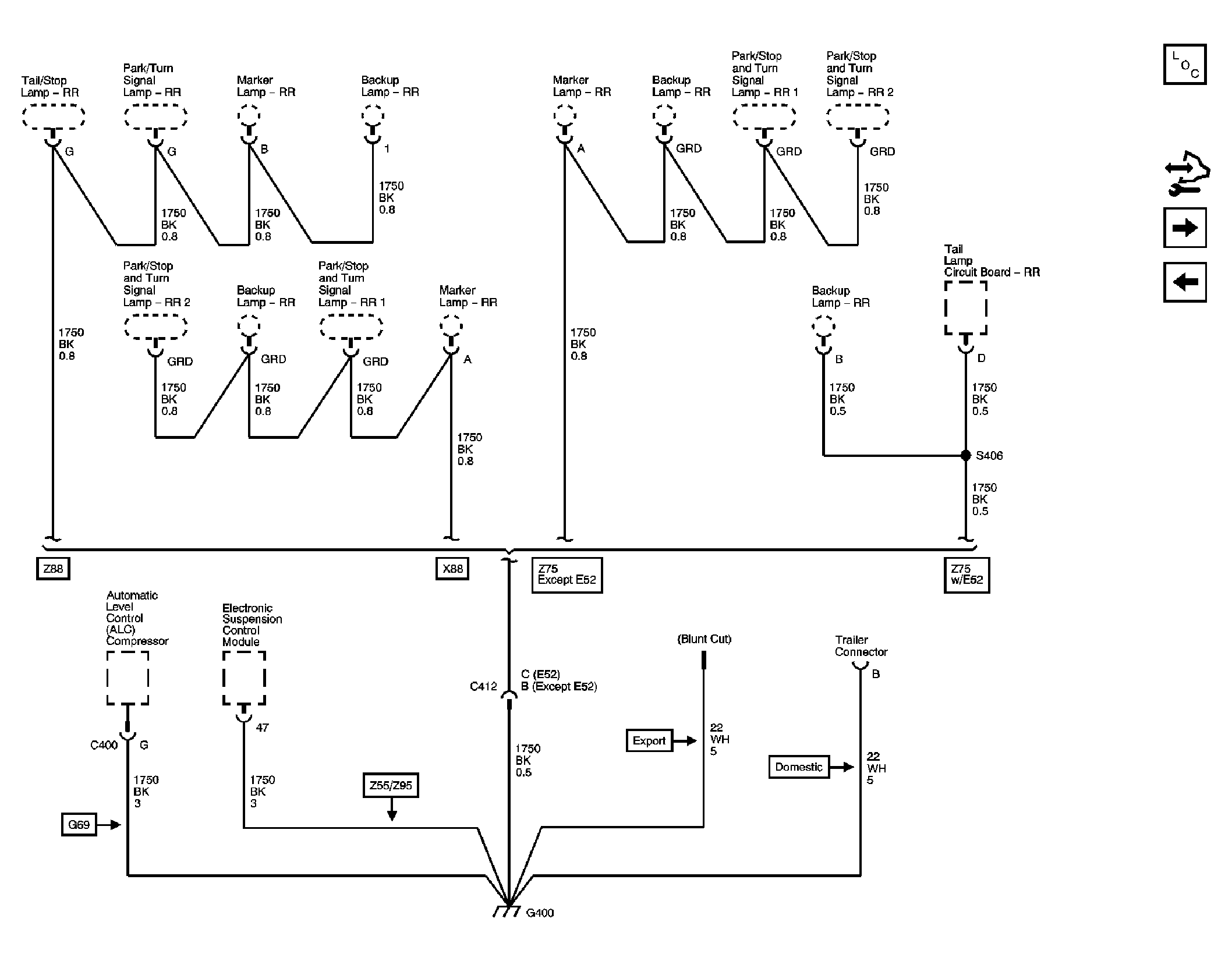

Fig 11: G400 Schematic

GM1699382

Courtesy of GENERAL MOTORS CORP.

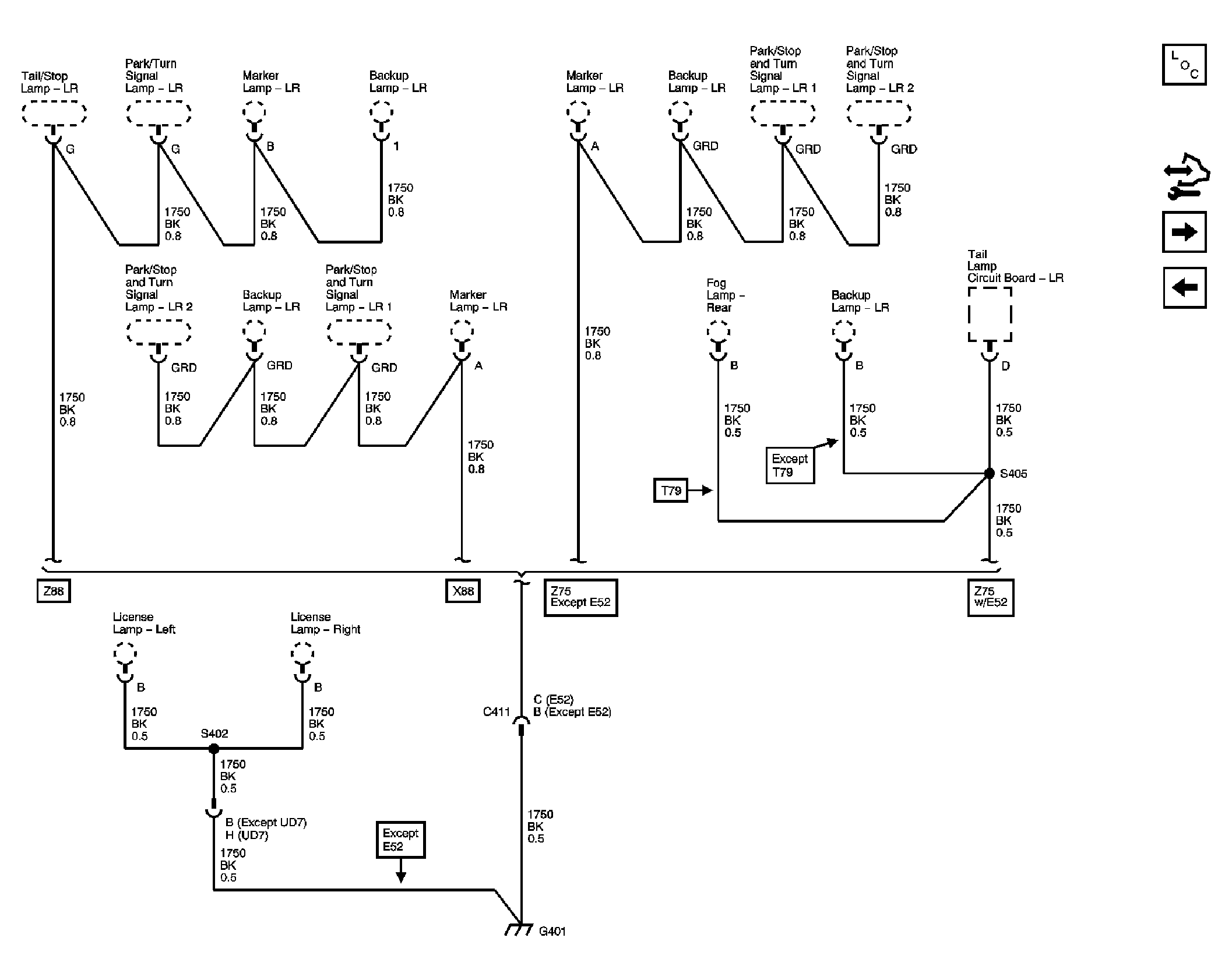

Fig 12: G401 Schematic

GM1699384

Courtesy of GENERAL MOTORS CORP.

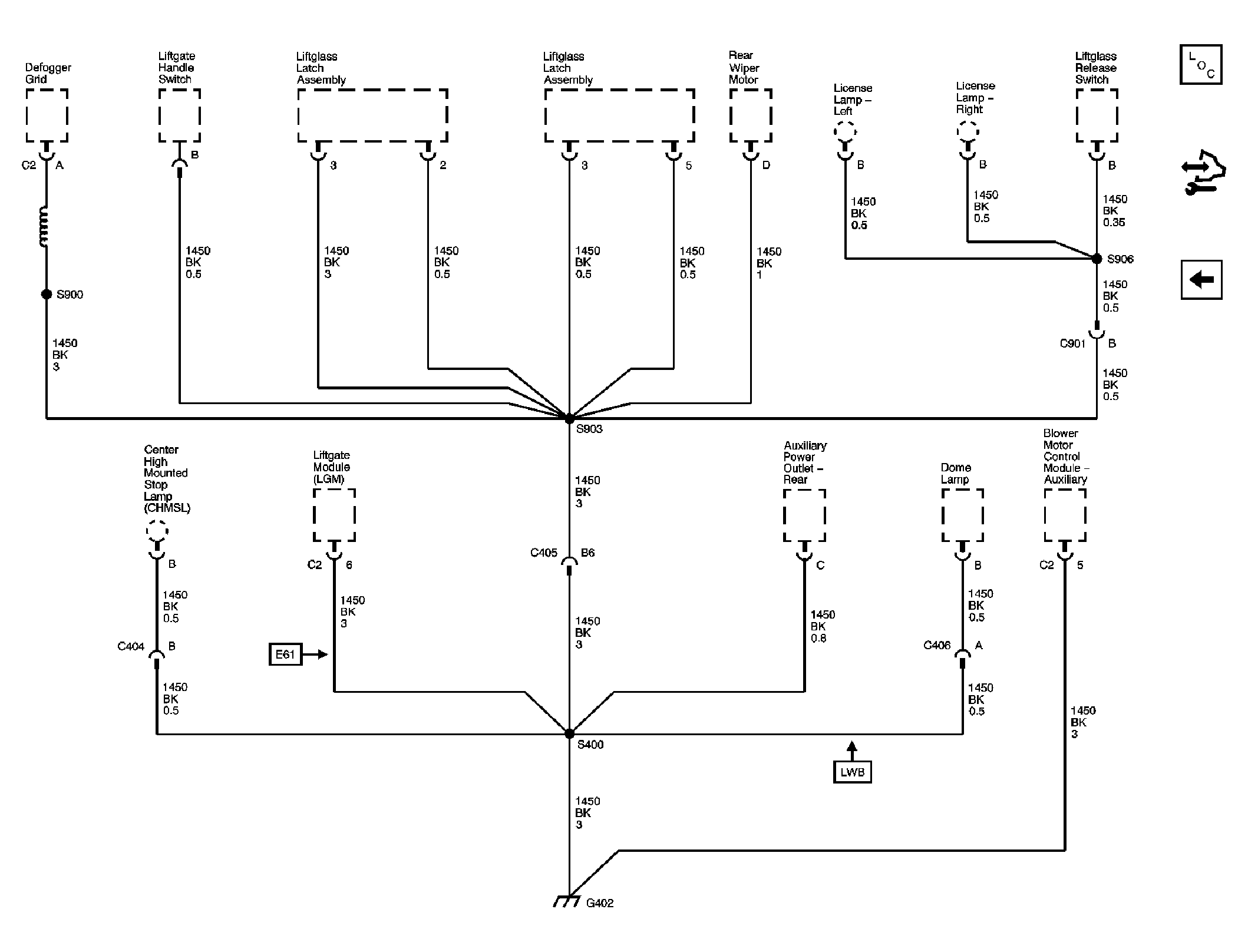

Fig 13: G402 - E52 Schematic

GM1699387

Courtesy of GENERAL MOTORS CORP.
