Power Distribution Schematics

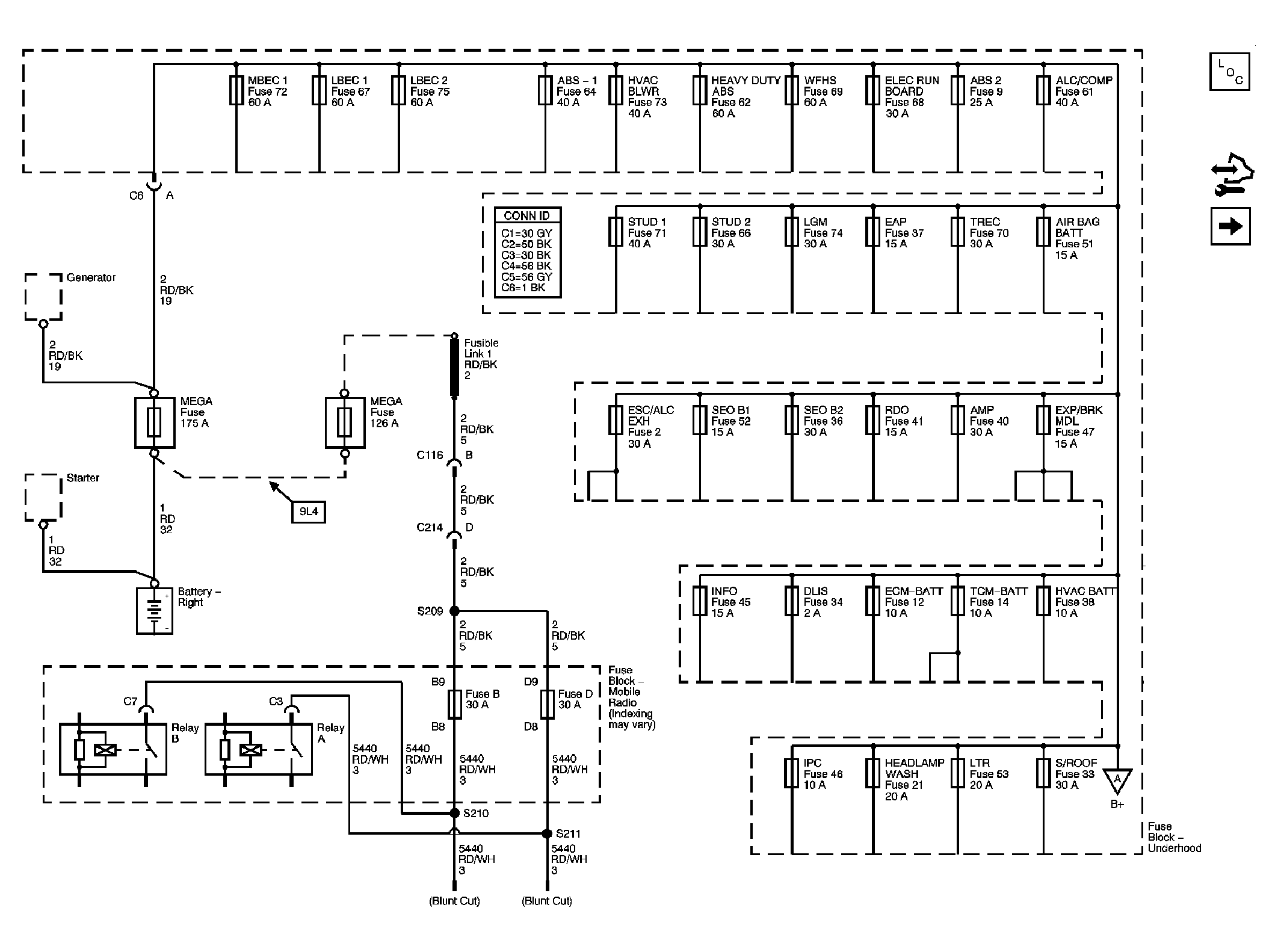

Fig 1: B+ Bus - 1 of 3 Schematic

GM1689677

Courtesy of GENERAL MOTORS CORP.

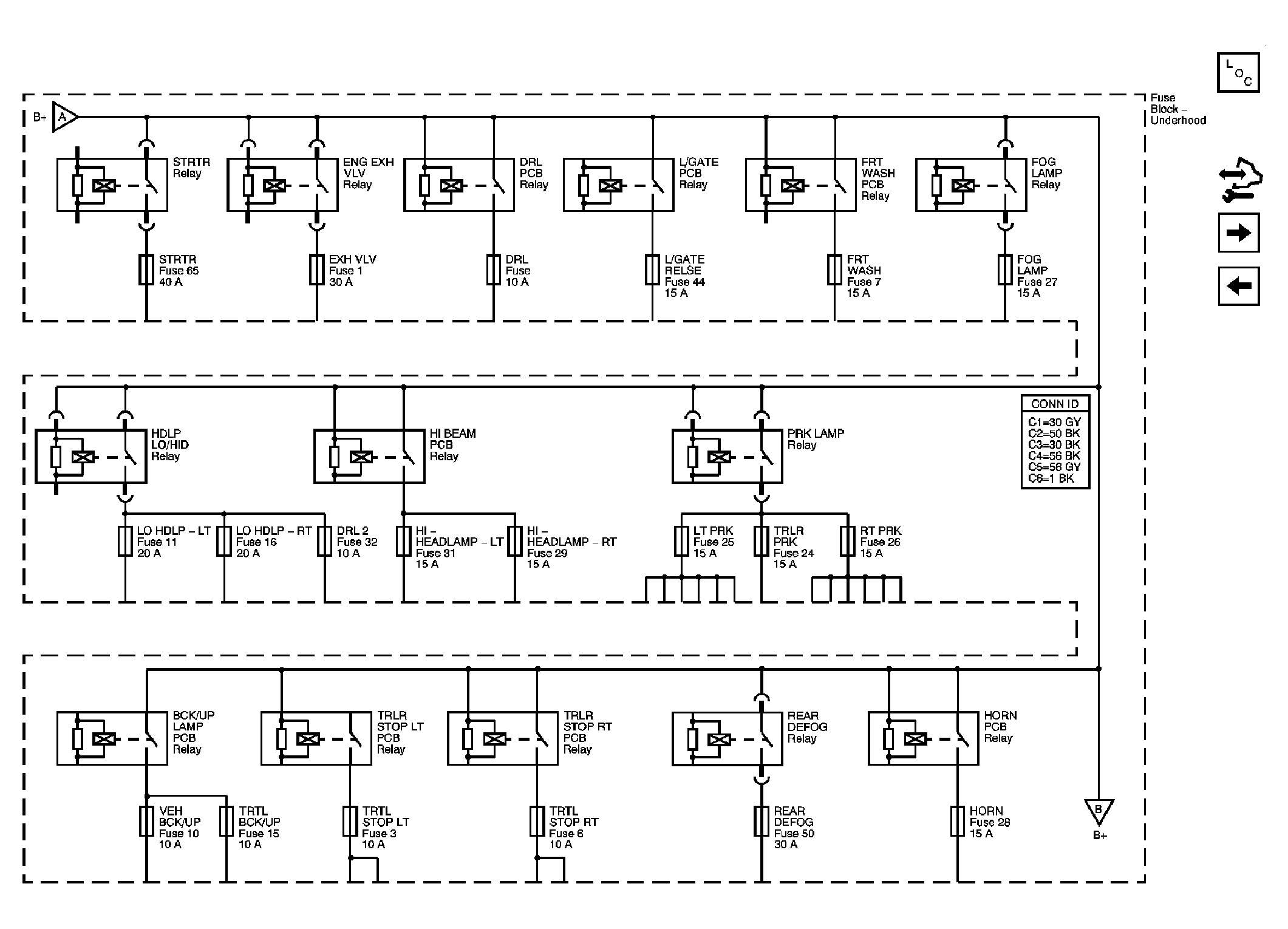

Fig 2: B+ Bus - 2 of 3 Schematic

GM1689680

Courtesy of GENERAL MOTORS CORP.

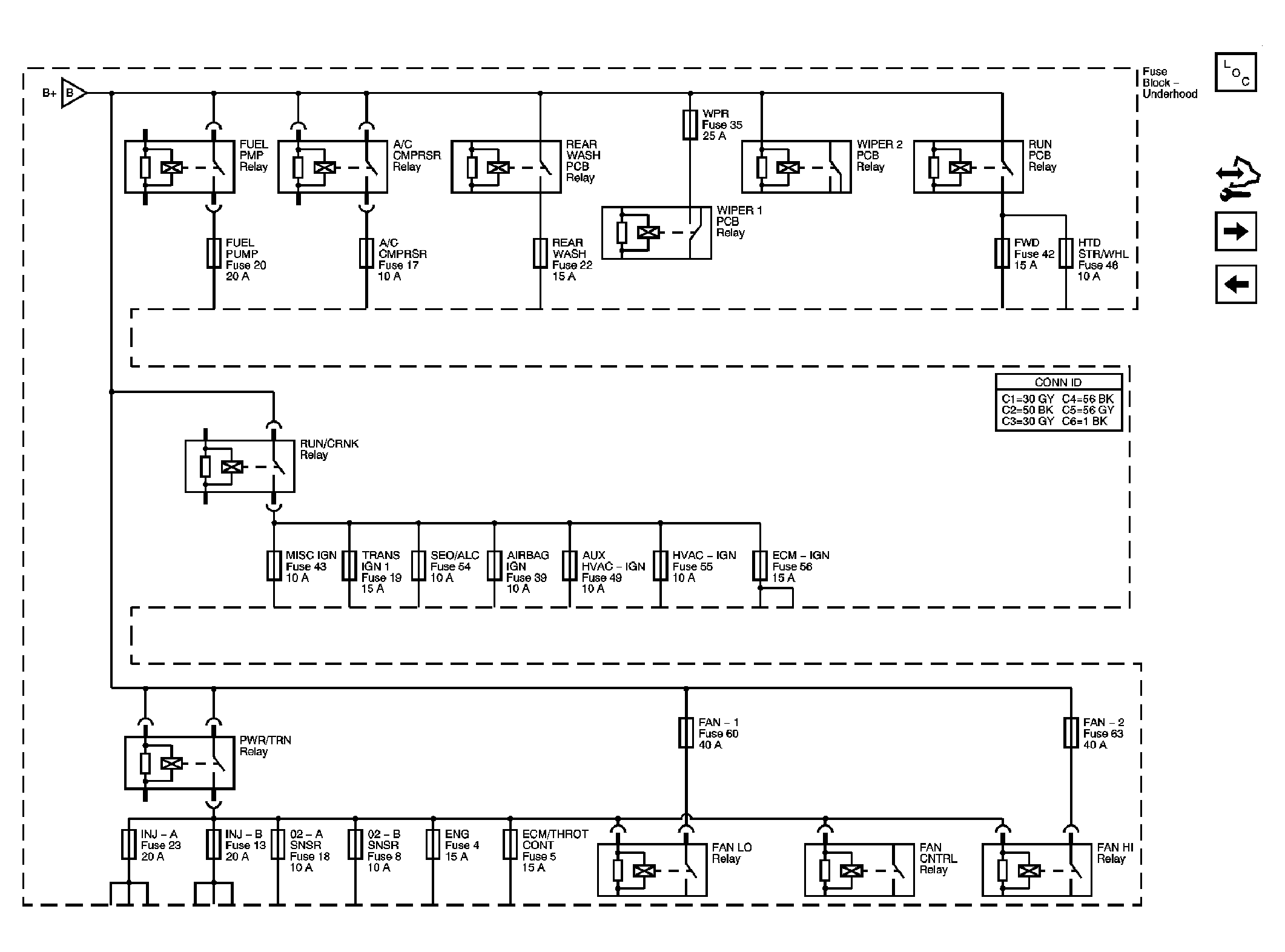

Fig 3: B+ Bus - 3 of 3 Schematic

GM1689681

Courtesy of GENERAL MOTORS CORP.

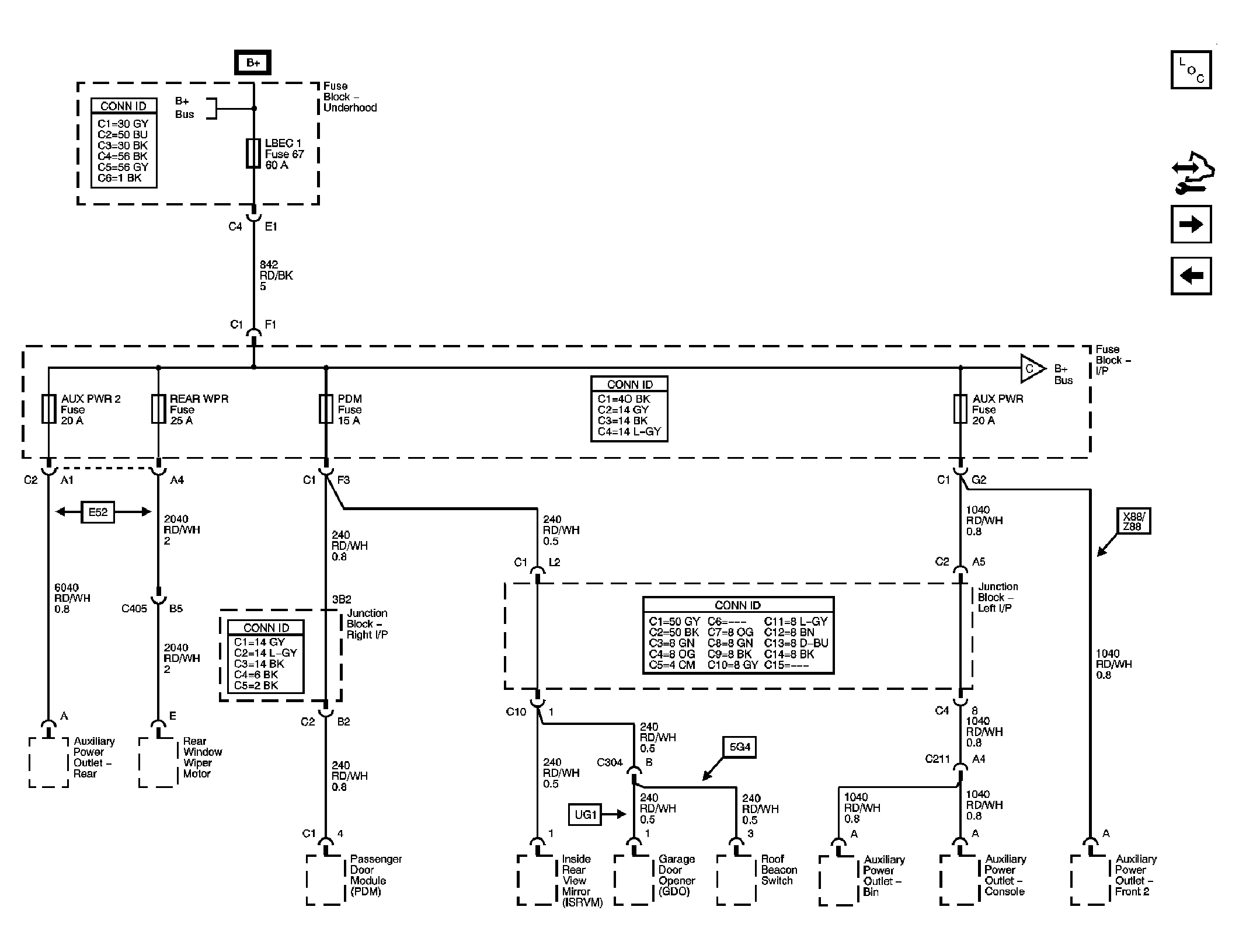

Fig 4: AUX PWR, AUX PWR 2, LBEC 1, PDM, & REAR WPR Fuses Schematic

GM1689682

Courtesy of GENERAL MOTORS CORP.

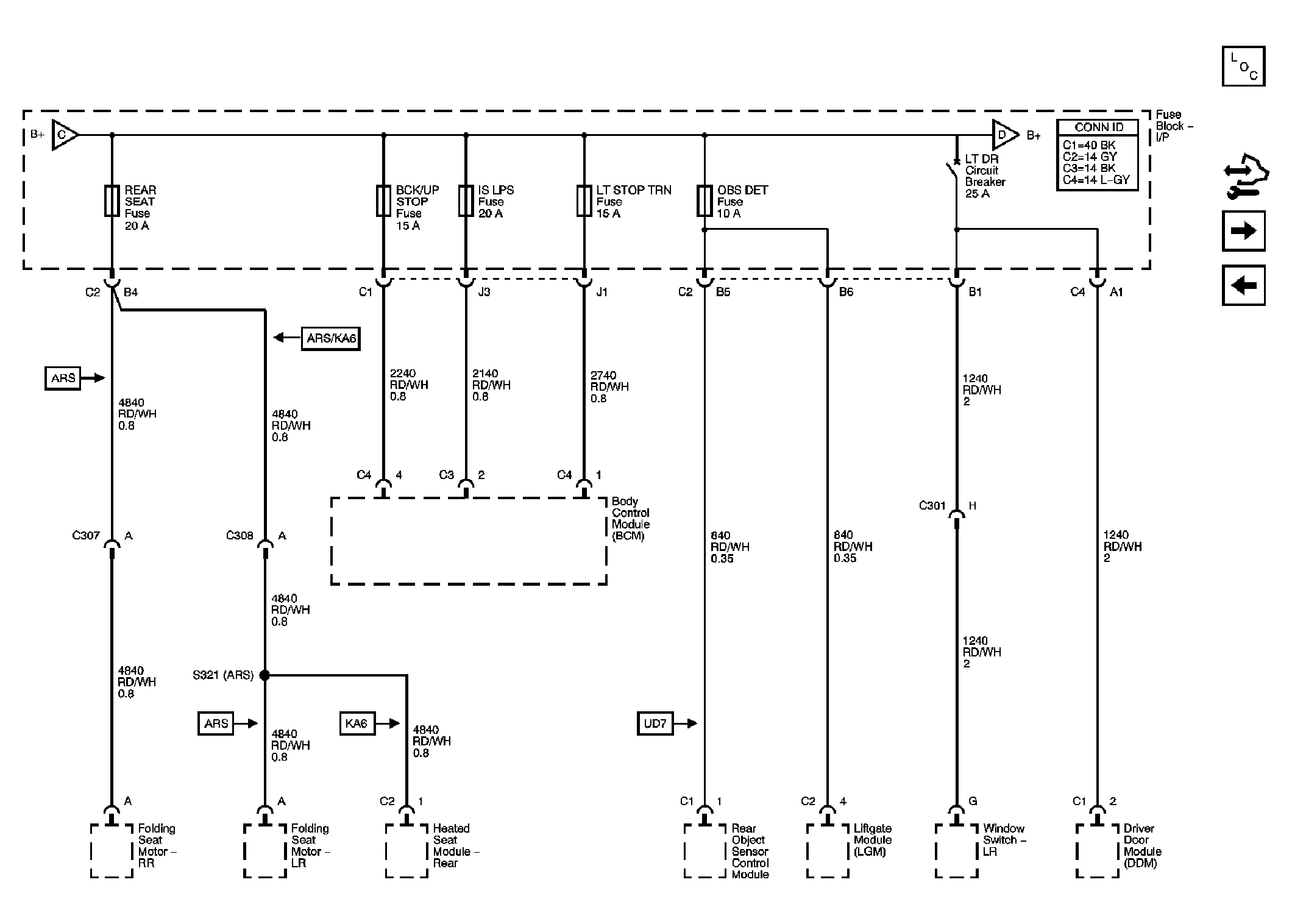

Fig 5: BCK/UP STOP, IS LPS, LT STOP TRN, OBS DET, & REAR SEAT Fuses & LT DR Circuit Breaker Schematic

GM1689684

Courtesy of GENERAL MOTORS CORP.

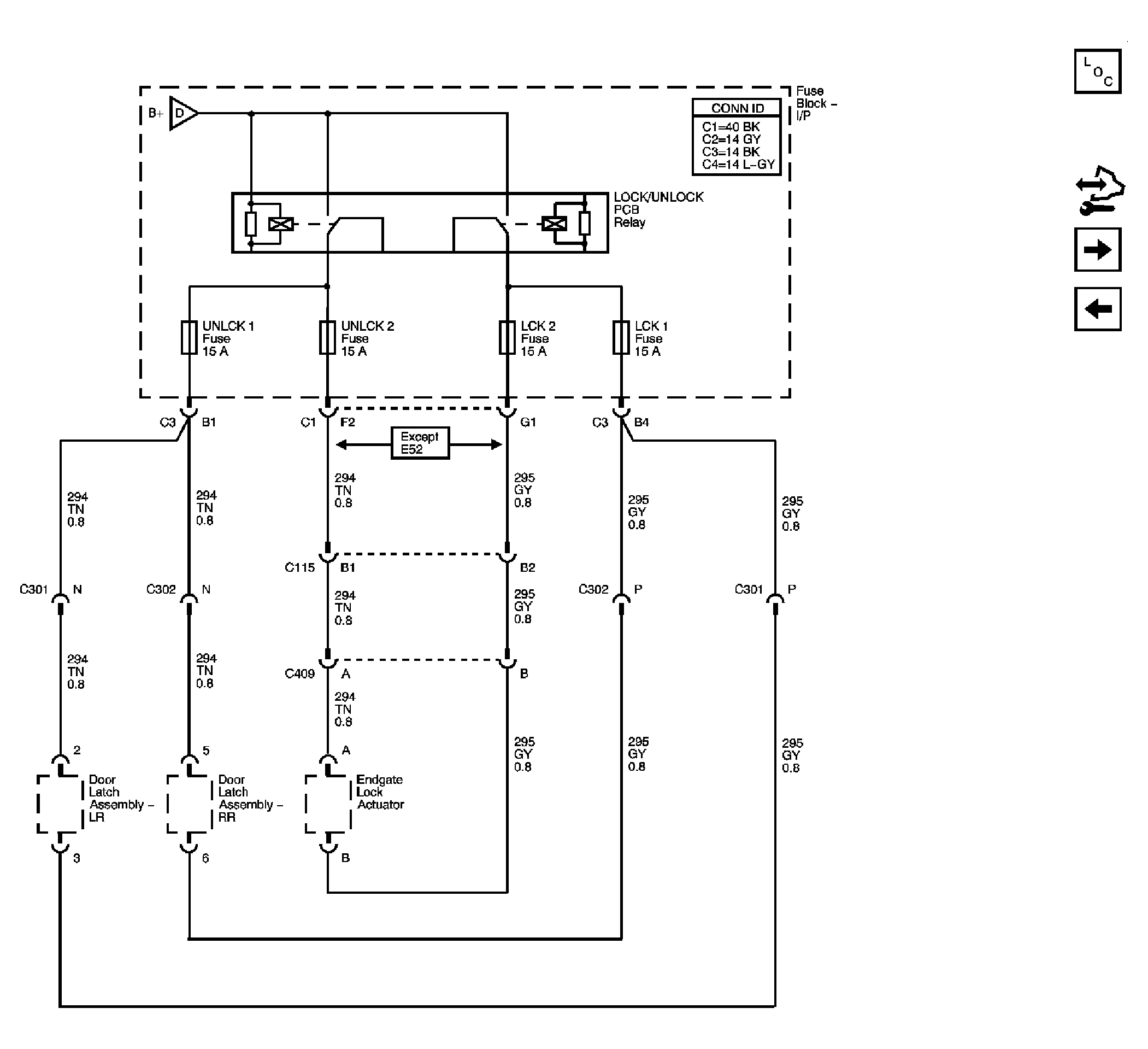

Fig 6: LCK 1, LCK2, UNLCK 1, & UNLCK2 Fuses Schematic

GM1689686

Courtesy of GENERAL MOTORS CORP.

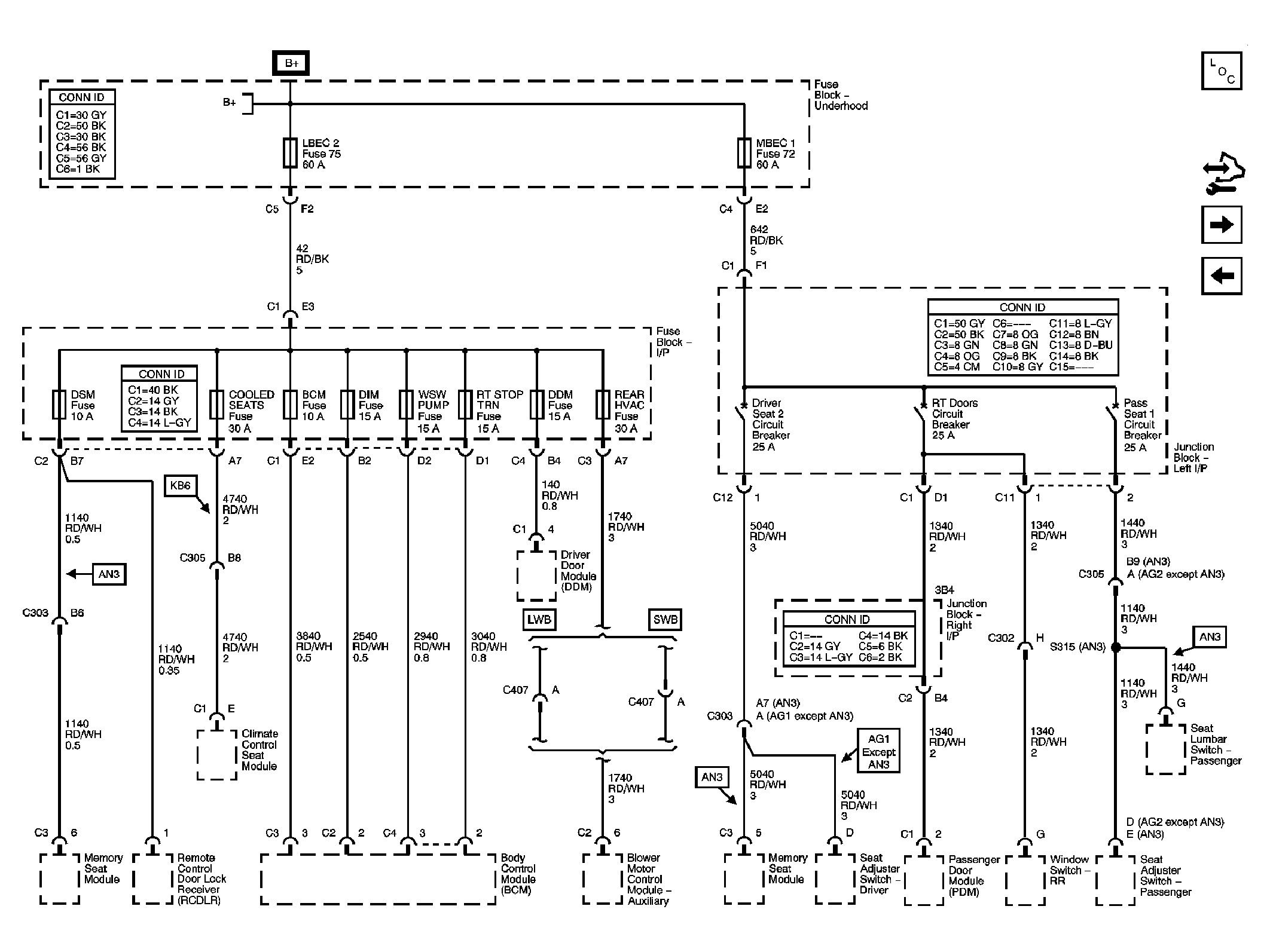

Fig 7: BCM, COOLED SEATS, DDM, DIM, DSM, LBEC 2, MBEC 1, REAR HVAC, RT STOP TRN, & WSW PUMP Fuses & DRIVER SEAT 2, PASS SEAT 1, & RT DOORS Circuit Breakers Schematic

GM1689688

Courtesy of GENERAL MOTORS CORP.

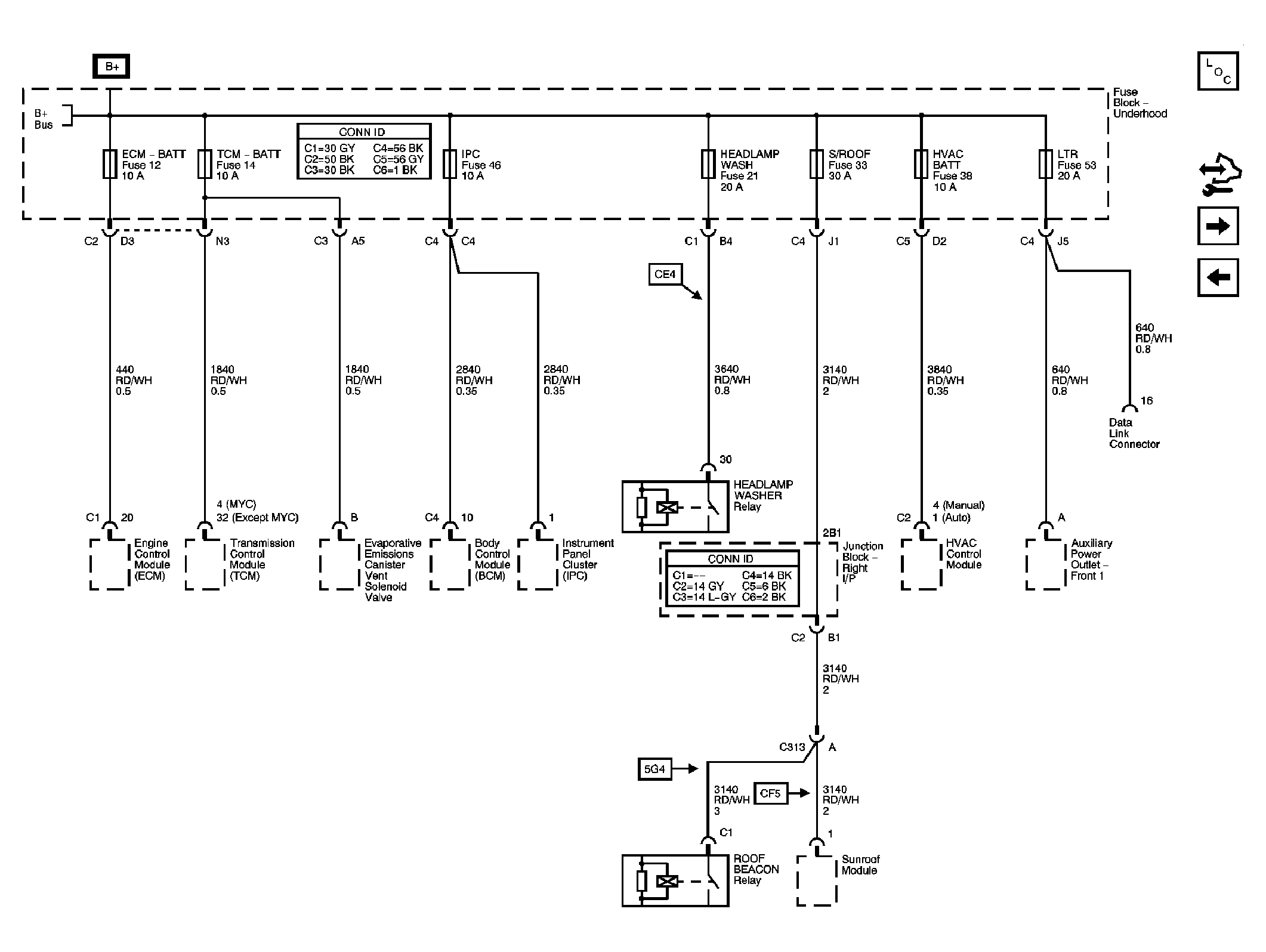

Fig 8: ECM-BATT, HEADLAMP WASH, HVAC BATT, IPC, LTR, S/ROOF, & TCM-BATT Fuses Schematic

GM1689691

Courtesy of GENERAL MOTORS CORP.

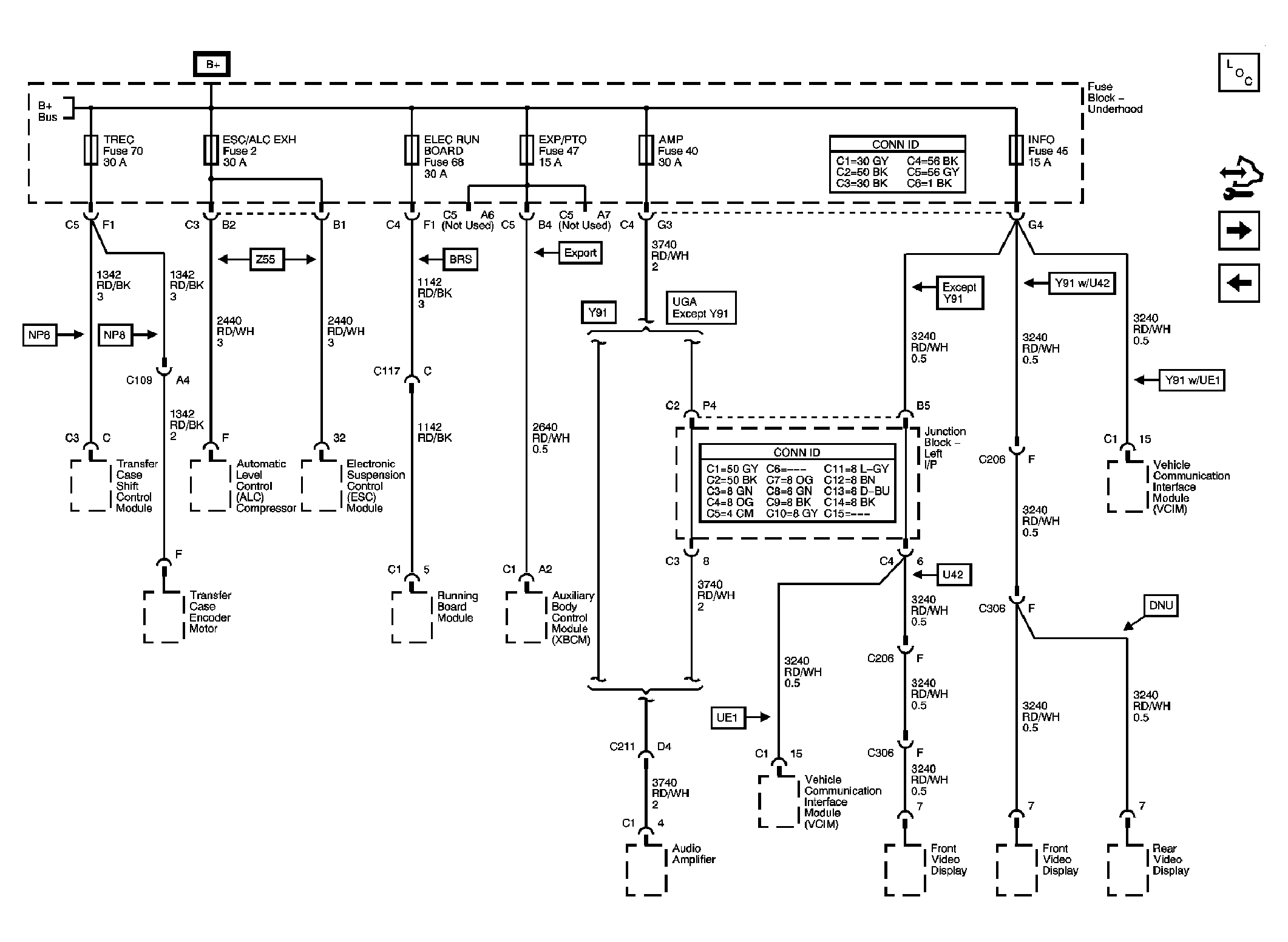

Fig 9: AMP, ELEC RUN BOARD, ESC/ALC EXH, EXP/BRK MDL, INFO, & TREC Fuses Schematic

GM1689694

Courtesy of GENERAL MOTORS CORP.

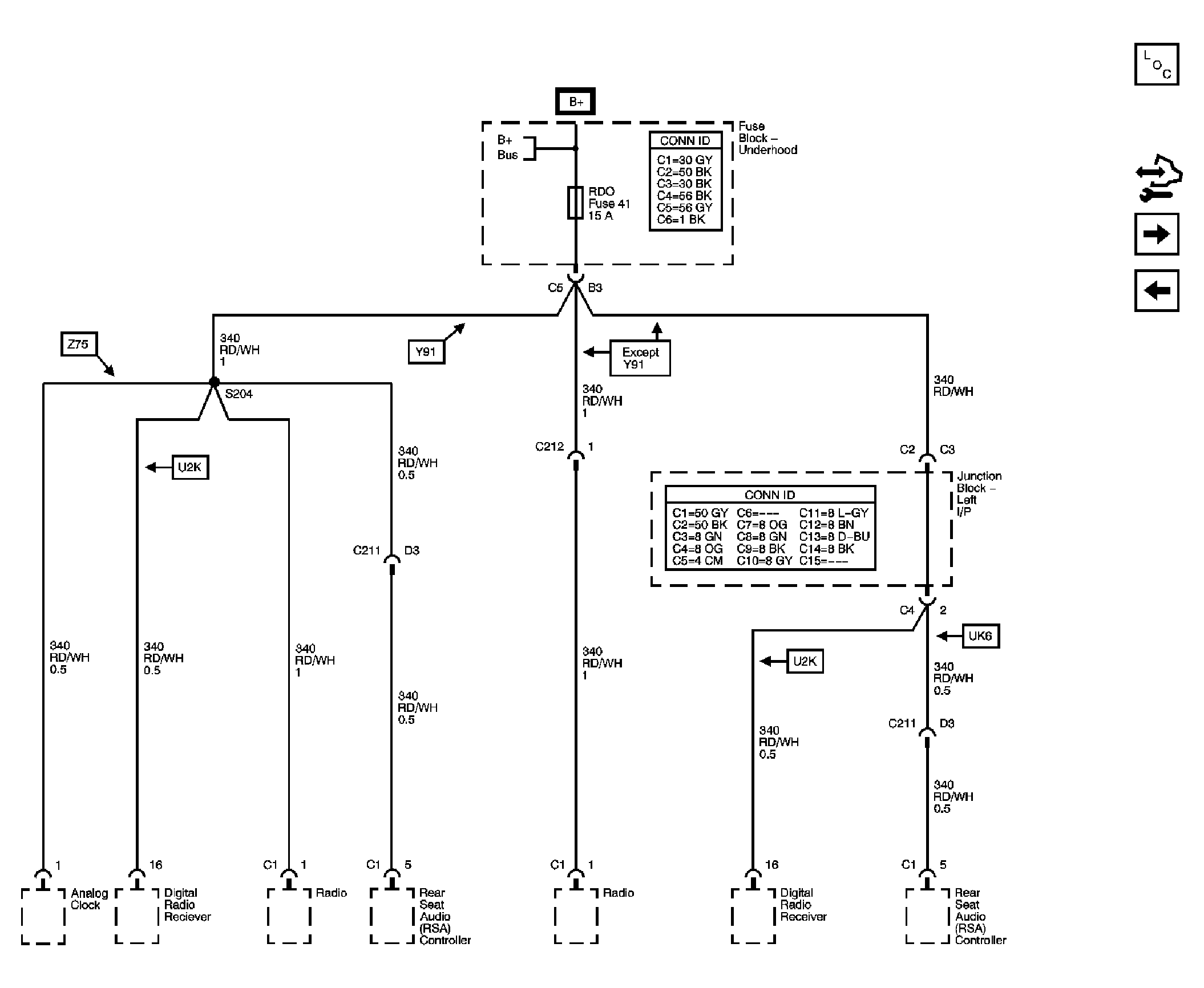

Fig 10: RDO Fuse Schematic

GM1689696

Courtesy of GENERAL MOTORS CORP.

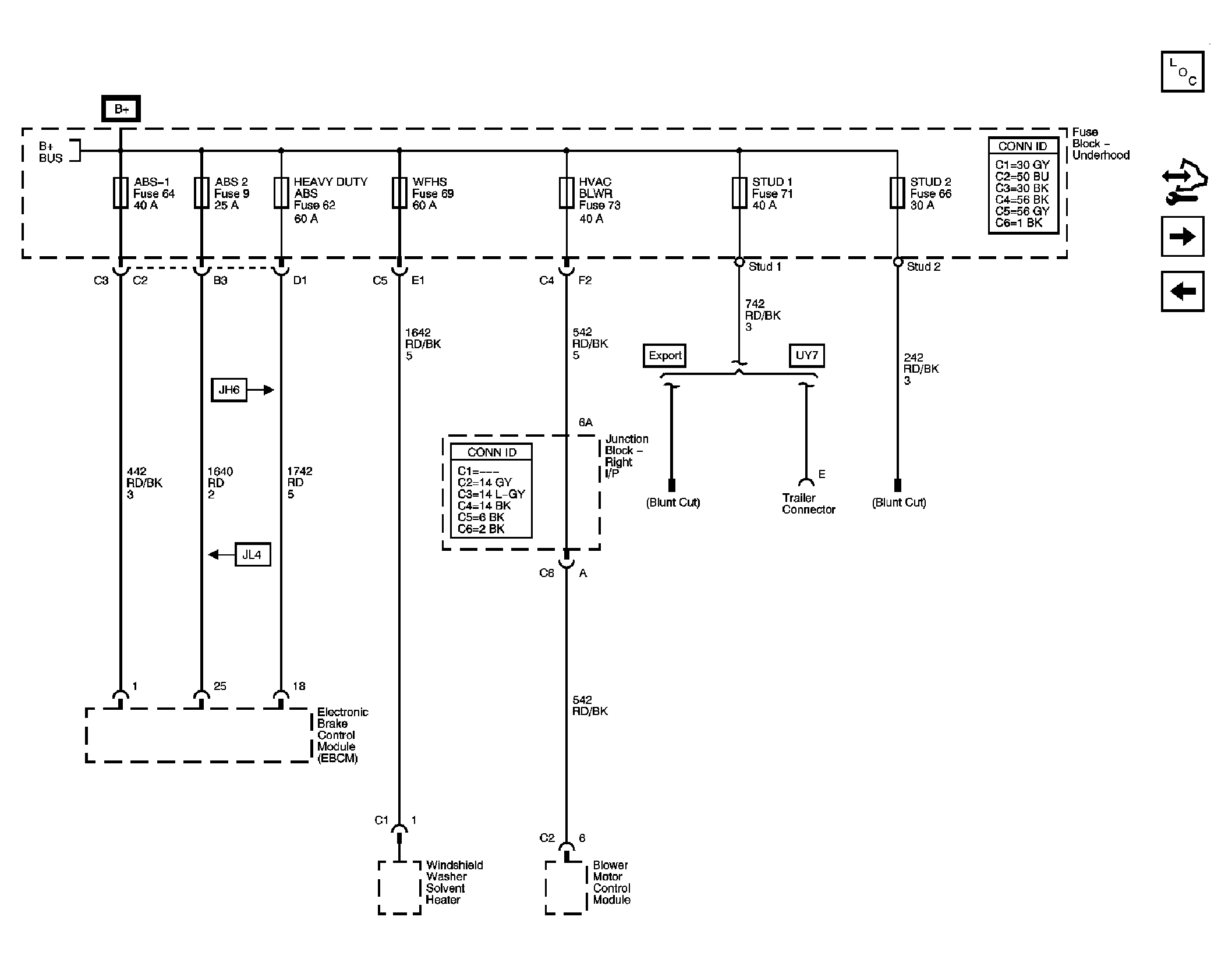

Fig 11: ABS-1, ABS 2, HEAVY DUTY ABS, HVAC BLWR, STUD 1, STUD 2, & WFHS Fuses Schematic

GM1689698

Courtesy of GENERAL MOTORS CORP.

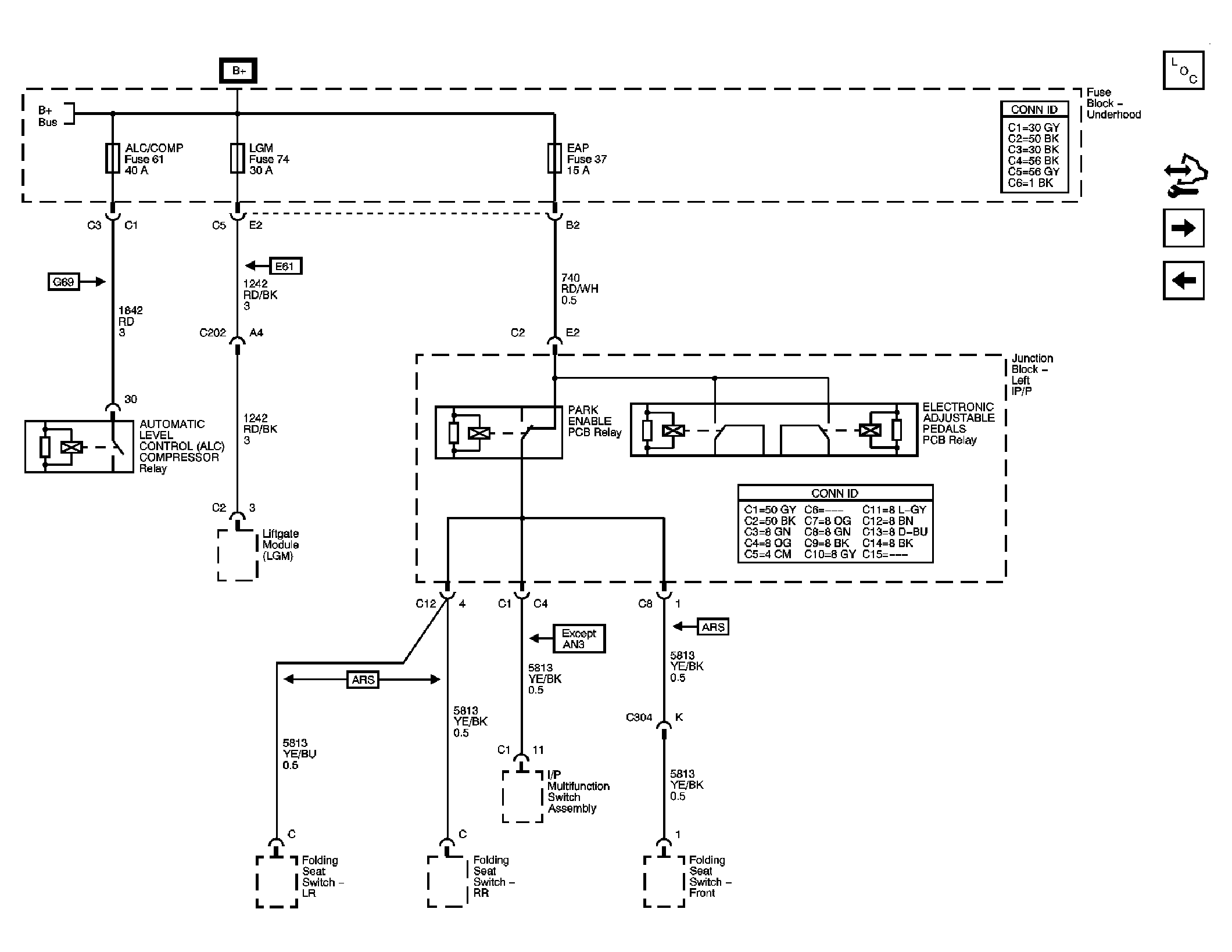

Fig 12: ALC/COMP, EAP, & LGM Fuses Schematic

GM1689701

Courtesy of GENERAL MOTORS CORP.

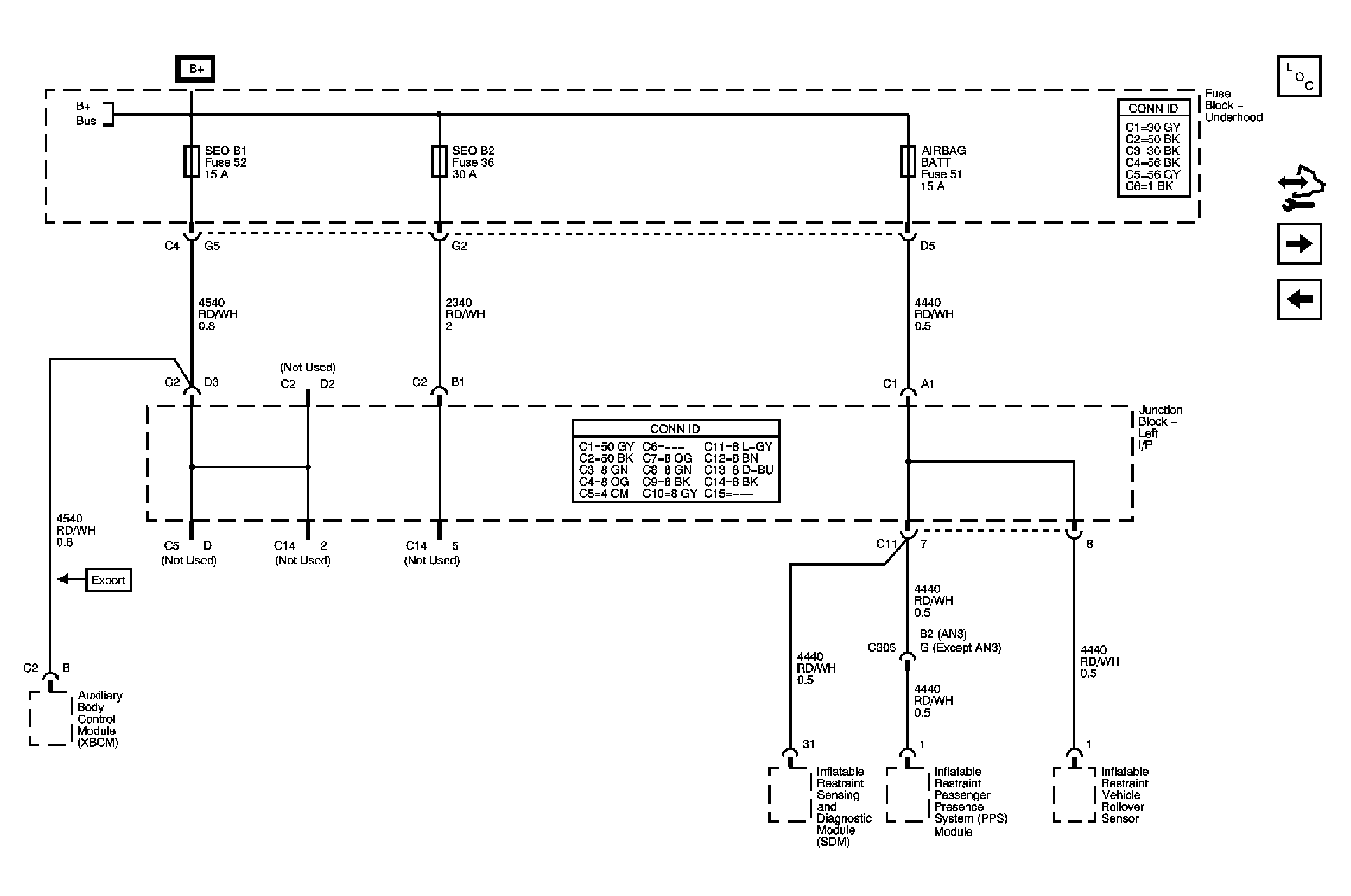

Fig 13: AIRBAG, SEO B1, & SEO B2 Fuses Schematic

GM1689704

Courtesy of GENERAL MOTORS CORP.

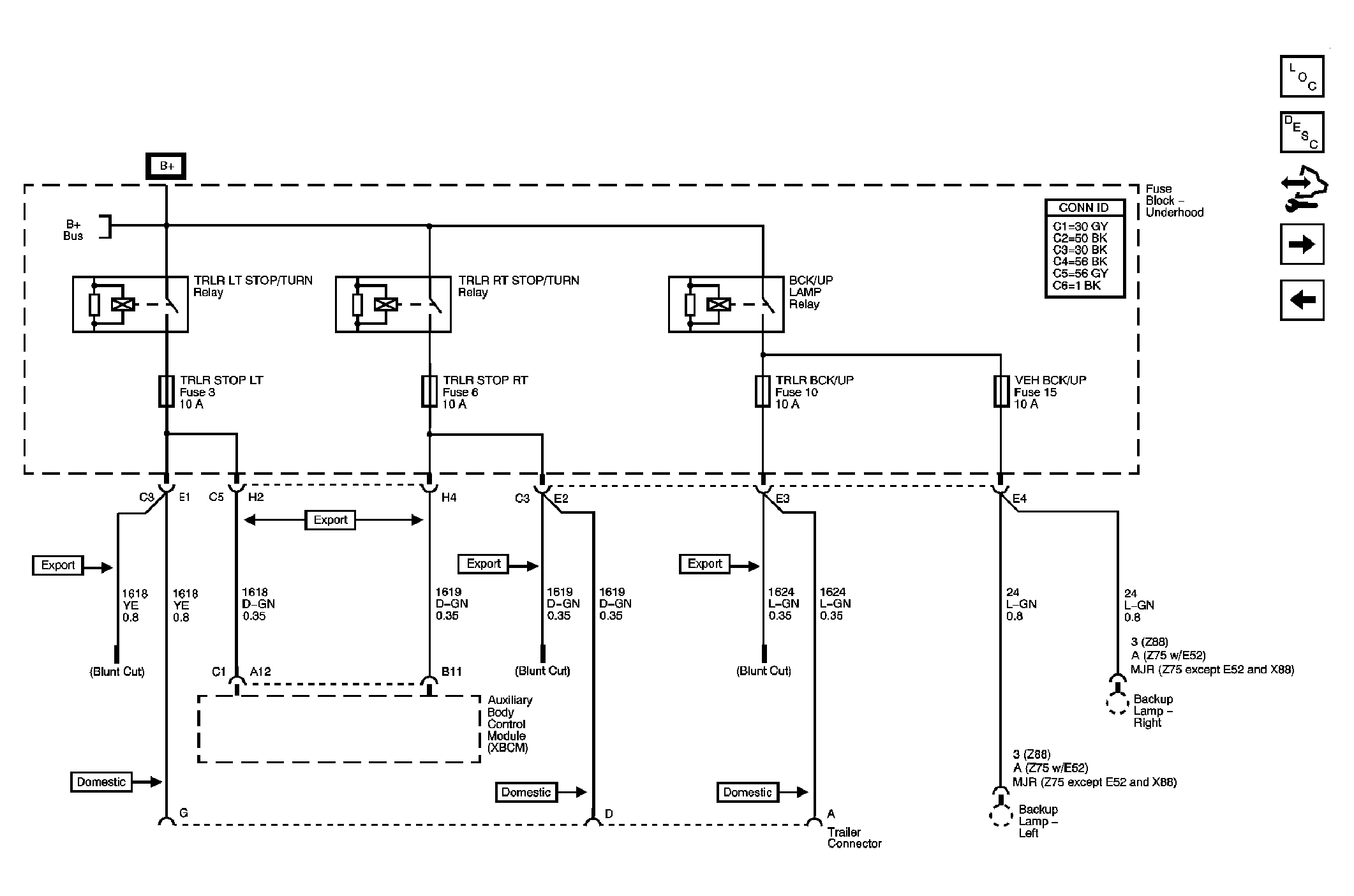

Fig 14: TRLR BCK/UP, TRLR STOP LT, TRAILER STOP RT, & VEH BCK/UP Fuses Schematic

GM1689721

Courtesy of GENERAL MOTORS CORP.

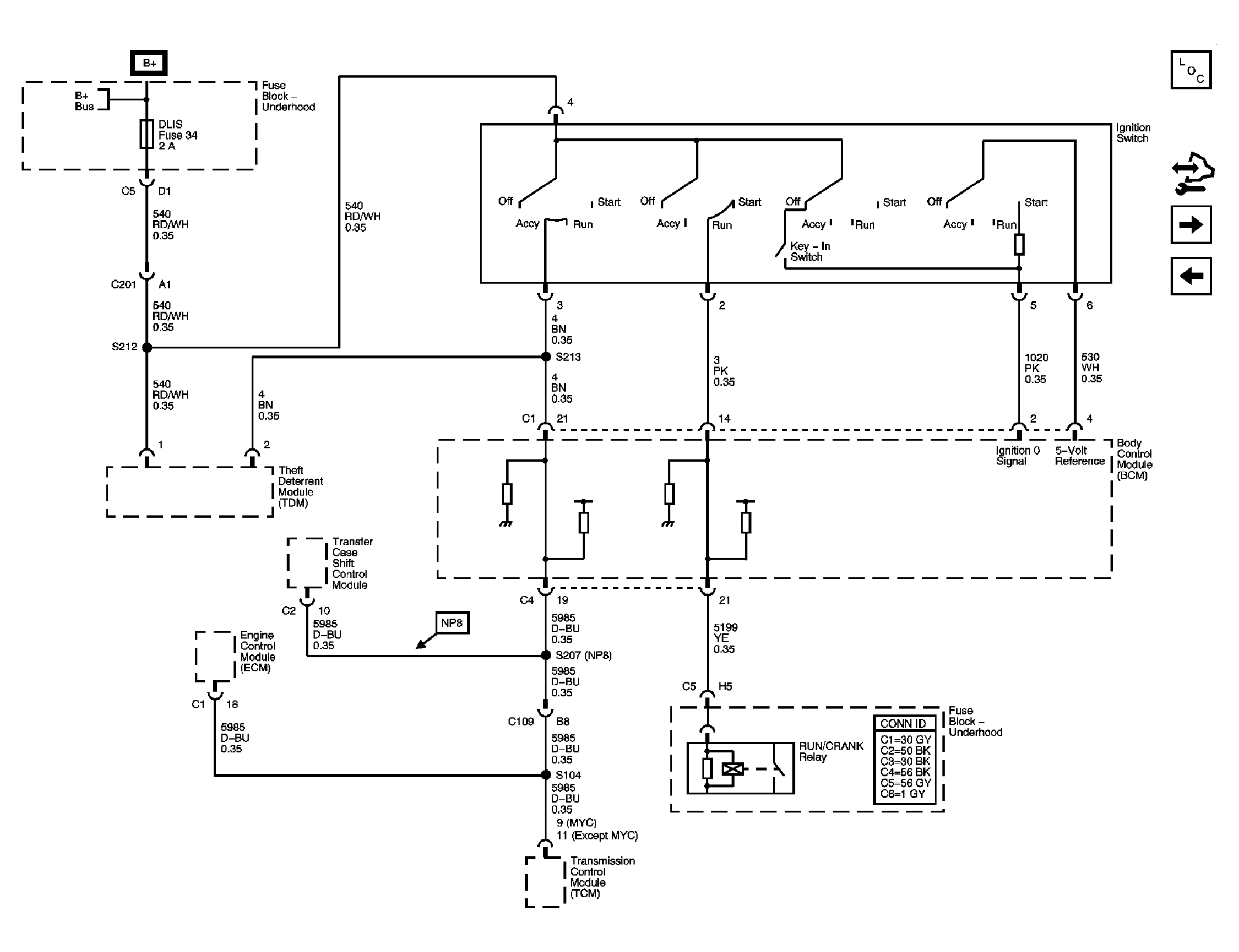

Fig 15: DLIS Fuse & Ignition Switch Schematic

GM1689706

Courtesy of GENERAL MOTORS CORP.

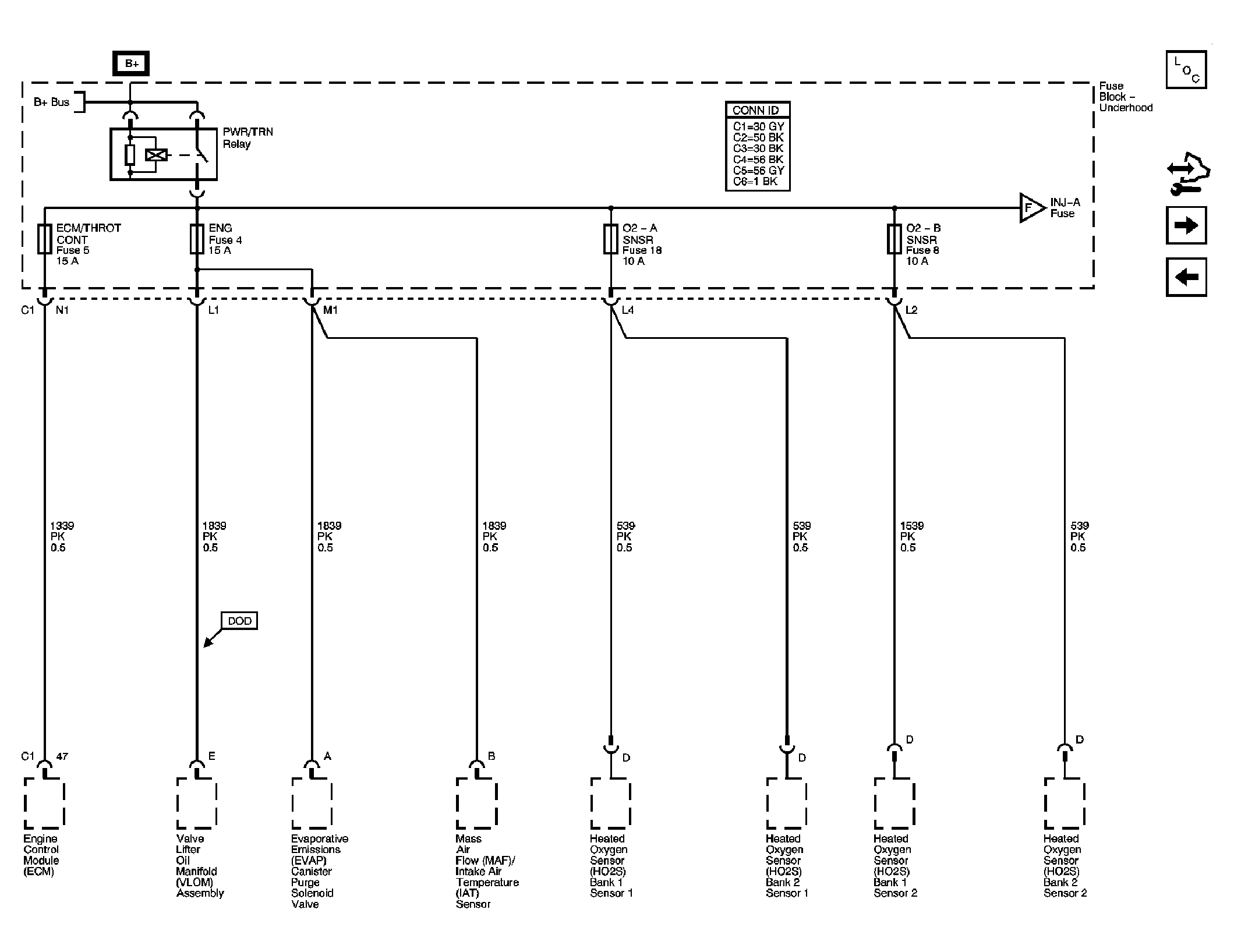

Fig 16: PWR/TRN Bus - ECM/THROT, ENG, O2-A SNSR, & O2-B SNSR Fuses Schematic

GM1689725

Courtesy of GENERAL MOTORS CORP.

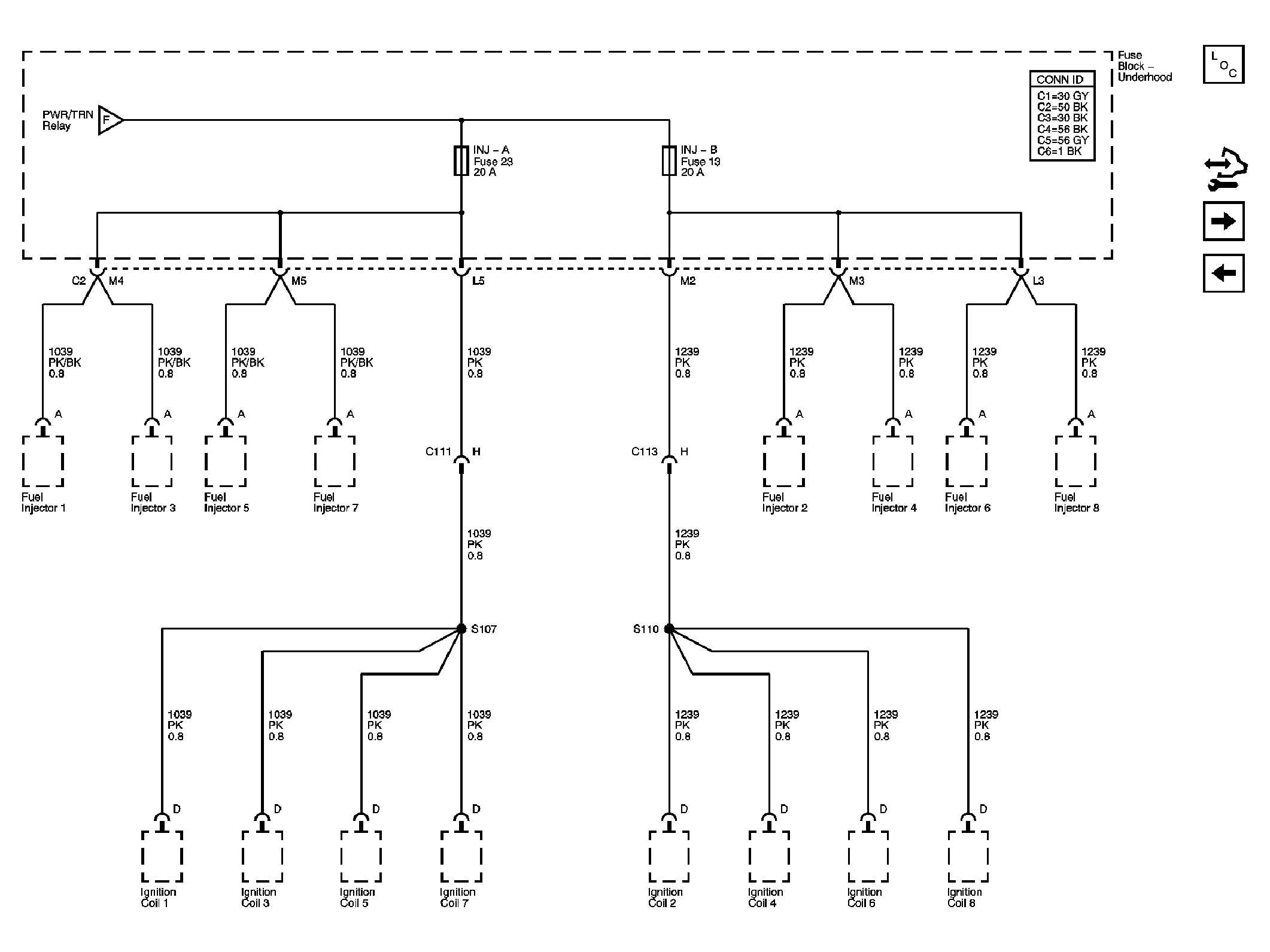

Fig 17: PWR/TRN Bus - INJ- A & INJ-B Fuses Schematic

GM1689728

Courtesy of GENERAL MOTORS CORP.

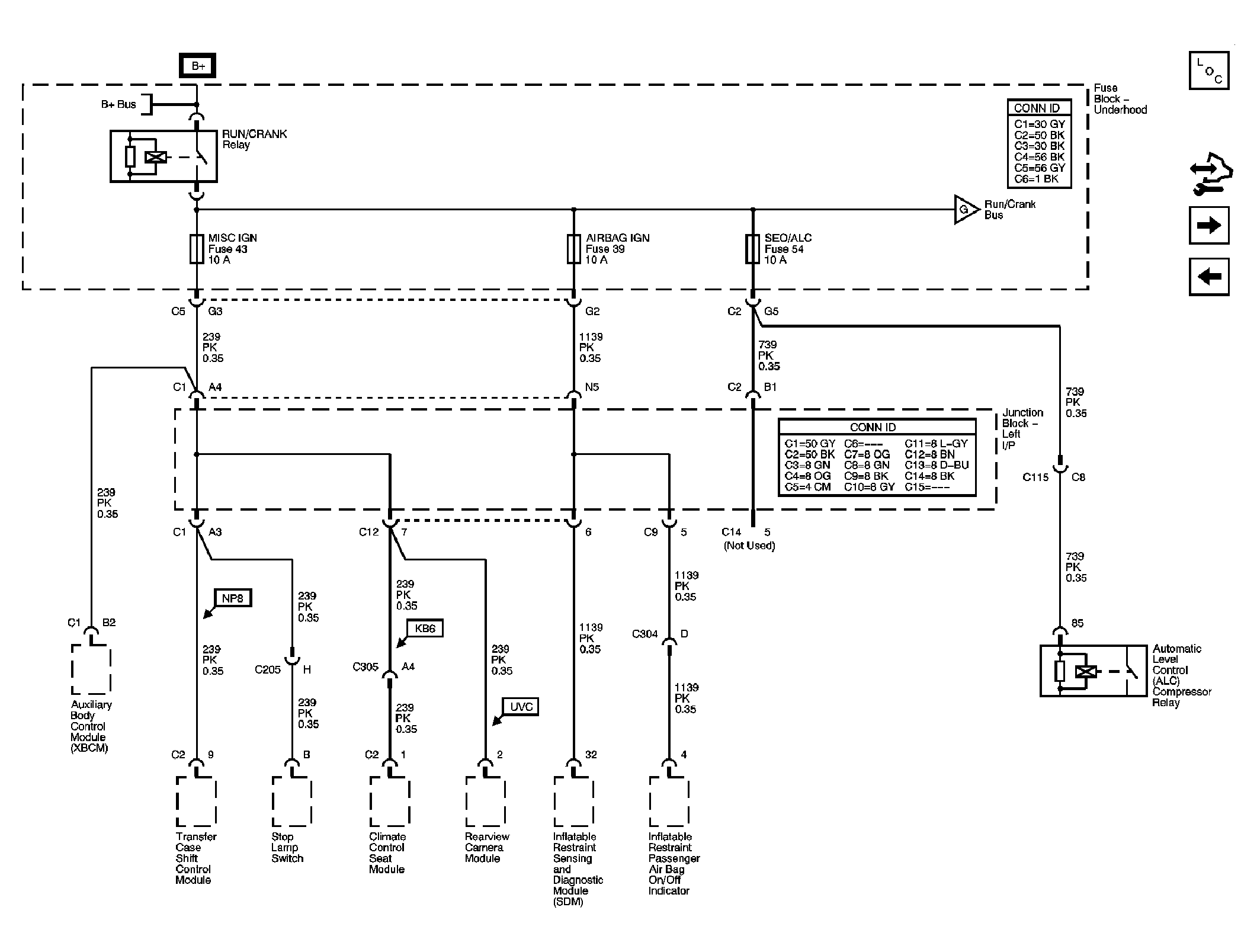

Fig 18: RUN/CRANK Bus - AIRBAG IGN, MISC IGN, & SEO/ALC Fuses Schematic

GM1689730

Courtesy of GENERAL MOTORS CORP.

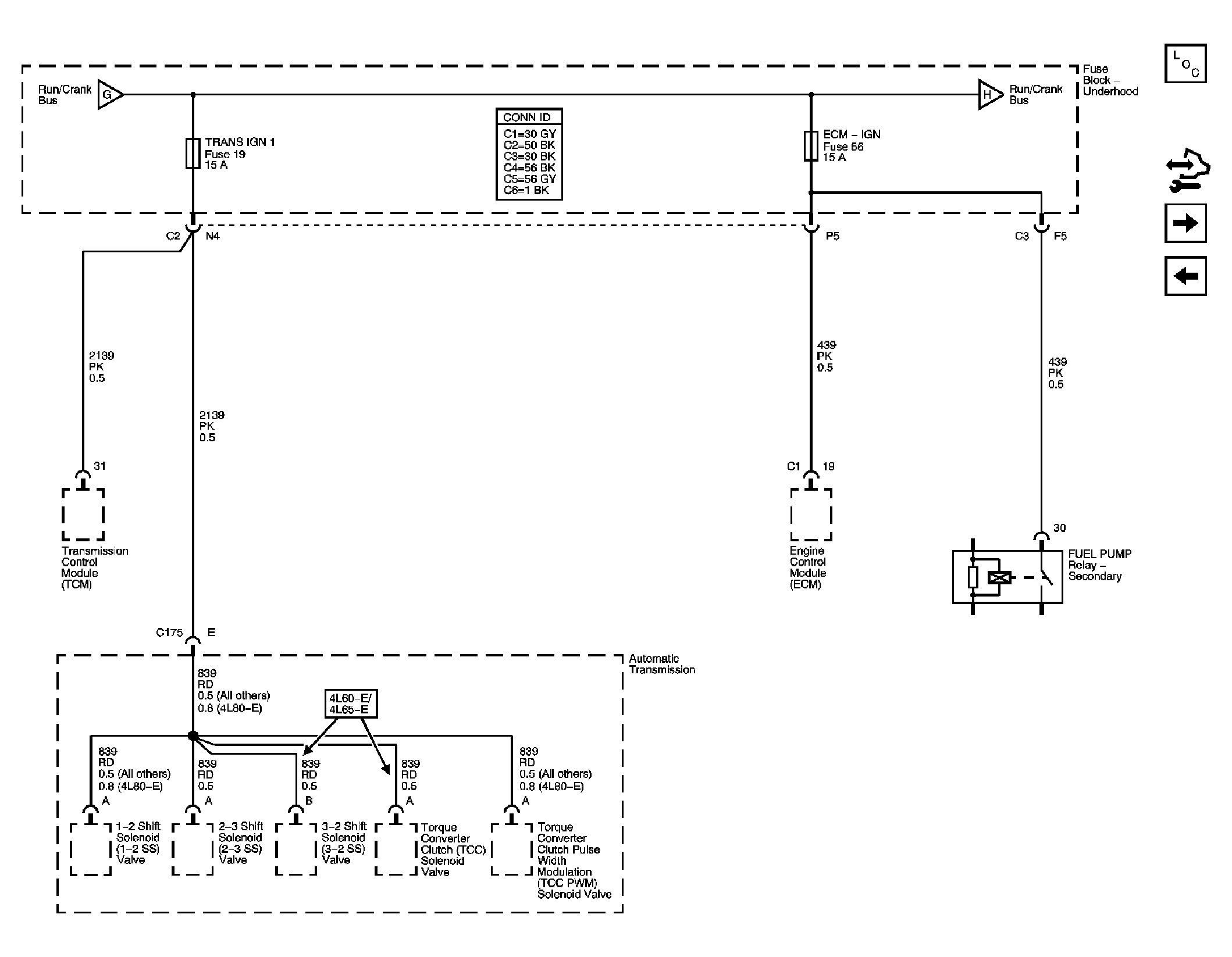

Fig 19: RUN/CRANK Bus - ECM-IGN AND TRANS IGN 1 Fuses Schematic

GM1689731

Courtesy of GENERAL MOTORS CORP.

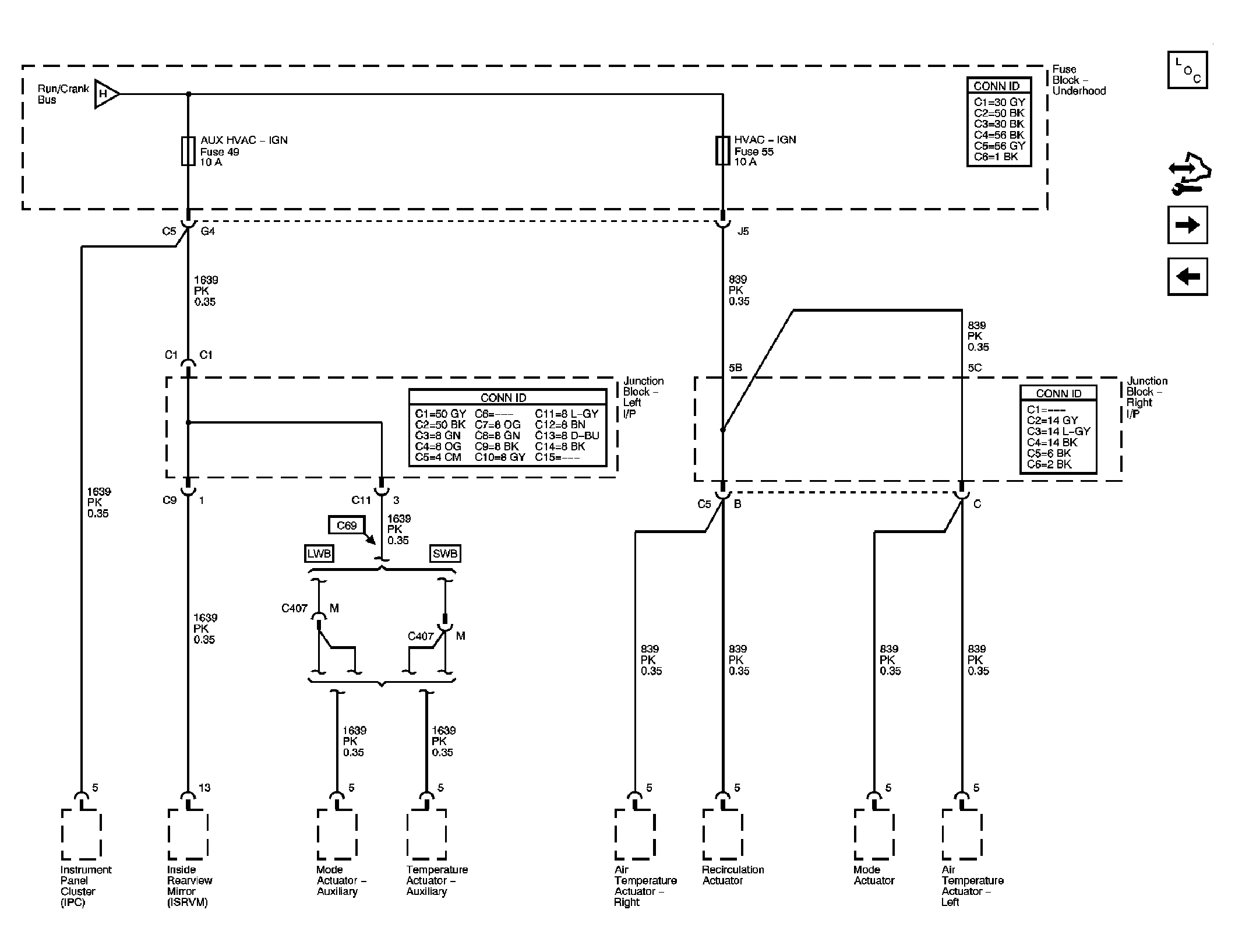

Fig 20: RUN/CRANK Bus - AUX HVAC - IGN, & HVAC - IGN Fuses Schematic

GM1689734

Courtesy of GENERAL MOTORS CORP.

Fig 21: FWD & HTD STR/WHL Fuses Schematic

GM1689736

Courtesy of GENERAL MOTORS CORP.

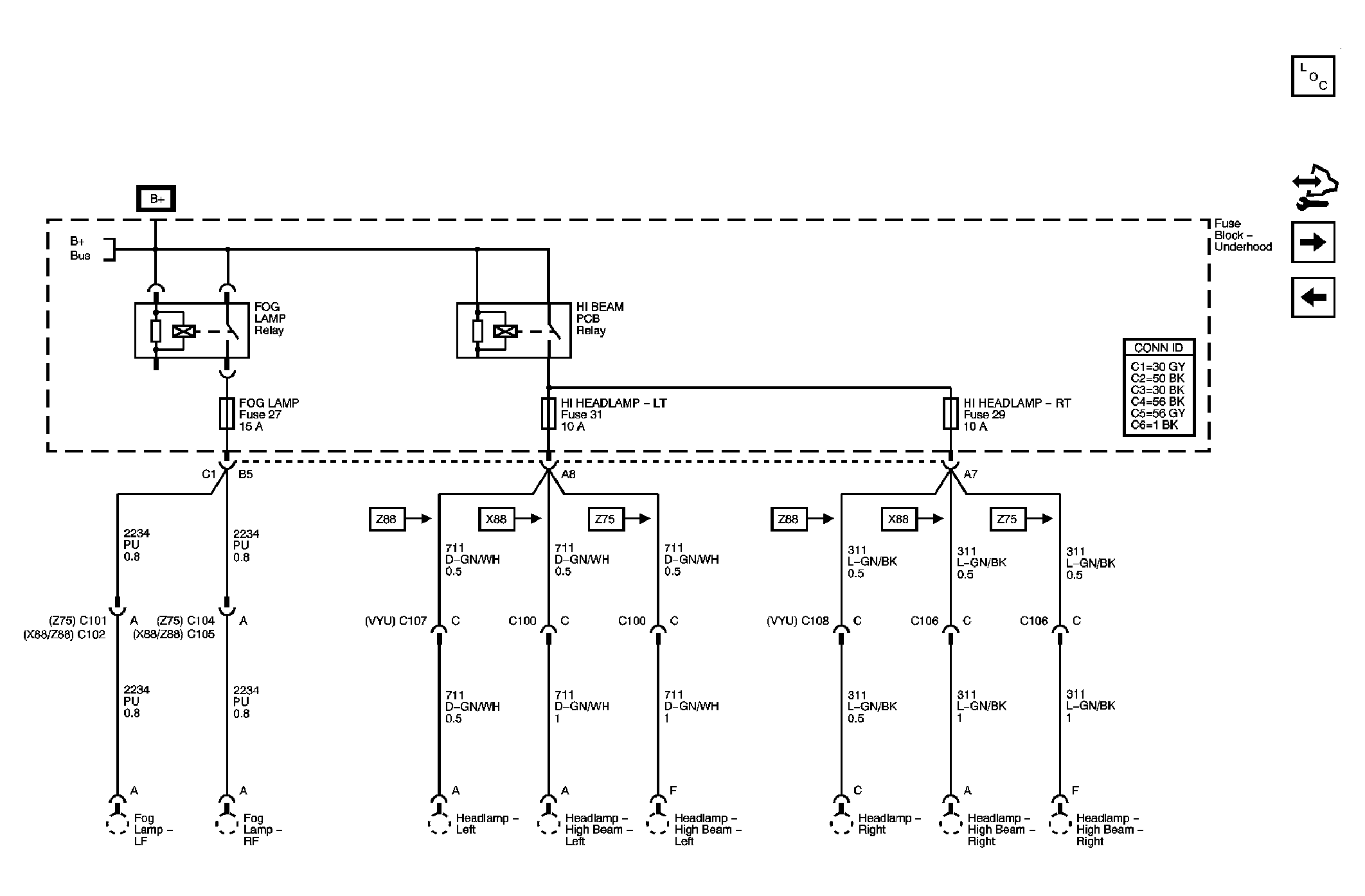

Fig 22: FOG LAMP, HI HEADLAMP - LT, & HI HEADLAMP - RT Fuses Schematic

GM1689707

Courtesy of GENERAL MOTORS CORP.

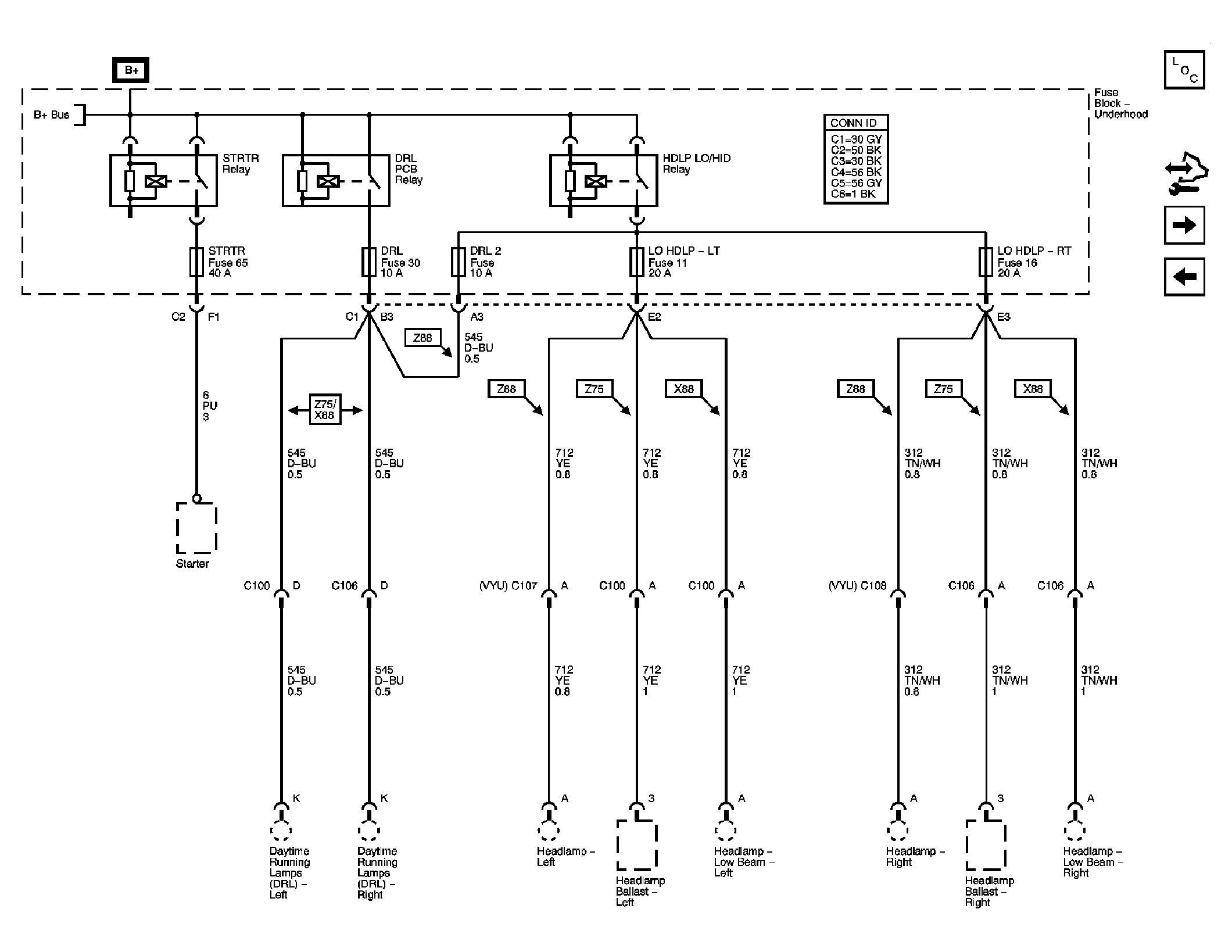

Fig 23: DRL, DRL 2, LO HDLP-LT, LO HDLP-RT, & STRTR Fuses Schematic

GM1689709

Courtesy of GENERAL MOTORS CORP.

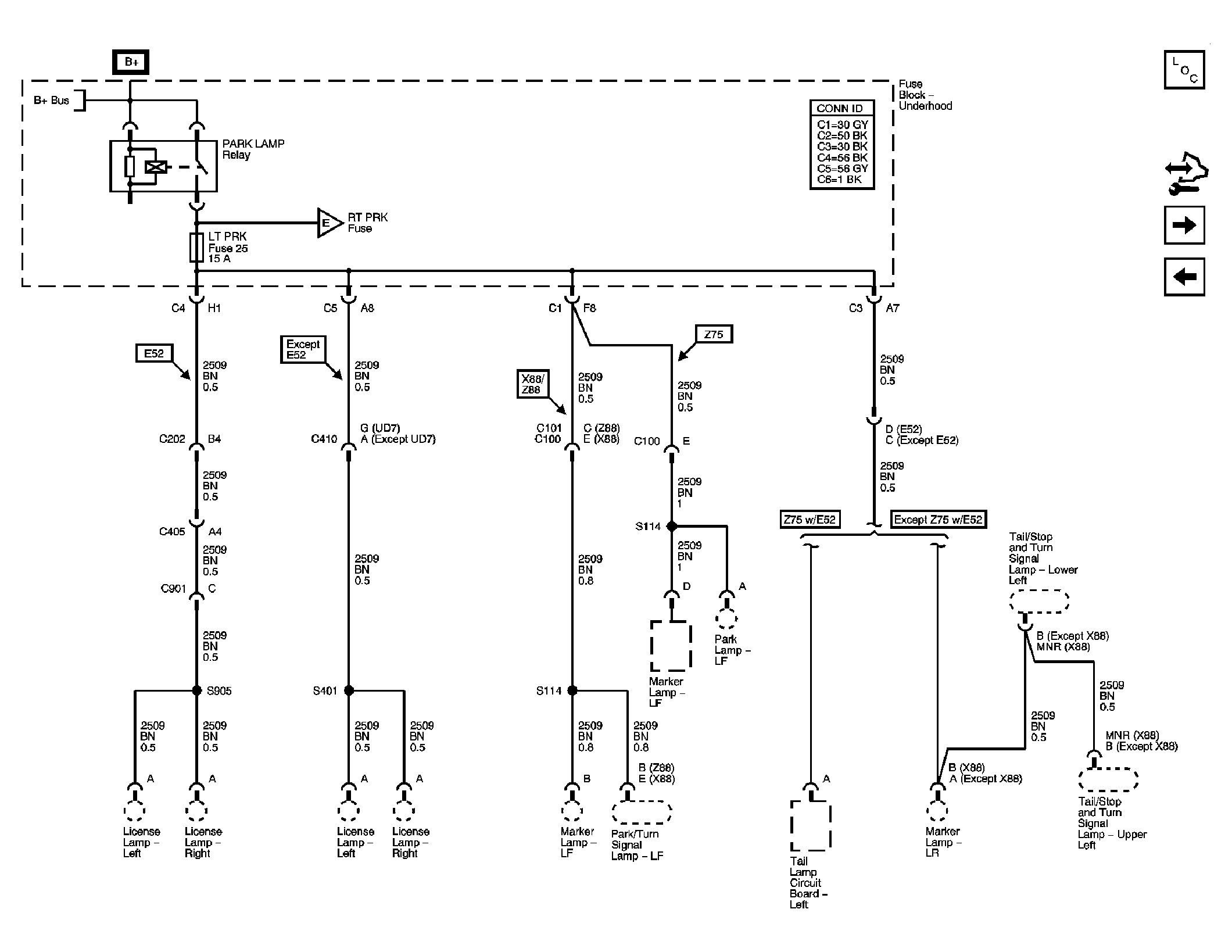

Fig 24: LT PRK Fuse Schematic

GM1689715

Courtesy of GENERAL MOTORS CORP.

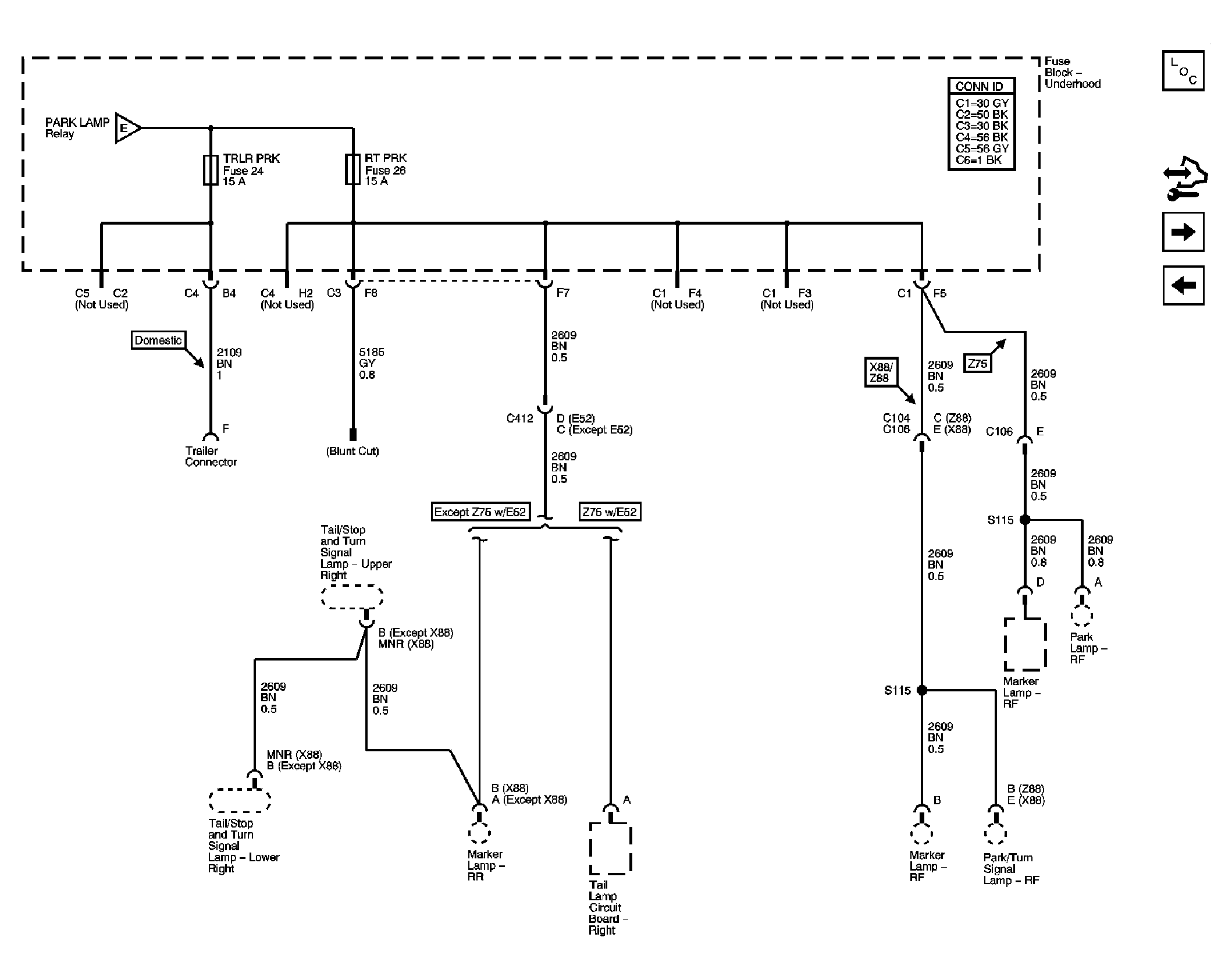

Fig 25: RT PRK AND TRLR PRK Fuses Schematic

GM1689718

Courtesy of GENERAL MOTORS CORP.

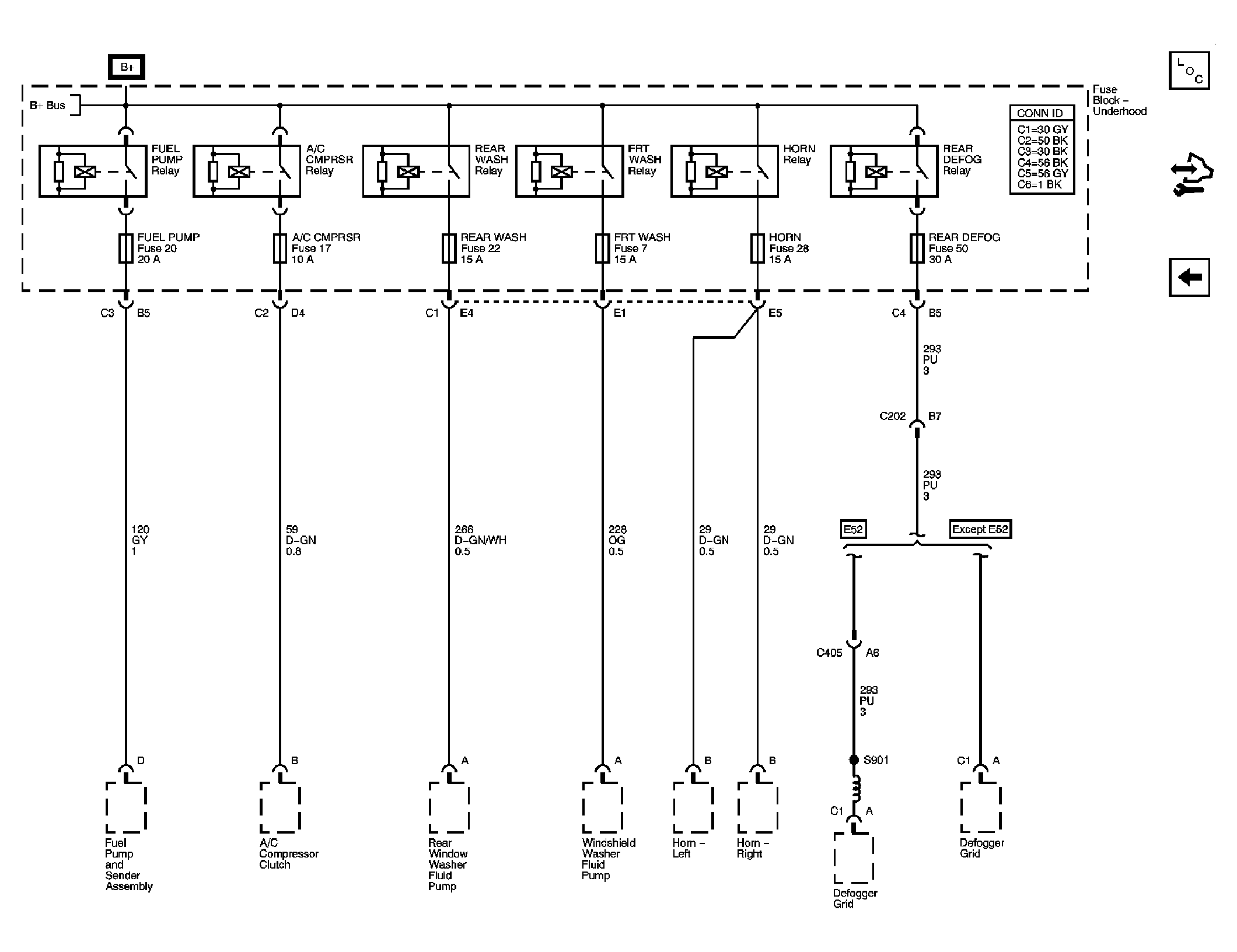

Fig 26: A/C CMPRSR, FRT WASH FUEL PUMP, HORN, REAR DEFOG, & REAR WASH Fuses Schematic

GM1689723

Courtesy of GENERAL MOTORS CORP.
