Moveable Window Schematics

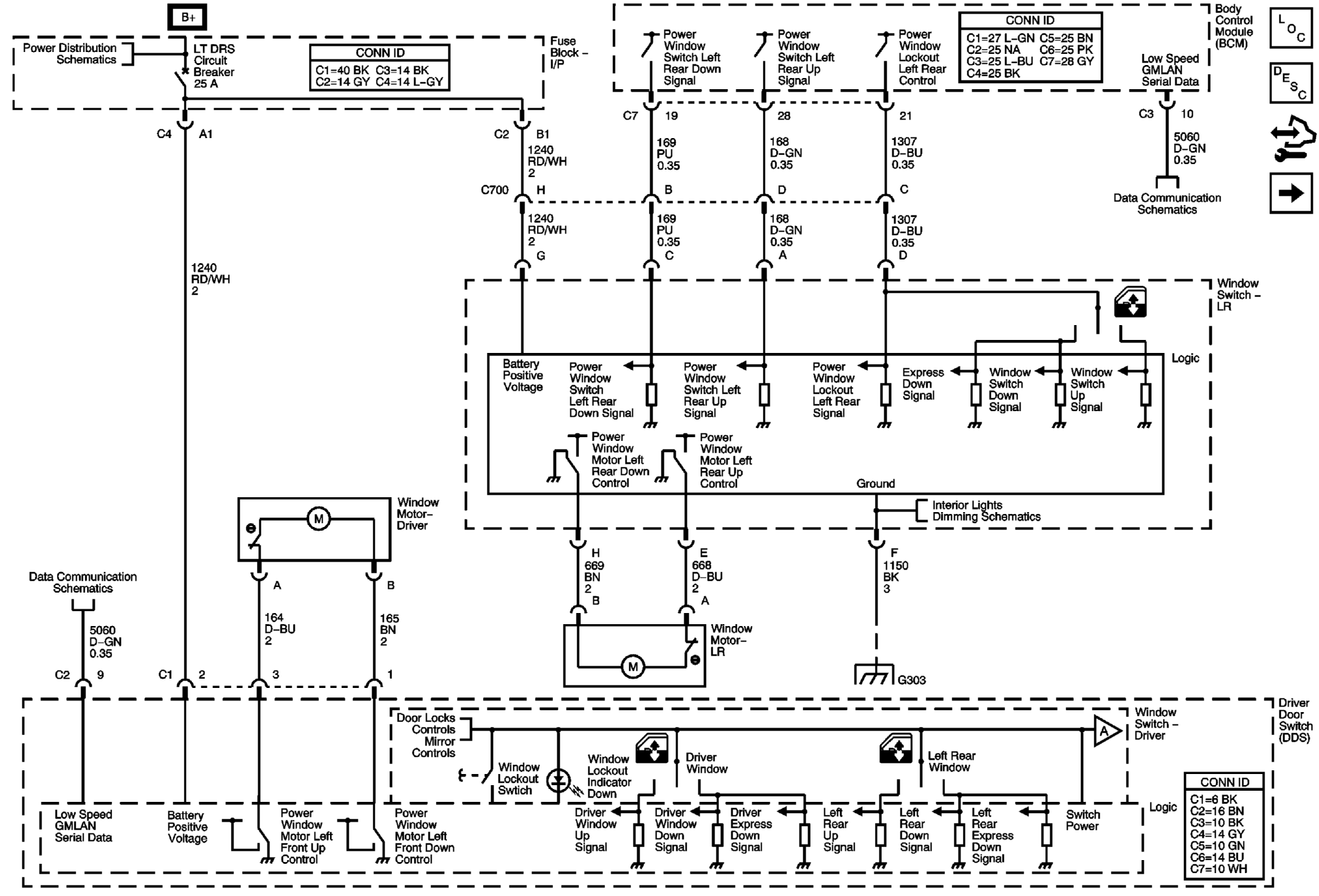

Fig 1: Left Moveable Window Schematic
GM1702190Courtesy of GENERAL MOTORS CORP.

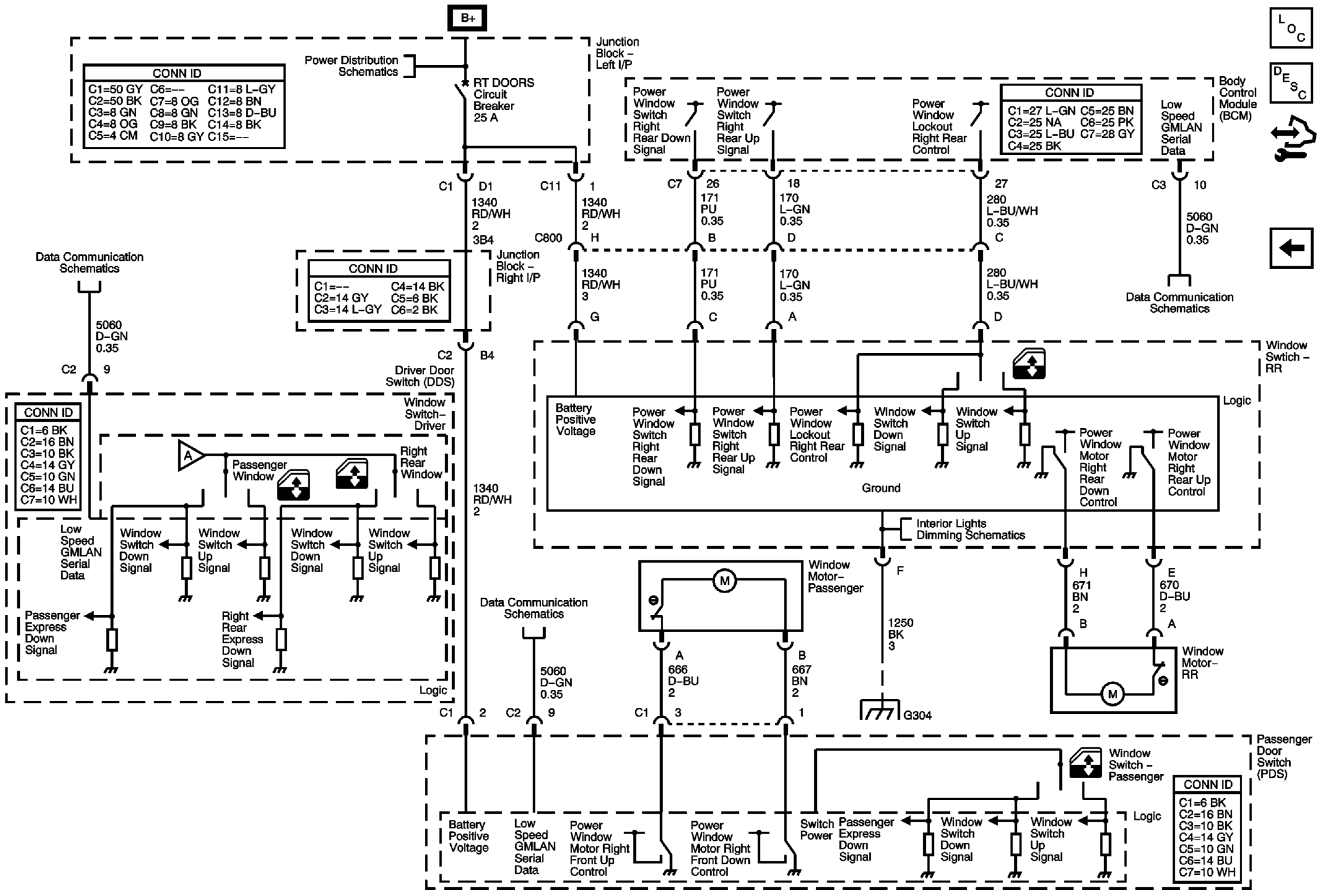

Fig 2: Right Moveable Window Schematic
GM1702191Courtesy of GENERAL MOTORS CORP.
