Video System Schematics

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

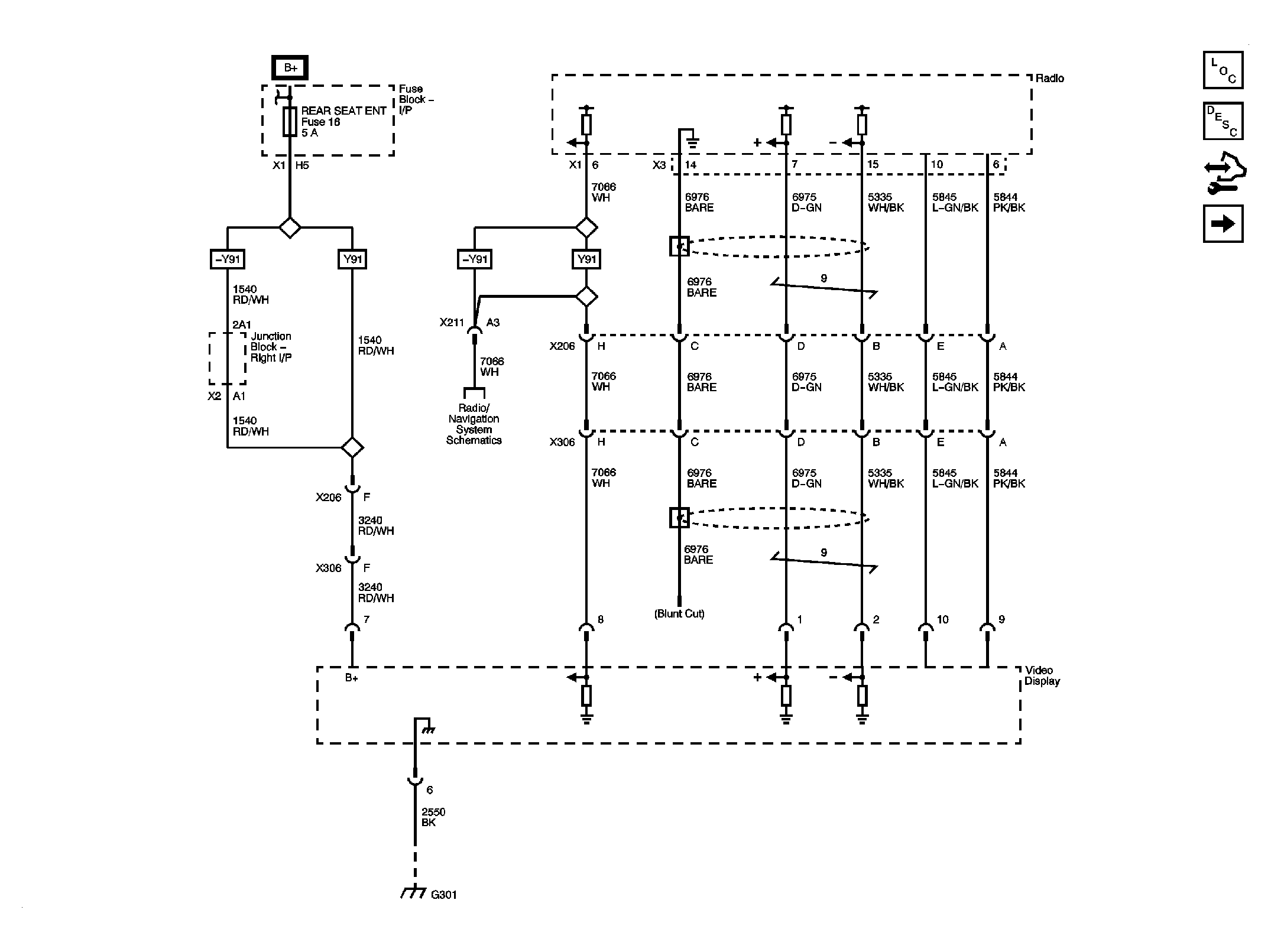

Fig 1: Display Power, Ground and Video Signals
GM1915187Courtesy of GENERAL MOTORS CORP.

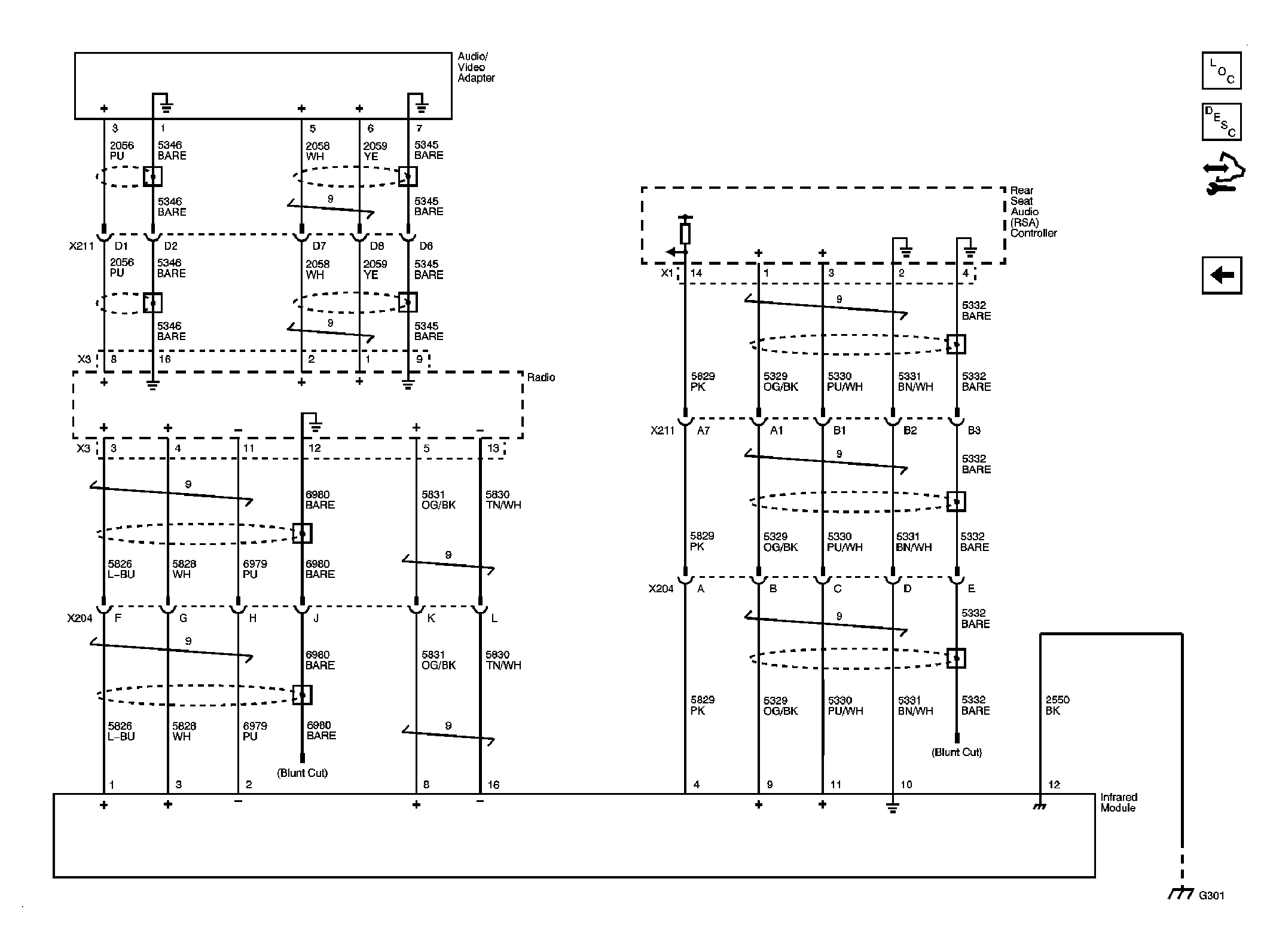

Fig 2: Audio Signals
GM1915190Courtesy of GENERAL MOTORS CORP.
