Navigation Information Display Opening Cover Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

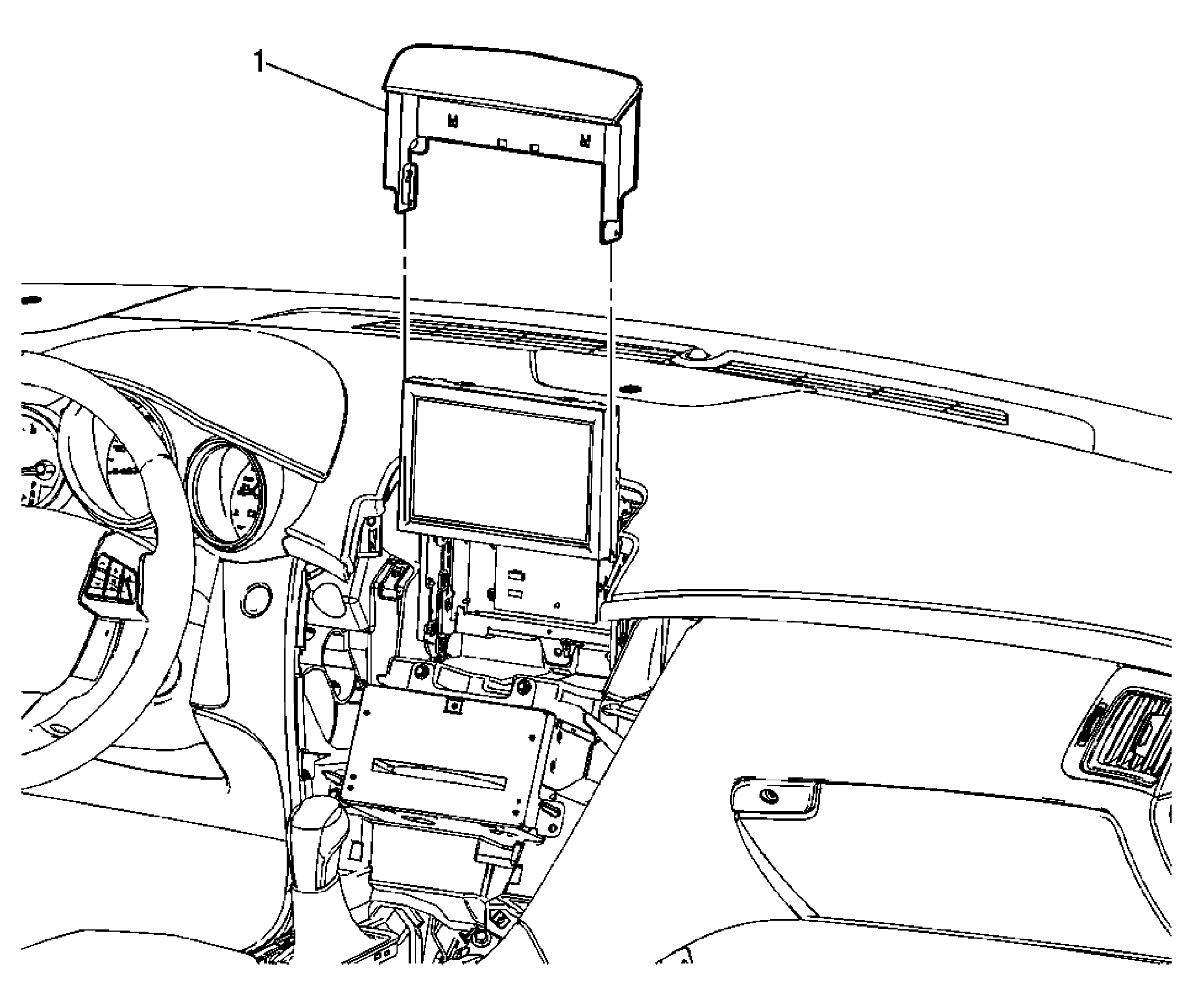

Fig 1: Navigation Information Display Opening Cover Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the AM/FM Stereo and Clock and Audio Disc Player Radio Control Assembly. Refer to Radio Control Assembly Replacement (with Navigation Display) or Radio Control Assembly Replacement (without Navigation Display) . Position the Radio and Video and Audio Disc Player and Navigational Information Display in the up position.
1	Navigation Information Display Opening Cover Assembly Procedure: Unsnap the navigation information display opening cover from the display assembly.

Callout

Component Name

Preliminary Procedure

Remove the AM/FM Stereo and Clock and Audio Disc Player Radio Control Assembly. Refer to Radio Control Assembly Replacement (with Navigation Display) or Radio Control Assembly Replacement (without Navigation Display) .
Position the Radio and Video and Audio Disc Player and Navigational Information Display in the up position.

Navigation Information Display Opening Cover Assembly
Procedure:
Unsnap the navigation information display opening cover from the display assembly.
