Steering Wheel Inflatable Restraint Module Replacement

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

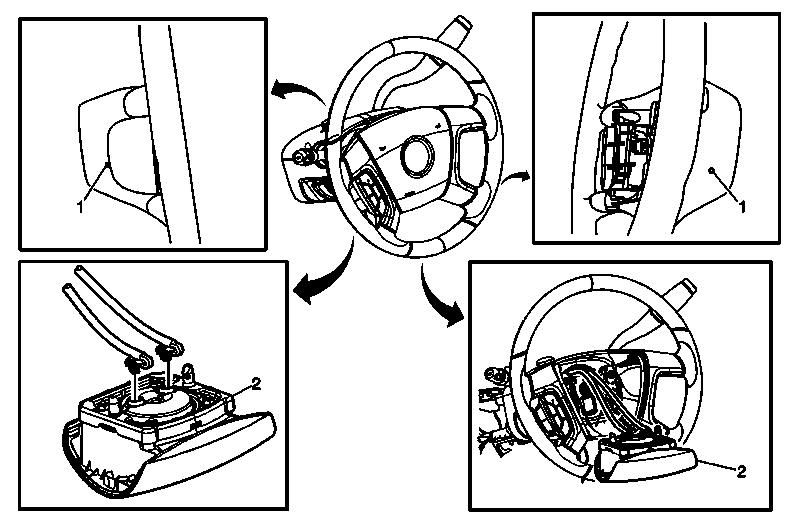

Fig 1: View Of Steering Wheel Inflatable Restraint Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Inflator Module Handling and Storage Warning . WARNING: Refer to SIR Warning . Preliminary Procedure: Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
1	Retainer Procedure: On the back side of the steering wheel, there are 2 access holes. Using a 3-4 mm T handle Allen wrench, insert in a cross car (Horizontally) direction and slightly outboard (handle towards I/P) push in 40mm (1 1/2 in) to engage release spring.
2	Steering Wheel Inflatable Restraint Module Procedure Release the connector position assurance (CPA) retainer. Disconnect the electrical connectors. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping .

Callout

Component Name

WARNING: Refer to SIR Inflator Module Handling and Storage Warning .

WARNING: Refer to SIR Warning .

Preliminary Procedure: Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .

Retainer
Procedure:
On the back side of the steering wheel, there are 2 access holes. Using a 3-4 mm T handle Allen wrench, insert in a cross car (Horizontally) direction and slightly outboard (handle towards I/P) push in 40mm (1 1/2 in) to engage release spring.

Steering Wheel Inflatable Restraint Module

Procedure

Release the connector position assurance (CPA) retainer.
Disconnect the electrical connectors.
Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping .
