Panel Light Control Switch Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Detach the hood release lever from the lower panel. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION )
  3. Remove the front scuff plate. (Driver's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  4. Remove the front side trim. (Driver's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  5. Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)
  6. Remove the panel light control switch.
  7. Disconnect the panel light control switch connector.
  8. Install in the reverse order of removal.

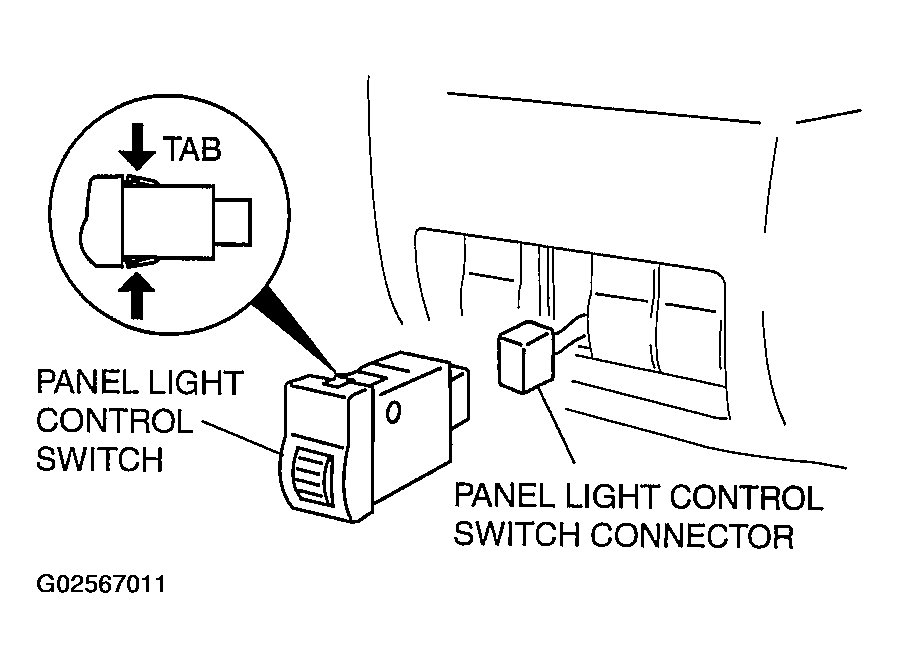

    Fig 1: Removing/Installing Panel Light Control Switch
    G02567011Courtesy of MAZDA MOTORS CORP.
