Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the coaxial cable to the radio.
  2. Connect the wire connectors.
  3. Push in the radio assembly in the opening in order to install the screws.
  4. Install the 3 screws (1).
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    1. Tighten the screws to 1.6 N.m (14 Ib in).

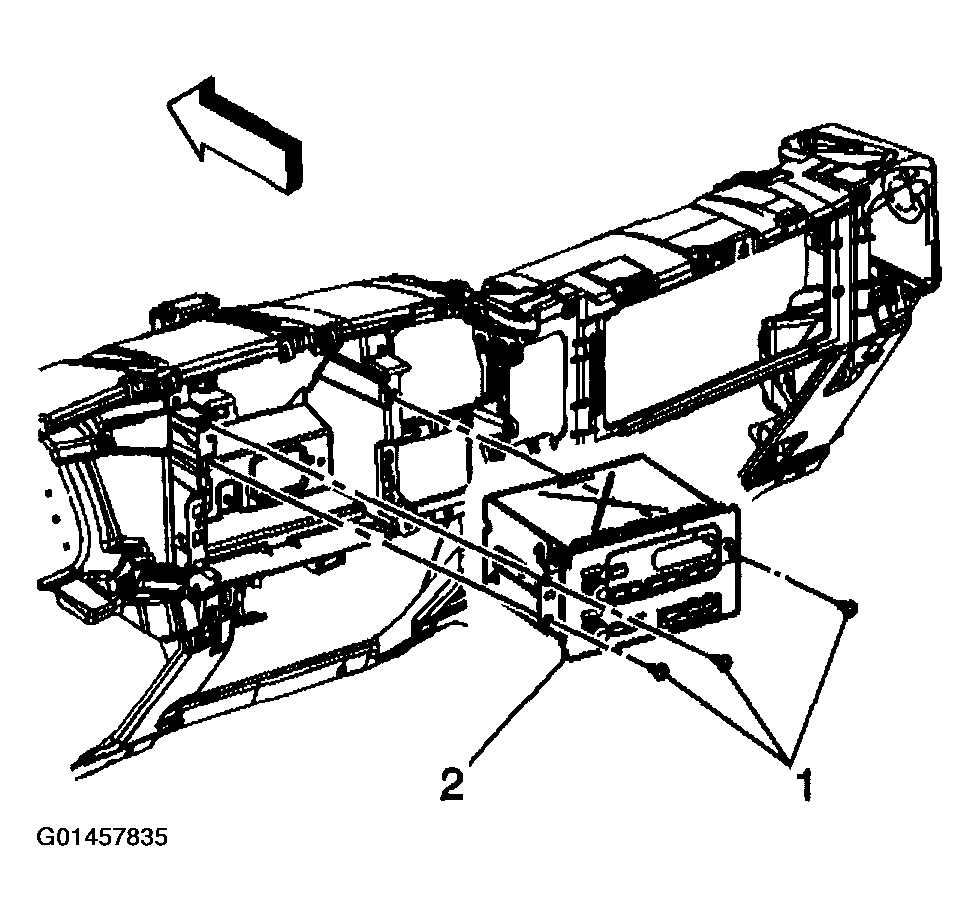

    5. Fig 1: Installing Radio Assembly To I/P
    G01457835Courtesy of GENERAL MOTORS CORP.
  5. Install the cluster bezel.
  6. Calibrate the new radio assembly.
