Scan Tool Data List

Dash Integration Module (DIM):

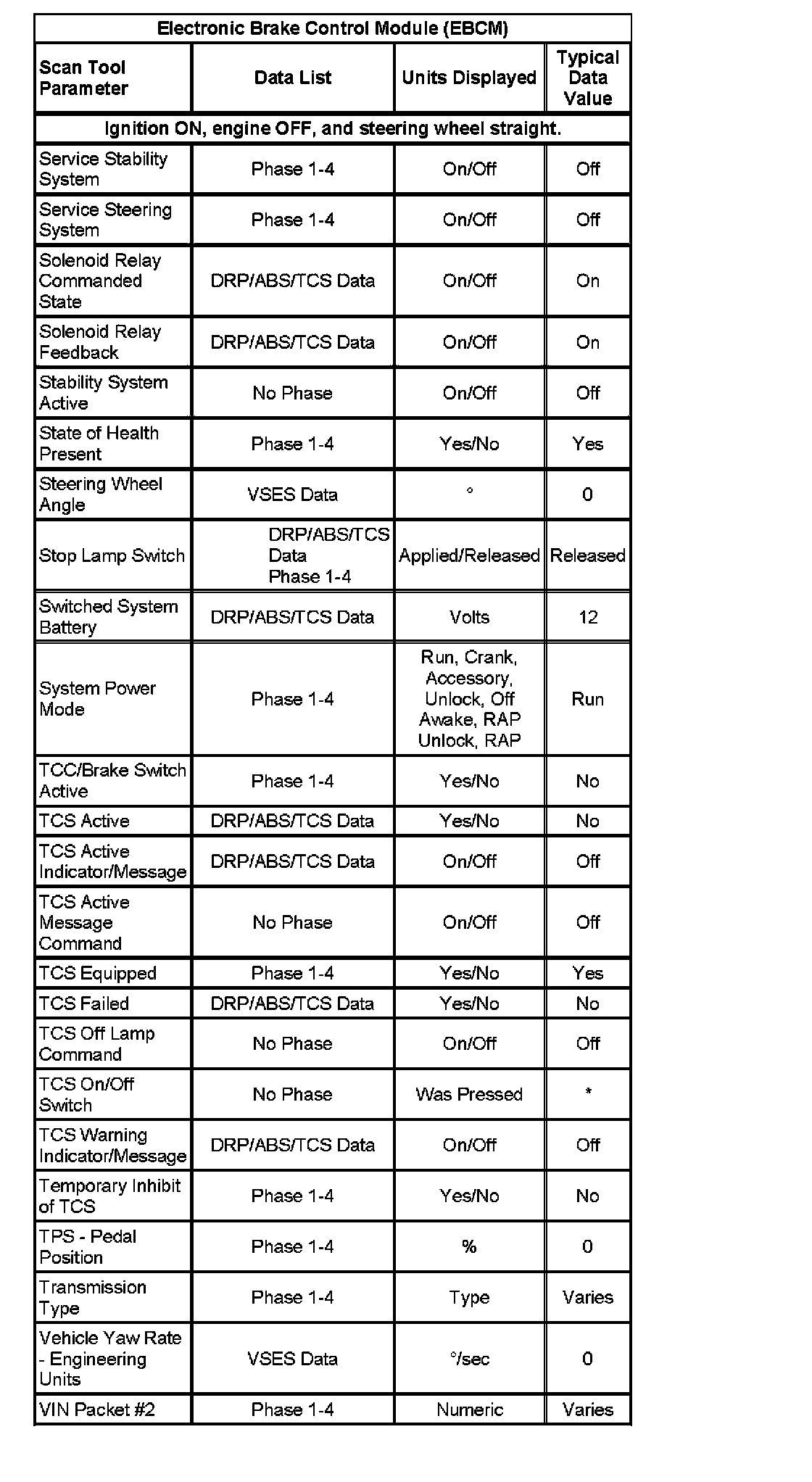

Electronic Brake Control Module (EBCM) (Part 1):

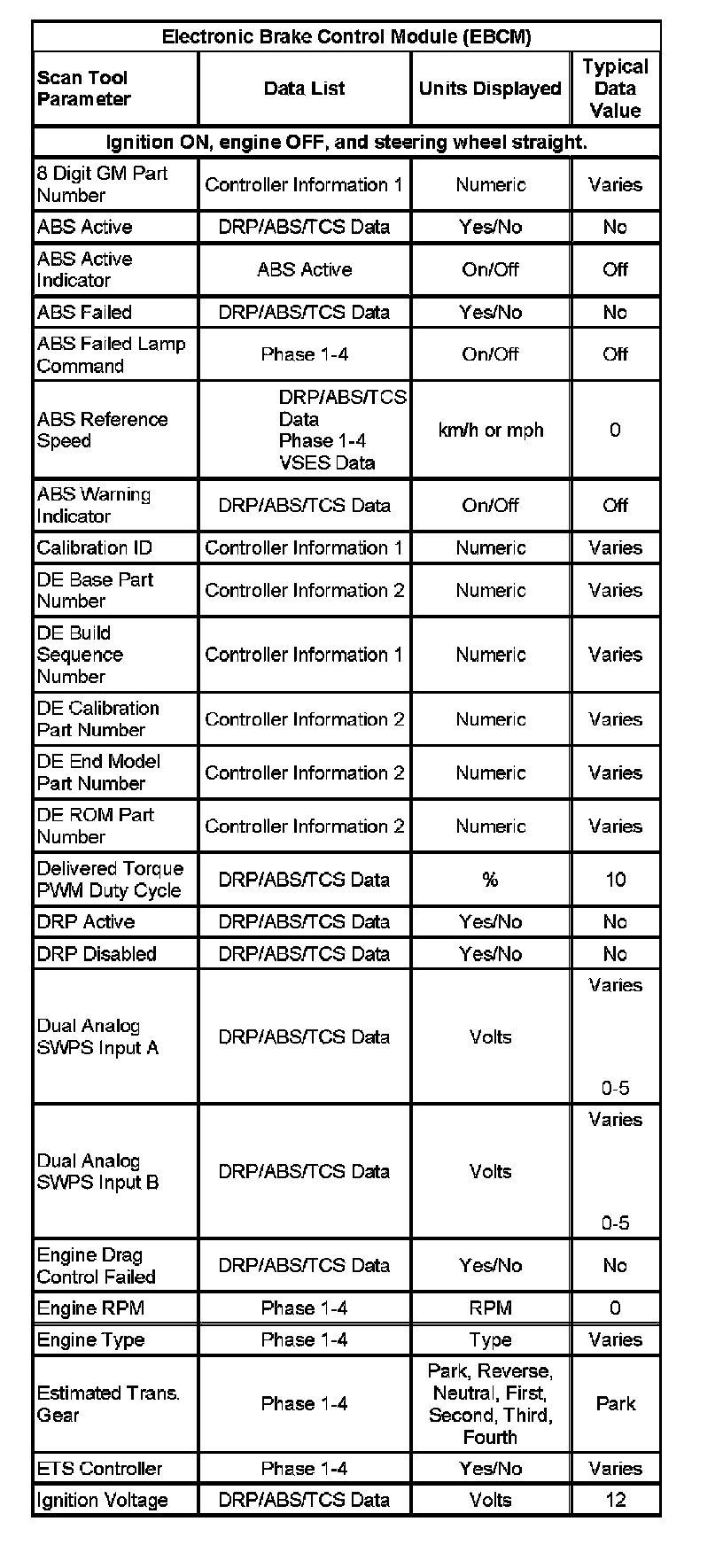

Electronic Brake Control Module (EBCM) (Part 2):

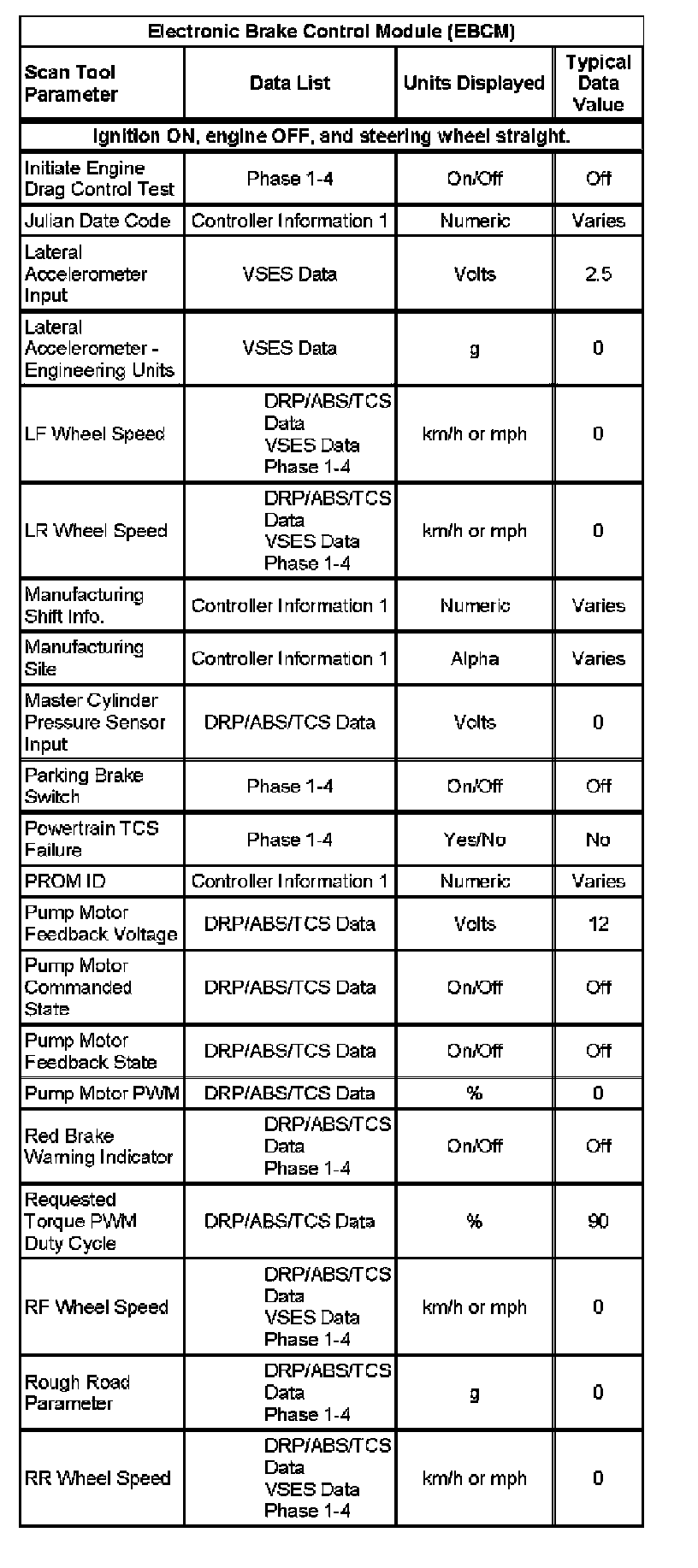

Electronic Brake Control Module (EBCM) (Part 3):

Electronic Brake Control Module (EBCM) (Part 4):

Instrument Panel Cluster (IPC):

Engine Control Module (ECM):

Rear Integration Module (RIM):
