Control Assembly, HVAC



HVAC Connector End Views

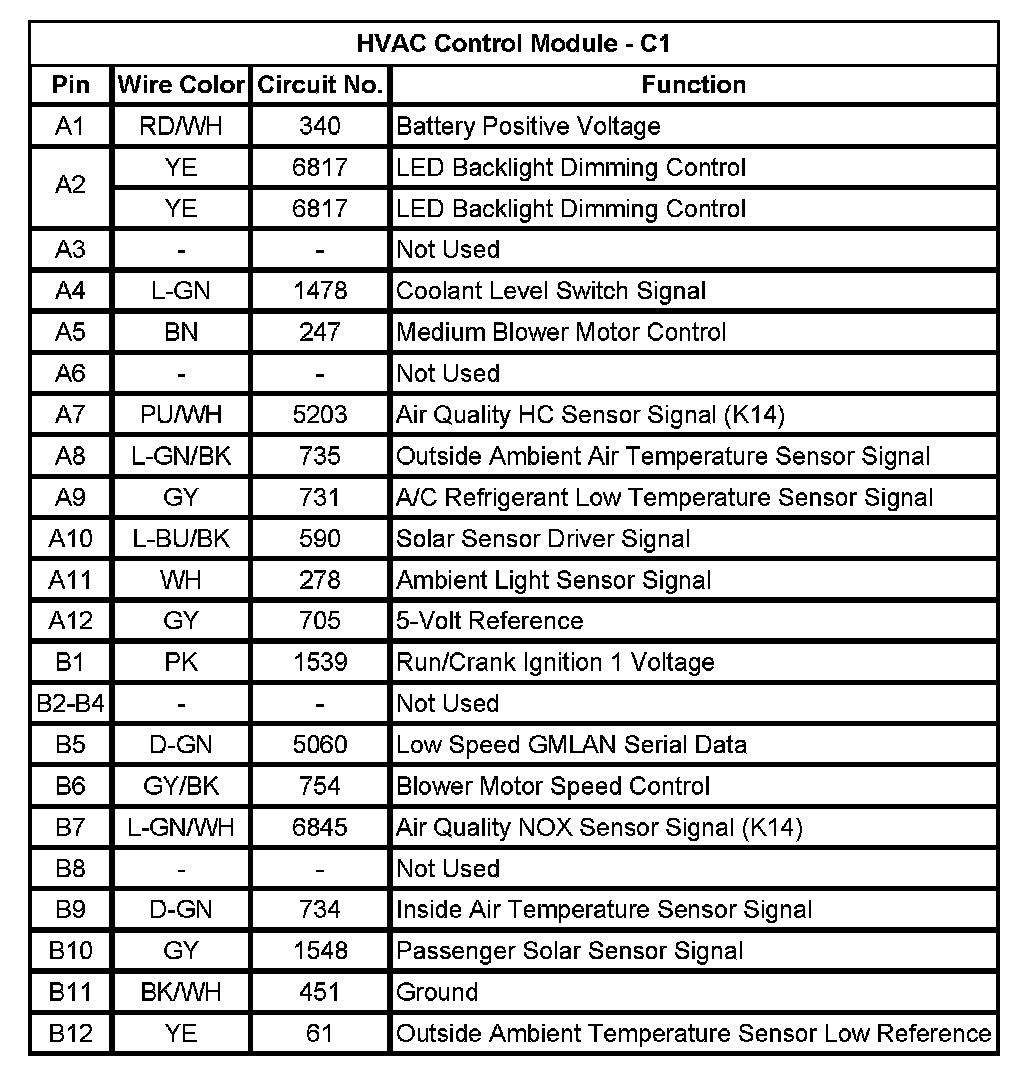

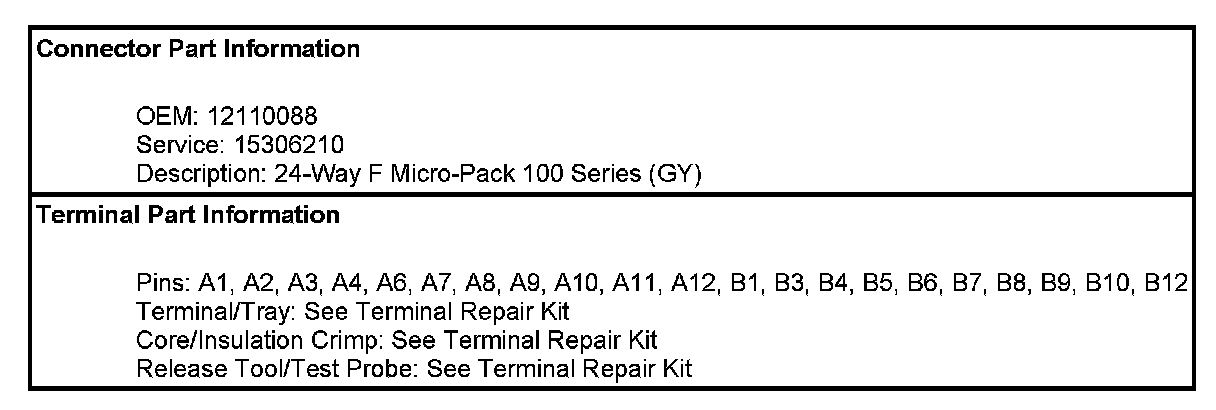

HVAC Control Module - C1

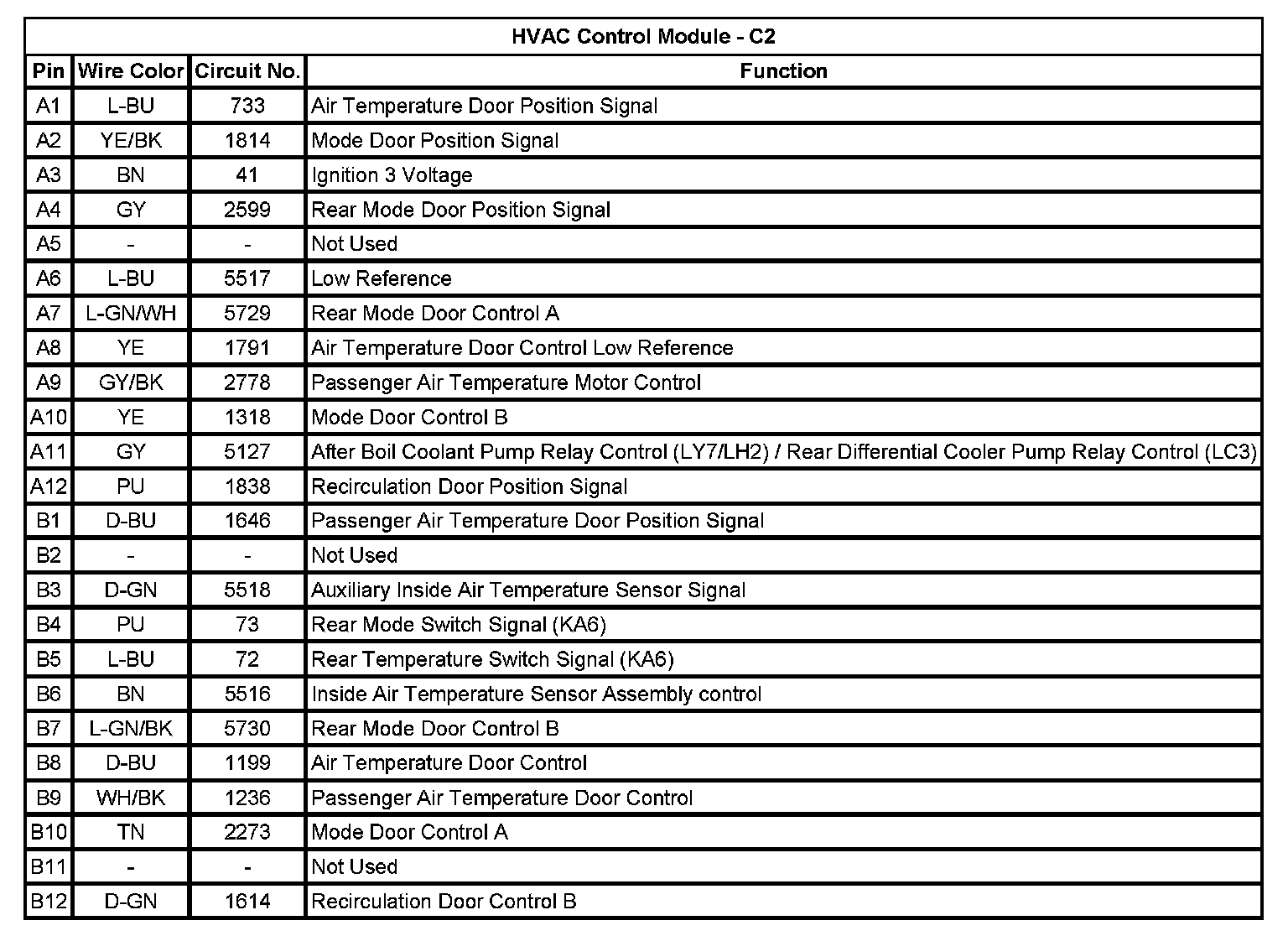

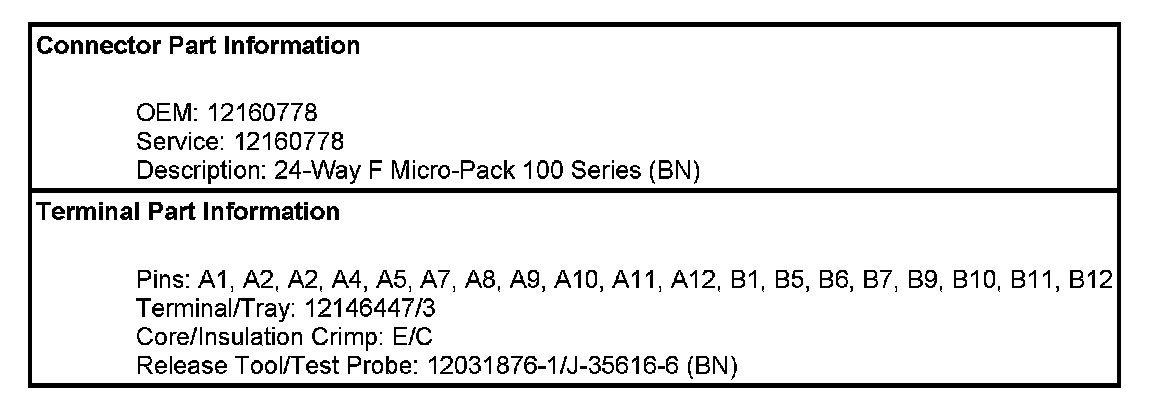

HVAC Control Module - C2

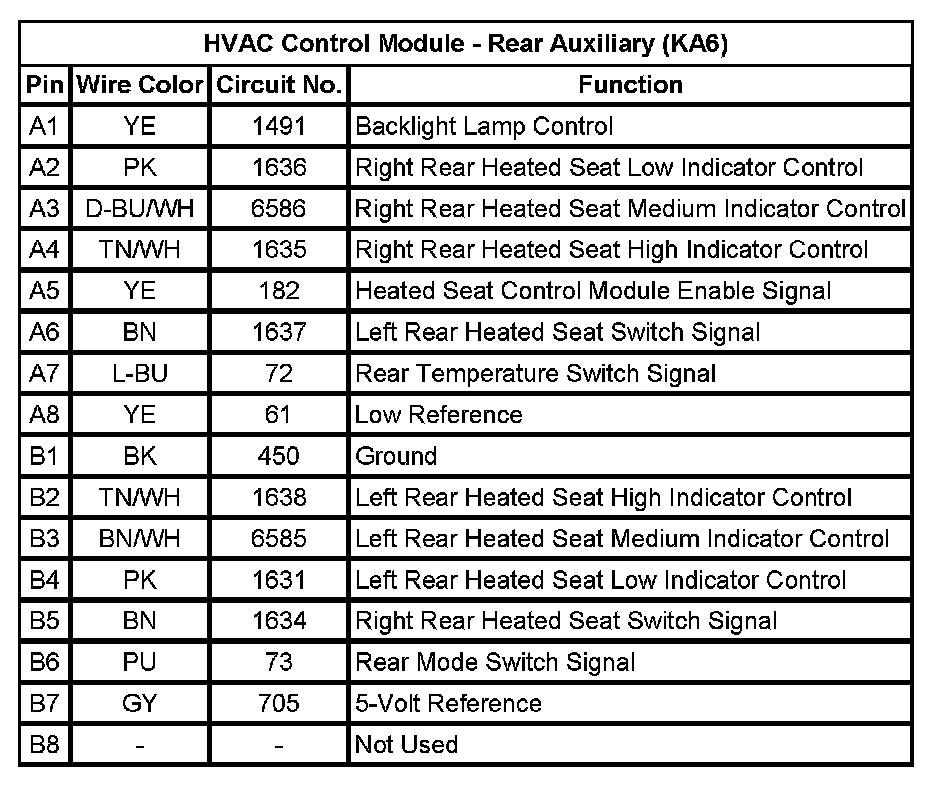

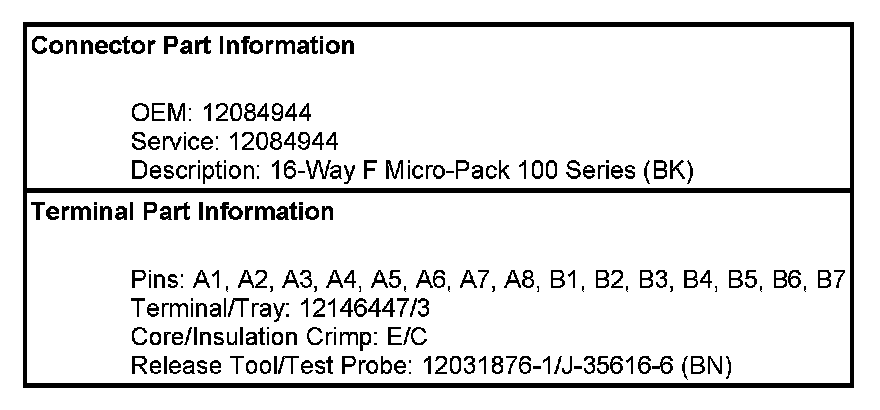

HVAC Control Module - Rear Auxiliary (KA6)

Transfer Case Shift Control Module - C1:
