Steering Wheel Heater Control Module



Steering Wheel and Column Connector End Views

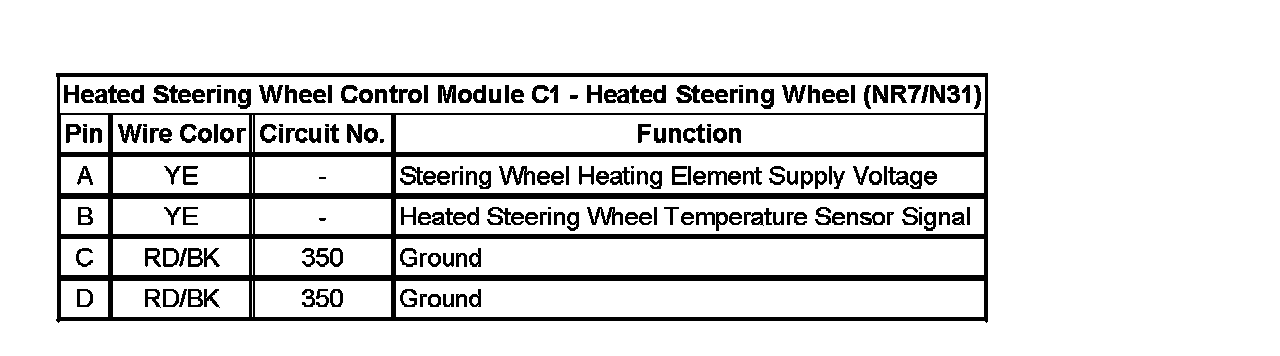

Heated Steering Wheel Control Module C1 - Heated Steering Wheel (NR7/N31):

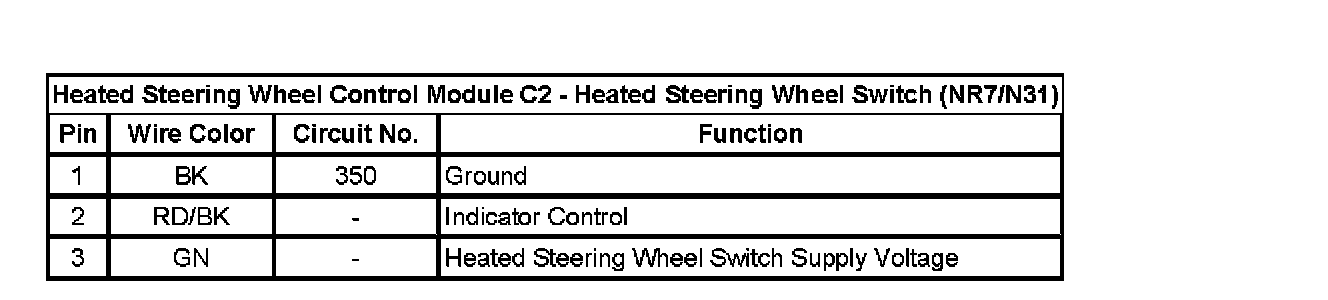

Heated Steering Wheel Control Module C2 - Heated Steering Wheel Switch (NR7/N31):

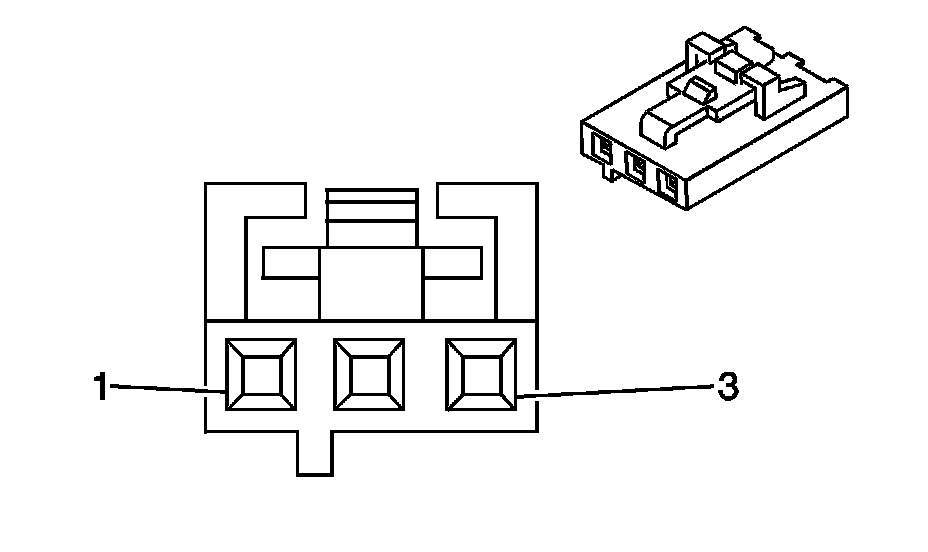

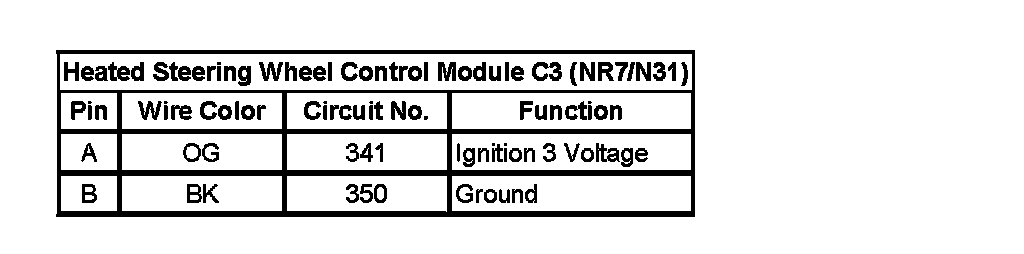

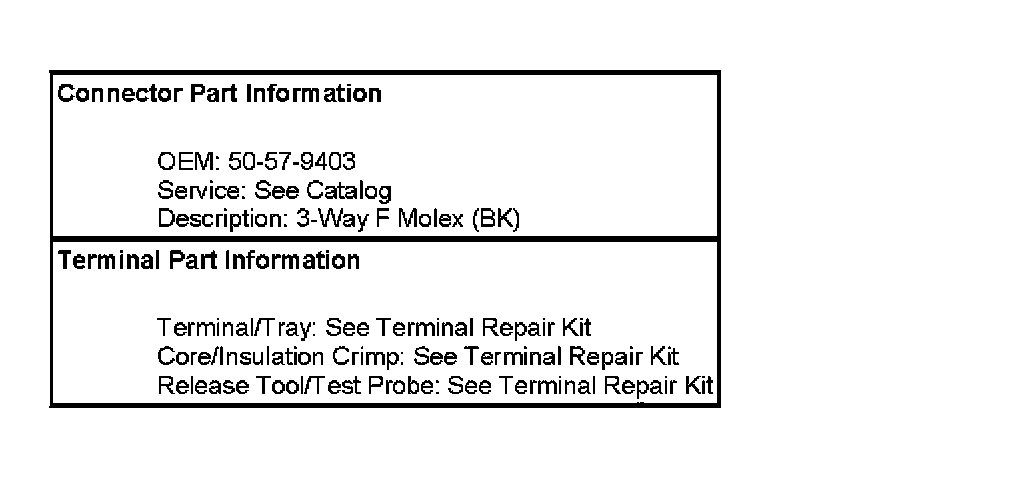

Heated Steering Wheel Control Module C3 (NR7/N31):

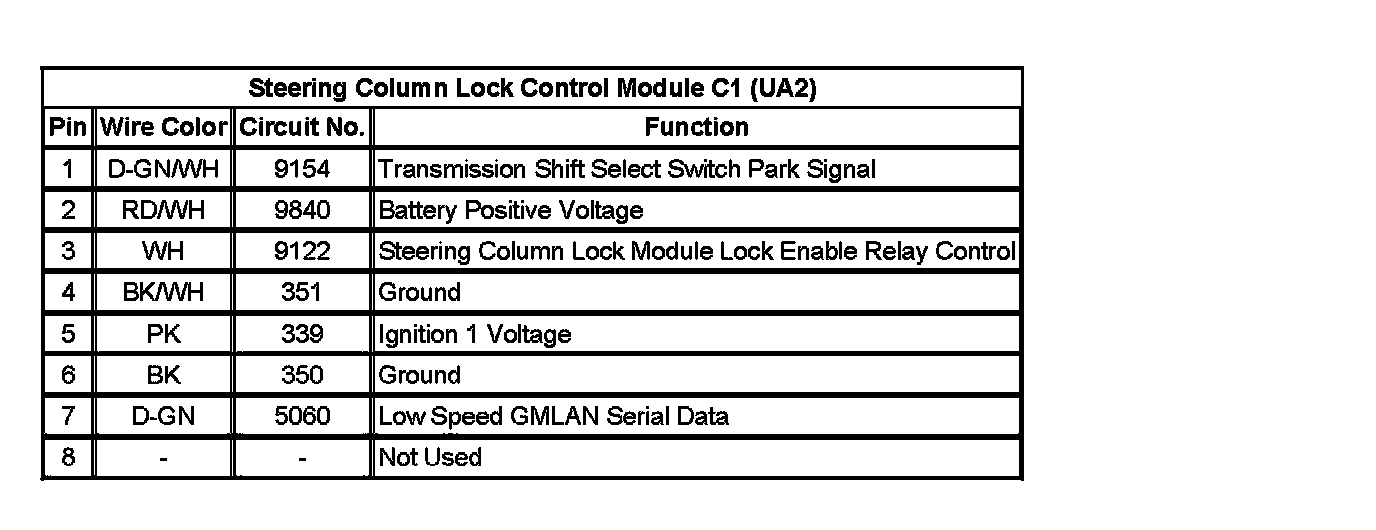

Steering Column Lock Control Module C1 (UA2):

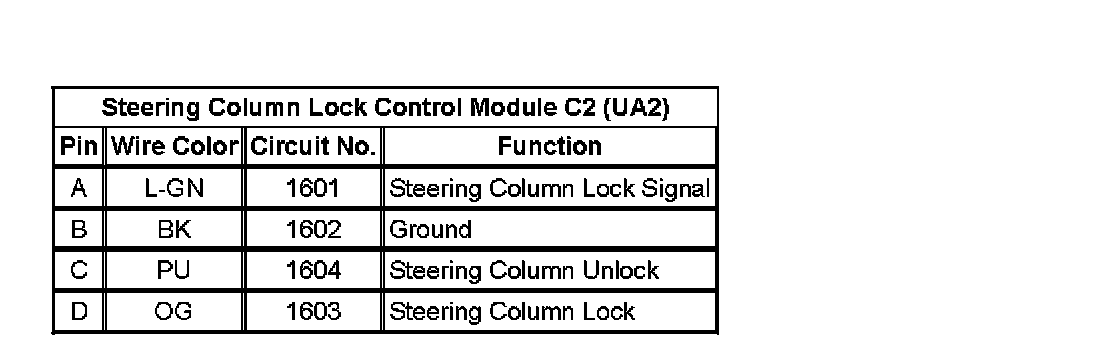

Steering Column Lock Control Module C2 (UA2):
