Secondary Timing Chain Guide Replacement - Left



SECONDARY TIMING CHAIN GUIDE REPLACEMENT - LEFT

Removal Procedure

1. Remove the engine front cover. Service and Repair

2. Remove the left bank secondary camshaft drive chain tensioner. 31. Secondary Camshaft Drive Chain Tensioner Removal - Left Side

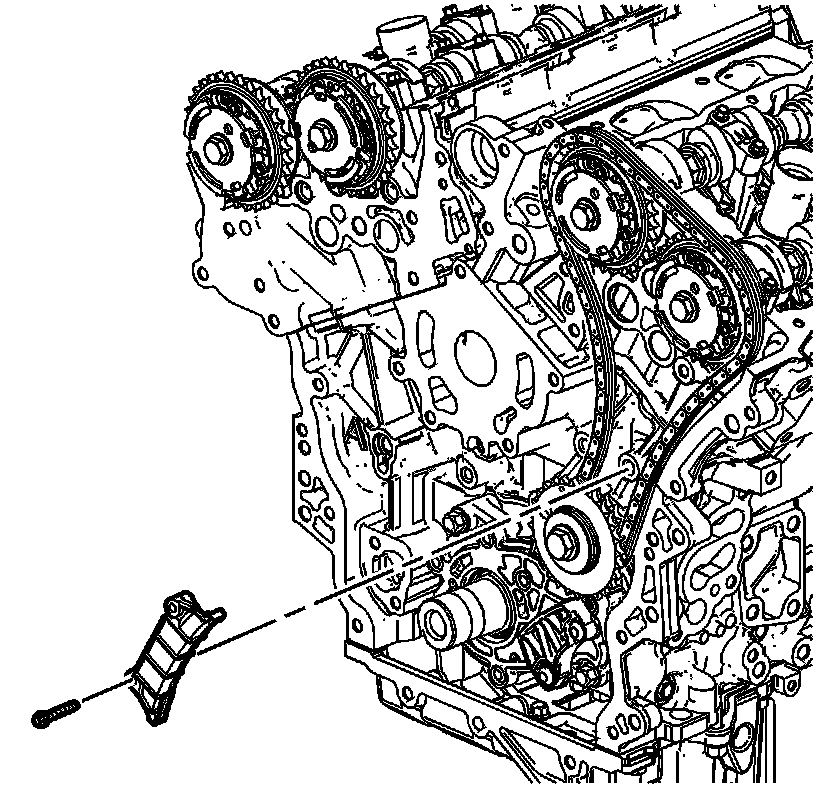

3. Remove the left bank secondary camshaft drive chain guide. 33. Secondary Camshaft Drive Chain Guide Removal - Left Side

Installation Procedure






1. Install the left bank secondary camshaft drive chain guide. 116. Secondary Camshaft Drive Chain Guide Installation - Left Side

2. Install the left bank secondary camshaft drive chain tensioner. 118. Secondary Camshaft Drive Chain Tensioner Installation - Left Side

3. Install the engine front cover. Service and Repair
