Secondary Timing Chain Guide Replacement - Right



SECONDARY TIMING CHAIN GUIDE REPLACEMENT - RIGHT

Removal Procedure
1. Remove the engine front cover. Service and Repair

2. Remove the right bank secondary camshaft drive chain tensioner. 22. Secondary Camshaft Drive Chain Tensioner Removal - Right Side

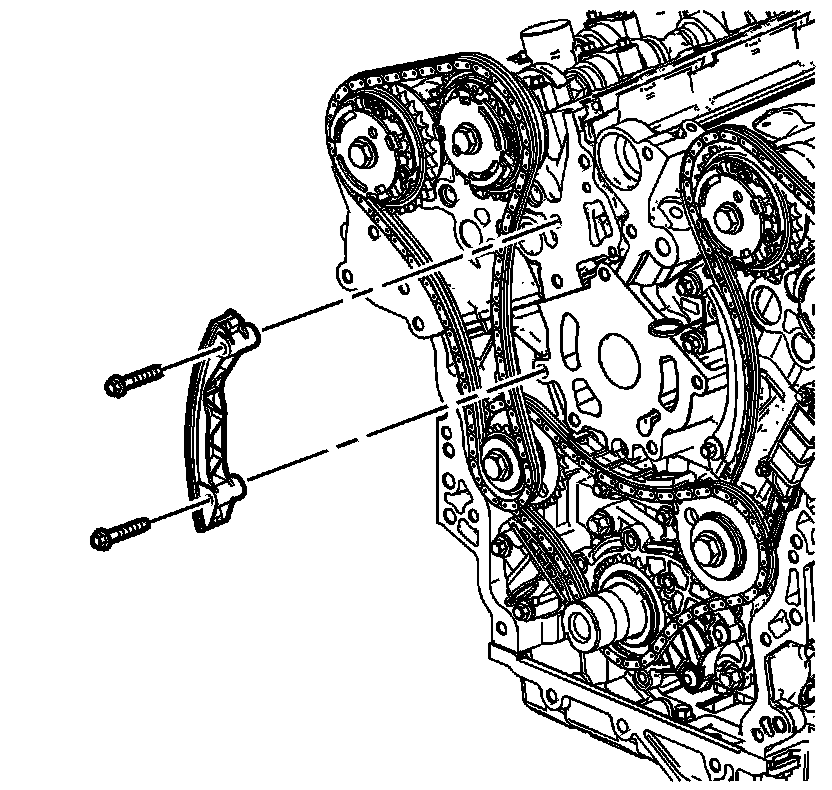

3. Remove the right bank secondary camshaft drive chain guide. 24. Secondary Camshaft Drive Chain Guide Removal - Right Side

Installation Procedure






1. Install the right bank secondary camshaft drive chain guide. 125. Secondary Camshaft Drive Chain Guide Installation - Right Side

2. Install the right bank secondary camshaft drive chain tensioner. 127. Secondary Camshaft Drive Chain Tensioner Installation - Right Side

3. Install the engine front cover. Service and Repair
