Left Rear Fuse Block



Location View:

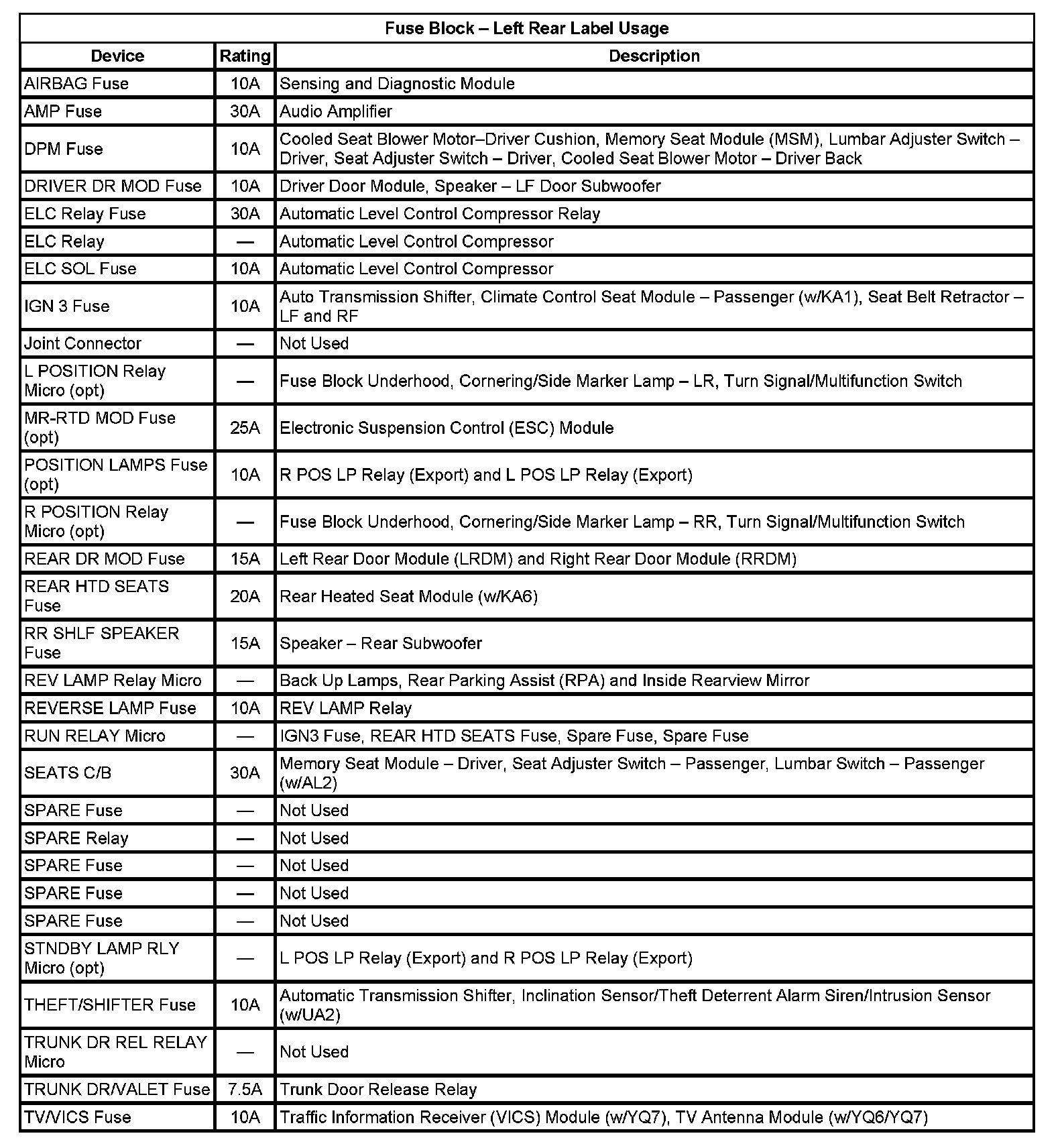

Application Table:

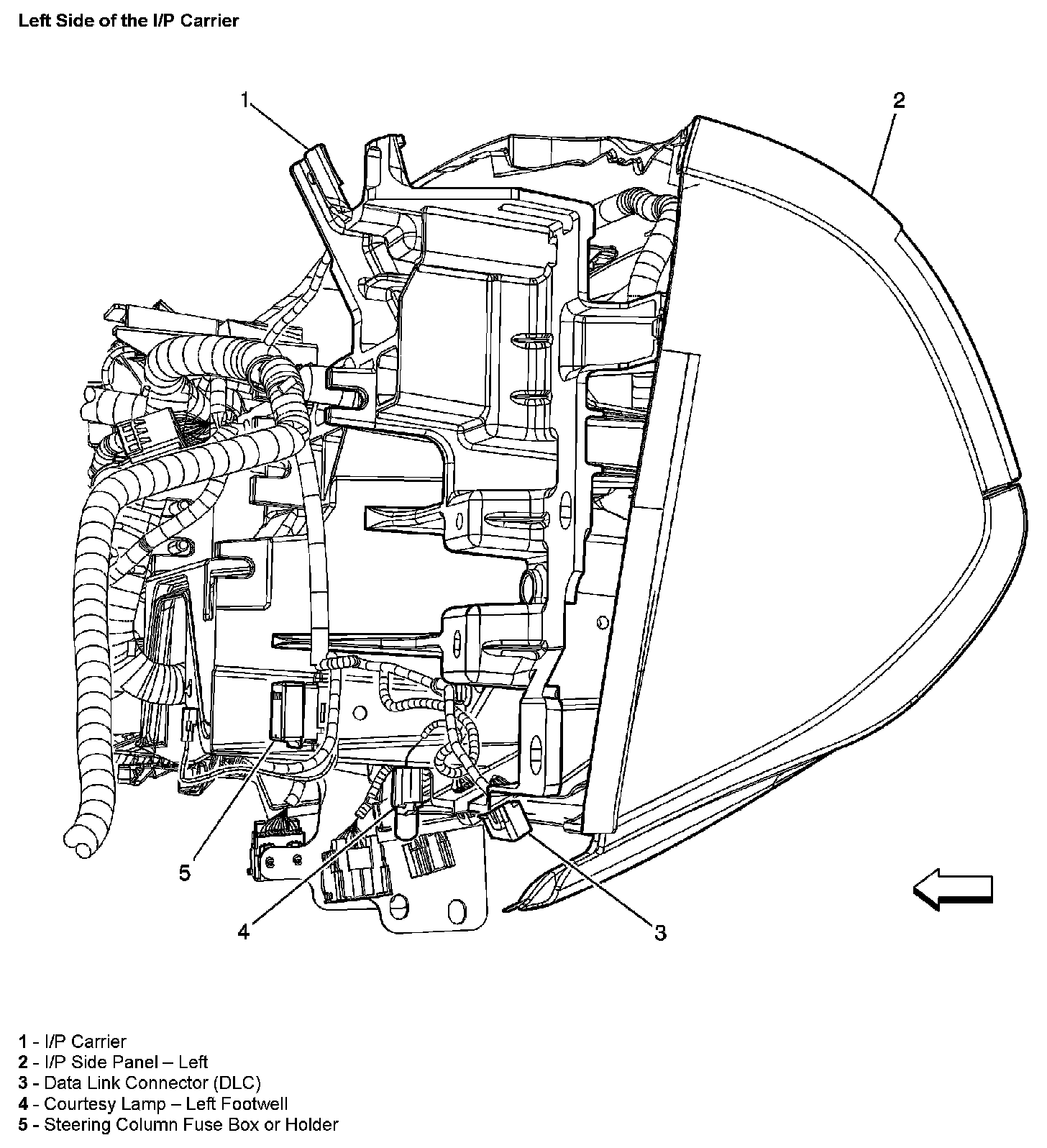

Left Side Of The I/P Carrier:




Location View:




Location View:
