G113



Power and Grounding Component Views

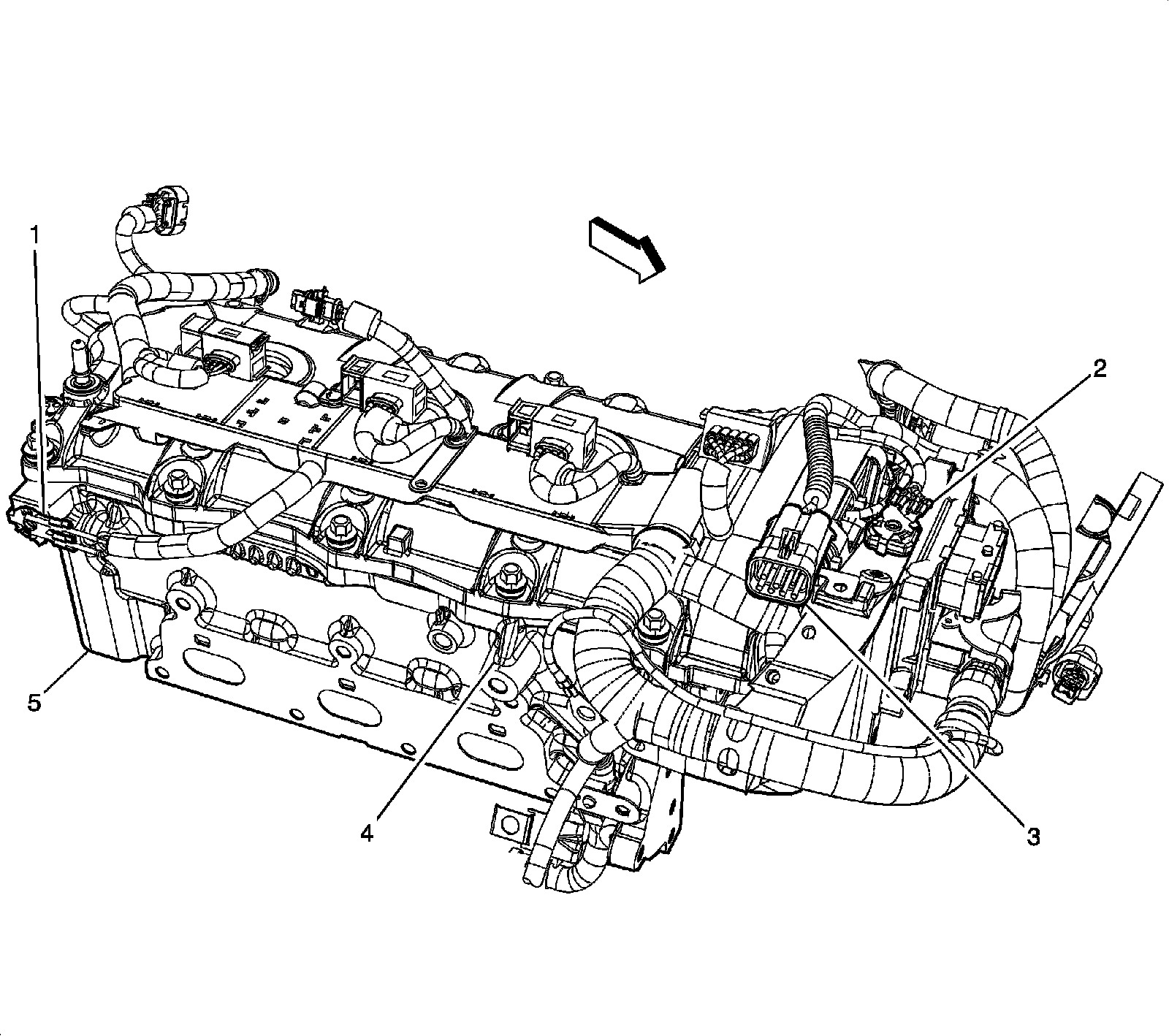

G103, G109 and G113 (LY7)




1 - G109
2 - G103
3 - C106
4 - G113
5 - Right Cylinder Block
