Connector Views



Cruise Control Connector End Views

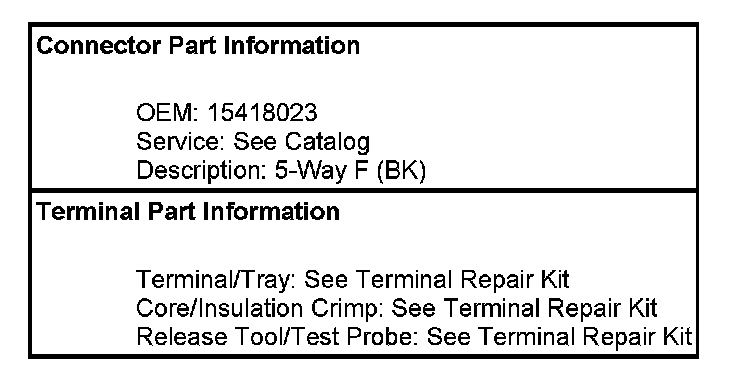

Distance Sensing Cruise Control Module (K59)

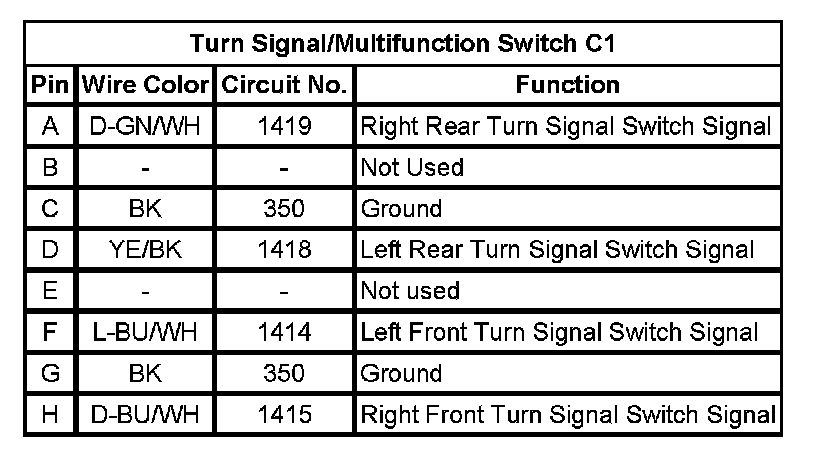

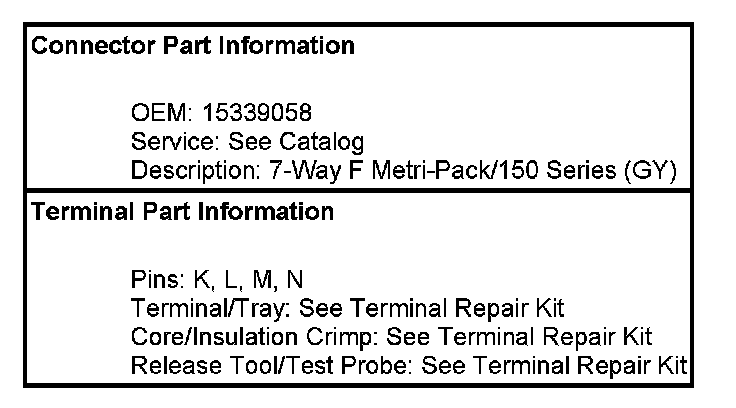

Turn Signal/Multifunction Switch C1

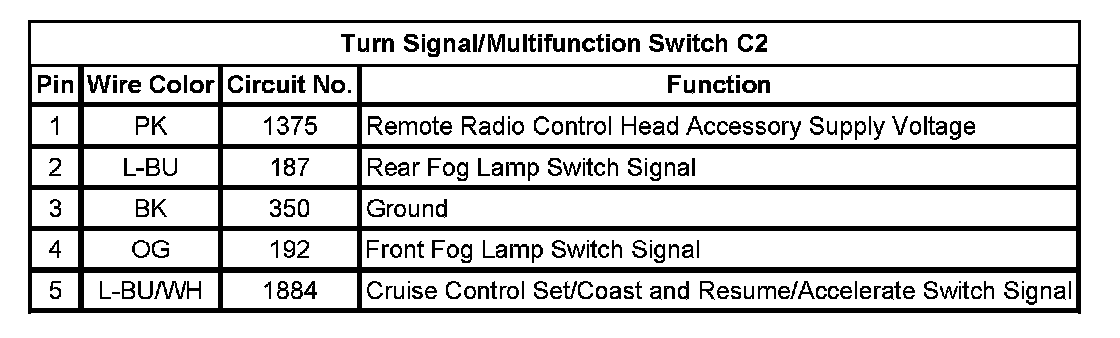

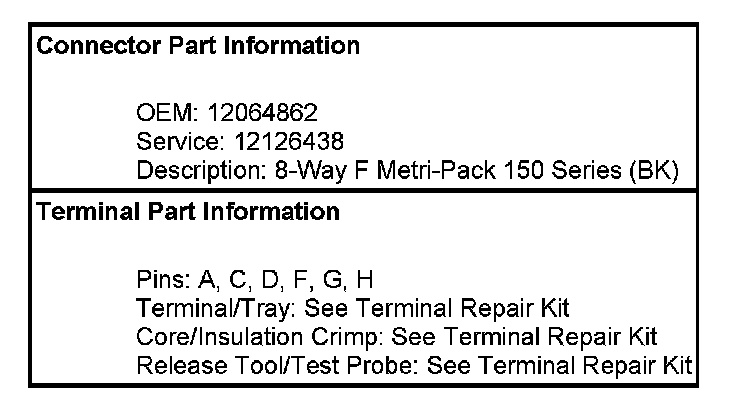

Turn Signal/Multifunction Switch C2

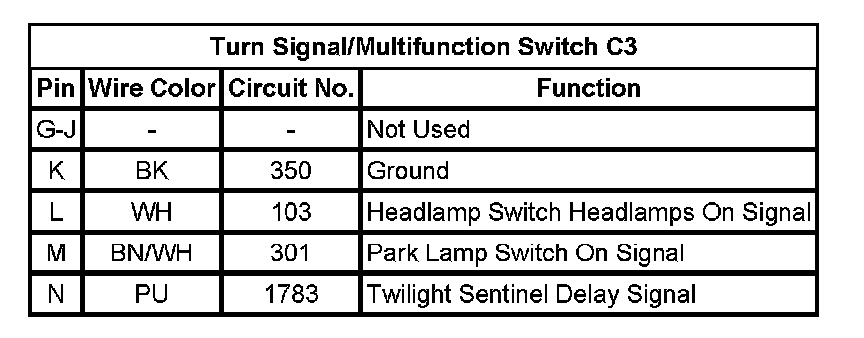

Turn Signal/Multifunction Switch C3

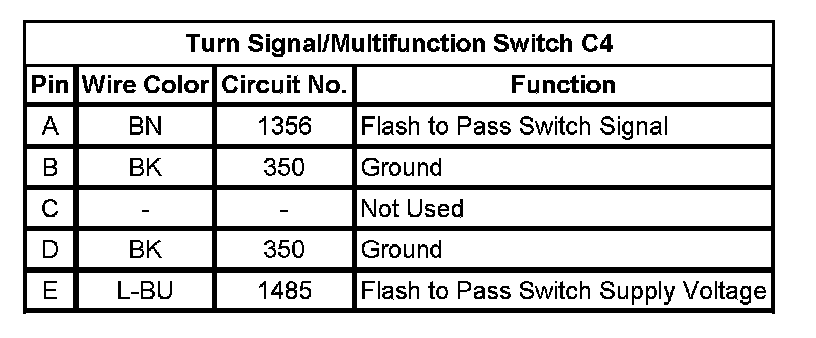

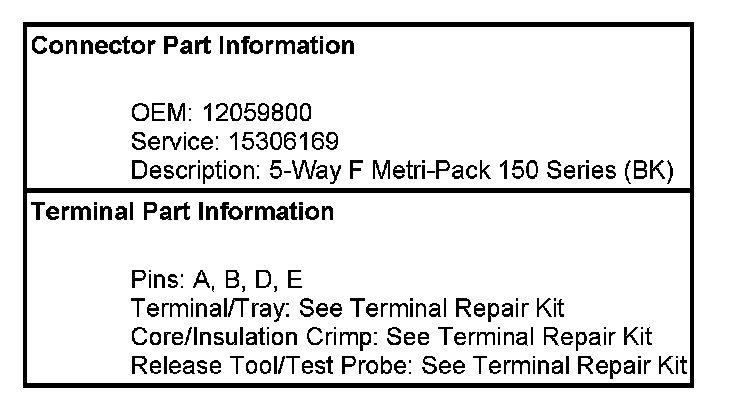

Turn Signal/Multifunction Switch C4
