Scan Tool Output Controls



Scan Tool Output Controls

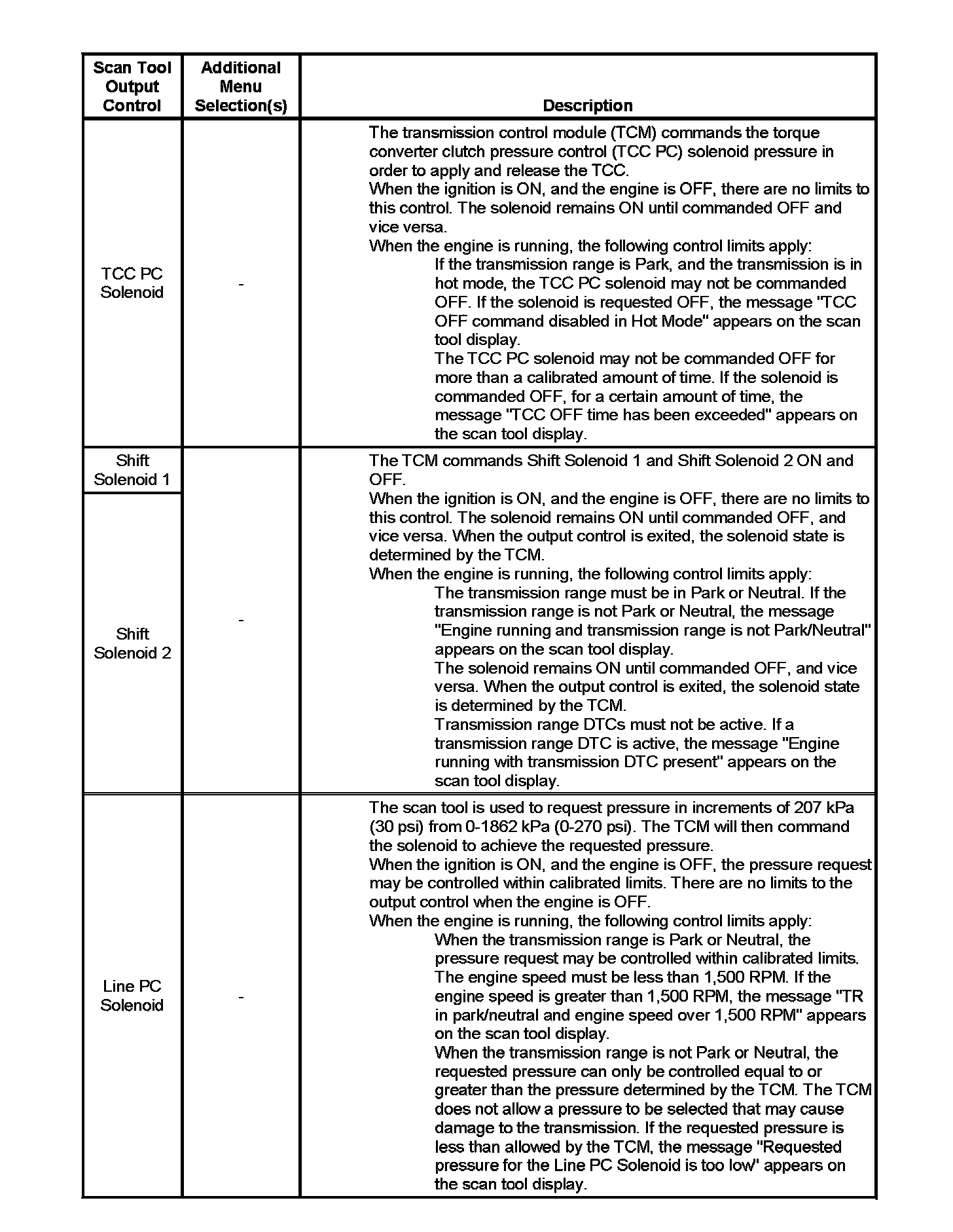

Scan Tool Output Controls (Part 1):

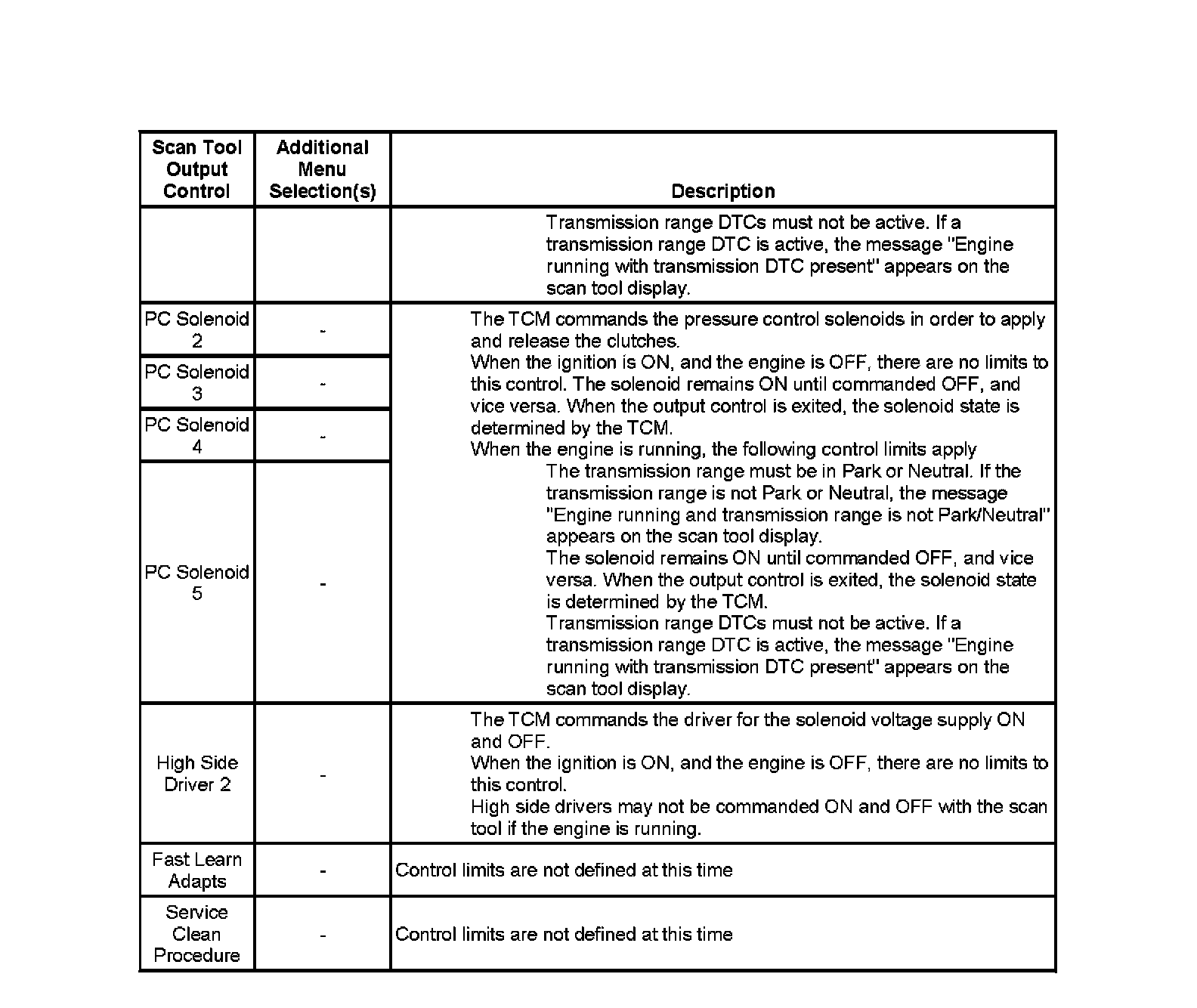

Scan Tool Output Controls (Part 2):
