Brake Fluid Pressure Sensor Connector End View

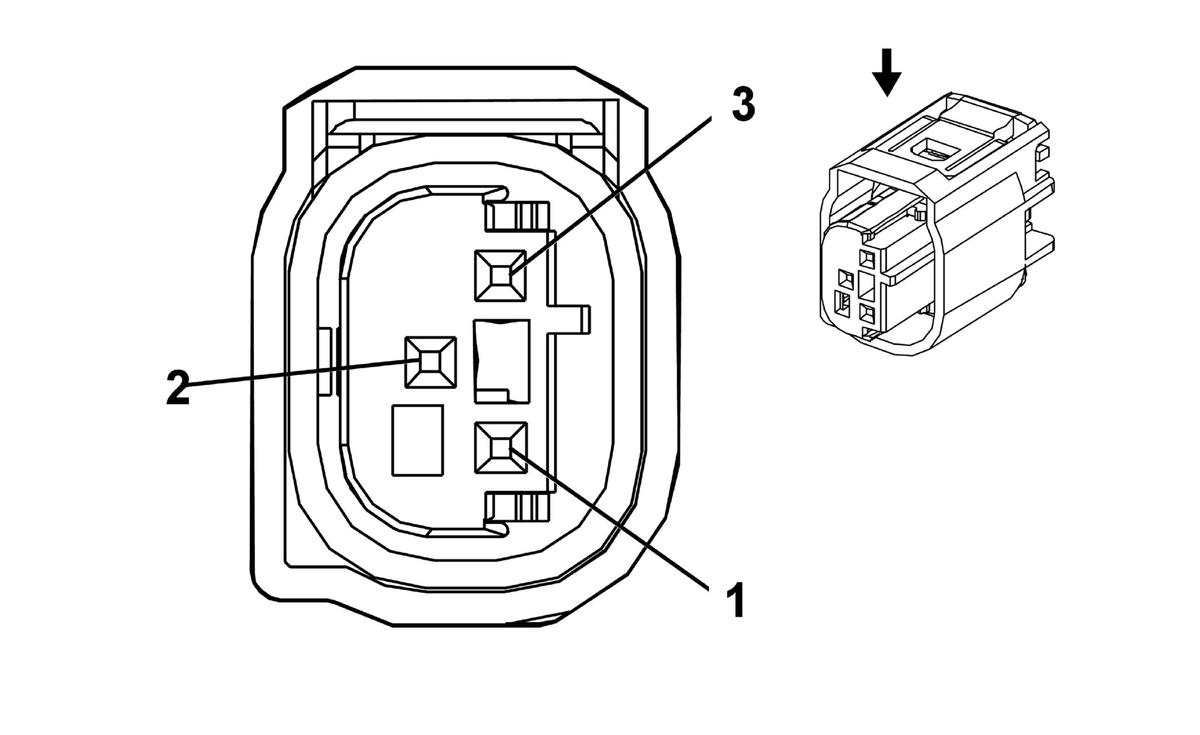

Fig 1: Brake Fluid Pressure Sensor Connector End View
GM1243672Courtesy of GENERAL MOTORS CORP.
Brake Fluid Pressure Sensor Connector Parts Information

Connector Part Information
  • OEM: 2-967642-1
  • Service: 15306334
  • Description: 3-Way F Amp (BK)
Terminal Part Information
  • Terminal/Tray: 962885-5/15
  • Core/Insulation Crimp: 6/6
  • Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
Brake Fluid Pressure Sensor Connector End View

Pin Wire Color Circuit No. Function
1 L-GN/BK 1338 Yaw Rate Sensor Signal (2)
2 PU 5002 Brake Pressure Modulator Valve
3 GY/BK 1337 Yaw Rate Sensor Volt Reference
