Engine Oil Pressure (EOP) Sensor Connector End View

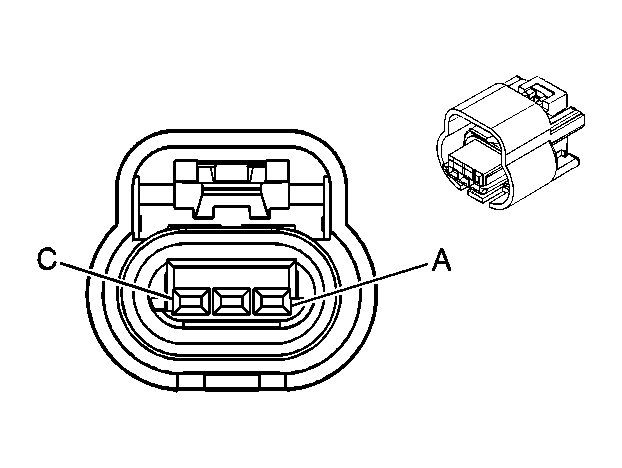

Fig 1: Engine Oil Pressure (EOP) Sensor Connector End View
GM646409Courtesy of GENERAL MOTORS CORP.
Engine Oil Pressure (EOP) Sensor Connector Parts Information

Connector Part Information
  • OEM: 15336121
  • Service: 88953362
  • Description: 3-Way F GT 150 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 15326267/19
  • Core/Insulation Crimp: E/4
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Engine Oil Pressure (EOP) Sensor Connector End View

Pin Wire Color Circuit No. Function
A BK 2755 Low Reference
B TN/WH 331 Oil Pressure Sensor Signal
C GY 2705 5-Volt Reference A


Fig 1: Engine Oil Pressure (EOP) Sensor Connector End View
GM646409Courtesy of GENERAL MOTORS CORP.
Engine Oil Pressure (EOP) Sensor Connector Parts Information

Connector Part Information
  • OEM: 15336121
  • Service: 88953362
  • Description: 3-Way F GT 150 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 15326267/19
  • Core/Insulation Crimp: E/4
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Engine Oil Pressure (EOP) Sensor Connector End View

Pin Wire Color Circuit No. Function
A BK 2755 Low Reference
B TN/WH 331 Oil Pressure Sensor Signal
C GY 2705 5-Volt Reference A
