Ignition Coil/Module 7 Connector End View

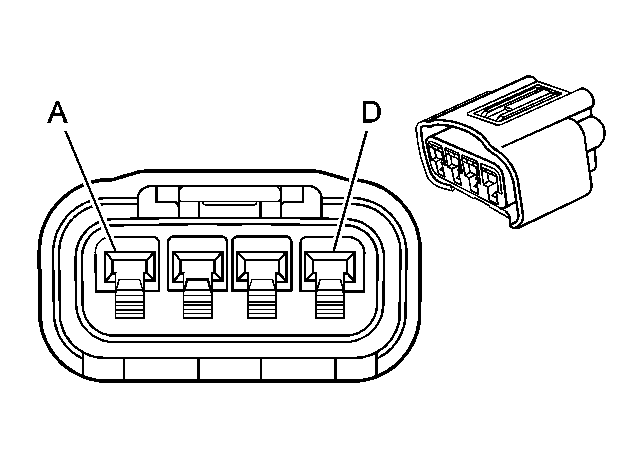

Fig 1: Ignition Coil/Module 7 - Connector End View
GM1711350Courtesy of GENERAL MOTORS CORP.
Ignition Coil/Module 7 - Connector Parts Information

Connector Part Information
  • OEM: 7283-7449-30
  • Service: See Catalog
  • Description: 4-Way F.090 Class II Sealed Series (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Ignition Coil/Module 7 Connector End View

Pin Wire Color Circuit No. Function
A PK/BK 5291 Ignition 1 Voltage
B OG 2127 IC 7 Control
C BN 2129 Low Reference
D BK/WH 1451 Ground


Fig 1: Ignition Coil/Module 7 - Connector End View
GM1711350Courtesy of GENERAL MOTORS CORP.
Ignition Coil/Module 7 - Connector Parts Information

Connector Part Information
  • OEM: 7283-7449-30
  • Service: See Catalog
  • Description: 4-Way F .090 Class II Sealed Series (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Ignition Coil/Module 7 Connector End View

Pin Wire Color Circuit No. Function
A PK/BK 5291 Ignition 1 Voltage
B OG 2127 IC 7 Control
C BN 2129 Low Reference
D BK/WH 1451 Ground
