Distance Sensing Cruise Control Module Connector End View (K59)

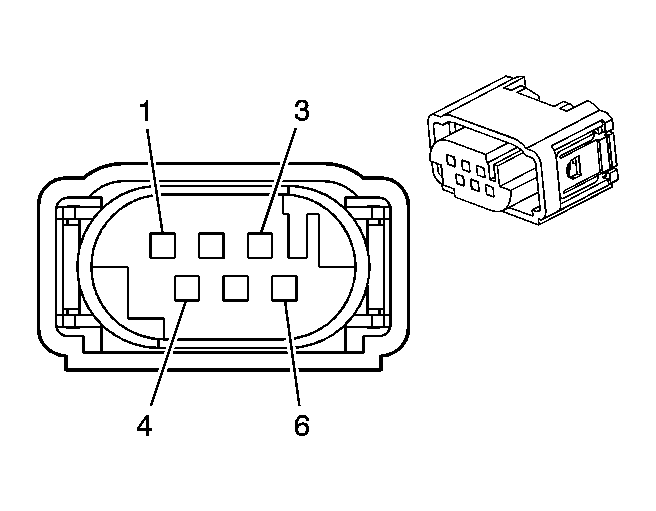

Fig 1: Distance Sensing Cruise Control Module (K59) Connector End View
GM1420665Courtesy of GENERAL MOTORS CORP.
Distance Sensing Cruise Control Module (K59) Connector Parts Information

Connector Part Information
  • OEM: 2-967616-1
  • Service: 88953345
  • Description: 6-Way F Micro Series Sealed (GY)
Terminal Part Information
  • Pins: 1, 3, 4, 5, 6
  • Terminal/Tray: 962885-5/15
  • Core/Insulation Crimp: 6/6
  • Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
Distance Sensing Cruise Control Module (K59) Connector End View

Pin Wire Color Circuit No. Function
1 RD/WH 340 Battery Positive Voltage
2 - - Not Used
3 YE 5727 High Speed GMLAN Serial Data Wake Up (TT7/TT8 w/ K59)
YE 5727 High Speed GMLAN Serial Data Wake Up (TT6 w/ K59)
4 TN/BK 2500 High Speed GMLAN Serial Data (+) (1)
5 TN 2501 High Speed GMLAN Serial Data (-) (1)
6 BK 250 Ground
