Mirror Replacement

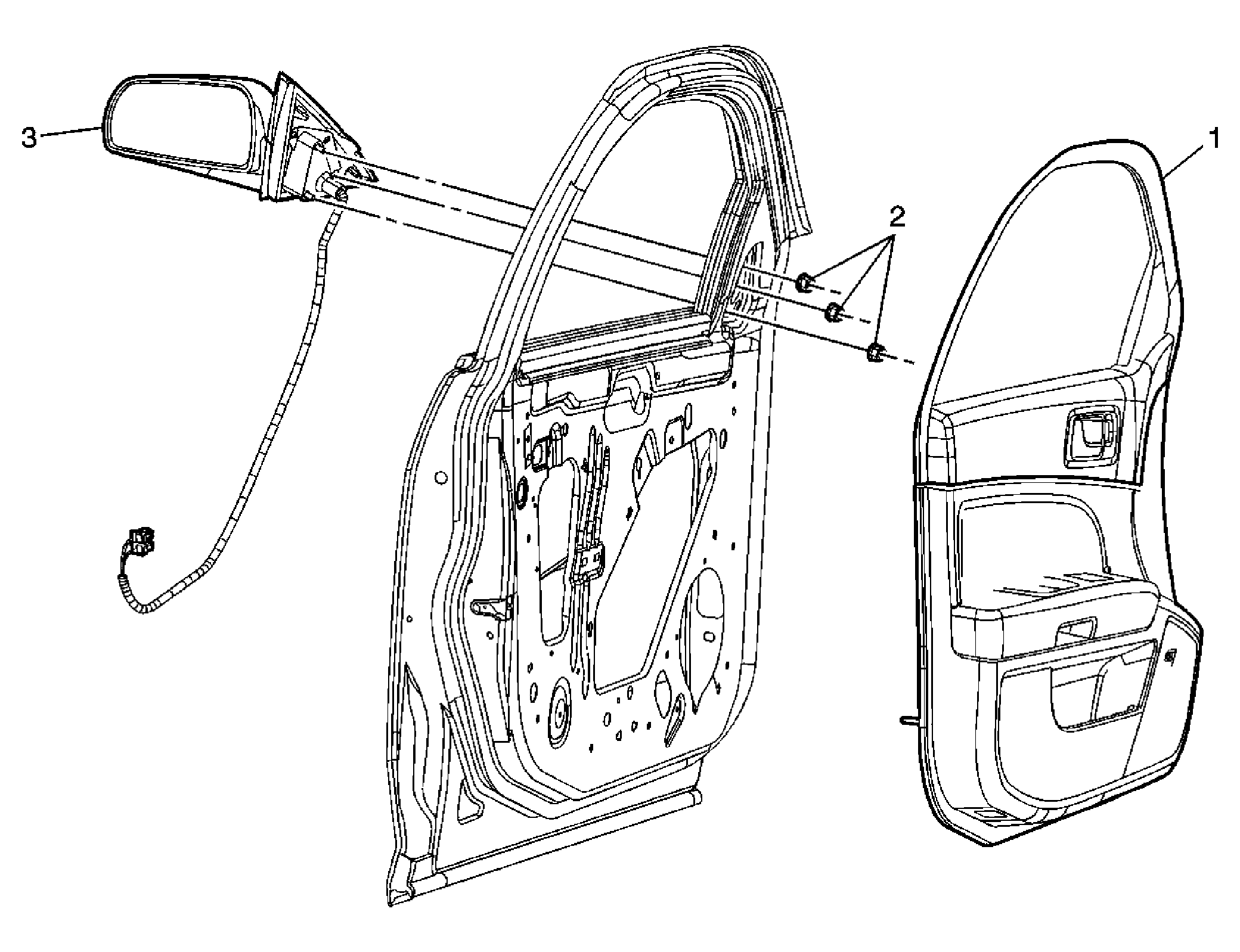

Fig 1: View Of Door Trim Panel, Outside Rearview Mirror & Fasteners

Courtesy of GENERAL MOTORS CORP.

Mirror Replacement

Callout	Component Name
1	Front Door Trim Panel. Refer to Front Side Door Trim Panel Replacement .
2	Outside Power Mirror Nuts (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in) Tip: Disconnect the electrical connector.
3	Outside Power Mirror
