Installation Procedure

    Fig 1: View Of Battery Retainer Bolt
    GM1296795Courtesy of GENERAL MOTORS CORP.
  1. Install the battery into the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the battery retainer and bolt.

    Tighten:  Tighten the bolt to 18 N.m (13 lb ft).

    3. Fig 2: View Of Battery Heat Shield
    GM1296794Courtesy of GENERAL MOTORS CORP.
  3. Install the battery heat shield. Refer to Battery Heat Shield Replacement .

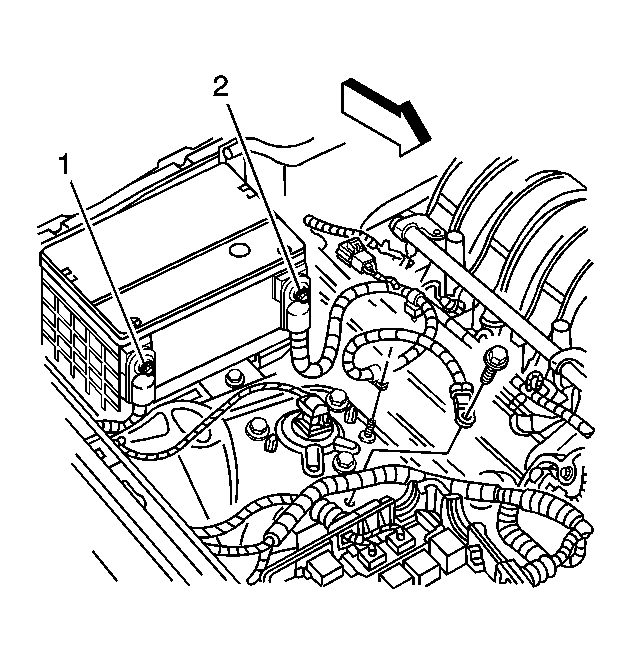

    4. Fig 3: View Of Battery Cables
    GM1201077Courtesy of GENERAL MOTORS CORP.
  4. Connect the battery positive cable (1) to the battery.

    Tighten:  Tighten the bolt to 17 N.m (13 lb ft).

  5. Connect the battery negative cable (2). Refer to Battery Negative Cable Disconnection and Connection .
