Remote Function Component Views
WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

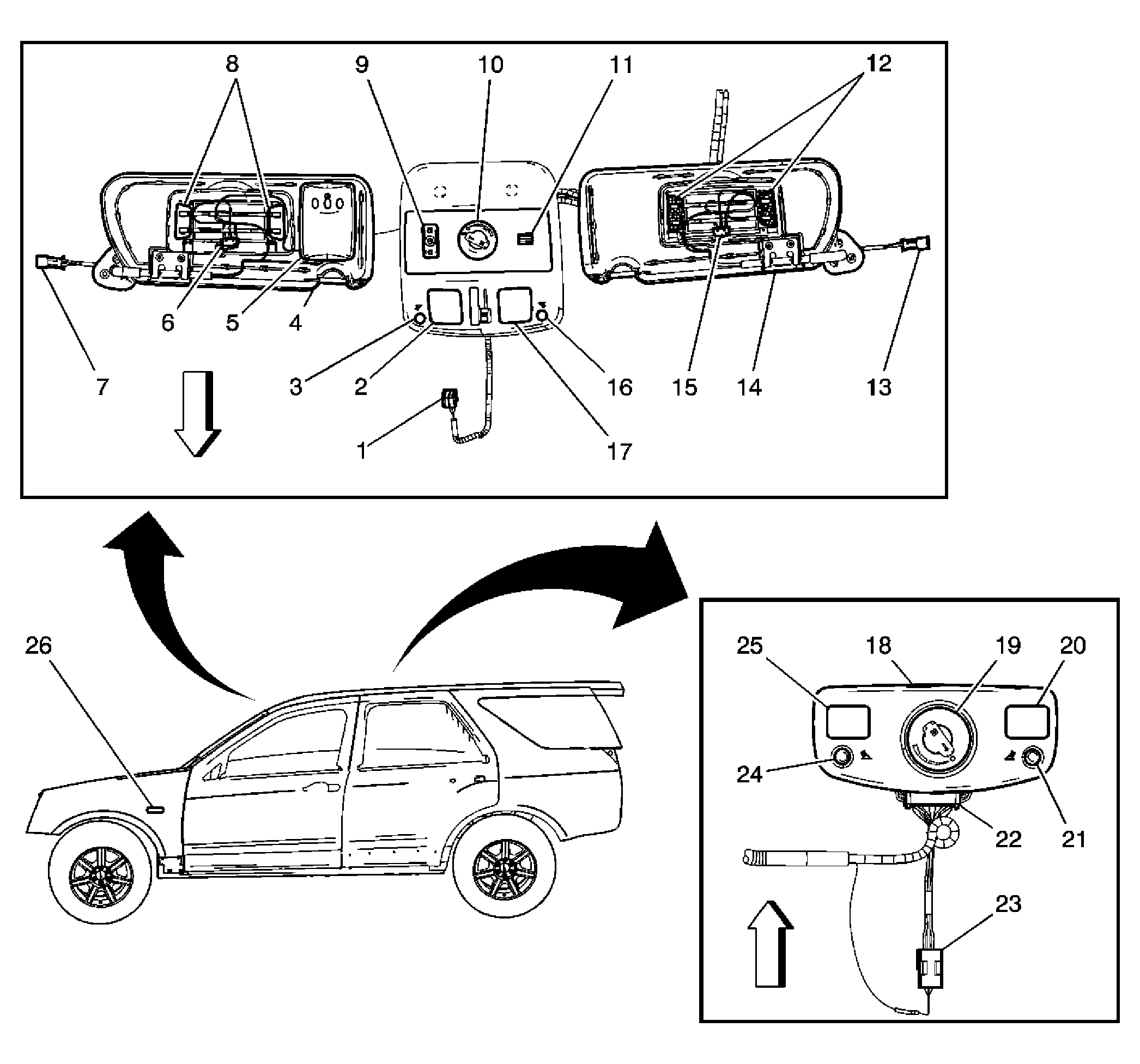

| Callout |
Component Name |
| 1 |
Inside Rearview Mirror (ISRVM) Connector |
| 2 |
Courtesy/Reading Lamp - Front Left |
| 3 |
Courtesy/Reading Lamp Switch - Front Left |
| 4 |
Sunshade - Left |
| 5 |
Garage Door Opener (UG1) |
| 6 |
Vanity Mirror Lamp Switch - Left |
| 7 |
Vanity Mirror Lamp Connector - Left |
| 8 |
Vanity Mirror Lamps - Left |
| 9 |
Rear Wiper/Washer Switch |
| 10 |
Blower Motor Switch - Auxiliary (C57) |
| 11 |
Noise Compensation Microphone (UQS) |
| 12 |
Vanity Mirror Lamps - Right |
| 13 |
Sunshade Connector - Right |
| 14 |
Sunshade - Right |
| 15 |
Vanity Mirror Lamp Switch - Right |
| 16 |
Courtesy/Reading Lamp Switch - Front Right |
| 17 |
Courtesy/Reading Lamp - Front Right |
| 18 |
Overhead Console Assembly - Center |
| 19 |
Blower Motor Switch - Rear Auxiliary (C57) |
| 20 |
Courtesy Lamp - Left Center |
| 21 |
Courtesy Lamp Switch - Left Center |
| 22 |
Blower Motor Switch Connector - Rear Auxiliary (C57) |
| 23 |
Courtesy Lamps Connector |
| 24 |
Courtesy Lamp Switch - Right Center |
| 25 |
Courtesy Lamp - Right Center |
| 26 |
Repeater Lamp - Left, Right Similar (T90) |
Courtesy of GENERAL MOTORS CORP.

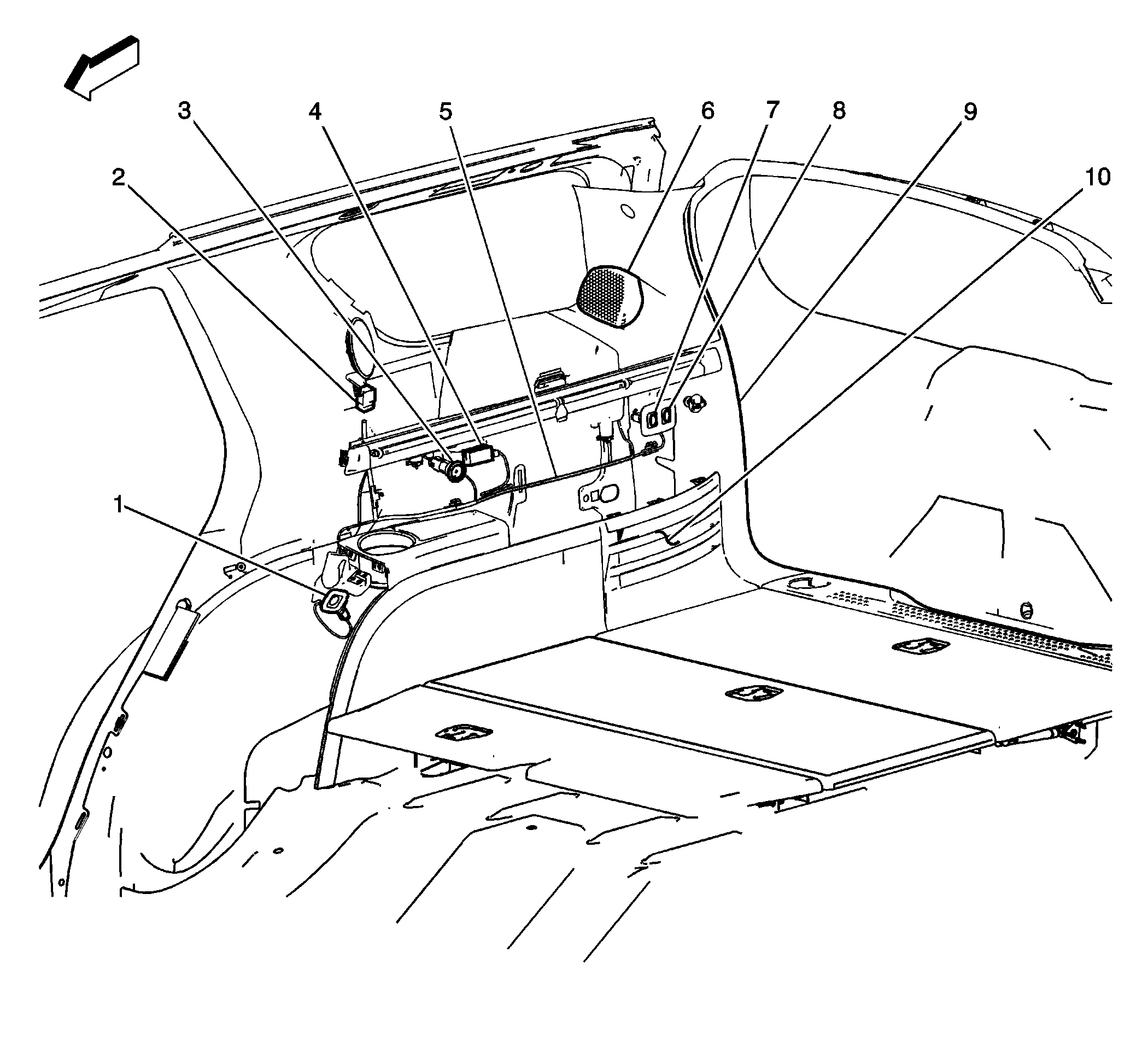

| Callout |
Component Name |
| 1 |
Remote Control Door Lock Receiver (RCDLR) |
| 2 |
C316 |
| 3 |
S306 (AMO) |
| 4 |
Speaker - Right D-Pillar (UQS) |
| 5 |
Folding Seat Recline Switch (AM0) |
| 6 |
Folding Seat Stow Switch - Rear (AM0) |
| 7 |
Rear Quarter Trim Panel - RH |
| 8 |
Speaker - Rear Subwoofer |
| 9 |
Folding Seat Stow Switch - Front (AM0) |
| 10 |
Auxiliary Power Outlet - Rear |
