Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

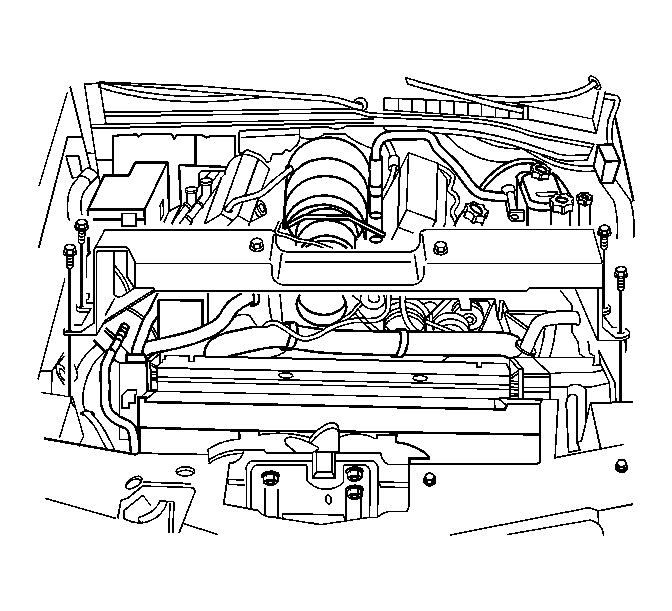

Fig 1: Identifying Radiator Support

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Position the radiator support in the correct relationship to the fan shroud.

Install the radiator support.

Fig 2: Identifying Radiator Support Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the radiator support bolts.
Tighten: Tighten the bolts to 9 N.m (80 lb in).
Connect the surge tank inlet hose assembly to the radiator support tabs.

Fig 3: Identifying Mass Air Flow Sensor Wire

Courtesy of GENERAL MOTORS CORP.

Connect the MAF sensor wire (1) to the radiator support retainer clip.
Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
